SERVICE

PARTS

MANUAL

ST, MT & HT SERIES SNOW PLOWS

ST SERIES SERIAL NUMBERS AFTER

STD200000

STG200000

MT SERIES SERIAL NUMBERS AFTER

MTD200000

MTG200000

HT SERIES SERIAL NUMBERS AFTER

HTD200000

HTG200000

97100740F

TABLE OF CONTENTS

Page

PARTS LIST INTRODUCTION.................................................................................... 2

POWER PACK FRAME - ST SERIES......................................................................... 3

POWER PACK FRAME - MT & HT SERIES............................................................... 5

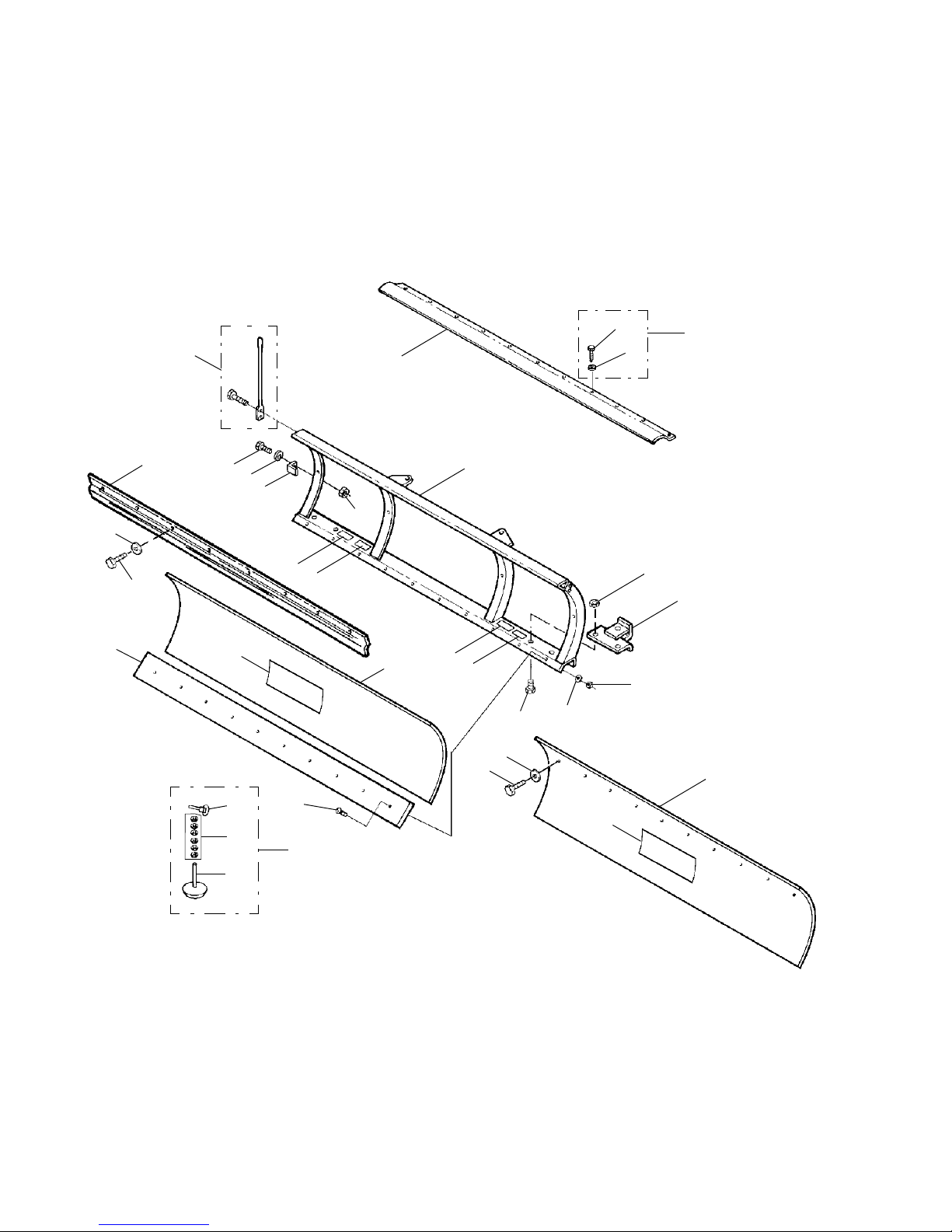

BLADES - ST SERIES ................................................................................................ 7

BLADES - MT & HT SERIES...................................................................................... 9

HYDRAULIC SYSTEM - GRAVITY DOWN - STG, MTG, HTG................................. 11

HYDRAULIC SYSTEM - DOWN PRESSURE SYSTEM - STD, MTD, HTD ............. 12

HYDRAULIC POWER UNIT - GRAVITY DOWN - STG, MTG, HTG......................... 13

HYDRAULIC POWER UNIT - DOWN PRESSURE SYSTEM - STD, MTD, HTD ..... 15

LIFT CYLINDERS - GRAVITY DOWN SYSTEM - STG, MTG, HTG ........................ 17

LIFT CYLINDERS - DOWN PRESSURE SYSTEM - STD, MTD, HTD ..................... 18

ANGLE CYLINDERS - ST, MT, HT ........................................................................... 19

POWER PACK WIRING - ST, MT, HT ....................................................................... 20

CONTROL SYSTEM WIRING - ST, MT, HT.............................................................. 21

EMERGENCY KIT..................................................................................................... 22

NUMERICAL INDEX ................................................................................................. 23

Below is parts listing with four columns. The first column is the "ITEM", the second is the "PART NUMBER", The third is

the "DESCRIPTION" and the fourth is the "QUANTITY".

The "ITEM" is the number used in the corresponding illustration.

The "PART NO." Is the number used to order replacement parts. If a number does not appear

in the column the part is only available by ordering the complete assembly.

The "DESCRIPTION" is the name of the replacement part. At times the name

may be indented, this means that the indented parts are part of the preceding

assembly.

The "QTY." Is the quantity needed to service the assembly

illustrated, not the complete product.

USING THIS PARTS LIST

PARTS LIST INTRODUCTION

Our dealership network stands by to provide you with any assistance you may require, including genuine Sno-Way

service parts. All parts should be obtained from or ordered through your dealer. Give complete information about the

part as well as the Model Number and Serial Number of your machine.

Record the Serial Number in the space provided in your Owner’s Manual for quick reference. The Serial Number for the

unit is on a plate located on the left frame gusset of the Hopper Frame.

"Right" and "Left" are determined from a position sitting on the Operators Seat of the vehicle.

We reserve the right to make changes or improvements in the design or construction of any part without incurring the

obligation to install such changes in any unit previously delivered.

1 96100083 O-ring 1

2 96001529 Elbow 3

3 98100036 Capscrew, Hex.,3/8"-16NC x 7/8"9

ITEM PART NO. DESCRIPTION QTY.

POWER PACK FRAME - ST SERIES

15 14

16 17 18

19 25

27 22

55 52

47 46

29 22

30 22 23

41 42

31 13

POWER PACK FRAME - ST SERIES

1 98100005 Nut, Hex, 1-1/4" .............................................................................................. 1

2 96100073 Plate, Locking, Nut.......................................................................................... 1

3 98009022 Capscrew, Hex, 3/8"-16 x 1" ........................................................................... 1

4 98009008 Washer, Lock. 3/8".......................................................................................... 2

5 96105005 Platform, Pump............................................................................................... 1

6 98009077 Nut, Hex, 3/8"-16 ............................................................................................ 3

7 98009009 Nut, Hex, Nylock, 3/8"-16................................................................................ 2

8 98009032 Washer, Flat, 3/8" ........................................................................................... 5

9 96105006 Cover, Pump ................................................................................................... 1

10 97100750 Decal, Down Pressure .................................................................................... 1

97100752 Decal, Gravity Down ....................................................................................... 1

11 98019230 Washer, Flat, 5/16" ......................................................................................... 4

12 98019176 Screw, Flange HD, Self Tapping, 5/16" x 3/4"................................................. 4

13 98009169 Pin, Lynch, 1/4" x 1-9/16" ............................................................................... 3

14 96105057 Pin, Hitch, 3/4" x 7-7/8"................................................................................... 1

15 96104928 Ass’y, Lift Link ................................................................................................. 1

16 98100105 Pin, Cotter, 1/8" x 1"........................................................................................ 2

17 98100104 Washer, 3/8" ................................................................................................... 2

18 96102130 Spring, Latch .................................................................................................. 2

19 96103524 Ass’y, Stand .................................................................................................... 1

20 96103519 Pin, Latch........................................................................................................ 1

21 96102168 Spacer, Stand ................................................................................................. 1

22 98100176 Washer, Special, Hardened ............................................................................ 7

23 98009013 Nut, Lock, Hex Head, 1/2"-13 ......................................................................... 4

24 98100172 Nut, Jam, Hex Head ....................................................................................... 2

25 96102131 Pin, Latch........................................................................................................ 1

26 98100062 Cap Screw, Hex Head, 1/2"-13 x 2-1/4".......................................................... 1

27 96104924 Spacer, Lift Arm .............................................................................................. 2

28 96104920 Ass’y, Bellcrank............................................................................................... 1

29 98009036 Cap Screw, Hex Head, 1/2"-13 x 3-1/2".......................................................... 2

30 96105014 Spacer, Bellcrank............................................................................................ 2

31 98009034 Cap Screw, Hex, 3/8"-16 x 1-1/4" ................................................................... 3

32 97100005 Decal, Patent .................................................................................................. 1

33 98009017 Cap Screw, Hex, 1/2"-13 x 3".......................................................................... 2

34 96105046 Pin, Hitch ........................................................................................................ 2

35 97100004 Decal, Important ............................................................................................. 2

36 98009013 Nut, Hex, Nylock 1/2"-13................................................................................. 4

37 96101956 Clamp, Cable .................................................................................................. 1

38 96104284 A-Frame .......................................................................................................... 1

39 96001044 Cylinder, Angle (details on page 19)............................................................... 2

40 96105278 Ass’y, Cylinder Lock Clamp ............................................................................ 1

41 Pin, Wire Lock................................................................................................. 1

42 Cylinder Lock Clamp....................................................................................... 1

43 98100251 Pin, Special, 5/8" x 3-1/2" ............................................................................... 1

44 96104885 Cylinder, Lift, Down Pressure (details on page 18)......................................... 1

96105043 Cylinder, Lift, Gravity Down (details on page 17)............................................ 1

45 98009085 Pin, Cotter, 5/32" x 1-1/2" ............................................................................... 1

46 98009030 Washer, Flat, 3/4" ........................................................................................... 2

47 98100099 Pin, Special..................................................................................................... 2

48 98009175 Pin, Clevis, 3/4" x 2-1/2" ................................................................................. 2

49 98009055 Cap Screw, Hex, 1/2"-13 x 4-1/2" ................................................................... 2

50 98100028 Cap Screw, Hex, 1"-14 x 7"............................................................................. 1

51 96100919 Frame, Swing.................................................................................................. 1

52 98009039 Washer, Flat, 5/8" ........................................................................................... 4

53 96102781 Eyebolt, 5/8"-11 x 4-1/2" ................................................................................. 2

54 96101061 Spring, Trip ..................................................................................................... 2

55 98009078 Nut, Hex, 5/8"-11 ............................................................................................ 4

56 98100010 Cap Screw, Hex Head, 1/2"-13 x 2" ................................................................ 1

57 98100266 Cap Screw, Hex Head, 1/4"-20 x 6" ................................................................ 1

58 98100255 Nut, Nylock, 1/4"-20........................................................................................ 1

ITEM PART NO. DESCRIPTION QTY

POWER PACK FRAME - MT & HT SERIES

15 16 17

22 23

2928

42 31 32

34 40

47 48

POWER PACK FRAME - MT & HT SERIES

1 96001392 Spring, Trip...................................................................................................... 2

2 98009037 Eyebolt, 5/8"-11 x 6"........................................................................................ 2

3 98009078 Nut, Hex, 5/8"-11............................................................................................. 4

4 98009039 Washer, Flat, 5/8"............................................................................................ 4

5 98009175 Pin, Clevis, 3/4" x 2-1/2".................................................................................. 2

6 98100099 Pin, Special ..................................................................................................... 2

7 98009030 Washer, Flat, 3/4"............................................................................................ 2

8 96103881 Frame, Swing, MT.......................................................................................... 1

96100058 Frame, Swing, HT .......................................................................................... 1

9 98009005 Washer, Flat, 1"............................................................................................... 1

10 96104818 Platform, Pump ............................................................................................... 1

11 98009009 Nut, Hex, Nylock, 3/8"-16 ................................................................................ 1

12 96100073 Plate, Lock, Nut............................................................................................... 1

13 98100005 Nut, Hex, 1"-14................................................................................................ 1

14 98009022 Cap Screw, Hex, 3/8"-16 x 1".......................................................................... 1

15 98009077 Nut, Hex, 3/8"-16............................................................................................. 2

16 96101956 Clamp, Cable .................................................................................................. 1

17 98009032 Washer, Flat, 3/8"............................................................................................ 2

18 98009008 Washer, Lock, 3/8" .......................................................................................... 2

19 98009034 Cap Screw, Hex, 3/8"-16 x 1-1/4".................................................................... 2

20 96105006 Cover, Pump ................................................................................................... 1

21 97100750 Decal, Schematic, Down Pressure.................................................................. 1

97100752 Decal, Schematic, Gravity Down..................................................................... 1

22 98019230 Washer, Flat, Black, 5/16" ............................................................................... 4

23 98019176 Screw, Flange HD, Self Tapping, Black, 5/16" x 1".......................................... 4

24 98009169 Pin, Lynch, 1/4" x 1-9/16"................................................................................ 3

25 96105057 Pin, Hitch, 3-1/4" x 7-7/8"................................................................................ 1

26 96103914 Bar, Lift............................................................................................................ 1

27 98100062 Cap Screw, Hex, 1/2"-13 x 2-1/4".................................................................... 1

28 98100176 Washer, Special Hardened ............................................................................. 7

29 96102271 Spacer, Lift Bar ............................................................................................... 2

30 98100010 Cap Screw, Hex, 1/2"-13 x 2".......................................................................... 1

31 98100105 Cotter Pin, 1/8" x 1"......................................................................................... 2

32 98100104 Washer, Plate, 3/8".......................................................................................... 2

33 96102130 Spring, Latch................................................................................................... 2

34 96103524 Assembly, Stand ............................................................................................. 1

35 96103519 Pin, Latch, 2-1/4" Long.................................................................................... 1

36 96102168 Spacer, Stand ................................................................................................. 1

37 98009017 Cap Screw, Hex, 1/2"-13 x 3", MT................................................................... 2

98009042 Cap Screw, Hex, 5/8"-11 x 3-1/2", HT............................................................. 2

38 98100172 Nut, Hex Jam, 1/2"-13 ..................................................................................... 2

39 98009013 Nut, Hex, Nylock, 1/2"-13 ................................................................................ 4

40 96102131 Pin, Latch, 2" Long.......................................................................................... 1

41 96102927 Bellcrank ......................................................................................................... 1

42 96102227 Spacer, Bellcrank ............................................................................................ 2

43 98009036 Cap Screw, Hex, 1/2"-13 x 3-1/2".................................................................... 2

44 97100005 Decal, Patent................................................................................................... 1

45 96105046 Pin, Hitch......................................................................................................... 2

46 96105279 Lock, Cylinder Clamp Assembly, Gravity Down

96105278 Lock, Cylinder Clamp Assembly, Down Pressure ........................................... 1

47 Pin................................................................................................................... 2

48 Clamp, Cylinder Lock, Gravity Down............................................................... 1

Clamp, Cylinder Lock, Down Pressure............................................................ 1

49 98100007 Pin, Clevis, 3/4" x 4"........................................................................................ 1

50 98009085 Pin, Cotter, 5/32" x 1-1/2"................................................................................ 1

51 96001261 Cylinder, Lift, Gravity Down............................................................................. 1

96100085 Cylinder, Lift, Down Pressure.......................................................................... 1

52 97100004 Decal, Important ............................................................................................. 2

53 96105073 A-Frame, MT ................................................................................................... 1

96105072 A-Frame, HT ................................................................................................... 1

54 98100028 Cap Screw, Hex, 1"-14 x 7", MT...................................................................... 1

98100004 Cap Screw, Hex, 1"-14 x 8", HT ...................................................................... 1

55 98009013 Nut, Hex, Nylock, 1/2"-13, MT......................................................................... 4

98009038 Nut, Hex, Nylock, 5/8"-11, HT ......................................................................... 4

56 98009055 Cap Screw, Hex, 1/2"-13 x 4-1/2", MT ............................................................ 2

98009197 Cap Screw, Hex, 5/8"-11 x 6", HT ................................................................... 2

57 96101057 Cylinder, Angle, MT......................................................................................... 2

96001262 Cylinder, Angle, HT ......................................................................................... 2

58 98100266 Cap Screw, 1/4"-20 x 6" .................................................................................. 1

59 98100255 Nut, Nylock, 1/4"-20 ........................................................................................ 1

ITEM PART NO. DESCRIPTION QTY

BLADES - ST SERIES

21 29

27 7

18 9

BLADES - ST SERIES

1 96006002 Kit, Guide, Blade (includes 2 Guides and Mounting Hardware)...................... 1

2 Deflector, Formed, (see Note)......................................................................... 1

3 96101257 Hardware Kit ................................................................................................... 1

4 98019176 Screw, Self Tapping....................................................................................... 14

5 98019230 Washer, Flat, 5/16”........................................................................................ 14

6 98009077 Nut, Hex, 3/8”-16 (use with Polymer Wearstrip)............................................ 12

98009009 Nut, Hex, Nylock, 3/8”-16 (use with Steel Wearstrip).................................... 12

7 98009008 Washer, Lock,3/8” (use with Polymer Wearstrip) .......................................... 12

8 97100001 Decal, Warning ............................................................................................... 1

9 97100006 Decal, Important ............................................................................................. 1

10 Frame, 72"....................................................................................................... 1

Frame, 80"....................................................................................................... 1

Frame, 90"....................................................................................................... 1

11 96101445 Blade Skin, Polycarbonate, 72" (includes “Sno-Way” Decal) .......................... 1

96101446 Blade Skin, Polycarbonate, 80" (includes “Sno-Way” Decal) .......................... 1

96103069 Blade Skin, Polycarbonate, 90" (includes “Sno-Way” Decal) .......................... 1

12 96101634 Kit, Wearstrip, Steel, 72" (includes Mounting Hardware) ................................ 1

96101635 Kit, Wearstrip, Steel, 80" (includes Mounting Hardware) ................................ 1

96102789 Kit, Wearstrip, Steel, 90" (includes Mounting Hardware) ................................ 1

96108011 Kit, Wearstrip, Polymer, 72" (includes Mounting Hardware)............................ 1

96108012 Kit, Wearstrip, Polymer, 80" (includes Mounting Hardware)............................ 1

13 98009061 Bolt, Carriage, Grade 5, 3/8”-16 x 1-1/2” ..................................................... 12

14 96001191 Shoe Assembly ............................................................................................... 2

15 98009169 Pin, Lynch, 1/4” x 1-9/16” ................................................................................ 1

16 98009127 Washer, Flat, 3/4”.......................................................................................... 18

17 Shoe, Cast, 3/4” Shaft..................................................................................... 1

18 97100018 Decal, Warning ............................................................................................... 2

19 96103042 Blade Skin, Steel, 72" (includes “Sno-Way” Decal)......................................... 1

96103043 Blade Skin, Steel, 80" (includes “Sno-Way” Decal)......................................... 1

96103044 Blade Skin, Steel, 90" (includes “Sno-Way” Decal)......................................... 1

20 98009150 Nut, Nylock, 5/16”-18 ...................................................................................... 2

21 98009149 Cap Screw, Hex, 5/16”-18 x 1 ......................................................................... 2

22 96100264 Retainer, Blade, 72" ........................................................................................ 1

96100265 Retainer, Blade, 80" ........................................................................................ 1

96100266 Retainer, Blade, 90" ........................................................................................ 1

23 98019230 Washer, Flat, 5/16”.......................................................................................... 8

24 98019176 Screw, Self-Tapping, 5/16” x 1" ....................................................................... 8

25 96100213 Retainer, Bracket............................................................................................. 2

26 96100872 Bracket, Shoe.................................................................................................. 2

27 98009034 Cap Screw, Hex, 3/8”-16 x 1-1/4”.................................................................... 8

28 98009009 Nut, Nylock, 3/8”-16 ........................................................................................ 8

29 98009230 Washer, Flat, 5/16”.......................................................................................... 2

30 97100912 Decal, Sno-Way, Polycarbonate...................................................................... 1

31 97100911 Decal, Sno-Way, Steel .................................................................................... 1

NOTE: Formed Deflectors are available only as a 96" Three-Pack - Part Number 99100154.

ITEM PART NO. DESCRIPTION QTY

BLADES - MT & HT SERIES

21 22

Other manuals for STD200000

This manual suits for next models

Table of contents

Other Sno-Way Snow Blower manuals

Sno-Way

Sno-Way 22SKD Series Operating instructions

Sno-Way

Sno-Way 99101220 Operating instructions

Sno-Way

Sno-Way SWS 30 Operating instructions

Sno-Way

Sno-Way 22 Series Operating instructions

Sno-Way

Sno-Way 22G100200 Operating instructions

Sno-Way

Sno-Way 26V Series Operating instructions

Popular Snow Blower manuals by other brands

Murray

Murray 624504X4A Instruction book

Blizzard

Blizzard POWER PLOW 8100PP owner's manual

Craftsman

Craftsman 486.24837 Operator's manual

Yard-Man

Yard-Man E2B5 Operator's manual

ST ST 526 A Operator's manual

MTD

MTD 3AA Operator's manual

Toro

Toro Power TRX 1428 OHXE Operator's manual

Ryobi

Ryobi RYAC800 Operator's manual

Poulan Pro

Poulan Pro 416829 owner's manual

Poulan Pro

Poulan Pro 437986 owner's manual

MTD

MTD 319-180-00 owner's guide

Brute

Brute 1695565 Operator's manual

Egholm

Egholm City Ranger 2250 Operator's manual

Poulan Pro

Poulan Pro 420915 owner's manual

GreenWorks

GreenWorks SNF402 Operator's manual

LOFTNESS

LOFTNESS 601D1 Operator's manual

LOFTNESS

LOFTNESS 1082I Operator's manual

LOFTNESS

LOFTNESS 481EL Operator's manual
