Smith Performance Sprayers Industrial & Contractor Series User manual

Manual No. 183282

Rev A: 06/15/17

ECN17-010

5 1/2”X 8 1/2”Booklet

Do Not Return This Sprayer To The Store

For Help, Information or Parts, Call : 1-800-311-9903

The Fountainhead Group, Inc.

23 Garden St., New York Mills, NY 13417

1-800-311-9903

www.TheFountainheadGroup.com

www.smithperformancesprayers.com

CAUTION: Read and follow all instructions

Use and Care Manual

Stainless Steel

Compression Sprayer

Industrial and Contractor Series

S103E

#190448

Page 2

Do not return sprayer to store, if you experience problems or have questions contact

our toll free Customer Service Center, M-F 8A.M. - 5P.M., EST, at 1-800-311-9903, or

e-mail: [email protected]om, or access online at: www.TheFountainheadGroup.com.

WARNING

The sprayer is operated with liquid under pressure. Failure to observe caution and to follow instructions

for operating and cleaning can cause tank, hose and other parts to be weakened and rupture under

pressure. This can result in serious injury from high pressure discharge of liquids or forcible ejection of

parts. Do not use ammable materials in this sprayer. Material could ignite or explode, causing serious

injury and/or possible death. For safe use of this product, you must read and follow all instructions before

use.

TEST SPRAYER WITH WATER BEFORE USING ANY CHEMICALS.

CAUTION

Always empty, clean and dry tank, pump system, shut-o, hose, and extension after each use. FAILURE TO

DO SO MAY WEAKEN SPRAYER COMPONENTS, CAUSING COMPONENTS TO RUPTURE WHEN PRESSURIZED.

Additionally, FAILURE TO CLEAN AND PROPERLY MAINTAIN YOUR SPRAYER WILL VOID MANUFACTURER’S

WARRANTY.

WARNING

ALWAYS CLEAN THE SPRAYER AND SHUT-OFF THOROUGHLY AFTER EACH USE

OR WHEN CHANGING APPLICATIONS AS DESCRIBED IN THE CLEANING SECTION.

FAILURE TO COMPLETELY CLEAN MAY CAUSE CROSS-CONTAMINATION.

SAFETY PRECAUTIONS

• Read owner’s manual completely before operating this sprayer.

• Always use goggles, gloves, and protective clothing when using sprayer. Refer to the appropriate

technical bulletin for the chemical being sprayed for additional protective clothing required.

• Read and follow all instructions and cautions on label, material safety data sheets and technical bulletins

of products used in this sprayer.

• Never use ammable liquids, chlorine, bleach, caustics, acids, hot water, or other corrosive solutions or

heat, pressure or gas producing chemicals in the tank for the S103E Sprayer.

• Do not leave sprayer in the sun when not in use.

• Spray when air is calm to prevent drift of chemicals.

• Do not use sprayer near open ame or anything that could cause ignition of the spray.

• Always inspect hose and all hose connections before each use. A damaged hose, or loose hose

connection can result in unintended exposure to the pressurized chemical, resulting in serious injury or

property damage.

• Do not lift or carry sprayer by the hose, shut-o valve, or extension. Carry by pump handle only,

making sure handle is properly locked in place before lifting.

• Do not pressurize with any mechanical device such as an air compressor, since this can create a

dangerous pressure level and bursting of parts resulting in serious injury. Only use original pump.

• Do not store chemicals in this tank.

• Always release pressure when sprayer is not in use and before removing pump from tank.

• Do not stand with face or body over top of tank when pumping or loosening pump, to prevent pump or

solution from striking you, resulting in serious injury.

• Clean and rinse sprayer thoroughly after each use.

• Never attempt to alter sprayer from original condition.

• Always use replacement parts from original manufacturer.

• Keep the sprayer and all chemicals out of the reach of children.

Page 3

ASSEMBLY INSTRUCTIONS

Assemble Hose To Tank

1. Wrap teon tape around tank tting threads 2X in

clockwise direction, if needed.

2. Align hose and screw on to tank. (See Figure A).

3. Tighten with a 5/8”wrench. (See Figure B).

Figure B

Figure A

Assemble Hose, Extension, Shut-O & Nozzle

1. Attach hose to shut-o and tighten securely using a 9/16”wrench. Do not overtighten. Use a 3/4” wrench

to hold the shut-o handle while tightening the hose. (See Figure C)

2. Install the extension onto the shut-o assembly and tighten the nut securely using a 13/16”wrench.

(See Figure C)

3. Install selected nozzle into the extension nut and tighten nut securely using a 13/16”wrench.

(See Figure C)

80° FAN .07 GPM #4 GREEN

80°

SPRAY

ANGLE: SPRAY

PATTERN:

FAN

FLOW

RATE:

.10 GPM

.13 GPM

.10 GPM

.20 GPM

COLOR

#6 RED

#10 BLACK

#8 GRAY

#12 BROWN

65° FAN .2 GPM

80°

95°

SPRAY

ANGLE: SPRAY

PATTERN:

FAN

FLOW

RATE:

.2 GPM

.5 GPM

.4 GPM

.5 GPM

110° FAN 1 GPM

BRASS FLAT FAN TIP

NOZZLE USES: CERAMIC CONEJET TIP

NOZZLE USES:

1. Industrial and Concrete Series (Orange)

Used on 1. Turf and Argiculture Series (Green)

2. Industrial and Concrete Series (Orange)

3. Cleaning and Restore Series (Blue)

4. Pest Control Series (White)

Used on

BRASS ADJUSTABLE

FAN NOZZLE USES:

1. Industrial and Concrete Series (Orange)

Used on

Figure C

HOSE

SHUT-OFF

EXTENSION

NUT

NOZZLE

Page 4

OPERATING INSTRUCTIONS

Filling

IMPORTANT: Always make sure the pressure is

released from the tank before lling or servicing.

1. Pull up on the knob of the pressure release

valve until all the pressure is released from the

tank. (See Figure D.)

Shut-O

1. Direct nozzle away from you and squeeze shut-o

lever to begin spraying.

2. This model does have a locking trigger.

Figure D

Pump Clamp Tab

Pump Unlocking And Pressurizing

TO PRESSURIZE: Push down on the handle to depress

coil spring and turn handle 1/4 turn counterclockwise to

unlock handle. Pressurize the sprayer by pumping the

handle in a smooth up and down motion. Push down on

the handle to depress coil spring and turn handle 1/4 turn

clockwise, then allow handle to raise into lock position.

TO UNLOCK PUMP: Turn handle counterclockwise

until 4-prong clamp is loose, then rotate clamp

counterclockwise aligning the tabs with the slots

in the neck of the tank and remove the pump.

TO LOCK PUMP: Align clamp tabs with the slots in the

neck of the tank and lower the pump assembly, rotate

the 4-tab clamp clockwise to the stop position and

rotate the handle clockwise to tighten, seal and lock the

tank cover.

Page 5

OPERATING INSTRUCTIONS CONTINUED

Steps To Cleaning Your Sprayer

*** To prevent clogging issues, after each use clean your sprayer.***

1. Release pressure in your sprayer via pressure relief valve. Do not undo handle without releasing pressure.

2. Empty remaining chemical back into original lling container.

3. Fill sprayer with water, place pump back into tank, and tighten.

4. Aggressively shake the water in the tank to try and get residue o of the inside walls of the sprayer. Repeat

step if necessary, each time relling with fresh water.

5. Pressurize the sprayer and spray water for 30-45 seconds into a disposable reservoir, then release pressure

and remove the pump from the tank.

6. Tip and empty tank, then set tank upright. Hold wand and shut-o above the tank and depress the

shut-o. The liquid will drain into the tank, empty again.

7. Repeat the steps above as necessary.

8. Allow tank to air dry by leaving the pump outside of tank over night. The next day, replace the pump to

keep debris out of the tank.

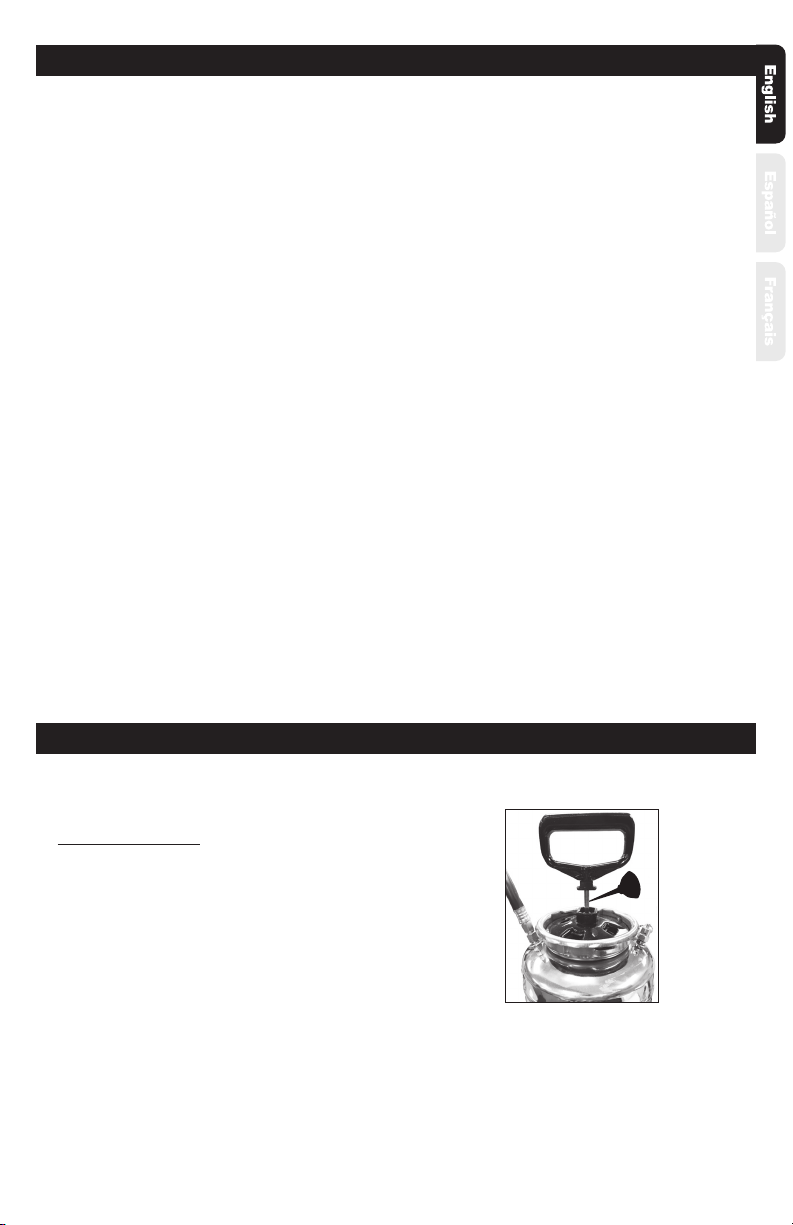

Pump Lubrication

Pump should be periodically oiled by applying 10 to

12 drops of light oil down the pump rod through the

opening in the pump cap as shown.

MAINTENANCE

Sprayer Storage

1. Sprayer tank should be hung upside down, with the pump removed.

2. Do not store or leave any solution in the tank after use.

3. Store in a warm, dry location out of direct sunlight.

4. Keep the sprayer and all chemicals out of reach of children.

Page 6

Pump Disassembly & Reassembly

NOTE: Remove pump from tank prior to disassembly.

Nozzle Maintenance

1. If nozzle clogs, remove and disassemble the nozzle assembly.

2. Clean the openings of any obstructions and reassemble.

3. The brass nozzles should be cleaned with toothbrush and detergent. Don’t use metal brush or sharp

objects on the nozzle. For tough clogs soak brass nozzle in xylene and clean with a brush.

1. Inspect tank cover o-ring. If worn or damaged, remove and replace. (See Figure E)

2. To remove tank cover from pump barrel, while rmly gripping tank cover, grasp pump barrel and

unscrew by turning counterclockwise as shown. (See Figure F) A strap wrench may be required to

loosen barrel.

3. Inspect barrel o-ring. If worn or damaged, remove and replace. Lubricate o-ring with petroleum jelly.

(See Figure G)

4. Inspect piston o-ring. If worn or damaged, remove and replace. Lubricate o-ring with petroleum jelly.

(See Figure H)

5. Inspect check valve in bottom of barrel. If worn or damaged, remove and replace by pressing into

hole in bottom of barrel. (See Figure J)

6. Insert the pump handle/piston assembly into the barrel. While rmly gripping the tank cover, thread

the pump barrel into the cover and tighten by turning clockwise. (See Figure K) A strap wrench may be

required to tighten barrel.

MAINTENANCE CONTINUED

Figure F

Figure E Figure G

Figure H Figure J Figure K

Page 7

TROUBLE LOOK FOR REMEDY

Sprayer leaks at pump or

sprayer does not build

pressure.

1. Dirt or debris on tank cover

o-ring. (#3H).

2. Chipped, torn, swollen, or

defective tank cover o-ring (3H).

3. Check valve (#3S) at bottom of

pump assembly.

4. Worn or damaged o-ring (#3L)

on piston.

1. Clean dirt or debris from o-ring (#3H) or

closure.

2. Remove old o-ring (#3H) and replace with

new as described in Pump Disassembly &

Reassembly section.

3. Replace if missing or damaged as described

in Pump Disassembly & Reassembly section.

4. Replace if worn or damaged as described in

Pump Disassembly & Reassembly section.

Sprayer material

overows through pump

barrel or pump handle

rises when handle is

unlocked.

1. Dirt or debris under check

valve (#3S) on pump.

2. Chipped, torn, or swollen

pump check valve (#3S).

1. Clean check valve (#3S) and valve sealing

surface on pump.

2. Replace check valve (#3S) as described

in Pump Disassembly & Reassembly section.

Hose leaks at tank or

shut-o.

1. Loose hose at tank.

2. Cracked, swollen, or faulty hose.

3. Loose hose at shut-o.

1. Tighten hose nut at tank.

2. Replace hose.

3. Tighten hose at shut-o.

Sprayer is dicult to

pump.

1. Damaged piston o-ring (#3L)

2. Piston o-ring (#3L) is dry.

1. Replace piston o-ring as described in

Pump Disassembly & Reassembly section.

2. Lubricate piston o-ring as described

in Pump Disassembly & Reassembly section.

Sprayer tank leaks. Evidence of spray material

escaping from the tank. Replace entire sprayer.

Nozzle drips when

shut-o lever is released.

1. Dirt or debris in shut-o valve.

2. Damaged o-rings or seals in

shut-o (Kit #10).

1. Clean shut-o as described in Shut-o

Maintenance section.

2. Service shut-o seals as described in

Maintenance service (Kit #10).

Nozzle tip leaks, poor

spray pattern, partial

spray or complete

stoppage.

1. Spray extension or nozzle

clogged.

2. Dirty or clogged nozzle tip.

1. Remove nozzle and clean as described in

Nozzle Maintenance section.

2. Clean the nozzle tip with a soft brush.

TROUBLESHOOTING

Shut-O Maintenance (Repair Kit)

Always depressurize sprayer before maintenance by activating

shut-o and spraying contents out.

1. Unscrew the handle from the shut-o assembly.

2. Unscrew valve cap and remove valve stem components and seals as

shown. Clean components with cool clean water.

3. Clean any debris from inside the handle and shut-o body. Check

for any wear of o-rings or seals and replace as necessary.

4. Reassemble the components as shown and tighten the handle and

valve cap securely.

MAINTENANCE CONTINUED

SEALS

Page 8

KITS, PARTS & ACCESSORIES

KIT #3

8-1 8-2 8-3 8-4 8-5

7-1 7-2 7-3 7-4 7-5 7-6 8-6

10G

10F

10B

KIT #10

KIT #4 5

11-1

11-2

SHUT-OFF

10A

10B

10H

10G

10D 10C

10E

10F

10G

10C

10D

10E

10A

10H

Page 9

KITS, PARTS & ACCESSORIES CONTINUED

3A 182485 HANDLE, PUMP

3B 182711 HANDLE LOCKING COLLAR

3C 182704 SPRING (2)

3D 182484 4-TAB CLAMP

3E 182714 TANK COVER

3F 182712 FLAT WASHER

3G 182713 RETAINING RING

3H 182519 O-RING 105mm x 5.7mm, V

3J 182715 PUMP ROD

3K 182706 VALVE SEAT

3L 182523 O-RING 30mm x 4mm, V

3M 182707 PISTON PLATE

3N 182708 LOCKNUT

3P 182524 O-RING 46mm x 3.5mm,V

3R 182710 PUMP BARREL

3S 182535 CHECK VALVE, PUMP, V

KIT #3 182522 PUMP Viton

(Brown O-rings & Gasket)

KEY# PART# DESCRIPTION

5 182677 SHOULDER HARNESS

6 182567 NOZZLE, ADJUSTABLE, BRASS

-1 182578 FLAT FAN TIP, BRASS, .2 GPM-65°

-2 176042 FLAT FAN TIP, BRASS, .2 GPM-80°

-3 176116 FLAT FAN TIP, BRASS, .4 GPM-80°

-4 176171 FLAT FAN TIP, BRASS, .5 GPM-80°

-5 182577 FLAT FAN TIP, BRASS, .5 GPM-95°

-6 182576 FLAT FAN TIP, BRASS, 1 GPM-110°

-1 182795 NOZZLE, #4 GREEN POLY, .07 GPM-80°

-2 182796 NOZZLE, #6 RED POLY, .10 GPM-80°

-3 182797 NOZZLE, #10 BLACK POLY, .10 GPM-80°

-4 182784 NOZZLE, #8 GRAY POLY, .13 GPM-80°

-5 182798 NOZZLE, #12 BROWN POLY, .20 GPM-80°

-6 182785 NOZZLE, #8 BRASS CONICAL

9 183300 SHUT-OFF

A 182519 O-RING 105mm x 5.7mm, VITON

B 182535 CHECK VALVE, PUMP VITON

C 182523 O-RING 30mm x 4mm, VITON

D 182524 O-RING, 46mm x 3.5mm, VITON

KIT #4 182644 PUMP GASKETS VITON

(Brown O-rings & Gasket)

KIT #10 183525 SHUT-OFF SERVICE KIT

10A 182474 O-RING, 1.9mm x 4.2mm, VITON

10B 183304 VALVE STEM, BRASS

10C 182476 SEAL, VALVE, VITON

10D 183305 VALVE BASE, BRASS

10E 183306 SPRING, VALVE

10F 183303 CAP, VALVE

10G 182468 O-RING, 2.4mm x 11.2mm, VITON

10H 182467 FILTER

KEY# PART# DESCRIPTION

182521 3.5 GALLON TANK, VITON

(INCLUDES KEY #2)

2 182678 VITON PRV ASSEMBLY

KEY# PART# DESCRIPTION

-1 183294 24”WAND ASSEMBLY, BRASS

-2 183296 NUT, BRASS CAP

12 183381 HOSE ASSEMBLY

SERVICE KITS, PARTS & ACCESSORIES ARE AVAILABLE BY CONTACTING

The Fountainhead Group, Inc. - Customer Service Center

Monday - Friday 8 A.M. - 5 P.M., EST

Toll Free: 1-800-311-9903

e-mail: [email protected]

Access online at: www.TheFountainheadGroup.com

www.smithperformancesprayers.com

No devuelva este atomizador a la tienda

Para obtener ayuda, información o partes, llame al:

1-800-311-9903

The Fountainhead Group, Inc.

23 Garden St., New York Mills, NY 13417

1-800-311-9903

www.TheFountainheadGroup.com

www.smithperformancesprayers.com

PRECAUCIÓN: Lea y siga todas las instrucciones

Serie industrial y para contratista

S103E

#190448

Atomizador industrial de

acero inoxidable

Manual de uso y cuidado

Manual No. 183282

Rev A: 06/15/17

ECN17-010

5 1/2”X 8 1/2”Booklet

Other manuals for Industrial & Contractor Series

This manual suits for next models

Table of contents

Languages:

Other Smith Performance Sprayers Paint Sprayer manuals

Smith Performance Sprayers

Smith Performance Sprayers S103E User manual

Smith Performance Sprayers

Smith Performance Sprayers PERFORMANCE S100 User manual

Smith Performance Sprayers

Smith Performance Sprayers S103EX User manual

Smith Performance Sprayers

Smith Performance Sprayers Industrial & Contractor Series User manual

Smith Performance Sprayers

Smith Performance Sprayers S103E User manual

Smith Performance Sprayers

Smith Performance Sprayers 190450 User manual

Smith Performance Sprayers

Smith Performance Sprayers Industrial & Contractor Series User manual

Popular Paint Sprayer manuals by other brands

SNOWJOE

SNOWJOE Sunjoe 24V-GS-LTW-RM Operator's manual

Graco

Graco 246737 Repair and parts

Binks

Binks SV100 Service manual

Fimco

Fimco LG-4-3-1 owner's manual

AG SPRAY

AG SPRAY FS-ATV-25BL owner's manual

Nordson

Nordson MicroMax 2 manual

Bonide

Bonide 051 Operation and service instructions

zogics

zogics Z-DAS instruction manual

KISANKRAFT

KISANKRAFT KK-KBS-165 Operation manual

Matrix

Matrix SG 650 Translation of the original instructions

Anest Iwata

Anest Iwata SGA-3 Installation, use & maintenance instruction manual

paasche

paasche VV Instructions and parts list

Carlisle

Carlisle DeVilbiss JGA-510 Service manual

Gardena

Gardena 11120 Operator's manual

Conrad

Conrad Hobby Airbrush K3 operating instructions

wiwa

wiwa 14025 R/F operating manual

Graco

Graco EM 390 Instructions-parts list

DeVilbiss

DeVilbiss LUNA2i Operation manual
