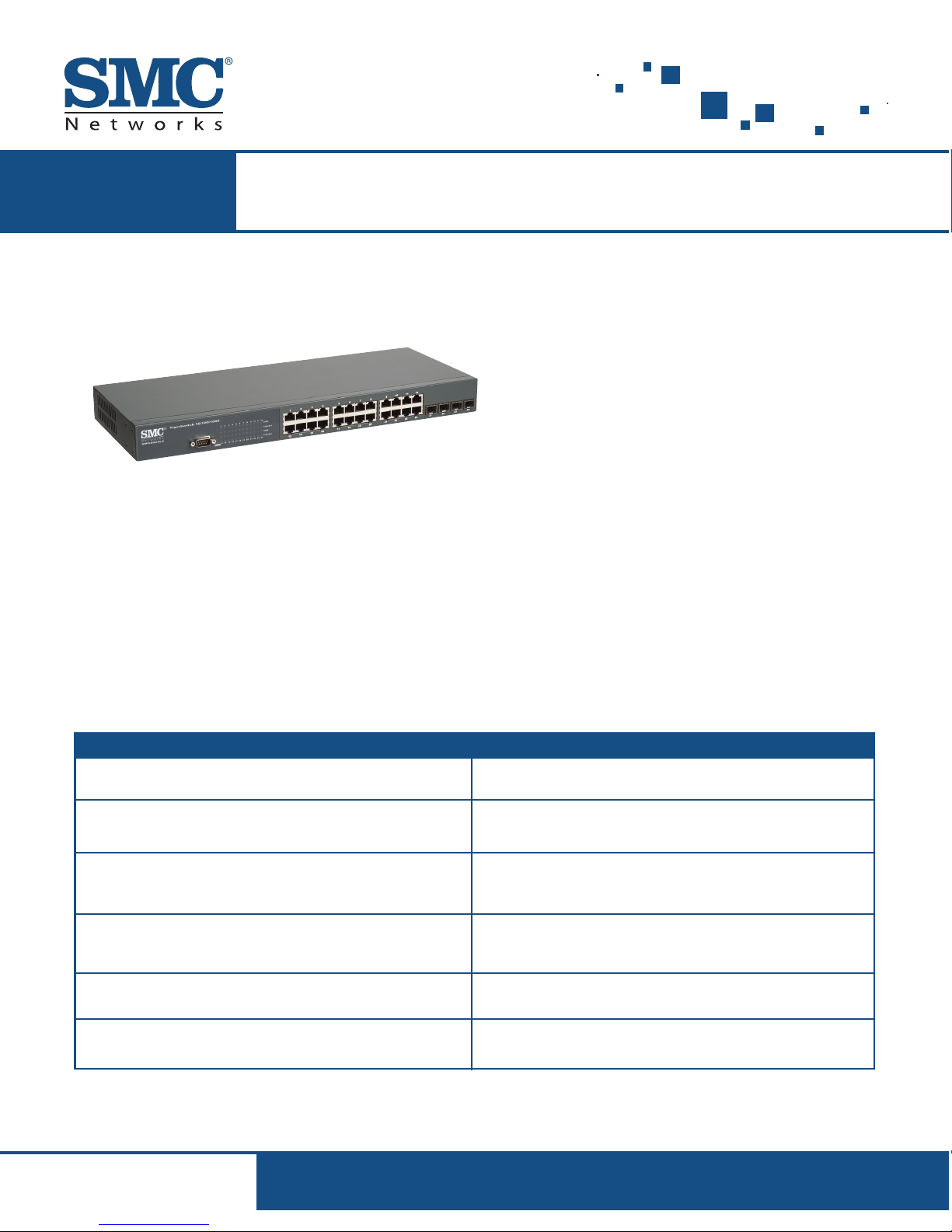

SMC Networks SMC8024L2 User manual

Managed Switch SMC8024L2

TigerSwitch 10/100/1000 Standalone 24 10/100/1000

Managed Layer 2 switch including 4 Combo (RJ45/SFP) ports

www.smc.com

FEATURES

Standalone managed switch in a small footprint

QoS

VLAN with advanced QinQ support

IGMP Snooping

MultiLink Trunking with LACP

Comprehensive network security

BENEFITS

OVERVIEW

Supports 24 10/100/1000Mbps ports including 4 Combo

(SFP/RJ-45) in a 1 RU chassis

Support four levels of priority, with weighted fair queuing and

L2/3/4 IP precedence--ensures smooth transmission of mission

critical data

Support VLANs based on frame tags or ports, plus support for

automatic GVRP LAN registration spanning tree per VLAN--pro-

vides maximum security and bandwidth efficiency

Only allows IP Multicast traffic transmission to the registered

members, resulting bandwidth savings--reduce IP multicast traffic

and increase LAN performance

Can group links between switches to provide higher

bandwidth of up to 16Gbps

Currently supports RADIUS, IEEE802.1x, MAC based port security,

ACL

The TigerSwitch 10/100/1000 is the first in a new generation

of market leading switches to bring you a 24-port gigabit switch

in a 1RU footprint with the right features for your SMB network.

The SMC8024L2’s 24 auto-MDIX 10/100/1000 ports provide

a feature-rich platform for bandwidth-starved networks. The

inclusion of 4 Combo ports (RJ-45/SFP) enable that extra

flexibility for use today or future expansion of your network.

The SMC8024L2 delivers wire-speed switching performance

in a robust 48Gbps switch fabric, with features such as QoS

priority queuing with classification and prioritization at

Layer2/Layer 4. Also included are management features

such as VLANs with 802.1Q, Spanning Tree, LACP and IGMP

for today’s multimedia applications. Security is key and the

SMC8024L2 provides flexible security features such as, 802.1x,

RADIUS, ACL’s, MAC based port security. This switch enables

networks of all sizes to introduce gigabit Ethernet with

management features targeted to meet the needs of the SMB

network.

TECHNICAL SPECIFICATIONS SMC8024L2

PORTS

• 24 10/100/1000BASE-T ports

• 4 Combo SFP ports

NETWORK INTERFACE

• 10/100/1000 BASE-T ports

• Multimode fiber cable; 62.5/125 or

50/125 microns

• Singlemode fiber cable: 9/125 micron

SWITCHING FABRIC

• 48Gbps

• 35.7Mpps

BUFFER ARCHITECTURE

• 0.4Mbytes

SWITCHING DATABASE

• 8K MAC address entries

LED

• System: Power

• Port: Link/Activity, 1000Mbps

WEIGHT

• 3.72Kg (8.44lbs)

DIMENSIONS

• 33.0 x 20.0 x 4.4cm (13.0 x 7.9 x 1.7 in)

TEMPERATURE

• Operating: 0 to 40oC (32 to 104 oF)

• Storage : -40 to 70oC (-40 to 158oF)

HUMIDITY

• Operating: 10% to 90% (non-condensing)

AC INPUT

• 100 to 240 V, 50-60 Hz, 0.4A

POWER SUPPLY

• Internal, auto-ranging transformer:

100 to 240 VAC, 50 to 60 Hz

POWER CONSUMPTION

•28Watts

MAXIMUM CURRENT

• 0.25 A @ 115 VAC

• 0.12 A @ 230 VAC

MTBF

•8Years

SWITCH FEATURES

• LACP 802.3ad

• VLANs (up to 256)

• (QinQ support)

• Spanning Tree (802.1D, 802.1w)

• Broadcast Storm Control

• Flow Control

• IGMP Snooping (v1,v2)

• Jumbo Frame (up to 9K)

•ACL's

• 802.1x

• RADIUS

• Static Port Security

• Port Mirroring

QUALITY OF SERVICE

• Supports 4 levels of priority with flexible

classification and prioritization

• Per port bandwidth management

MANAGEMENT FEATURES

• HTTP

• SNMP (v1,v2c)

• Out-of-Band Management

• RS-232 Console port

• Software upgrade

• Configuration Download/Upload

• Group 1 (Statistics)

STANDARDS

• IEEE 802.3-2002

• Ethernet, Fast Ethernet, Gigabit Ethernet

• IEEE 802.1D Spanning Tree Protocol

• IEEE 802.1Q Virtual LAN

• IEEE 802.1X, Port-Based Network

Access Control

ISO

IEC8802.3

CE MARK

EMISSIONS

• FCC Class A

• VCCI Class A

IMMUNITY

• EN 61000-4-2/3/4/5/6/8/11

SAFETY

• CSA/NRTL (UL60950, CSA 22.2. NO

60950-1)

• TÜV/GS (EN60950-1)

• CB (IEC60950-1)

WARRANTY

• Limited lifetime

SMC1GSFP-SX

• 1G SX SFP Transciever, 550M, Multimode

fiber

SMC1GSFP-LX

• 1G LX SFP Transciever, 10Km, Singlemode

fiber

SMCBGZLCX1

• 1G LH SFP Transciever, 70Km Singlemode

fiber

North America

38 Tesla

Irvine, CA 92618

1-800-SMC-4YOU

24/7 Technical Support

Europe/ Africa

Fructuos Gelabert 6-8

08970 Sant Joan Despí

Barcelona, Spain

Check www.smc.com for your local

country contact information

www.smc.com
