OVERVIEW

The SMC family of EZ Switch™ 10/100/1000 Gigabit Ethernet Switches is the perfect solution for bottle-

necks in your home or SOHO network. Bottlenecks are the inevitable result when many computers are

connected andwhendata-intensiveapplicationslikehome moviesordigitalimagesareused.SMC’sEZSwitches

provide a seamless migration to higher-speed networking while solving bandwidth issues. They are designed

to allow simultaneous transmission of multiple packets via high-speed data channels.

These unmanaged, gigabit switches are designed for Plug-and-Play installation, featuring auto-MDIX on

every port. This means that no crossover cables are required. Every port can either be connected to a PC or

another switch for network expansion. Meeting today’s diverse networking needs at an attractive price per

port, SMC’s EZ Switch™ 10/100/1000 Switches are ideal for bringing speed and bandwidth to the desktop at

home or in the ofﬁce.

www.smc.com

SMC8505T / SMC8508T

EZ Switch™ 10/100/1000

Standalone 5/8-port 10/100/1000 Unmanaged Switch

10G FIBER

1G FIBER

10G COPPER

1G COPPER

10/100

PoE

WIRELESS

LEGEND

JD:/,',K&

JD:/,'/K

J\im\i

NfibjkXk`fej

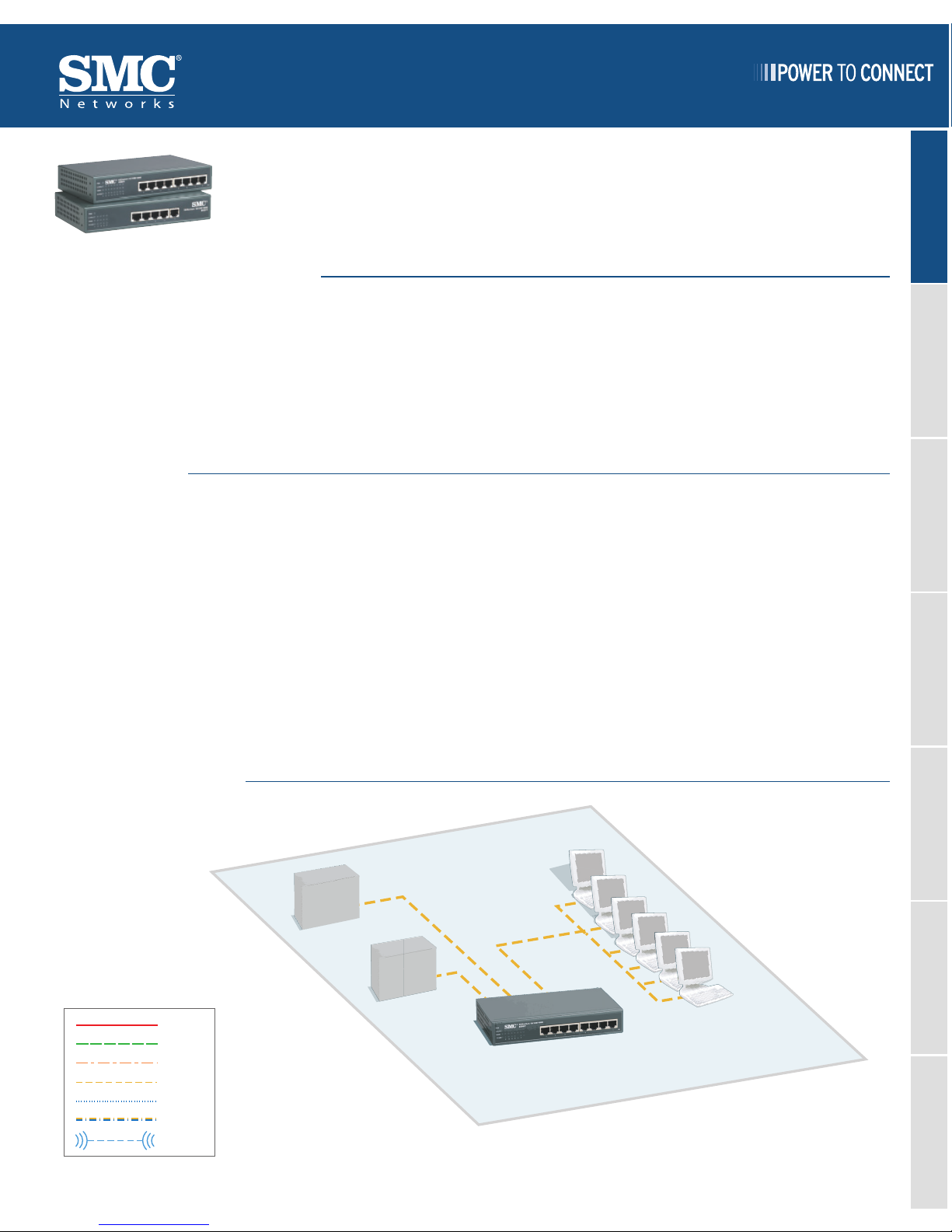

APPLICATION DIAGRAM

KEY FEATURES

Support to handle Jumbo Packets Compact chassis size

With Jumbo frame support, this switch has faster and more

efﬁcient packet forwarding.

The compact, rack mountable metal chassis is ideal for desktop or

rack mounting applications. In addition, the lack of fans ensures

silent operation.

Auto-MDIX ports LED indicators

No crossover cables required, pure plug and play for easy operation. Simple, at-a-glance LEDs to see port status and for simple trouble-

shooting.

SWITCHES VDSL WIRELESS VOIP STORAGE BROADBAND ADAPTERS

PORTS

• SMC8505T

• 5 x 10/100/1000 BASE-T

• DC power socket

• SMC8508T

• 8 x 10/100/1000 BASE-T

• DC power socket

NETWORK INTERFACE

• 10Base-T, UTP/ STP category 3 or 5 cable

• 100Base-TX UTP/ STP category 3 or 5 cable

• 1000Base-T, UTP/ STP category 5 cable, 4 pairs

SWITCH FABRIC

• SMC8505T

• 10Gbits

• 7.4Mpps

• SMC8508T

• 16Gbits

• 11.9Mpps

BUFFER ARCHITECTURE

• SMC8505T

• 80KBytes

• SMC8508T

• 128KBytes

SWITCHING DATABASE

• 8K MAC address entries

LED

• System: Power

• Port:Link/activity, 1000M

POWER CONSUMPTION

• SMC8505T: 9 Watts

• SMC8508T: 15 Watts

POWER REQUIREMENT

• DC input

• SMC8505T: 9/12V, 1A

• SMC8508T: 9/12V,1/1.25A

DIMENSIONS

• SMC8505T

• 19.64 x 11.65 x 3.66 cm,

• 7.76 x 4.6 x 1.44 in

• SMC8508T

• 18.9 x 9.0 x 3.7 cm

• 7.4 x 3.5 x 1.47 in

WEIGHT

• SMC8505T

• 0.60Kg

• 1.323lbs

• SMC8508T

• 0.65Kg

• 0.433lbs

HUMIDITY

• 5% to 95% non-condensing

TEMPERATURE

• Operating:

• 0 ~ 40 oC

• 98 ~ 104oF

• Storage:

• -40 ~ 70 oC

• -40 ~ 158 oF

IMMUNITY

• EN 61000-4-2/3/4/5/6/8/11

EMISSIONS

• FCC Class B, CISPR Class B, EN 61000-3-2/3

SAFETY

• CSA/NRTL (CSA60950-1 & UL60950-1)

• CB (IEC 60950-1)

COMPATIBILITY

• IEEE802.3

• IEEE802.3u

• IEEE802.3ab

• IEEE802.3x

MTBF

• 8 years

EMC/SAFETY COMPLIANCES

• CE Mark

• EU RoHS Compliant

WARRANTY

• Please check www.smc.com for the warranty

terms in your country/region

CONTACT

North America

20 Mason

Irvine, CA 92618

1-800-SMC-4YOU

24/7 Technical Support

Europe/Africa

Fructuos Gelabert 6-8

08970 Sant Joan Despí

Barcelona, Spain

Check www.smc.com for your local country

contact information

of SMC Networks in the United States or other countries. Other trademarks

or registered trademarks are the property of their respective owners. Infor-

2/2009

www.smc.com

TECH SPECS - SMC8505T / SMC8508T
