SMC Networks GS1601 User manual

Product Overview

SMC introduces the latest Gigabit switches to the EZ Switch 10/100/1000

family – SMCGS1601 and SMCGS2401. These switches provide Gigabit

Ethernet connectivity from the network backbone all the way to the edge of the

network and to individual desktops. With up to 10 times the speed of 100 Mbps

networks, these switches reduce transfer times of large data files and boost

bandwidth-intensive applications, thereby significantly enhancing overall

network performance. Jumbo frame support enables more efficient data

transfers with data packets up to 9 KBytes in size. The SMC EZ Switches are

easy to install and an ideal solution for network migration, as they are equipped

with 10/100/1000 Mbps auto MDI/MDIX ports. Not only is each port triple-

speed, all ports can be either connected to a workstation or another switch

without the need for special cross-over cables. Providing non-blocking wire-

speed throughput, the switches can handle the growing performance needs in

imaging, animation, CAD, film production, and other current and emerging

applications.

SMCGS1601/SMGS2401

EZ SwitchTM 10/100

16-/24-Port Unmanaged Gigabit Ethernet Switches

Metal chassis

The compact, rack mountable metal chassis is

ideal for desktop or rack mounting applications.

Green Ethernet

Environmentally friendly these switches allow significant

power saving compared to non-Green switches.

Support IEEE 802.1p QoS

When the switches receive a frame tagged with an

802.1p priority tag, they will place it into a priority queue.

Priority queuing is useful in implementations where time-

sensitive data such as voice and video are streamed

across the network.

Auto MDI/MDI-X on Each Port

Support from Auto-MDIX means that no cross-

over cables are required. Simply plug and play.

Key Features and Benefits

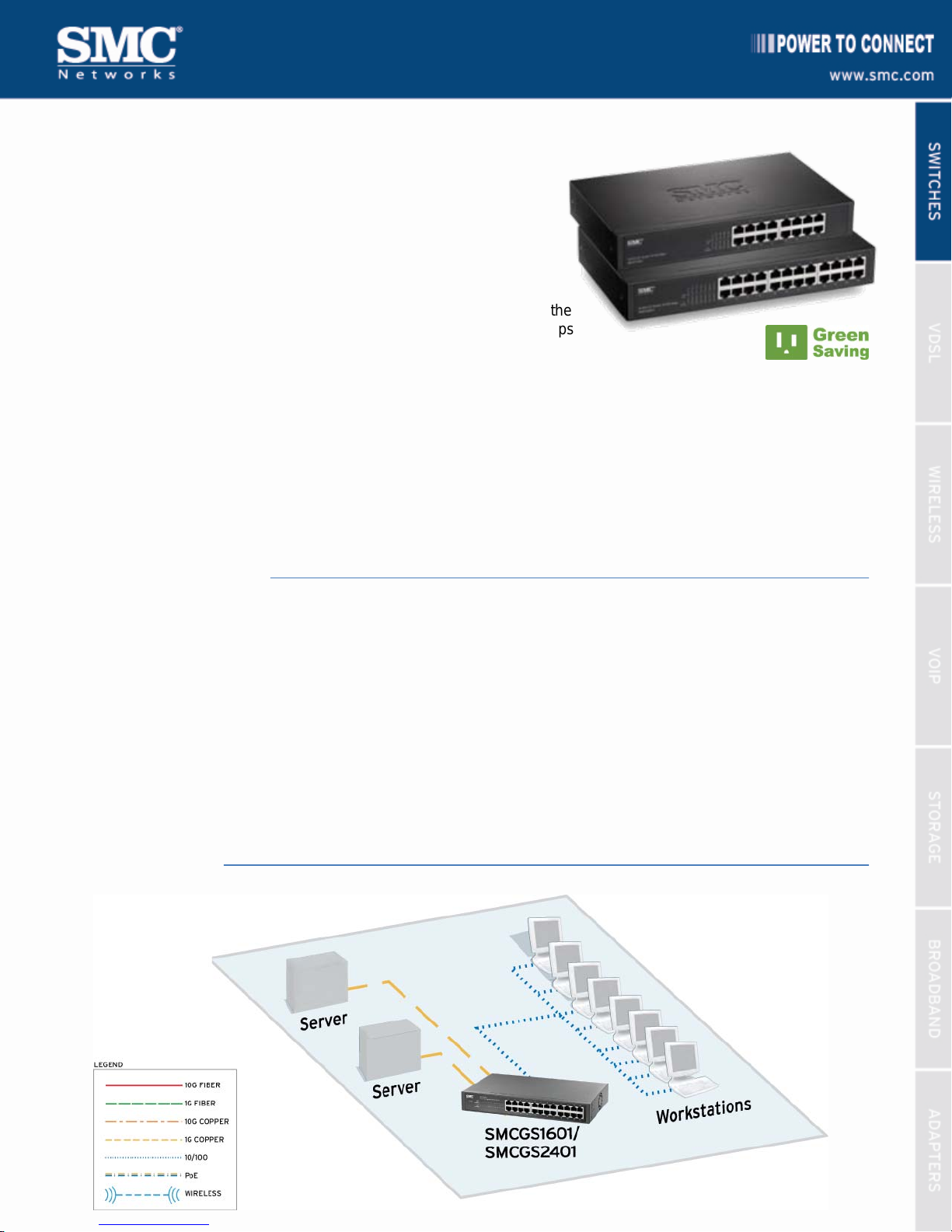

Application Diagram

PHYSICAL PORTS

SMCGS1601:

16 x 10/100/1000 Mbps Auto-Negotiation RJ-45 ports

SMCGS2401:

24 x 10/100/1000 Mbps Auto-Negotiation RJ-45 ports

NETWORK INTERFACE

10BASE-T (IEEE 802.3)

100BASE-TX (IEEE 802.3u)

1000BASE-T (IEEE 802.3ab)

FEATURE

Jumbo Frames 9 KBytes

IEEE 802.1p QoS

IEEE 802.3x Flow Control

Auto-MDI/ MDIX

Green Saving

LED

Power

Link/Activity

SWITCHING DATABASE

SMCGS1601: 8K MAC address entries

SMCGS2401: 8K MAC address entries

BUFFER MEMORY

SMCGS1601: 256 Kbytes/ device

SMCGS2401: 256 Kbytes/ device

SWITCHING CAPACITY

SMCGS1601: 32 Gbps

SMCGS2401: 48 Gbps

POWER ADAPTER

SMCGS1601: 100-240V~50/60Hz 0.6A

SMCGS2401: 100-240V~50/60Hz 0.6A

FRAME FILTER RATE

10BASE-T: 14881pps/ Port

100BASE-Tx: 148810pps/ Port

1000BASE-T: 1488095pps/ Port

FRAME FORWARDING RATE

10BASE-T: 14881pps/ Port

100BASE-Tx: 148810pps/ Port

1000BASE-T: 1488095pps/ Port

THROUGHPUT

SMCGS1601: 23.8 Gbps

SMCGS2401: 35.7 Gbps

DIMENSIONS

294 x 180 x 44 mm (11.6 x 7.1 x 1.7 in)

WEIGHT

SMCGS1601: 1.45 kg (3.19 lbs)

SMCGS2401: 1.652 kg (3.63 lbs)

Features

ELECTROMAGNETIC COMPATIBILITY

CE Mark

FCC Class A

IMMUNITY

EN55024

IEC61000-4/2/3/4/5/6/8/11

EMISSIONS

FCC Class A, CISPR Class A, EN55022/EN61000-3-2

SAFETY

LVD (EN60950)

TEMPERATURE

Operating Temperature: 0°C~40°C (32°F~104°F)

Operating Humidity: 10%~90% non-condensing

Storage Temperature: -40°C~70°C (-40°F~158°F)

Storage Humidity: 5%~90% non-condensing

WARRANTY

Please check www.smc.com for the warranty terms in your country.

Contact

Europe/Africa

C/Fructuós Gelabert 6-8 2o, 2a,

Edificio Conata II,

08970 Sant Joan Despí

Barcelona - Spain

Phone: +34 93 477 4920

Check www.smc.com for your local country contact information

Taiwan

No. 1 Creation Rd, lll,

Hsinchu Science Park,

30077, Taiwan, R.O.C.

Tel: +886 3 5770270 Fax: +886 3 5780764

Singapore

1 Coleman Street

#07-09, The Adelphi

Singapore 179803

Tel: 65-63387667 Fax: 65-63387767

Check www.smc-asia.com for your local country contact information

Other trademarks or registered trademarks are the property of their

respective owners. Information is subject to change without notice. All

rights reserved.
