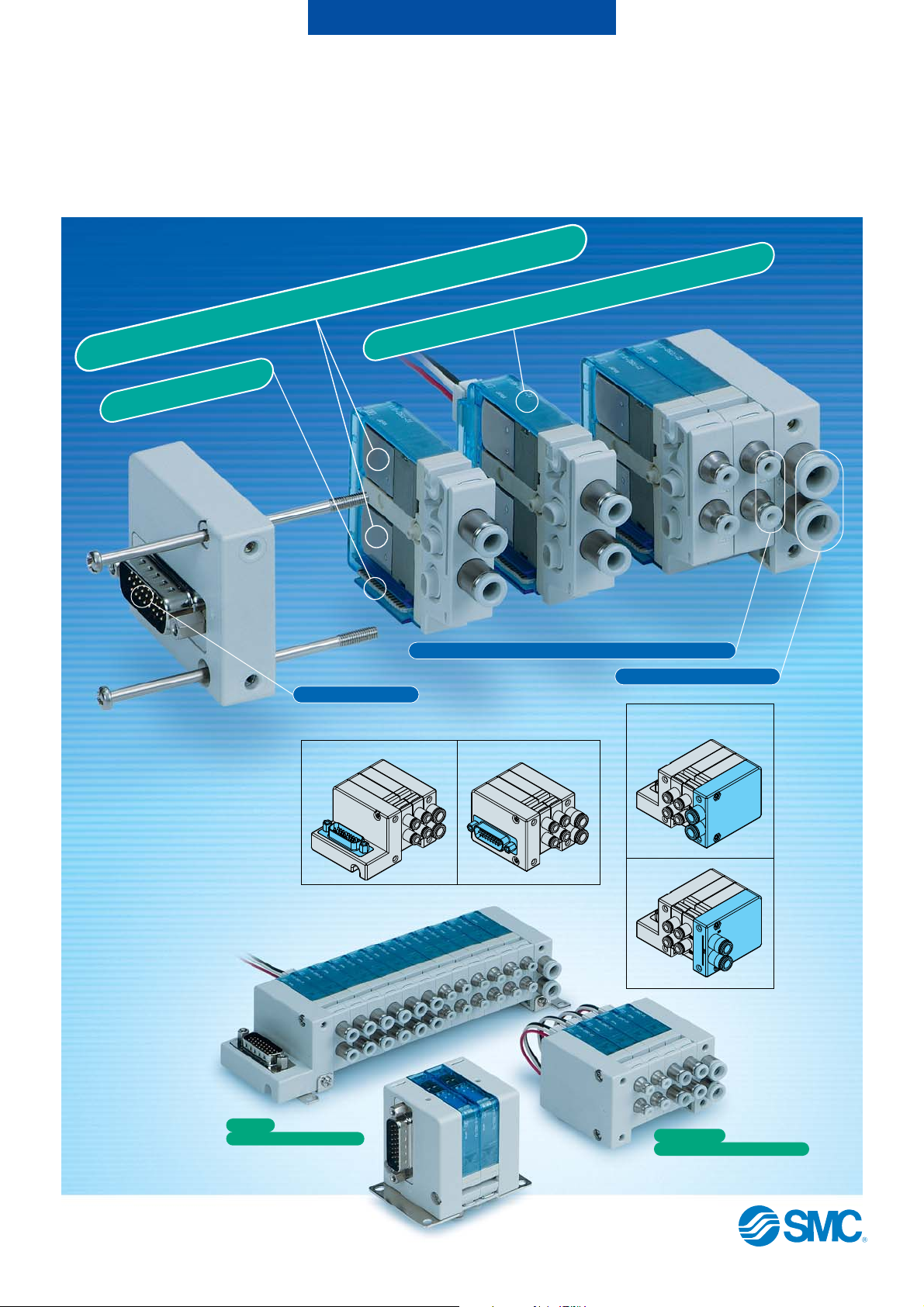

SMC Networks VV100 Series User manual

3 Port Solenoid Valve

• Connector entry direction

Upward Lateral

Standard

(Same direction as the cylinder

ports)

Side

Plug-in

Connector type manifold Non Plug-in

Individual wiring manifold

direct-operated 3-port valves on

station

Individually wired valve can be added.

Connector

(For plug-in connection)

SUP/EXH block fittings

ø2 One-touch fitting connection is possible.

• Fitting entry direction

D-sub connector

Number of connectors: 15 pins, 26 pins (for plug-in connection)

Highly Integrated Unit Manifold

CAT.ES11-98A

Series VV100

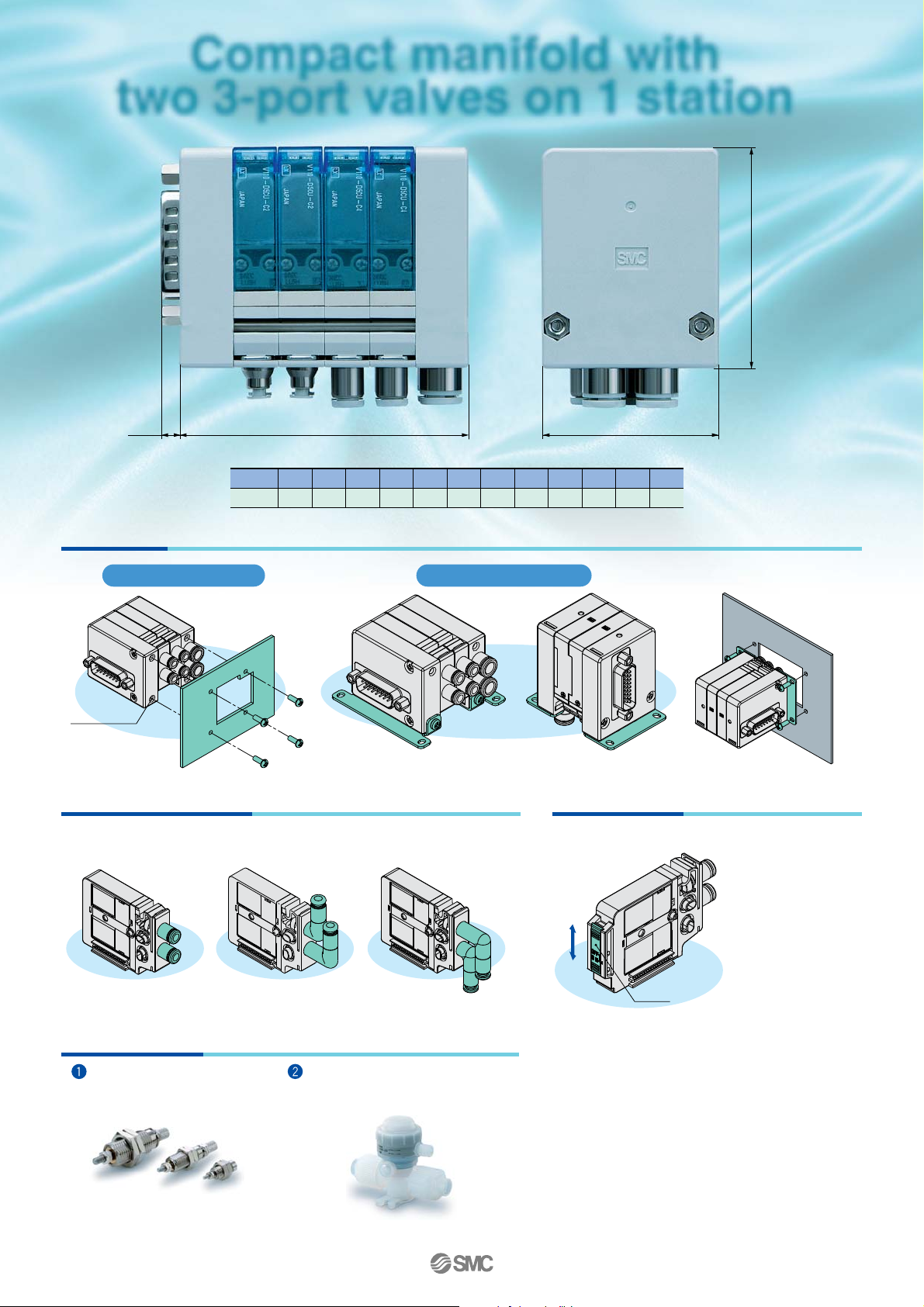

Compact manifold with

two 3-port valves on 1 station

Bracket mounting example

Straight fitting Elbow fitting

(Upward entry)

Elbow fitting

(Downward entry)

50.3

40L

(5.9)

Stations

34.2

44.4

54.6

64.8

85.2

95.4

105.6

115.8

126

136.2

146.4

L: Dimensions

Mounting

Piping Variations

• Metric size: ø2, ø4 one-touch fitting

• Inch size: ø1/8", ø5/32" one-touch fitting

Applications

Operating a small bore

size cylinder such as a

pin cylinder

Air-operated valve for

chemical valve

Possible to shut the signal of each valves

individually.

With Switch

• The valve coil is not

energized even if an

electric signal is fed by

the manifold's connec-

tor.

• Effective use as a safe-

ty measure for mainte-

nance.

Switch

OFF

Scale:

100

Scale:

100

Direct mounting Bracket mounting

4 x M3 x 0.5

Features 1

INDEX

Common Specifications

Construction

P.2

P.3

Connector Type Manifold

How to Order

Manifold Electrical Wiring

Connector Wiring Diagram

Dimensions

P.4, 5

P.6

P.7 to 11

Individual Wiring Manifold

How to Order

Dimensions

P.12, 13

P.14, 15

Manifold Exploded View

Manifold Options

Safety Instructions

Specific Product Precautions

P.16

P.17 to 19

Back page 1, 2

Back page 3 to 7

Plug-in

Non Plug-in

Manifold Specifications

Response Time

Solenoid Valve Specifications

Fluid Air

0 to 0.7

1 port: –100 kPa to 0.6/3 ports: –100 kPa to 0

1 port: –100 kPa to 0/3 ports: –100 kPa to 0.6

–10 to 50 (No freezing)

Not required

Unrestricted

150/30

Dustproof

24 VDC, 12 VDC

±10% of rated voltage Note 2)

0.4

0.15

Diode

LED

Operating pressure

range (MPa)

Ambient and fluid temperature (°C)

Maximum operating frequency (Hz)

Lubrication

Mounting orientation

Shock/Vibration resistance (m/s2) Note 1)

Enclosure

Coil rated voltage

Allowable voltage fluctuation

Surge voltage suppressor

Indicator light

Power

consumption

(W)

Positive pressure

N.C.

N.O.

Vacuum

pressure

Standard

With power saving circuit

(Continuous duty type)

Note 1) Impact resistance: No malfunction occurred when it is tested with a drop tester in the axial direction and

at the right angles to the main valve and armature in both energized and de-energ-

ized states every once for each condition. (Value in the initial state)

Vibration resistance: No malfunction occurred in one sweep test between 45 and 2000Hz. Test was per-

formed in the axial direction and at the right angles to the main valve and armature in

both energized and de-energized states for each condition. (Value in the initial state)

Note 2) For the allowable voltage fluctuation for Z and T types (with power saving circuit), observe the following

range because there is voltage drop due to internal circuit.

Response time ms (at 0.5 MPa)

7 or less

Mass

Valve model

V110-C2/C4

Number of solenoids

1 pc. (Single)

2 pcs. (Double)

Port size

C2, C4

(ø2, ø4 one-touch fitting)

Mass (g)

Flow Characteristics

Port size

1(P)

2a, 2b 1(P)→2a/2b

C [dm3/(s·bar)] C [dm3/(s·bar)]

2a/2b→3(E)

0.03

0.22

0.19

0.05

0.31

0.29

Flow characteristics

Model D-sub connector

Type 10FA

Connector type

1 to 12 stations

Individual wiring

Non-polar, +COM +COM

Common SUP, EXH

Valve

Side, Upward, Downward (Using elbow fittings for upward or downward)

C4, C6, N3, N7

C2, C4, N1, N3

W = 56 + n

Type 10FB Type 10

Non plug-in

Manifold type

1 (SUP), 3 (EXH)

Applicable connector

Internal wiring

Mass W (g) n: Valve stations

Location

Direction

1 (SUP), 3 (EXH) port

2a, 2b port

∗The mass W is the value for the manifold only. (It is applied when the SUP/EXH block fitting is straight type.)

The mass of solenoid valve should be added by the number of stations.

∗The effective area S (mm2) is approximately 5 times as large as the sonic conductance (S ≈C x 5).

1 to 12 stations

Valve stations

D-sub connector 15 pins D-sub connector 26 pins

Refer to page 19.

2a, 2b port piping

specification

Port size

Z type 24 VDC: –7% to +10%

12 VDC: –4% to +10%

T type 24 VDC: –5% to +10%

12 VDC: –6% to +10%

Max. 7 stations

if all valves

have double

solenoid.

Series VV100

SOL.b

SOL.a

2a 2b t

r wueyqi!0 !1

!2 !3

JIS symbol

(N.C.)

(N.O.)

(N.C.)

(N.O.)

2b2a

SOL.a SOL.b

!1!0

rwuey iq

!3o

r wueyqi!0 !1

!2 !3

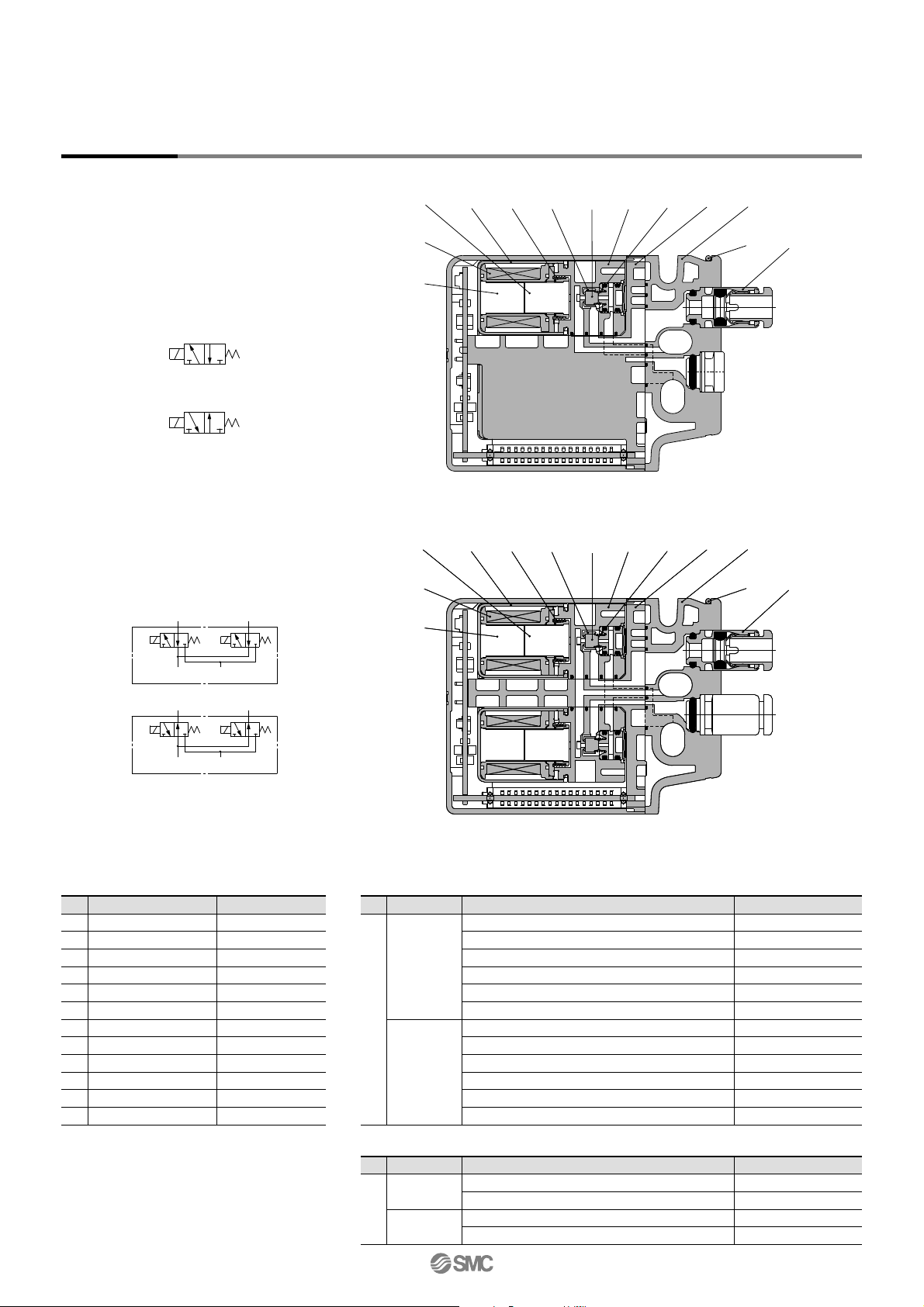

Construction

JIS symbol

DescriptionNo. Material

Component Parts

Body

Cover

Push rod

Armature assembly

Core

Poppet

Return spring

Poppet spring

Coil assembly

Pilot adapter

Port block

Clip

Resin

Stainless steel

Resin

Stainless steel/Resin

Stainless steel

FKM

Stainless steel

—

Resin

Stainless steel

Port Port size Part no.No.

Replacement Parts

One-touch Fitting (Metric Size)

2a, 2b

ø2 one-touch fitting (Straight)

ø4 one-touch fitting (Straight)

ø2 one-touch fitting (Elbow)

ø4 one-touch fitting (Elbow)

ø2 one-touch fitting (Long elbow)

ø4 one-touch fitting (Long elbow)

ø4 one-touch fitting (Straight)

ø6 one-touch fitting (Straight)

ø4 one-touch fitting (Elbow)

ø6 one-touch fitting (Elbow)

ø4 one-touch fitting (Long elbow)

ø6 one-touch fitting (Long elbow)

KJH02-C1

KJH04-C1

KJL02-C1

KJL04-C1-N

KJW02-C1

KJW04-C1-N

VVQ1000-50A-C4

VVQ1000-50A-C6

SZ3000-73-1A-L4

SZ3000-73-1A-L6

SZ3000-73-2A-L4

SZ3000-73-2A-L6

1(P), 3(E)

No.

One-touch Fitting (Inch Size)

2a, 2b

1(P), 3(E)

ø1/8" one-touch fitting (Straight)

ø5/32" one-touch fitting (Straight)

ø1/4" one-touch fitting (Straight)

KJH01-C1

KJH03-C1

VVQ1000-50A-N3

VVQ1000-50A-N7

Single

Double

Port Port size Part no.

3 Port Solenoid Valve

Series VV100

• The valve arrangement is numbered as the 1st station from D side.

• Indicate the valves to be attached below the manifold part number, in order

starting from station 1 as shown in the drawing.

The asterisk denotes the symbol for assembly.

Prefix to the part no. of the solenoid valve, etc.

VV100-10FAD2-05U1-C6 1 set (Manifold part no.)

∗ V110-D5CU-C4 3 sets (Double solenoid part no.)

∗ V110-D5CZJ-C4

1 set (Double solenoid, with switch part no.)

∗ V110-D5MZ-C4

1 set (Double solenoid, individual wiring/

lead wire length 300 mm part no.)

Ordering example (VV100-10FA)

····

·················

················

·················

Series VV100

/D-sub Connector

3 Port Solenoid Valve

Plug-in Connector Type Manifold

How to Order Manifold

D-sub connector type

Number of poles

Symbol

Connector block

mounting position: D side

SUP/EXH block

mounting position: U side

Valve stations

A: D-sub connector 15 pins

Note

Up to 14

solenoids

possible.

1 station

12 stations

Symbol Stations

B: D-sub connector 26 pins

Note

Up to 24

solenoids

possible.

1 station

12 stations

Symbol Stations

∗

If the mounted valve is N.O., apply pressure to the 3(E) port and exhaust air from the 1(P) port.

SUP/EXH block port size

ø4 one-touch fitting (Straight)

ø6 one-touch fitting (Straight)

ø4 elbow fitting (Upward entry)

ø6 elbow fitting (Upward entry)

ø4 elbow fitting (Downward entry)

ø6 elbow fitting (Downward entry)

One-touch fitting (Metric size)

ø5/32" one-touch fitting (Straight)

ø1/4" one-touch fitting (Straight)

One-touch fitting (Inch size)

SUP/EXH block fitting entry direction

1 2

Standard

(Same direction as

the cylinder

ports)

Side

Mounting option

U 1

VV100 10F C605DA 2

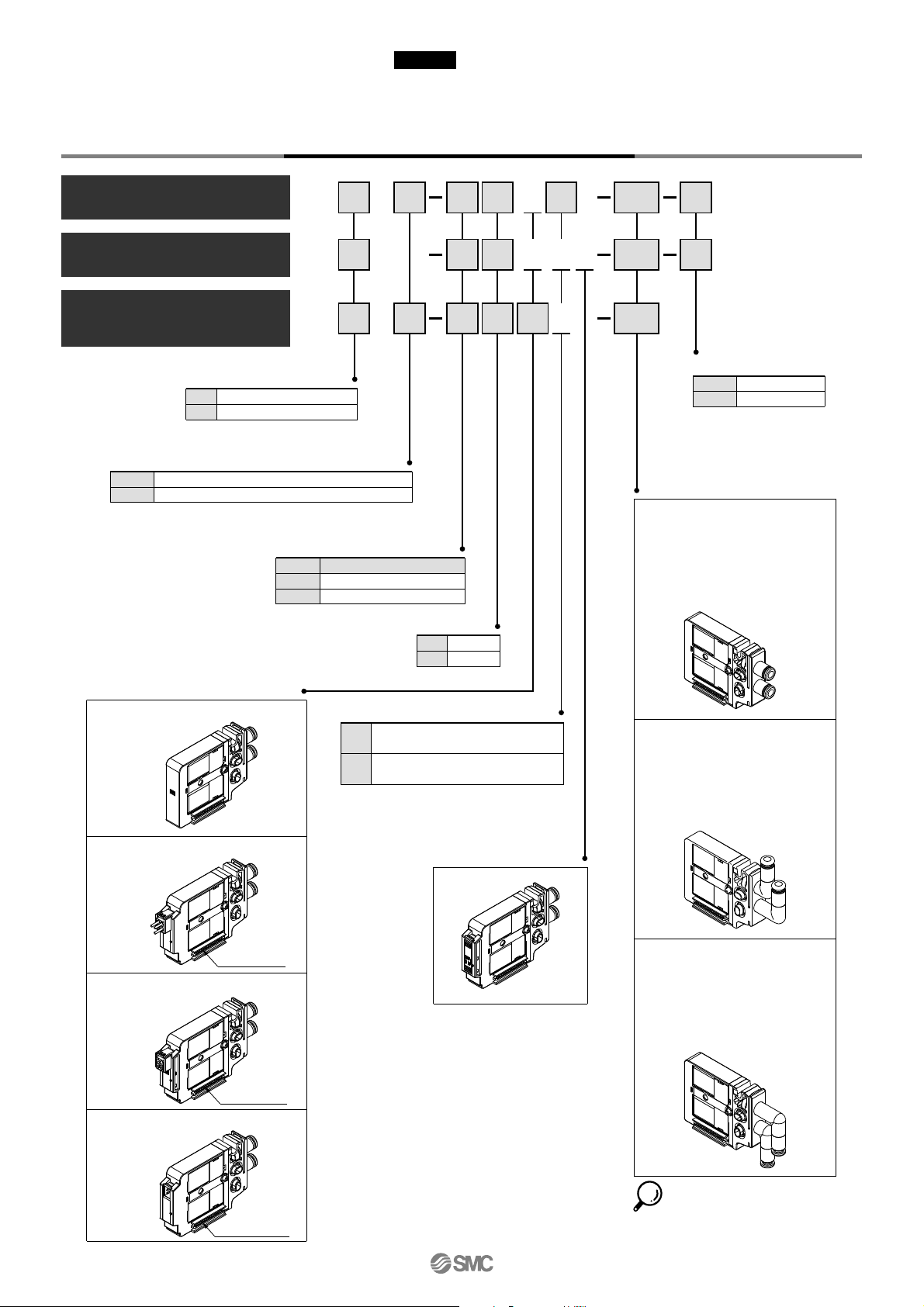

How to Order Valve Manifold Assembly

D side

U side

Stations

V110-D5MZ-C4 (1 set)

Double solenoid, individual wiring/lead wire length 300 mm (24 VDC)

V110-D5CZJ-C4 (1 set)

Double solenoid (24 VDC)

V110-D5CU-C4 (3 sets)

Double solenoid (24 VDC)

Connector entry direction

Upward

Lateral

Note) If the mounting option “N” (Mounting nut:

Inch size) is selected, the bracket cannot be

mounted.

With bracket

(Standard)

With bracket

(Port

downward)

Nil

Manifold direct mounting type

With mounting nut

M3 x 0.5

With mounting nut

No. 10-32 UNF

(Inch size)

Symbol

Mounting

Note)

How to Order Valve for Connector Type

Standard V1 1 U0 C4

With switch V1

Note 1) See page 13 for the dedicated non plug-in

individual wiring.

V1 1 Z0 C4

CZJ0 C4

Normally closed (N.C.)

Normally open (N.O.)

Type of actuation

Rated voltage

24 VDC

12 VDC

Single wiring

Double wiring

Single solenoid

wiring specification

Nil

∗ Nil for the double solenoid.

Select this when the unused

numbers to wiring are set. See

page 6 for details.

Individual wiring

[For plug-in mixed mounting] Note 1)

With light/surge voltage suppressor

(Non-polar type)

With light/surge voltage suppressor

(Polar type)

Light/surge voltage suppressor

∗When the types with power saving circuit, with

switches, and individual wiring are used, the

non-polar type cannot be selected.

∗“Z” is positive common specification.

Standard

With power saving circuit (Continuous duty type)

Coil specification

Nil

∗ Be certain to select “with power saving circuit” when the solenoid

valve will be energized continuously for long periods of time.

∗ Normally closed and normally open

type cannot be mounted on the

same manifold.

Specifications

Number of solenoids

Symbol

1 pc. (Single solenoid)

2 pcs. (Double solenoid)

∗Connector entries with the symbol

“M” cannot use the switch signal

from the D-sub connector on the

manifold. For details, refer to Mani-

fold Electrical Wiring on page 6.

∗When ordering a connector assem-

bly separately, see back pages 6

and 7.

Connector entry

C: Dedicated for centralized wiring

M: Individual wiring, With lead wire

Length 300 mm

MN: Individual wiring, Without lead wire

(With connector, socket)

MO: Individual wiring, Without

connector

With switch

Note 2) The electric connection to the

manifold will be positive

common specification when

light/surge voltage

suppressor is “Z” (Polar type).

2a/2b fitting port size

Straight fitting

(Metric size)

C2: ø2 one-touch fitting

C4: ø4 one-touch fitting

(Inch size)

N1: ø1/8" one-touch fitting

N3: ø5/32" one-touch fitting

Elbow fitting (Upward entry)

(Metric size)

L2: ø2 one-touch fitting

L4: ø4 one-touch fitting

(Inch size)

LN1: ø1/8" one-touch fitting

LN3: ø5/32" one-touch fitting

Elbow fitting (Downward entry)

(Metric size)

B2: ø2 one-touch fitting

B4: ø4 one-touch fitting

(Inch size)

BN1: ø1/8" one-touch fitting

BN3: ø5/32" one-touch fitting

With linkage

printed

circuit board

With linkage

printed

circuit board

With linkage

printed

circuit board

Series VV100

3 Port Solenoid Valve/D-sub Connector

Connector Type Manifold

Plug-in

Station 3

SOL.a

SOL.b

SOL.a

SOL.b

SOL.a

Station 4

Station 1

baCommon (+)

Individual wiring (M type)

Station 2

Single solenoid

Station 4

Double solenoid

Station 3

Double solenoid

Station 1

(D-sub connector)

Connector side

Solenoid

Common (+, –)

SOL.b

SOL.a

Station 3

SOL.a

Unused terminal

Station 2

SOL.a

SOL.b

Station 1

Double solenoid

Station 3

Common (+, –)

Single solenoid

(Double wiring specification)

Station 2

Double solenoid

Station 1

(D-sub connector)

Connector side

Solenoid

Connector side

Solenoid

Station 3

Station 2

Station 1

Double solenoid

Station 3

Double solenoid

Station 1

(D-sub connector)

SOL.b

SOL.a

SOL.b

SOL.a

Common (+, –)

Single solenoid

Station 2

Station 1

Station 5

Station 9

Station 4

Station 8

Station 12

SOL.a

SOL.b

SOL.a

SOL.b

SOL.a

SOL.b

SOL.a

SOL.b

Common

SOL.a

SOL.b

Station 7

SOL.b

SOL.a

Station 6

SOL.b

SOL.a

Station 2

Station 1

SOL.b

SOL.a

SOL.b

SOL.a

Common

Manifold Electrical Wiring (Image)

When a valve is added, the signals of the connector are assigned to the valve. This makes it completely unnecessary to disassemble the connector unit.

∗The connector arrangement shown below differs from the actual arrangement. Refer to the Connector Wiring Diagram below.

Individually Wired Valve

Single Solenoid with Double Wiring Specification

Single Solenoid and Double Solenoid

Type FA: D-sub connector (15 pins) Type FB: D-sub connector (26 pins)

Note) This circuit is for the specification with up to 7 stations of double solenoid

valves. This should be wired in order 1→9→2→10 without skipping or leav-

ing any connectors remaining.

Note) This circuit is for the specification with up to 12 stations of double solenoid

valves. This should be wired in order 1→2→3→4 with the exception of 9, 18

(Common) without skipping or leaving any connectors remaining.

Connector Wiring Diagram

When the non-polar type (U) valves are used, either +COM or –COM wiring of the manifold is possible. However, the valve does not switch with –COM if a

type (Z) is used. Be certain to use +COM.

Caution

Series VV100

(8.9)

(9.4)

50.3

5.3

(When equipped with switch)

9.9

(For individual wiring)

9.8

2 x M2.6 x 0.45

No. 4-40 UNC

if the fitting size is inch 30.6

Approx. 300

(Lead wire length)

(Station 1)(Station n)

(Pitch)

P = 10.2

One-touch fitting

[1(P), 3(E) port]

Applicable tubing O.D: ø2

ø4

ø1/8"

ø5/32"

One-touch fitting

(2a, 2b port)

Applicable tubing O.D: ø4

ø6

ø5/32"

ø1/4"

4 x M3 x 0.5

Thread depth 4.8, hole depth 7 Note 3)

(For direct mounting)

11.8 18.7

11.45.7

12 14

4.531.1

L2 26.4

36.6

(8.9)

If the fittings are

mounted on side.

4 x No. 10-32 UNF if the

mounting option “N” is selected

If the fittings are mounted on side.

(6.3)

Solenoid No. 13

OFF

Solenoid No.

Light/surge voltage suppressor

SOL.a: Orange

SOL.b: Green

Switch

(When equipped with switch)

U side D side

Dimensions

VV100-10F D1- U -

Stations 1

n: Stations

L: Dimensions

53.7

20.4

63.9

30.6

74.1

40.8

84.3

94.5

61.2

104.7

71.4

114.9

81.6

125.1

91.8

135.3

102

145.5

112.2

155.7

122.4

165.9

132.6

Note 1) 10FA and 10FB types have the same L1

and L2 dimensions, and the only difference

is the number of poles of the connector.

See page 6 for the pin arrangement.

Note 2) For manifold dimensions including elbow

fitting, see page 11.

Note 3) As the distance between the block end to

the thread is 2.5 mm, the screw depth

should be 5 to 7 mm.

Series VV100

3 Port Solenoid Valve/D-sub Connector

Connector Type Manifold

Plug-in

4 x M3 for mounting

(Bracket)

(9.4)50.39.9

(For individual wiring)

5.3

(When equipped with switch)

6.7

56.9

(4.4)

3.2

3.322

9.75

15.5

11.5

(8.9)

6.7

Solenoid No.

(Station 1)(Station n)

For F2

30.6

Approx. 300

(Lead wire length)

(1.2)

OFF

Solenoid No.

Light/surge voltage suppressor

SOL.a: Orange

SOL.b: Green

Switch

(When equipped with switch)

(Pitch)

P = 10.2

Applicable tubing O.D: ø2

ø4

ø1/8"

ø5/32"

Bracket for side ported 36.6

One-touch fitting

(2a, 2b port)

Applicable tubing O.D: ø4

ø6

ø5/32"

ø1/4"

One-touch fitting

[1(P), 3(E) port]

11.8 18.7

1.2

1412

(8.9)

If the fittings are

mounted on side.

11.45.7

4 x M3

for mounting

(Bracket)

Bracket for bottom ported

33 3.5

20 39

If the fittings are

mounted on side.

(6.3)

U side D side

2 x M2.6 x 0.45

No. 4-40 UNC

if the fitting size is inch

Dimensions

VV100-10F D1-

BF1

U -

Stations 1

n: Stations

L: Dimensions

53.7

42.2

50.2

61.2

68.6

63.9

52.4

60.4

71.4

78.8

74.1

62.6

70.6

81.6

84.3

72.8

80.8

91.8

99.2

94.5

102

109.4

104.7

93.2

101.2

112.2

119.6

114.9

103.4

111.4

122.4

129.8

125.1

113.6

121.6

132.6

140

135.3

123.8

131.8

142.8

150.2

145.5

134

142

153

160.4

155.7

144.2

152.2

163.2

170.6

165.9

154.4

162.4

173.4

180.8

Bracket option: F1 (For side ported)

Bracket option: F2 (For bottom ported)

Note 1) 10FA and 10FB types have the same L1 to

L5 dimensions, and the only difference is

the number of poles of the connector. See

page 6 for the pin arrangement.

Note 2) For manifold dimensions including elbow

fitting, see page 11.

Series VV100

Other manuals for VV100 Series

Other SMC Networks Control Unit manuals

SMC Networks

SMC Networks MPCXX-XXX-XXX-XX-DUT01607 User manual

SMC Networks

SMC Networks EX260 Series User manual

SMC Networks

SMC Networks VOA325 Series User manual

SMC Networks

SMC Networks EX600-SDN Series User manual

SMC Networks

SMC Networks SYA5000 Series User manual

SMC Networks

SMC Networks JSY1000 Series User manual

SMC Networks

SMC Networks EX260 Series User manual

SMC Networks

SMC Networks VJ3000 Manual

SMC Networks

SMC Networks VP 46 Series User manual

SMC Networks

SMC Networks VFS1000 User manual

SMC Networks

SMC Networks EXW1-RDX# Series User manual

SMC Networks

SMC Networks ASR Series User manual

SMC Networks

SMC Networks VQ100 Series User manual

SMC Networks

SMC Networks VM400 Series User manual

SMC Networks

SMC Networks VS7-6 Series User manual

SMC Networks

SMC Networks VQC1000 User manual

SMC Networks

SMC Networks EX600 Series User manual

SMC Networks

SMC Networks V100 Series User manual

SMC Networks

SMC Networks ASR Series User manual

SMC Networks

SMC Networks ProtoCessor FPC-ED2 User guide

SMC Networks

SMC Networks S0700 User manual

SMC Networks

SMC Networks XGTP31-50336 Series User manual

SMC Networks

SMC Networks VQ100 Series Manual

SMC Networks

SMC Networks XGTP Series User manual

Popular Control Unit manuals by other brands

Festo

Festo Compact Performance CP-FB6-E Brief description

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Quick installation guide

JS Automation

JS Automation MPC3034A user manual

JAUDT

JAUDT SW GII 6406 Series Translation of the original operating instructions

Spektrum

Spektrum Air Module System manual

BOC Edwards

BOC Edwards Q Series instruction manual

KHADAS

KHADAS BT Magic quick start

Etherma

Etherma eNEXHO-IL Assembly and operating instructions

PMFoundations

PMFoundations Attenuverter Assembly guide

GEA

GEA VARIVENT Operating instruction

Walther Systemtechnik

Walther Systemtechnik VMS-05 Assembly instructions

Altronix

Altronix LINQ8PD Installation and programming manual

Eaton

Eaton Powerware Series user guide

WAGO

WAGO 750-407/040-000 manual

Sony

Sony CCU-590 Operation manual

Graco

Graco 25D614 instructions

Task Force Tips

Task Force Tips YE-RF-900 Instructions for installation, safe operation and maintenance

Shini

Shini SPV-U Series manual
