Smartpond 84575 User manual
Model/Modèle/Modelo #s: 84575,84577
Thank you for choosing smartpond®
BEFORE RETURNING TO LOWE’S
Contact Customer Care:
1-888-755-4497
Merci d’avoir choisi smartpond®
Avant de retourner à LOWE’S
Contact Les Soins de Client:
1-888-755-4497
Gracias por elegir smartpond®
ANTES DE DEVOLVER A LOWE’S
Contacte Atención al Cliente:
1-888-755-4497
Fountain Pump with Low Water Shut-off / Pompes
de Fontaine avec Arrêt à Faible Niveau D’eau/
Bombas para Fuente con Bajo Nivel de Agua
TABLE OF CONTENTS
Product Info and Replacement Parts 4-5
Warnings and Cautions 5-7
Package Contents 8
What is Low Water Shut-off? 8
Preparation 9
Operation Instructions 9
Pump Performance 10
Maintenance and Winterization 11-12
Troubleshooting 12
Product Tips and Limited Warranty 13-15
English
1
Français
TABLE DES MATIÈRES
Soins du client et Pièces de rechange 16-17
Avertissements et précautions 17-19
Contenu de l’emballage 20
Qu’est-ce que l’arrêt de bas niveau d’eau? 20-21
Préparation 21
Instructions d’utilisation 21
Performance de la pompe 22
Maintenance et Hivernage 23-24
Dépannage 24-25
Conseils sur les produits et Garantie limitée 25-27
2
Español
TABLA DE CONTENIDO
Atención al cliente y Piezas de repuesto 28-29
Advertencias y precauciones 29-31
Contenido del paquete 32
¿Qué es el corte por bajo nivel de agua? 32
Preparación 33
Instrucciones de funcionamiento 33
Rendimiento de la bomba 34
Mantenimiento y Acondicionamiento para el invierno 35-36
Solución de problemas 36-37
Consejos de producto y Garantía limitada 37-39
VISIT WWW.SMART-POND.COM FOR PRODUCT INFORMATION AND TIPS.
EN
4
Questions, problems, missing parts?
1-888-755-4497
customercare@smart-pond.com
Monday - Friday
Date of
purchase:
Lowe’s store
number (record the store
number found on your receipt) ___/___/___
___ ___ ___ ___
Model number____________ Date code: ____/____
mm / yy
Before installing your product please write down the
following information:
00000000000000
3 YEAR WARRANTY
2 YEARS + 1 ADDITIONALYEAR FOR ONLINE REGISTRATION
This quality pump comes with a 2 year warranty. Upon online registration,
an additional year is added to the warranty by smartpond®.
www.smart-pond.com/register
To register, use the 14 digit serial number located on the pump.
___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___
PLEASE CALL CUSTOMER CARE BEFORE RETURNING ITEM TO LOWE’S: 1-888-755-4497
EN
5
IMPORTANT SAFETY INFORMATION
Please read these instructions carefully prior to starting up the
unit!
The water system on which the operation of this product is based
requires utmost care and maintenance, possibly also the use
of chemicals, in order to prevent and keep the occurrence of
micro-organisms and harmful bacteria, especially legionellae that
are responsible for legionnaire’s disease, under control. Non-
observance of this information about correct maintenance and
care can entail the spreading of harmful bacteria. Due to the fact
that for decorative purposes, water nozzles distribute water in
the air, water droplets containing harmful bacteria can enter your
lungs and cause life-threatening diseases.
It is the responsibility of the owner of the water system and
its attendant units to ensure their maintenance and care in
compliance with the laws, directives and instructions laid down
for this purpose. In order to avert harmful contamination, we
urgently recommend the user to ensure cleaning and care of the
water system and the water feature including the nozzle, and to
take all necessary measures to maintain the technical units, such
WARNINGS AND CAUTIONS
REPLACEMENT PARTS
For replacement parts, visit our website or call
Customer Care:
1-888-755-4497
www.smart-pond.com/replacement-parts
Monday - Friday
Please have the product model number and date code
VISIT WWW.SMART-POND.COM FOR PRODUCT INFORMATION AND TIPS.
EN
6
as pumps, tubing, connectors, under-water lighting, and nozzles
to keep them in functional order in line with safety aspects.
However, the maintenance and care obligation is not limited to
the technical products supplied, but encompasses the entire
system.
We also recommend the owner to keep records of the dates
when maintenance and care was carried out, and to document
all water tests made in conjunction with the water feature. The
owner is solely responsible for guaranteeing the safety of the
water feature. Use or maintenance of the units sold and the
system are beyond GeoGlobal Partner’s inuence. GeoGlobal
Partners can only be held liable for manufacturing faults of
smartpond®units.
WARNING
•Risk of electrical shock. This pump is supplied with a
grounding conductor and grounding-type attachment plug. To
reduce the risk of electric shock, be certain that it is connected
only to a properly grounded, grounding-type receptacle.
• Do not exceed the voltage shown on the pump.
• Always disconnect pump from the power source before
beginning any maintenance or work on the pump.
• Inspect cord for damage before installation and/or
maintenance. Replace the entire pump assembly if damage is
found.
• Do not remove the grounding pin from the power cord plug.
• To reduce the risk of electric shock, use only on portable, self-
contained fountains no larger than 5 ft. in any dimension.
• Risk of electrical shock –– This pump has not been
investigated for use in swimming pool or marine areas.
PLEASE CALL CUSTOMER CARE BEFORE RETURNING ITEM TO LOWE’S: 1-888-755-4497
EN
7
CAUTION
• This pump has been evaluated for use with fresh water only.
• Use a proper power source as indicated on the pump label.
• Keep the cord away from high temperatures or other heat
sources.
• Do not pump heated liquids.
• Do not let the pump run dry. Pump must be completely
submerged for proper operation and cooling.
• Operate in freshwater only. Avoid heavily chlorinated water and
water with high pH levels.
• Do not lift the pump or light by its power cord.
VISIT WWW.SMART-POND.COM FOR PRODUCT INFORMATION AND TIPS.
EN
8

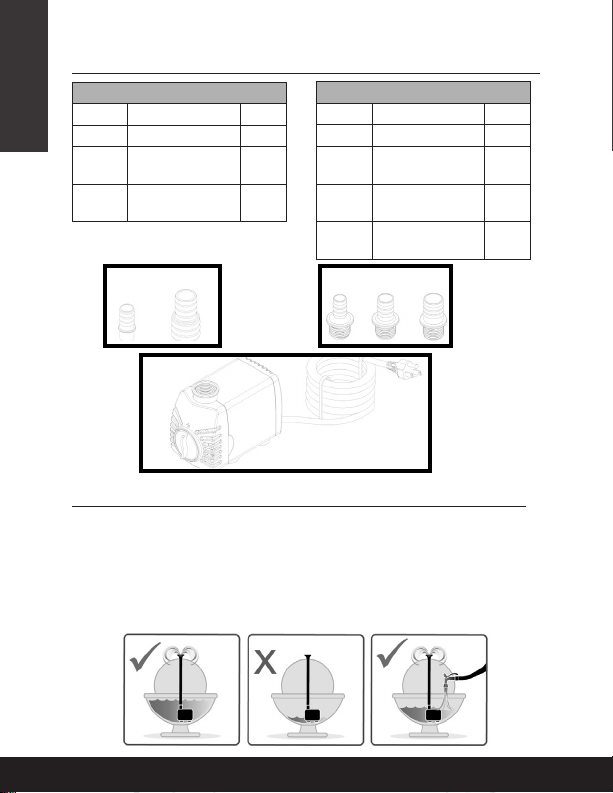

PACKAGE CONTENTS
84577
Part Description Qty
APump 1
B1/2 in. ID Tubing
Adapter 1
C3/4 in. ID Tubing
Adapter 1
A
BCDEF
WHAT IS LOW WATER SHUT-OFF?
A. Fully submerged, the pump operates normally.
B. If water levels drop below the sensor, the pump shuts off to
prevent burnout.
C. When the water is added, the pump automatically turns on
and resumes circulation.
A B C
84575
Part Description Qty
APump 1
D1/2 in. ID Tubing
Adapter 1
E5/8 in. ID Tubing
Adapter 1
F3/4 in. ID Tubing
Adapter 1
PLEASE CALL CUSTOMER CARE BEFORE RETURNING ITEM TO LOWE’S: 1-888-755-4497
EN
9
OPERATION INSTRUCTIONS
Step 1. Adjust the ow
control to the lowest
setting. Once the pump
has been turned on (after
step 3) you may adjust
the ow control to the
preferred setting.
Step 2. Connect tubing to
the outlet of the pump with
the the appropriate sized
adapter.
NOTE: Tubing not
included
Step 3. Place the pump
into the water and connect
to properly grounded
electrical outlet.
2
3
1
PREPARATION
Before beginning assembly or operation of product, make sure
all parts are present. Compare parts with package contents list
and diagram. If any part is missing or damaged, do not attempt
to assemble, install or operate the product. Contact Customer
Care for replacement parts.
• Estimated assembly time: 5 minutes.
• No tools required for assembly.
NOTE: This pump will NOT operate until fully submerged in water.
VISIT WWW.SMART-POND.COM FOR PRODUCT INFORMATION AND TIPS.
EN
10
PUMP PERFORMANCE
84577 84575
Pump Specifications
Max Flow Rate
300 GPH at 0 ft. height
Max Pumping Height
6.1 ft. (0 GPH)
Power Consumption
26 watts / 0.4 amps
16 ft. power cord
Pump Specifications
Max Flow Rate
500 GPH at 0 ft. height
Max Pumping Height
8.2 ft. (0 GPH)
Power Consumption
43 watts / 0.6 amps
16 ft. power cord
Ideal pumping height
FLOW RATES (GPH)
LIFT (feet)
8
7 100
6 175
5 87 235
4 145 295
3 192 350
2 235 410
1 275 460
0 300 500
84577 84575
PUMPS
**See P. 22 or 34 for metric data
Note: using excessive tubing longer than the ideal pumping
height will result in reduced water ow.
