SMART-AVI FDX-M4U User manual

www.smartavi.com

Installation

Manual

Quad DVI-D Extender, with Audio

and USB Keyboard and Mouse

FDX-M4U

2www.smartavi.com

Introduction

The FDX-M4U consists of a transmitter and receiver that extend

four DVI-D outputs, with audio, USB keyboard and mouse, and RS-232

control. For exceptional quality and security, ber optic extension is the

best solution. The FDX-M4U can go the distance with multi-mode ber

optic cabling with a reach of up to 1,400 feet.

The SmartAVI FDX-M4U is capable of supporting four DVI-D

monitors, with USB 1.1 keyboard and mouse, stereo audio with serial

(RS-232) control. The system includes a transmitter and receiver, which

are connected by four ber optic cables.

Features

• Quad channel DVI-D, audio and USB keyboard and mouse

with RS-232 control

• Top Signal Quality over Multimode Fiber (up to 1,400 feet)

• Video Resolutions up to 1920 x 1200 WUXGA at 60Hz

• Customizable/Programmable DDC Table for Mac/PC

• Supports all USB 1.1 Keyboards and Mice

• Fiber Plug Type LC

• Compatible With all Major KVM Switches

• Supports Mac, PC, and Linux DVI

• Uses universal DVI Single Link connectors

• Zero pixel loss with TMDS signal correction

• Rack Mountable Solution

• Plug-and-play

www.smartavi.com

Applications

MEDICAL FIELD

Inthemedicaleldwheresensitiveelectronicdevicesareused,isolating

workstation computers can be a matter of safety. The FDX-M4U allows

the workstation computers to be housed in a central location, away

from sensitive devices.

INDUSTRIAL WORK AREAS

In industrial work areas that may be too harsh for a workstation

computer, the FDX-M4U can consolidate the computers into a safe

location.

SECURE COMPUTING

When it comes to security, the FDX-M4U is an excellent deployment

option. With the FDX-M4U, devices can be centralized and secured

from public access. This, combined with the intrinsic security of ber

optic cable, make the FDX-M4U one of the most secure KVM solutions

available.

INFORMATION KIOSKS/DISPLAYS

As with most information booths and kiosks, there is a risk of damage

or theft. The FDX-M4U is the best way to secure computer hardware,

by consolidating it to a secure location away from public access.

FILM/MUSIC RECORDING STUDIOS

When recording with sensitive cameras and microphones, computers

are often too noisy to be used in the immediate vicinity. The FDX-M4U

isolates the computers into another room, maintaining the silence that

recording artists require.

4www.smartavi.com

FDX-M4U Receiver Rear

Why Fiber Optic?

SmartAVI has created a full line of ber optic extender products,

understanding that this technology is superior to traditional

cabling.

Fiber optic cables are:

• capable of transmitting over very long distances with no

signal loss.

• immune to electromagnetic interference. In situations where

there is considerable interference, ber optic cabling is the

only solution.

• much more secure because they cannot be easily tapped. For

this reason, military and law enforcement agencies use ber

optic cables for the transmission of sensitive data.

• relatively inexpensive and small enough to be routed through

small spaces.

www.smartavi.com

What’s in the Box?

PART NO. QTY DESCRIPTION

FDX-TXM4P 1 Point to Point Quad DVI-D, USB Keyboard & Mouse, Audio and RS232 Multimode Fiber Extender Transmitter

FDX-RX4MU 1 Point to Point Quad DVI-D, USB Keyboard & Mouse, Audio and RS232 Multimode Fiber Extender Receiver

Power Cable 2 CCPWR06USA

Technical Specications

VIDEO

Format DVI-D Single Link

Maximum Pixel Clock 165 MHz

Input Interface (TX) (4) DVI-D 29-pin female

Output Interface (RX) (4) DVI-D 29-pin female

Resolution Up to 1920 x 1200 @60Hz

DDC Internal

Input Equalization Automatic

Input Cable Length Up to 20 ft.

Output Cable Length Up to 20 ft.

AUDIO

Signal Type Stereo Audio

Bandwidth 15MHz, 0dB

Impedance 10K Ohm

Connector 3.5mm Stereo Mini Female

Input Interface (1) 3.5 mm Stereo Audio

Output Interface (1) 3.5 mm Stereo Audio

USB

Signal Type OHCI/UHCI (USB 1.1)

Input Interface (TX) (1) USB Type B (Female)

Output Interface (RX) (2) USB Type A (Female)

OTHER

Power Internal 110-240 VAC

Dimensions 17 in W x 7 in H x 1.75 in D

Weight 8.0 lbs.

Operating Temp. 0-55 °C (32-131°F)

Storage Temp. -20-85 °C (-4-185 °F)

Humidity Up to 95%

RS-232 Data up to 115,000 bps

6www.smartavi.com

Installation

1. Turn o the computer, displays, and speakers.

2. Connect the DVI extension cables, USB cable, and audio cable

(not included) to the computer and to the ports on the FDX-

TXM4P.

3. Connect the displays to the DVI connectors on the FDX-M4U.

4. Connect USB mouse and keyboard ONLY to the USB connectors

on the FDX-M4U.

5. Connect speakers to the audio connector on the FDX-M4U.

6. Connect the FDX-TXM4P to the FDX-M4U with a multimode

ber-optic cable (see opposite page).

7. Connect the power cord and power on the FDX-3000TX and the

FDX-M4U.

8. Power on the computer, displays and speakers.

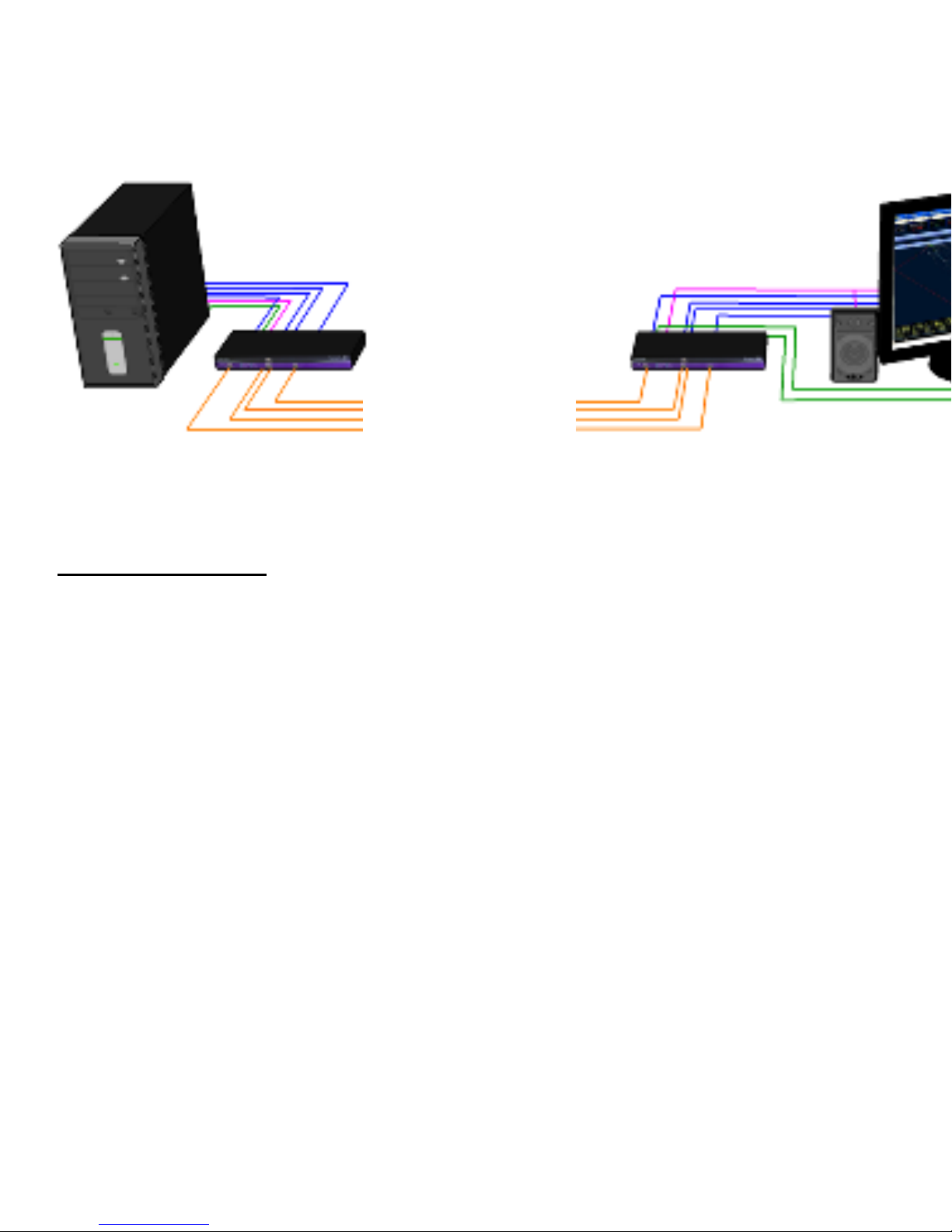

Product - Installation Diagram

FDX-

M4U

FDX-M4U

Transmitter

Computer

Stereo Speakers

Up to 1,400 feet

(400 m) over 4

ber optic cables

www.smartavi.com

Fiber-Optic Cable Specications

OPTICAL

Fiber Type Single, multi mode

Connector Type LC Type

Wavelength 1310 nm/1550 nm (Dual wavelength)

Data Rate 5 Gbps (2.5 Gbps per single wavelength)

Transmission Power -5 dB Min.

Receiver Sensitivity -21 dB Max

Distance 500 m Max.

4 DVI-D Displays

USB Keyboard USB Mouse

Stereo Speakers

www.smartavi.com

NOTICE

The information contained in this document

is subject to change without notice. Smart-AVI makes

no warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and fitness for any particular purpose.

Smart-AVI will not be liable for errors contained herein or for

incidental or consequential damages in connection with the

furnishing, performance or use of this material.

No part of this document may be photocopied, reproduced or

translated into another language without prior written consent

from Smart-AVI.

For more information, visit www.smartavi.com.

SmartAVI, Inc. / Twitter: smartavi

11651 Vanowen St., North Hollywood, CA 91605

Tel: (818) 503-6200 Fax: (818) 574-5581

http://www.SmartAVI.com
