Skydroid M12 User manual
SKYDROID M12L
SKYDROID-M12 instruction manual
= directory = = directory =
Preface
Part 1: introduction of interfaces, buttons and indicator lights.
Part 2: debug app introduction
Part 3: receiver flight control wiring and settings
Part 4: how to upgrade firmware
Part 5. How to switch left and right hand throttle
Part 6: frequently asked questions (continuous updating)
SKYDROID M12L

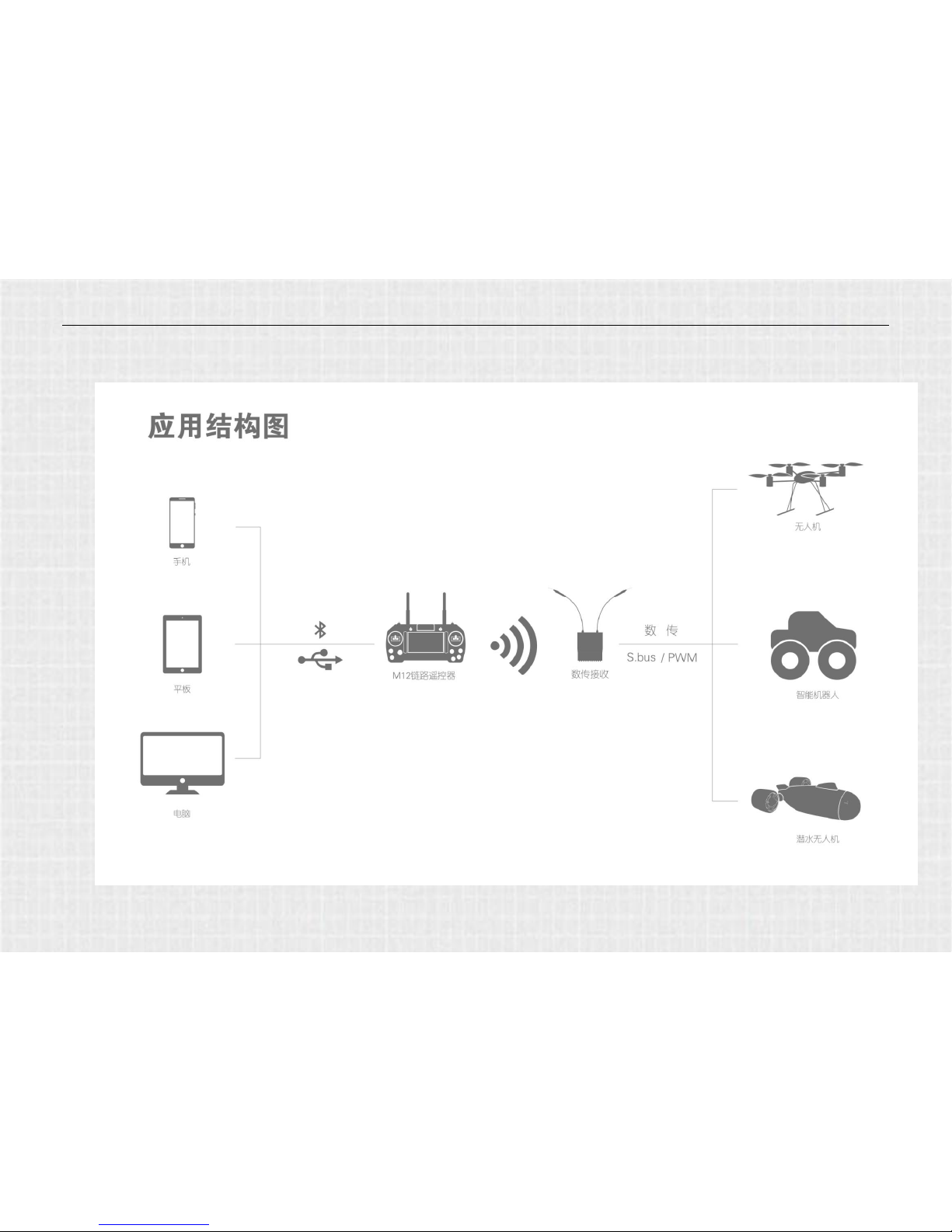

Introduction to the M12 link control system
SKYDROID-M12 is a low latency long-range UAV link. The whole system consists of 2 parts: ground remote controller and
airborne terminal.
Ground remote control:
1, 2.4G wireless transceiver: used for transmitting remote control signal + app point operation + receiving sky-end data (i.e.,
data transmission) flight data.
2, built-in 4000ma battery: ultra low power consumption, life time 30-40 hours.
3, 2.4G chip: 100MW power, the test can be the farthest distance of 60km remote control, and the stable distance is 20-30km.
Receiver:
1, real dual redundant dual antenna design
2, excellent algorithm control and frequency hopping algorithm. The communication ability of weak signal is greatly increased.
3. While receiving the remote control signal, reserve TX RX and return the flight data to the ground remote controller.
Maximize the use of 2.4G wireless bandwidth, to solve the 433 and 915 bands in small UAV and congested space instability and
non-interference.
4, PWM and SBUS output simultaneously, and support device extension.
SKYDROID M12L
三、Diagram
SKYDROID M12L

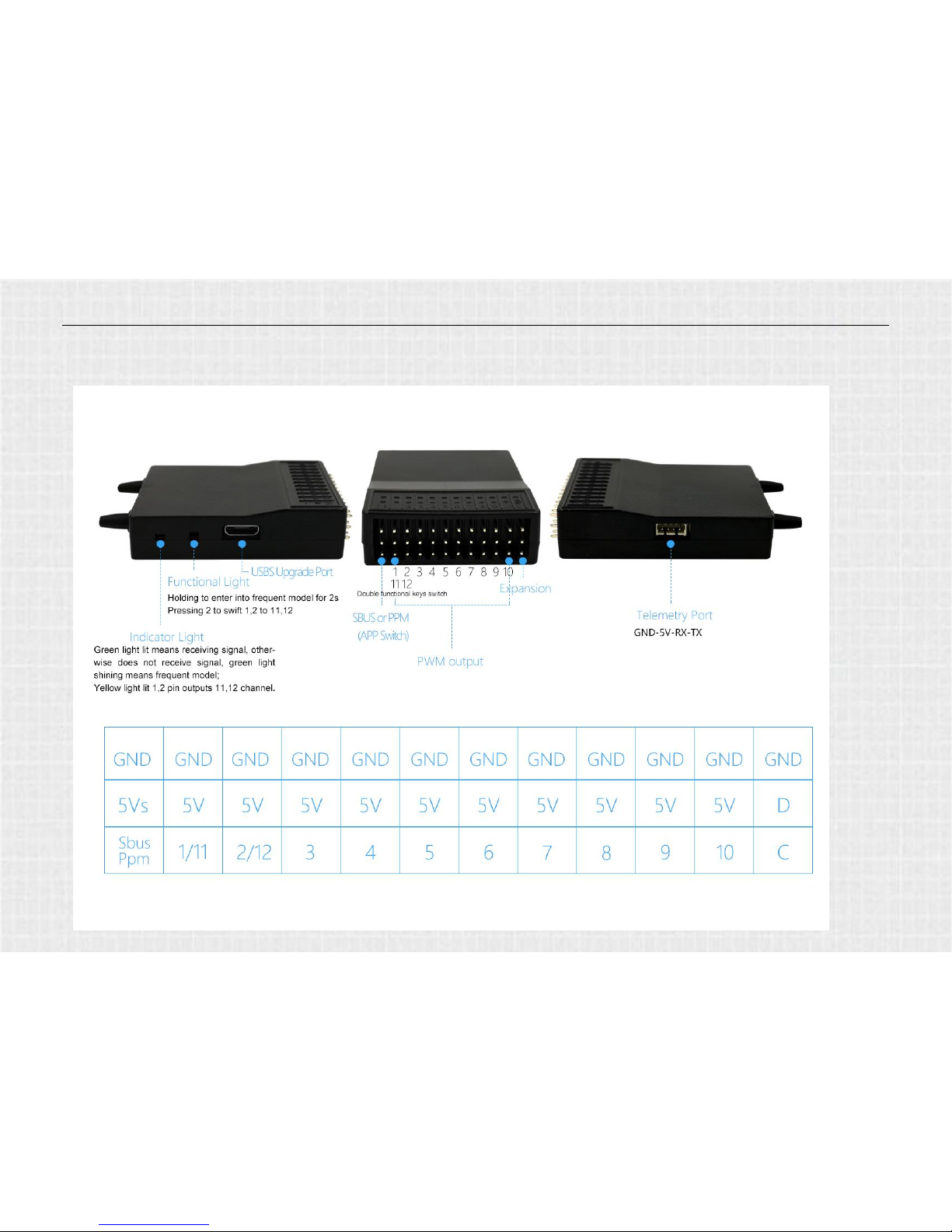

Part 1: introduction of interfaces, buttons and indicator lights.
Replaceable antenna
Power switch
Power
switch
Power
switch
Mobile bracket: pull up when
using.。
1, charging interface 5V1A
2, upgrading firmware.
3. Connect PC control
software. missionplanner
5V output and charging
lamp
Temporarily no function
3 segment of lever
switch
3 segment of lever
switch
Rocker, waterproof and dustproof
Button, three segment switch
Short press and long press
Small rocker speed
mode + angle mode
Battery lamp
SKYDROID M12L
The second part connects mobile phone parameter APP.
1. Transmitter and receiver wiring and energizing.
2, APP currently supports Android system only.
Website: (www.fuav.xin) Download app: device helper, or QRcode
3, Start up (short press and then press long), use your Android phone to search
Bluetooth, M12-XXX. pairing code is 1234.
4,,Start app, select Bluetooth connection, and select Bluetooth that has just been
matched
Parameter adjustment is used to adjust the channel's reverse, binding and failsafe
Other options are used to select receiver SBUS, PPM output, and digital baud rate,
Bluetooth name.
Hand set - switch throttle hand.
Upgrade device - used to update firmware online.
。
SKYDROID M12L
5、The parameter -app will read the current value of transmitter and receiver.
For example
Channel 1: Binding key is X2, no reverse, failsafe 1500, minimum rudder is
1050, maximum rudder is 1950
Channel 2: Binding key is Y2, no reverse, failsafe 1500, minimum rudder is
1050, maximum rudder is 1950
Channel 3: Binding key is Y1, no reverse, failsafe900, minimum rudder is 1050,
maximum rudder is 1950
Channel 4: Binding key is X1, no reverse, failsafe 1500, minimum rudder is
1050, maximum rudder is 1950
Note: if you want to maintain the value before losing control, failsafe fill in "0".
After adjustment, check correctly, click on the upper right corner to write,
otherwise you will not be able to record the transmitter and receiver.
SKYDROID M12L
6、Parameter save, parameter loading
In order to facilitate the replacement of models, or batch configuration. We can save
the parameters on your mobile phone. Each time you load parameters and write to the
transmitter and receiver, you can quickly configure them.
The custom name can be saved, and the arguments are loaded equally.。
SKYDROID M12L
The third part: receiver flight control wiring and setting.
SKYDROID M12L
Fault light:
Red light flashing --- receiver fails to pass self test, re energized test, if still red light flash need repair
The fourth part: M12 how to upgrade firmware.
Download the device helper connect the remote control with Bluetooth. Select Bluetooth, refer to the first part.
Turn off the remote control, hold down the "A button" and turn on the machine. The remote control drops into the download
mode.
Open the device helper, click Check and update, if you have new firmware, please click to upgrade immediately.

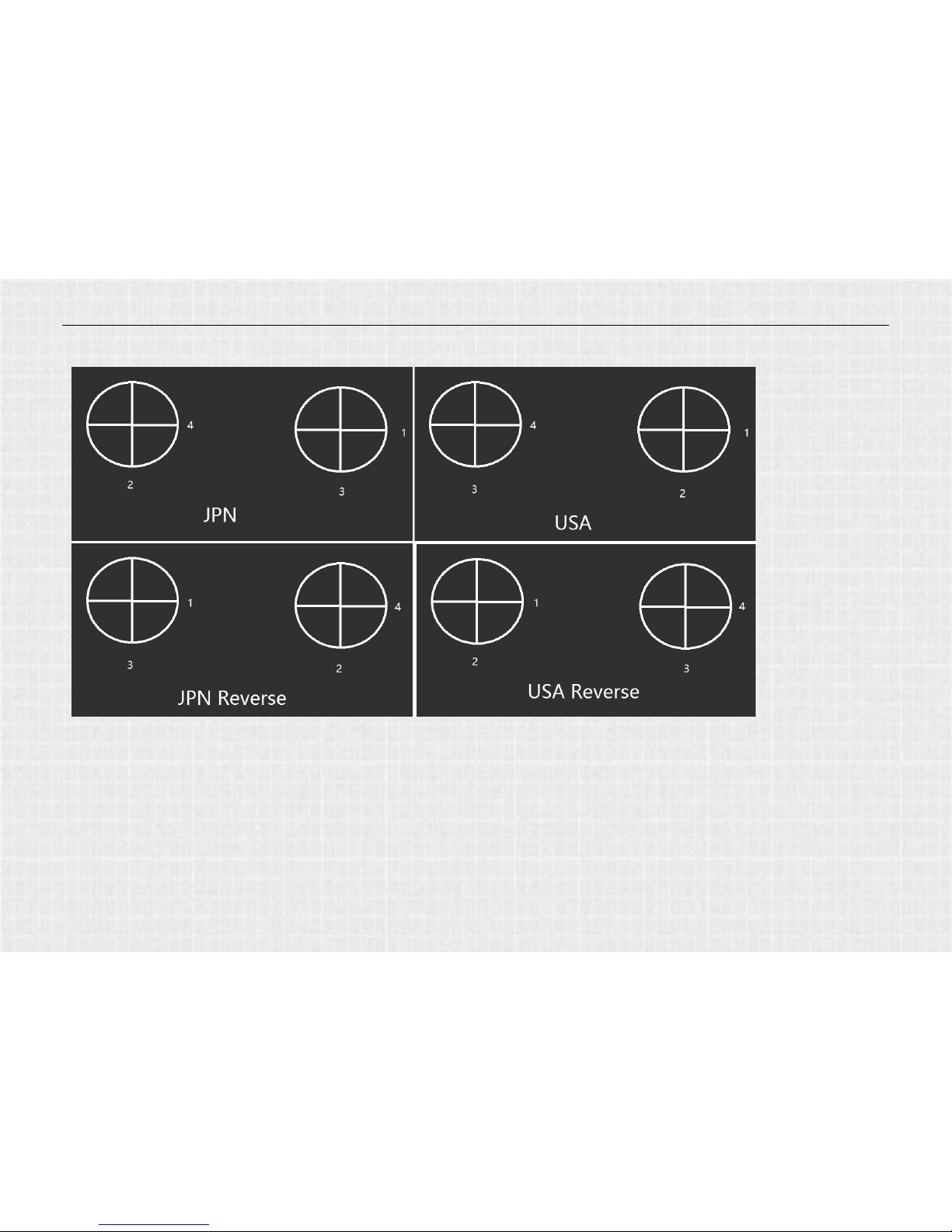

第五部分：M12 如何左右手切换
There are 4 hand shapes in the device helper.
SKYDROID M12L
The sixth part: common problems (continuous updating)
Question1: How far can M12L remote control go?
Answer: According to our own sea level test, using ordinary antenna can reach about 30-60 kilometers, high gain antenna
has no data for the time being, because there is no such long-range aircraft.
