Skope TME Series User manual

TME Series

SKOPE Vertical Chiller

User Manual

MAN10259 Rev. 4.0 Jul. 2014

TME1000

SKOPE Warranty Protection

It’s quick and simple. Take a few minutes to register

your SKOPE product and enjoy more efficient

support plus other warranty benefits. When

registering, make sure you have your cabinet serial

number at hand.

To register online:

Visit our website at www.skope.com/warrantyprotection

then complete and submit the online registration form.

Or freephone:

1800 121 535 (Australia)

0800 947 5673 (New Zealand)

SKOPE 1-year Extended Warranty

Extend your Warranty Protection by 1 year during registration. Please

check you have not already organised an extended warranty through

your dealer at time of purchase. For pricing information on an extended

warranty visit www.skope.com/warrantyprotection

Service & Support

We know you will get years of satisfaction from your new SKOPE

product when you follow a few simple preventative maintenance

guidelines.

Helpful information is available on our website

www.skope.com/serviceandsupport

Thank you for purchasing a SKOPE refrigeration product.

SKOPE TME Series

Service Manual iii

CONTENTS

1 Installation

Safety First . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Positioning the chiller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Chiller Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Stabiliser Feet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Fitting the Illuminated Sign . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Fitting the Shelves. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

2 Operation

Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Loading Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

3 Servicing

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Condenser Coil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Interior Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Sign Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4Installation

User Manual

SKOPE TME Series

1Installation

Safety First Always observe safety precautions when using any electrical appliance.

Read these instructions carefully and retain them for future reference.

When the appliance is used by or near young children or infirm persons,

close supervision is necessary, especially to ensure children do not play

with it.

Do not use this appliance for other than its intended use.

Do not cover the grilles or block the entry or exhaust of airflow by

placing objects up against the refrigeration cassette.

Do not probe any opening.

Only use this appliance with the voltage specified on the chiller rating

label affixed to the refrigeration cassette.

Ensure the chiller has adequate ventilation as this is essential to

economical, high performance.

Be careful not to touch moving parts and hot surfaces.

For your own safety and that of others, ensure that all electrical work is

done by authorised personnel.

If the power supply flexible cord becomes damaged, it must be replaced

by an authorised service agent or similarly qualified person in order to

avoid a hazard.

Ensure all necessary safety precautions are observed during installation

or removal of the refrigeration cassette.

Do not store explosive substances such as aerosol cans with a

flammable propellant in this appliance.

This appliance is not designed to be stable while in motion. Use

extreme caution when moving or transporting the appliance.

Please contact SKOPE customer services for advice regarding disposal

of this appliance.

WARNING

Always disconnect the chiller from the mains power supply

before attempting any cleaning or maintenance.

CAUTION

Never overload the power supply, which could damage the

chiller and product. See the rating label inside the chiller for

the safe power supply and current draw.

SKOPE TME Series

Installation

User Manual

Positioning the Chiller

Power Cord The chiller has a flexible power cord fitted with a 3-pin plug, which exits

below the rear sign panel. Pull the power cord around so that it’s not trapped

before you position the chiller.

Chiller

Location The location of the chiller may be the single most important decision that will

extend its life and ensure economical, high performance. We recommend

that you put the chiller in the coolest place possible because it will use less

power and last longer.

Allow adequate space for door/s to open and close properly. Self-closing

doors have internal torsion bars pretensioned at the factory and must be

unobstructed. Ensure the chiller sits on a level surface so that the door/s

shut and correctly seal. Level footing also prevents the condensate tray from

overflowing.

The maximim recommended ambient temperature for the chiller is 40°C.

Ventilation For effecient operation of the chiller, it is essential that adequate ventilation

be provided above the refrigeration unit. Ensure there is always at least a

200mm gap abetween the top of the sign panels and ceiling. Never store

cardboard cartons or other objects on top of the chiller.

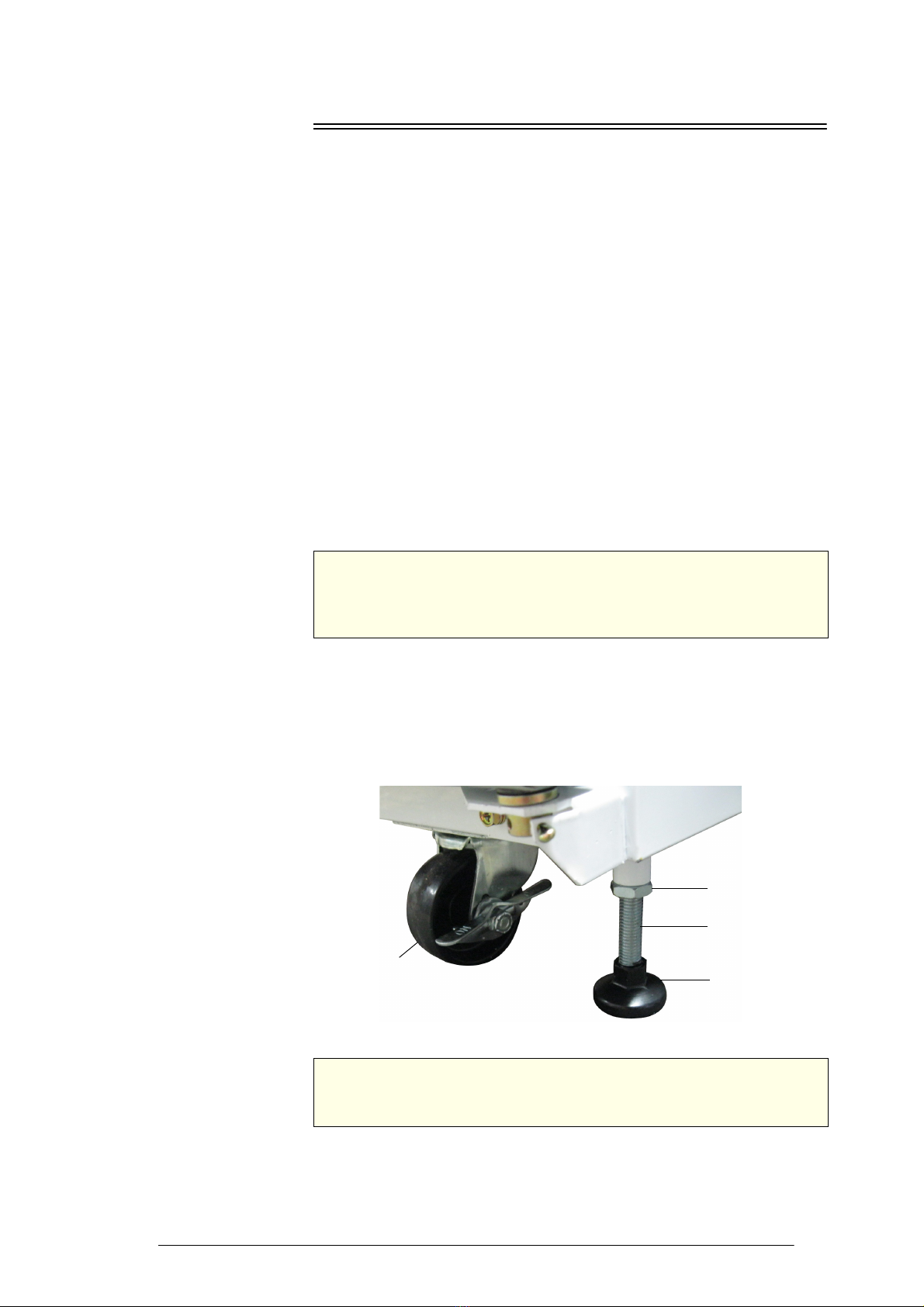

Stabiliser Feet TME475 chillers are fitted with two stabiliser feet, located next to the front

castors at the cabinet base.

To provide adequate stability, both stabiliser feet MUST be screwed down

clockwise to contact firmly with the floor (see below). Once firm floor contact

has been achieved, rotate the locking nut anti-clockwise up to the top of the

thread to lock the stabiliser foot in place.

Ensure the stabiliser feet are raised when moving the chiller.

IMPORTANT

To ensure effecient and reliable operation, a minimum of

200mm clear ventilation space is required above the

refrigeration unit.

Stabiliser foot

Lockable front

castor

Thread

Locking nut

WARNING

The stabiliser feet on TME475 chillers must have firm floor

contact when the chiller is in position.

6Installation

User Manual

SKOPE TME Series

Fitting the Illuminated Sign

New Zealand models only. The illuminated sign is packed inside the chiller

for transit purposes.

To fit the illuminated sign

Fitting the Shelves

The chiller is supplied with five layers of shelves, which may be positioned

at different heights to suit various products. Each shelf is held in place with

four shelf clips which engage in the shelf support strips. The support strips

are marked with a ‘+’ for easy location of shelf clips.

To fit the wire shelves

1. Loosen the four retaining screws on top of the chiller, and fit the left and right

hand ventilated sign sides in position. Slide the panels forward, flush with the

edges of the chiller, and tighten the screws.

2. Clip the sign back panel

into retaining slots on the

rear of the sign sides and

tighten fixing screws.

3. Fit sign assembly by

engaging clips into both

retaining slots on the front

of each side panel, and

pull sign assembly firmly

down.

4. Turn the sign retaining

clips, on top of each side

panel, to hold sign unit

firmly in position.

5. Connect the sign ENSTO 3 pole plug into the roof top power supply socket.

1. Unpack the shelves and shelf clips from inside the chiller.

2. Establish the desired position for the shelves and securely engage a shelf

clip in each of the shelf support strips.

3. Sit the shelves on the shelf clips.

Sign Side

Panel

Sign Back

Panel

Clip

Retaining slot

Sign Retaining Clip

SKOPE TME Series

Operation

User Manual

2Operation

Start-Up

After the chiller has been positioned in a suitable place, plug it in and check

the following activity.

Note: After moving the chiller, allow the chiller to stand for at least 30

minutes before connecting to the power supply.

Loading Product

The chiller should be left running for 30 minutes before loading with product.

When loading the chiller shelves with product:

Allow adequate air space around each item to ensure even cooling and

efficient operation of the chiller.

Do not exceed a maximum load of 20kg per shelf.

Remove some product if the shelves are flexing.

Do not let anything overhang the shelves because this might stop the

doors from shutting or even break something.

Item Activity

Lighting

The lights that illuminate the chiller interior, and where

applicable the lit sign, will come on when the chiller is

turned on.

Thermostat

The thermostat is pre-set to give an internal air

temperature of between 2°C and 4°C, and under normal

circumstances should not require adjustment. If you do

need to adjust the temperature, turn the thermostat shaft

protruding from the control box mounted on top of the

refrigeration unit. To make the temperature colder; turn the

thermostat clockwise. To make the temperature warmer;

turn the thermostat anti-clockwise.

Compressor,

Condenser and

Evaporator

Fans

The compressor, and evaporator and condenser fans

should all operate continuously from the time the chiller is

plugged in. This may be verified by listening for compressor

switch on and checking for air movement inside the chiller.

The compressor and condenser fan should switch off

when the chiller internal temperature reaches

approximately 2°C. and on again at approximately 4°C.

The internal chiller air will continue to circulate at all times.

8Servicing

User Manual

SKOPE TME Series

3Servicing

Cleaning

Ensure the chiller is disconnected from the power supply before cleaning.

Cabinet Periodically wipe the inside and outside of the cabinet with a damp cloth,

taking care to keep moisture away from electrical parts. As with any

maintenance, ensure the chiller is isolated from the power supply before

cleaning.

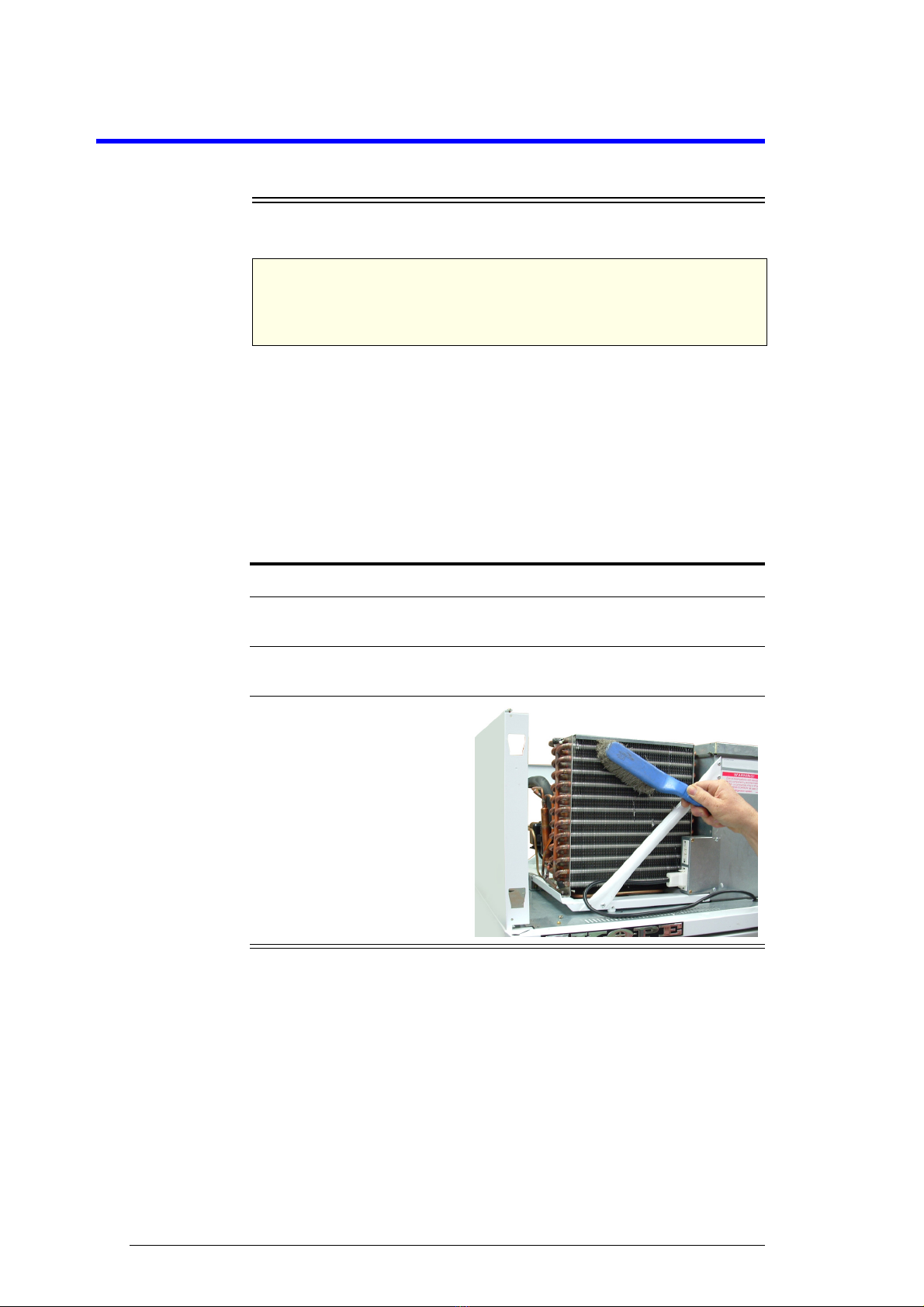

Condenser

Coil To ensure trouble-free performance, the condenser coil must be cleaned

each month with a soft brush or vacuum cleaner to remove any dust or

blockage from the coil fins. A more thorough cleaning is recommended

every six months by qualified service personnel.

To clean the condenser coil

WARNING

Twin unit chillers have two separate power supplies. Ensure

both supplies are disconnected before undertaking any service

or maintenance work.

1. Disconnect the chiller from the power supply.

2. Loosen the sign retaining clip on the top edge of each sign panel and lift the

sign unit up to disengage from the sign sides.

3. Disconnect the sign plug from the electrical box socket and remove the sign

unit from the chiller.

4. The condenser coil is now

accessible for cleaning.

SKOPE TME Series

Servicing

User Manual

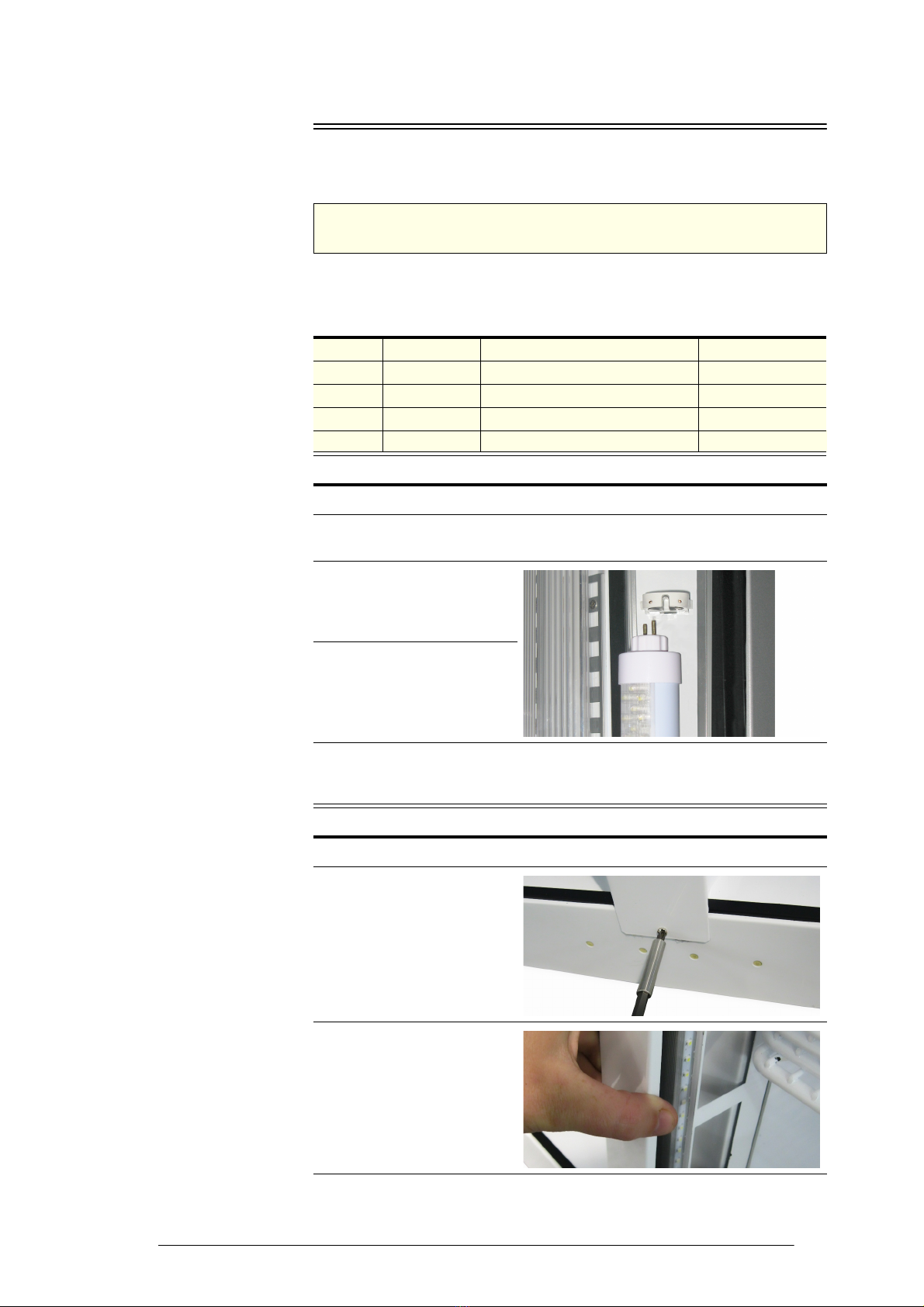

Lighting

This chiller is designed for use with LED tubes and is not compatable with

fluorescent tubes.

Interior Light Depending on the model, the chiller will have either one or two interior lights

which can be replaced without moving shelves or removing product.

Interior light specifications

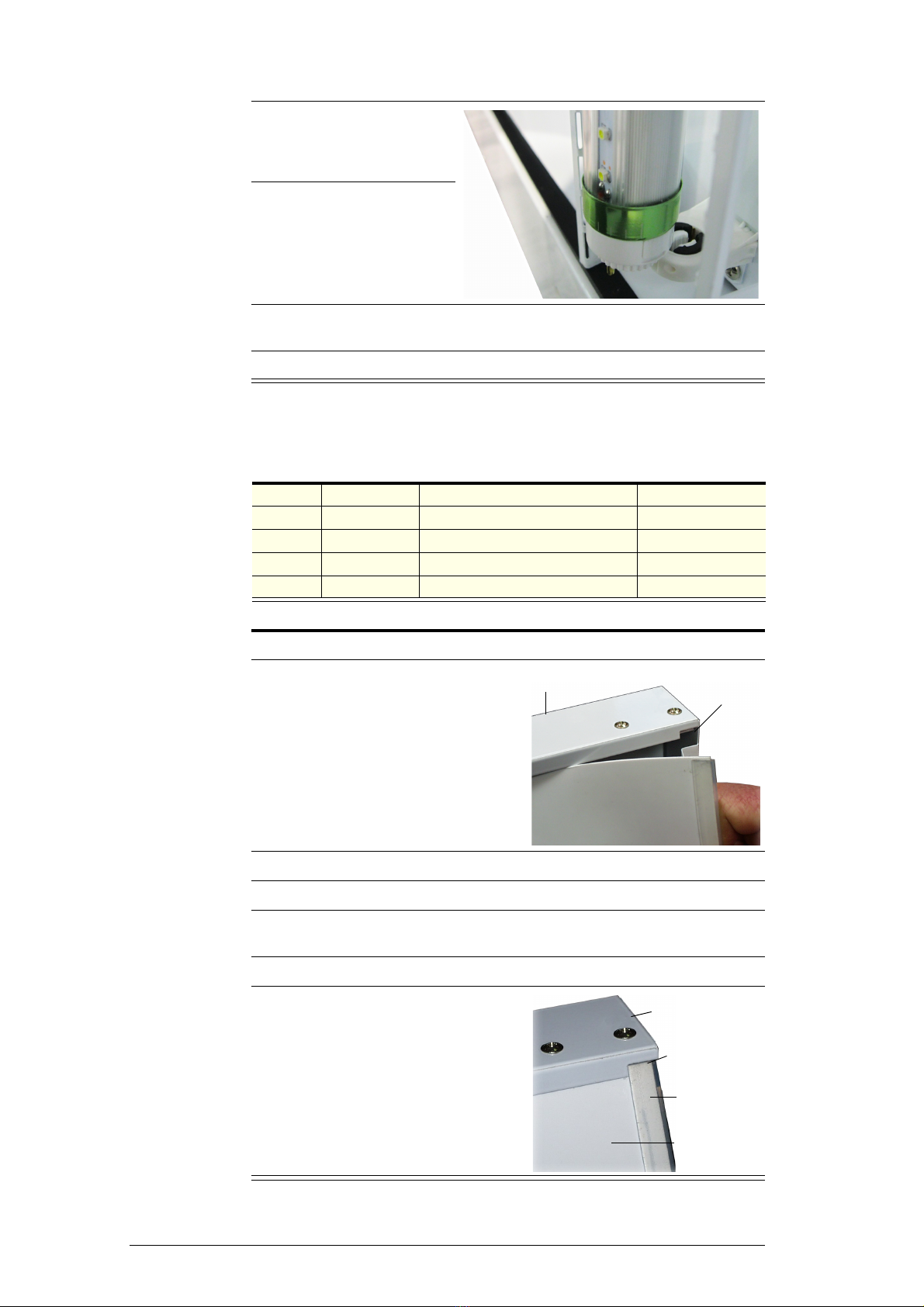

To replace a chiller interior side light

To replace a chiller interior pillar light

IMPORTANT

DO NOT use fluorescent tubes.

Model Configuration LED Tube Specification SKOPE Part No.

TME475 1 × side light 22W, 1500mm, T8 LED tube ELL10180

TME650 1 × side light 22W, 1500mm, T8 LED tube ELL10180

TME1000 2 × side lights 22W, 1500mm, T8 LED tube ELL10180

TME1500 2 × pillar lights 24W, 1500mm, T8 twin LED tube ELL10603

1. Disconnect the chiller from the power supply.

2. Remove the diffuser by squeezing it until it is released from the housing, and

then push the diffuser out of the way.

3. Rotate the LED tube until

the pins on the ends of the

tube align with the slots,

then slide it out.

4. Fit a new LED tube.

Ensure the LED tube is

fitted with the power end

at the top (usually marked

‘POWER’ or similar).

5. Refit the diffuser by slipping the back section into the housing, then

squeezing and snapping the front section of the diffuser into place as you

work down the length of the light.

1. Disconnect the chiller from the power supply.

2. Prop the doors open and

remove the fixing screw

from the bottom of the

pillar cover.

3. Unclip and detach the

pillar cover down the

length of the pillar to

access the LED tube.

Take care not to tug or

damage wires when

detaching the cover.

Continued over page

10 Servicing

User Manual

SKOPE TME Series

Sign Light New Zealand models only. The sign unit is lit by one T8 LED tube which can

be replaced by removing the front sign panel. See the sign light

specifications for each model in the table below.

Sign light specifications

To replace the sign light

4. Rotate the LED tube until

the pins on the ends of the

tube align with the slots,

then slide it out.

5. Fit a new LED tube.

Ensure the LED tube is

fitted with the power end

at the top (usually marked

‘POWER’ or similar).

6. Refit the pillar cover by squeezing and snapping the pillar into place on the

back of the cover as you work down the length of the light.

7. Fix the pillar in place with the fixing screw at the bottom of the pillar.

Model Configuration LED Tube Specification SKOPE Part No.

TME475 1 × sign light 5W, 360mm, T8 LED tube ELL10435

TME650 1 × sign light 11W, 600mm, T8 LED tube ELL10741

TME1000 1 × sign light 12W, 900mm, T8 LED tube ELL10742

TME1500 1 × sign light 24W, 1500mm, T8 LED tube ELL10743

1. Disconnect the chiller from the power supply.

2. Start at one of the top corners of the

sign unit and pull the sign panel out

from under the sign top cover.

3. Work along the length of the sign unit, pulling the sign panel out as you go.

4. Carefully remove the sign panel from the sign unit.

5. The tube can now be accessed for replacement. Rotate the failed tube until

the pins on the end of the tube align with the slots, then slide it out.

6. Fit the new tube and rotate until it clicks into position.

7. Refit the sign panel. When refitting

the sign panel, ensure both sign

panel end strips fit neatly into the top

and bottom corner notches.

Sign Top Cover Corner

Notch

Sign Top Cover

Corner Notch

SignPanel

End Strip

Sign Panel

This manual suits for next models

Table of contents

Other Skope Chiller manuals

Popular Chiller manuals by other brands

Aqua Optima

Aqua Optima Corona Instructions for use

York

York YGWH 115 Installation, commissioning & operation

Galletti

Galletti PERFORMA MPE Series Technical manual

SMC Networks

SMC Networks HRR Series manual

Daikin

Daikin EWAQ016CAW Installation and operation manual

Trane

Trane CVHE Troubleshooting

Moffat

Moffat Friginox TSR-11SC Specification sheet

Gree

Gree GWH07AGA-K6DNA1C Service manual

Denali

Denali M1 user manual

MP Systems

MP Systems PURGE Series manual

AEC

AEC PCA SERIES Operation and installation manual

Carrier

Carrier AquaEdge 19XRV series Start-up and service instructions

Telemark

Telemark TVP-2000 Operation, installation and service manual

TICA

TICA MINI VRF CHR Series Installation & operation manual

Penguin

Penguin COLD THERAPY CHILLER owner's manual

MAXA

MAXA A68 Installation and operation manual

SABROE

SABROE ChillPAC operating manual

Daikin

Daikin EWWQ-AJYNN Service manual
