Siser Romeo User manual
OPERATION MANUAL
MANUALE D’USO
HANDBUCH
MANUAL DEL USUARIO
MANUEL D'UTILISATION
READ SAFETY INSTRUCTIONS PRIOR TO SETUP OR USE
LEGGERE LE ISTRUZIONI DI SICUREZZA PRIMA DI CONFIGURARE
O UTILIZZARE IL PRODOTTO
BITTE LESEN SIE DIE SICHERHEITSANWEISUNGEN VOR DER
INSTALLATION ODER DEM ERSTEN GEBRAUCH
LEA ATENTAMENTE LA INFORMACIÓN DE SEGURIDAD ANTES
DE SU CONFIGURACIÓN YO USO.
LIRE LES INFORMATIONS DE SÉCURITÉ AVANT LA MISE
EN PLACE OU L'UTILISATION
UE DECLARATION OF CONFORMITY
The manufacturer: SISER S.R.L.
VIALE DELLA TECNICA, 18 – 36100 VICENZA (ITALY)
Declare under its own responsibility that the product:
Product: PLOTTER
Model: SISER ROMEO
Is compliant to the following harmonized standard:
• 60204-1:2018
Safety of machinery
Electrical equipment of machines
Part 1: General requirements
And respect the following UE Council Directive:
• Machinery Directive 2006/42/UE
• Low Voltage 2014/35/UE
• Electromagnetic Compatibility 2014/30/UE
Vicenza, lì 21/12/2022
Signed for SISER S.R.L.:
DR. CIRO VISONE, CEO
TABLE OF CONTENTS
GENERAL WARNINGS
OVERVIEW
SETUP
ROLL HOLDER SET UP
TOUCH SCREEN
SAFETY INFORMATION
FCC STATEMENT
12
34
57
8
913
1415
16
TABLE DES MATIÈRES
AVERTISSEMENTS GÉNÉRAUX
VUE D'ENSEMBLE
MISE EN PLACE
PORTEROULEAU
ÉCRAN TACTILE
INFORMATIONS SUR LA SÉCURITÉ
DÉCLARATION DE LA FCC
6566
6768
6971
72
7377
7879
80
ÍNDICE DE CONTENIDOS
ADVERTENCIAS GENERALES
PIEZAS DE LA MÁQUINA
CONFIGURACIÓN
CONFIGURACIÓN DEL PORTARROLLOS
PANTALLA TÁCTIL
INFORMACIÓN DE SEGURIDAD
DECLARACIÓN DE LA FCC
4950
5152
5355
56
5761
6263
64
INDICE
AVVERTENZE GENERALI
PANORAMICA
CONFIGURAZIONE
CONFIGURAZIONE DEL PORTAROTOLO
TOUCH SCREEN
INFORMAZIONI DI SICUREZZA
DICHIARAZIONE DI CONFORMITÀ FCC
1718
1920
2123
24
2529
3031
32
INHALTSVERZEICHNIS
ALLGEMEINE WARNUNGEN
ÜBERBLICK
EINRICHTEN
ROLLENHALTER KONFIGURATION
TOUCHSCREEN
SICHERHEITSINFORMATIONEN
KONFORMITÄTSERKLÄRUNG
3334
3536
3739
40
4145
4647
48
EN
FR
ES
IT
DE
ROMEO™ GENERAL WARNINGS
Siser S.r.l.
Viale della Tecnica, 18 - 36100 Vicenza - Italy
phone +39 0444 287960
fax +39 0444 287959
Thank you for buying one of our Siser ROMEOTM High-Definition Cutting
Machines. We are sure you will capitalize on this excellent unit for years if you
take the time to read these instructions carefully.
Introduction
Please study these instructions carefully before transporting, mounting, using
or maintaining the cutting machine, as they will give you important directions
for a safe handling. Moreover you will find information about how to order
spare parts in this manual.
Please retain these instructions for later reference in a safe, easily accessible
place.
Please make sure that all operators of the cutting machine have understood all
instructions and graphic symbols labelled on the press. Accidents can also be
avoided by strictly following the safety regulations according to the machine
directive 2006/42/CE, LVD 2014/30/CE and EMC 2014/30/CE.
It is specifically prohibited to remove or manipulate shrouds or legally
compulsory labels or plates.
The cutting machine has been designed in compliance with the principles of
the Machinery Directive. Already at the design stage, solutions have been
adopted that eliminate risks for the operator in all phases of use: transport,
regulation and maintenance. The materials used for the construction and the
components used are not dangerous and make the cutting machine
compliant with current regulations.
Siser is not liable for faults, accidents, damages, losses etc. resulting from not
following the instructions in this manual.
Note: It is strictly forbidden to operate or mount this cutting machine contrary
to the directions made in this manual.
Before operating the transfer press, the operator must have fully understood
the handling and function of the electric components of this cutting machine
and must have read and grasped all information provided in this manual.
Siser SRL is not liable for damages, losses, injuries or consequential damages
resulting from acts, changes or other use of the transfer press not authorised
by a prior written consent from Siser SRL.
All mounting, maintenance and repair work must be performed only by skilled
and specially trained electricians.
It is strictly prohibited to remove or manipulate any kind of safety appliances.
The working area must be clean, tidy and free of any obstacles for manoeu-
vring the cutting machine.
All general instructions for operation and all safety instructions must be strictly
followed to avoid any injuries that might result from the use of this cutting
machine and to ensure a successful utilisation.
The electrical connections must comply with local regulations.
Before mounting the cutting machine prepare a suitable mounting location.
Handle the package containing the cutting machine with care and with the
aid of suitable tools. For the mounting location you need a stable table with a
height of approximately 70 cm.
2

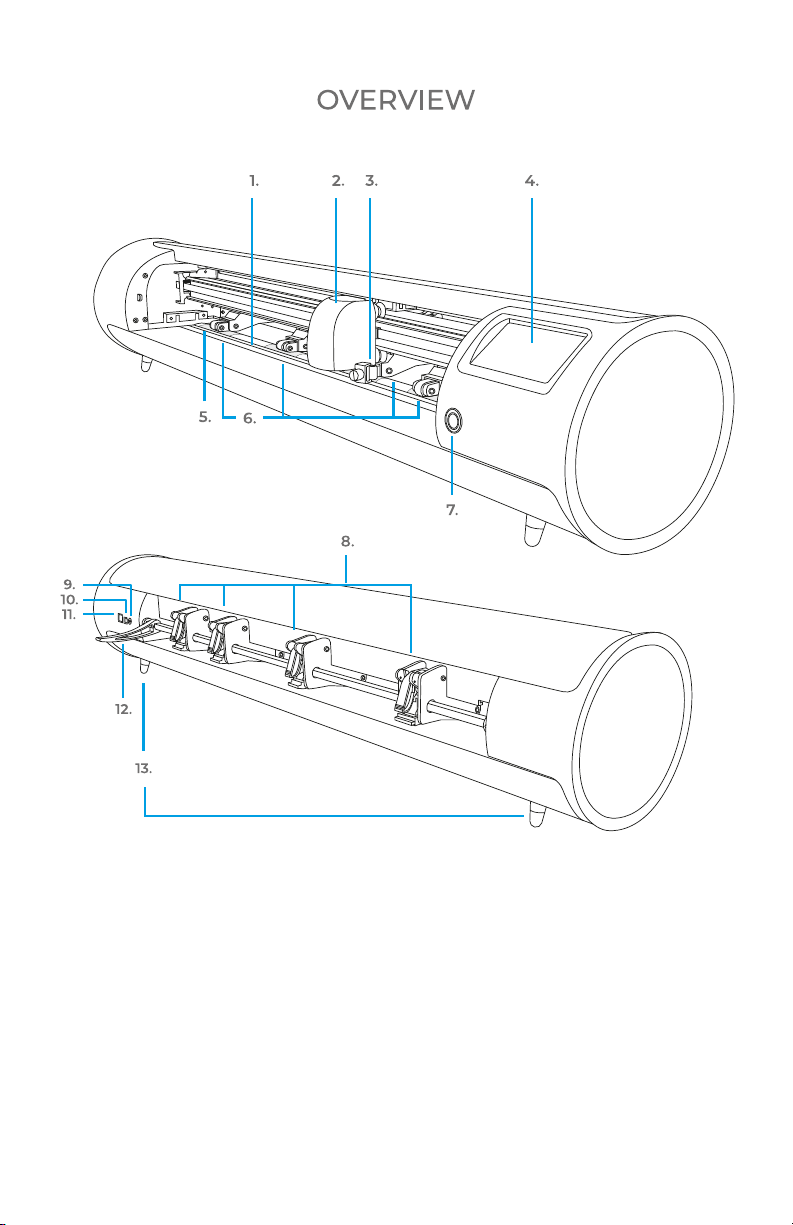

1.
Cutting Strip
2.
Machine Head
3.
Tool Holder
Holds cutting blade housing or
marker adapter
4.
Touch Screen
5. Grit Marks
6.
Adjustable Pinch Rollers
Feeds material in and out of the
cutter
7.
Power Button
8.
Pinch Roller Levers
Adjusts the tension of the pinch
rollers
9.
DC Power Port
10.
USB-B Port
Used for connecting cutter to a
computer
11.
USB-A Port
Used for connecting flash drives
to cutter
12. Roller Bar Lever
Locks down or releases material
under roller bar and allows pinch
rollers to be adjusted
13.
Raised Feet
3
4
POWER CORD AND
POWER SUPPLY
USB CORD
12”X12” 30X30CM CUTTING MAT
BLADE HOUSINGMARKER ADAPTER
12
11
10
9
8
7
6
5
4
3
2
1
0 1 2 3 4 5 6 7 8 9 10 11 12
12
11
10
9
8
7
6
5
4
3
2
1
0 1 2 3 4 5 6 7 8 9 10 11 12
Items shown are not to scale
TWO SHEETS OF 6”X12” 15X30CM
SISER®HEAT TRANSFER VINYL
ROLL HOLDER
ONE COVER SHEET
ALSO INCLUDED IN PACKAGING:
45º BLADE
2X
60º BLADE
ROMEO™ SETUP
Set up your cutter online at
setup.siser.com
OR SETUP MANUALLY USING THE
FOLLOWING INSTRUCTIONS
1Remove all protective packaging from cutter and
accessories, including plastic wrap.
2Plug the round end of the power cord into the DC
power port on the rear of the machine, then plug the
opposite end into a standard electrical outlet.
Press the power button to turn the cutter on.
5
Get the Leonardo Design StudioTM basic
monthly subscription for free with your
cutter purchase
3
Carefully remove 45° blade from
packaging and insert into socket
on blade housing with the
pointed side facing outwards.
4Twist the upper screw of the blade
housing clockwise to expose less of
the blade, or counterclockwise to
expose more of the blade. The
ideal length of exposed blade is
about a credit card’s width. Once
the blade is properly adjusted,
twist the inner screw to lock in the
blade position.
