Sirona C2+ User manual

`OH

fåëí~ää~íáçå=fåëíêìÅíáçåë

kÉï=~ë=çÑW= NMKOMMU

båÖäáëÜ

kÉï=~ë=çÑW= NMKOMMU

General information Sirona Dental Systems GmbH

59 58 470 D 3370

2D 3370.031.01.10.02

Modification compared with last edition: 02.2006

Chapter or paragraph, page

24 Final Assembly of the Narrow Backrest ................. 33

25 Final Assembly of the Wide Backrest .................... 34

About this document

This document describes how to perform the installation of

the C2+dental treatment center.

The installation of optional equipment is described in detail

in other documents.

For installing optional equipment, please refer to the follow-

ing documents (among others):

• SIROLUX FANTASTIC Installation Instructions,

Order Number 51 55 556

• SIVISION 3 Installation Instructions,

Order Number 59 58 421

• SIVISION 3 Kompakt Installation Instructions,

Order Number 59 58 389

General information

Sirona Dental Systems GmbH Table of contents

59 58 470 D 3370

D 3370.031.01.10.02 3

ÇÉìíëÅÜÑê~å´~áëÉëé~¥çä

1 Safety ..................................................................................................5

2 Checks and Prerequirements ..............................................................6

3 Checking the Supply Lines ..................................................................7

4 Installing the Narrow Backrest.............................................................8

5 Installing the Wide Backrest ................................................................9

6 Installation with Motor-Driven Headrest.............................................10

7 Connection of Motor-driven Headrest................................................11

8 Preparing the Chair for Installation ....................................................12

9 Fastening the Chair Base to the Floor ...............................................13

10 Connecting Air and Water .................................................................15

11 Operating the water unit without disinfection system.........................16

12 Electrical Connection.........................................................................17

13 Fastening of the Chair to the Floor ....................................................18

14 Adapting the Dentist Element ............................................................19

15 Preparing Chair and Water Unit ........................................................20

16 Adapting the Water Unit ....................................................................21

17 Water Unit: Making Connections.......................................................23

18 Adapting the Assistant Element.........................................................24

19 Assistant Element: Making Hose Connections..................................25

20 Valve set additional units: Making the hose connections ..................26

21 Distributor and Fuse Box ...................................................................27

22 Attaching the Water Unit Housing Covers .........................................28

23 Concluding Work ...............................................................................31

24 Final Assembly of the Narrow Backrest.............................................33

25 Final Assembly of the Wide Backrest ................................................34

26 Installing the Seat Padding................................................................35

27 Starting up the Treatment Unit ..........................................................36

28 Compare and adjust operating air pressures.....................................37

Table of contents

Table of contents Sirona Dental Systems GmbH

59 58 470 D 3370

4D 3370.031.01.10.02

29 Checking the Safety Switches ...........................................................39

30 For the Customer … ..........................................................................40

31 Fastening the Chair to the Floor with the M1 Adapter Plate..............42

32 Settings on Dentist and Assistant Elements......................................43

33 Changing Function on "C" Foot Switch .............................................46

34 Demonstration Unit without Water Connection..................................47

35 Packing Position ................................................................................48

36 Reversing the Direction of the Travel Track ......................................49

Sirona Dental Systems GmbH 1 Safety

59 58 470 D 3370

D 3370.031.01.10.02 5

båÖäáëÜ

ATTENTION

It is essential that you comply with the warning and safety

information contained in the Installationsanleitung.

All such information is highlighted by the captions NOTE,

ATTENTION, and CAUTION.

ATTENTION

The installation must be carried out in accordance with the

requirements stated in our Installationsanleitung.

ATTENTION

Installation may be carried out only by personnel expressly

authorized by Sirona.

ATTENTION

It is essential that you switch off the treatment center PRIOR

to starting the installation.

ATTENTION

For reasons of product safety, only original Sirona accesso-

ries approved for this product, or accessories from third par-

ties approved by Sirona, may be used. The user is respon-

sible for dangers resulting from the use of non-approved

accessories.

If any devices not approved by Sirona are connected, they

must comply with the applicable standards, e.g.:

• IEC 60950 for information technology equipment and

• IEC IEC 60601-1 for medical electrical equipment

In case of doubt, contact the manufacturer of the system

components.

ATTENTION

Any person who assembles or modifies a medical electrical

system complying with the standard IEC 60 601-1-1 (safety

requirements for medical electrical equipment) by combin-

ing it with other equipment (e.g. when connecting a PC) is

responsible for ensuring that the requirements of this regu-

lation are met to their full extent for the safety of the patients,

the operators and the environment.

ATTENTION

To ensure the operational readiness of medical electrical

equipment, the use of mobile radio telephones in the prac-

tice or hospital area is prohibited.

ATTENTION

Use an ESD wrist band.

Connect it to the

protective ground wire.

ATTENTION

When opening the unit:

Please observe the safety measures for han-

dling PC boards (ESD).

Touch a ground point to discharge static elec-

tricity before handling any components.

1 Safety

2 Checks and Prerequirements Sirona Dental Systems GmbH

59 58 470 D 3370

6D 3370.031.01.10.02

Water quality

Lime deposits and corrosion residues in tap water can lead

to the following malfunctions:

• Premature clogging of the filters in the unit

• Rapid clogging of the fine water paths and jets in the

treatment instruments

For these reasons, the following points must be observed:

• If the water hardness exceeds 12° dH (=2.15mmol), in-

stall a water softener.

• Set dilution hardness to 8° dH (1.43mmol).

• Install a conventional fine filter.

Fineness: >80µm (0.08mm).

• Installation must be performed in compliance with the

recommendations of the national installation require-

ments (e.g. EN1717/DIN 1988).

• The water quality must comply with the national re-

quirements for drinking water.

• The connection must be made to cold water.

Air quality

Oil-free, dry and hygienically perfect air is required for driv-

ing the highspeed handpiece, for cooling the burr drives

and for the cooling spray.

Suction line

Install condensate separate K.

With a vacuum of pu >0.18 bar back pressure the treatment

center must be retrofitted with the “Vacuum limiter” retrofit

kit (Order No.: 59 68 826).

2 Checks and Prerequirements

>80 µm

Air

Suction machine

oil-free

Cold water

Dilution hardness

(drinking water quality)

Sirona Dental Systems GmbH 3 Checking the Supply Lines

59 58 470 D 3370

D 3370.031.01.10.02 7

båÖäáëÜ

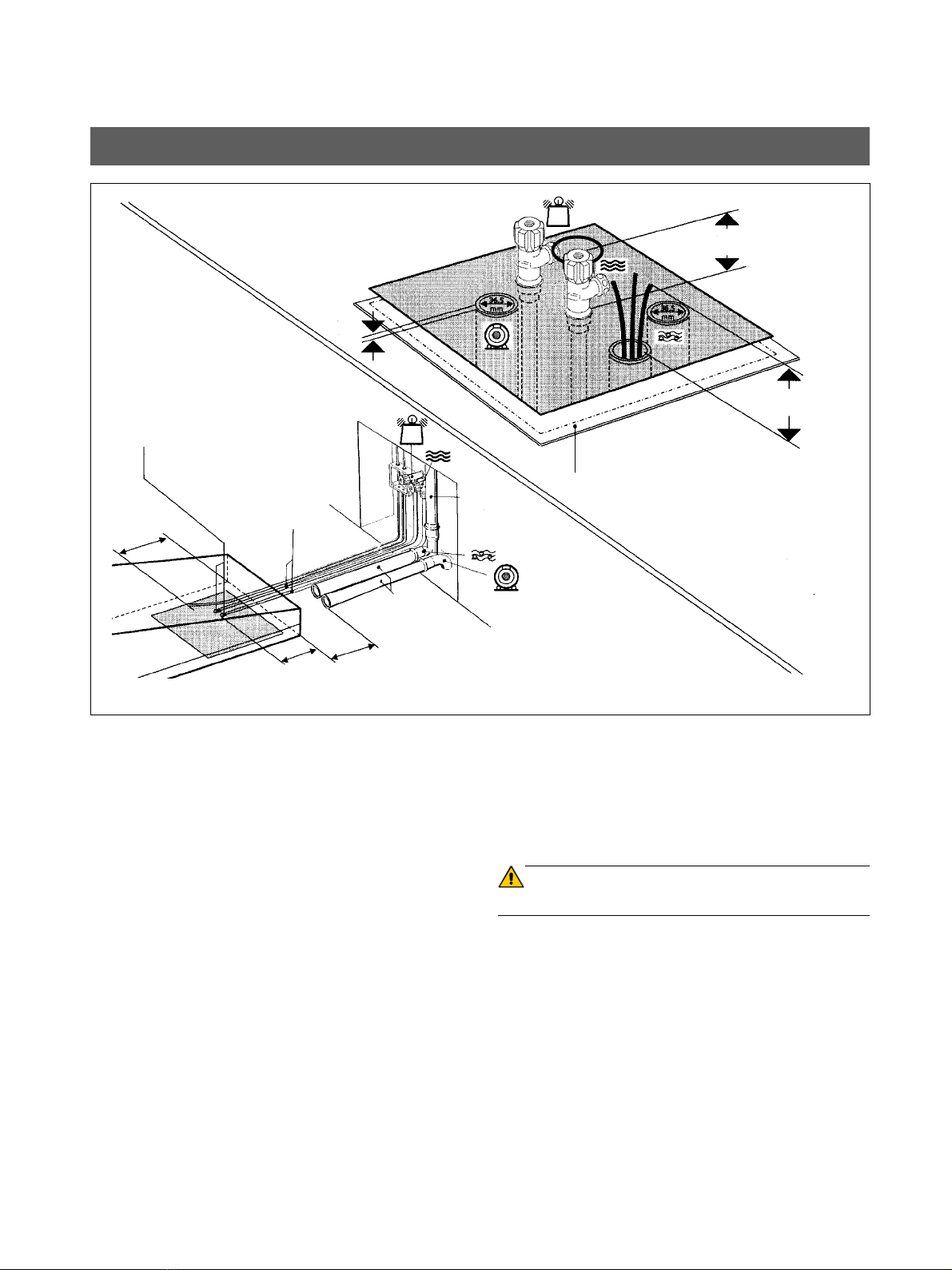

Supply through the floor

• Unfold the mounting template.

• Cut out the installation field.

• Lay the template over lead ends on the site and check

the distances of the installation field from the walls in

accordance with the practice.

• Then check the installation for the following:

1. The top edges of the corner valves for air and water

must not project more than 60 mm above the upper sur-

face of the finished floor.

2. The suction and drain pipes must finish flush with the

upper surface of the floor. (Permissible deviation:

+5 mm).

Internal diameter for both pipes: 36.5 mm ∅.

3. The electric leads must project by at least 500 mm.

Supply above the floor

Supply tube ends, corner valves and leads are routed as

shown (for details see Mounting Template).

For the connection, the retrofit kit for installation above

ground 33 17 265 is required.

ATTENTION

Clean out the air and water pipes (metal chips!).

3 Checking the Supply Lines

Supply through the floor

Supply above the floor

Installation template

Solder fittings: 3/8" ext. thread

ca. 250mm

ca. 200mm

ca. 500mm

min. 500mm

max. 60 mm

3/8“

Ventilation

0 – 5 mm

Base

Head

4 Installing the Narrow Backrest Sirona Dental Systems GmbH

59 58 470 D 3370

8D 3370.031.01.10.02

1. Remove the six screws and four washers from the

sword.

2. Pull off backrest cover.

3. Pull out the headrest to its stop position.

4. Fit the backrest onto the sword from above.

5. Fasten the backrest with the six screws removed under

item 1. .

NOTE

With the electrical headrest the padding flap Pis fastened

with the two middle screws.

Never use washers.

ATTENTION

Tighten all screws. Screws that are not tightened can lead

to functional disturbances when moving the headrest in and

out.

4 Installing the Narrow Backrest

Sirona Dental Systems GmbH 5 Installing the Wide Backrest

59 58 470 D 3370

D 3370.031.01.10.02 9

båÖäáëÜ

ATTENTION

The order of installation must be complied with exactly to

guarantee the parallelism of the guide rods on the slide of

the headrest.

1. Remove the six screws and four washers from the strut.

Remove screws Aon the side of the strut.

2. Pull off backrest cover.

3. Remove two screws from the backrest (for use later at

position C).

4. Pull out the head support to its stop position.

5. Place the metal bracket, tilted slightly backward, onto

point Band tilt the backrest forward.

6. Retighten the backrest with the six screws removed un-

der 1. above.

NOTE

With the electrical headrest the padding flap Pis fastened

with the two middle screws.

Never use washers.

7. Screw in screws A (see "ATTENTION") and C.

ATTENTION

When screwing in screw A, make sure that the threaded

spindle is not bent. Use open-end spanner SW10.

ATTENTION

Tighten all screws. Screws that have not been tightened

can result in malfunctions when the backrest is driven in and

out.

5 Installing the Wide Backrest

6 Installation with Motor-Driven Headrest Sirona Dental Systems GmbH

59 58 470 D 3370

10 D 3370.031.01.10.02

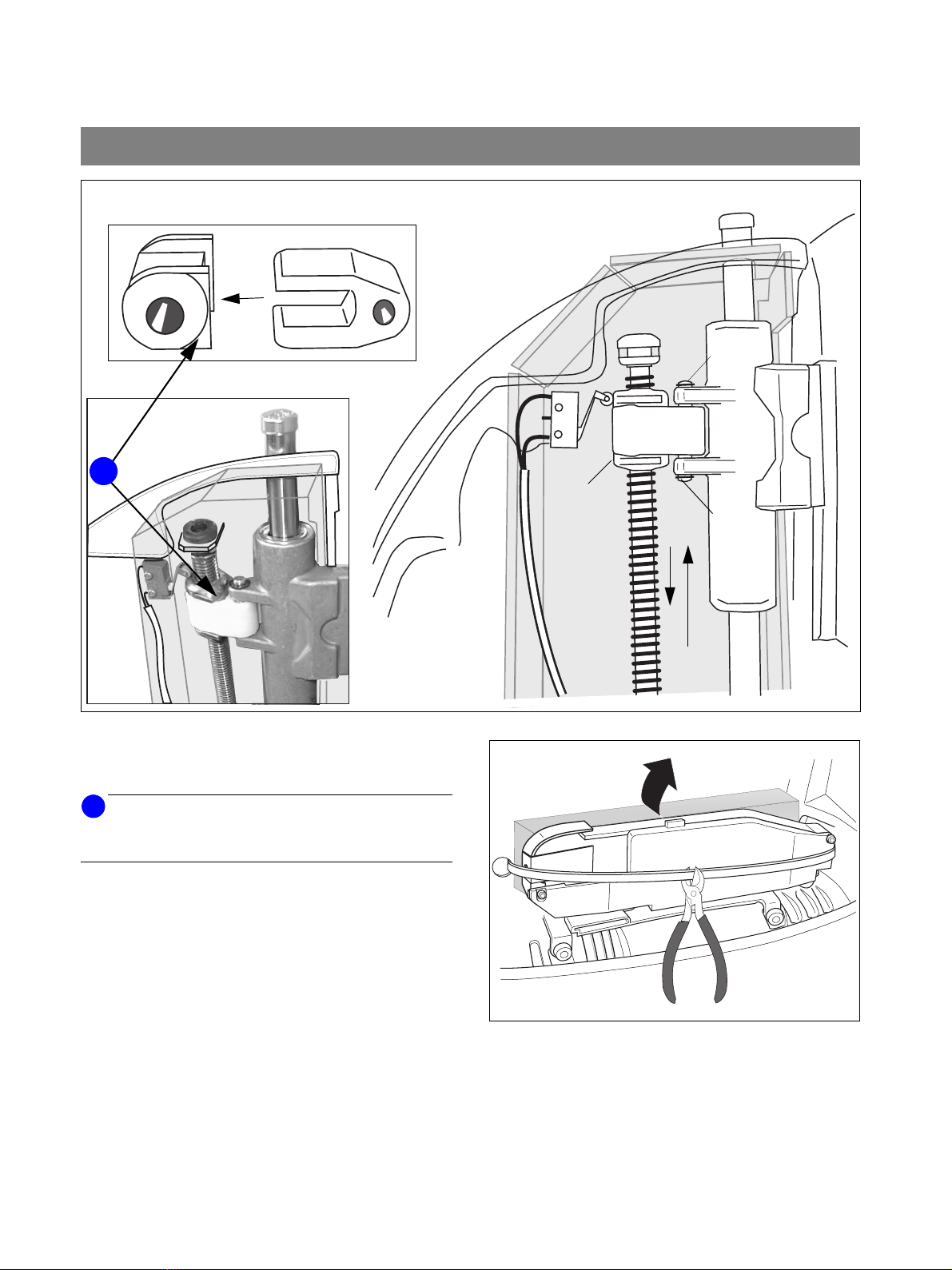

1. Remove retaining ring Sfrom driving pin Fand pull the

pin out.

2. Place fork Don spindle nut E.

NOTE

Make sure spindle nut Eis properly positioned!

Flat end of spindle nut facing fork D!

3. Insert fork Din the slide of headrest G.

4. Insert driving pin Ffrom below and secure it with retain-

ing ring S.

5. Remove cable ties.

6. Remove the (styrofoam) transport safety device.

6 Installation with Motor-Driven Headrest

Other manuals for C2+

Table of contents

Other Sirona Dental Equipment manuals

Sirona

Sirona SIDEXIS XG User manual

Sirona

Sirona galileos User manual

Sirona

Sirona C1+ User manual

Sirona

Sirona Sprayvit C8 User manual

Sirona

Sirona ORTHOPHOS XGPlus DS/Ceph User manual

Sirona

Sirona inLab MC XL User manual

Sirona

Sirona HELIODENT DS Technical specifications

Sirona

Sirona c8+ turn User manual

Sirona

Sirona c8+ turn User manual

Sirona

Sirona C3 Plus User manual

Sirona

Sirona C5+ Turn Quick start guide

Sirona

Sirona HELIODENT DS Operating instructions

Sirona

Sirona PerioScan User manual

Sirona

Sirona C3 Plus User manual

Sirona

Sirona Intego User manual

Sirona

Sirona CEREC SpeedFire User manual

Sirona

Sirona C3 Plus User manual

Sirona

Sirona teneo User manual

Sirona

Sirona CEREC MC XL User manual

Sirona

Sirona C5+ Turn User manual

Sirona

Sirona ORTHOPHOS SL 2D User manual

Sirona

Sirona cerec ac User manual

Sirona

Sirona C1+ User manual

Sirona

Sirona teneo User manual

Popular Dental Equipment manuals by other brands

Vatech

Vatech EzRay Air VEX-P300 user manual

KaVo

KaVo GENTLEpower LUX Contra-angle 25 LP Technician's Instructions

DENTSPLY

DENTSPLY SmartLite Focus Instructions for use

LM ProPower CombiLED quick guide

Owandy Radiology

Owandy Radiology RX-AC user manual

mectron

mectron Piezosurgery Cleaning and sterilization manual

Belmont

Belmont CREDIA G1 operating instructions

Planmeca

Planmeca Sovereign Classic user manual

Bego

Bego Fornax T operating instructions

Renfert

Renfert SYMPRO Operating and safety instructions

Ateco

Ateco AT-301 manual

Nevadent

Nevadent NZPS 3 A1 operating instructions

Muss Dental

Muss Dental MA 50 operation instruction

Diplomat

Diplomat Comfort Series user manual

Dentatus

Dentatus Nyström instruction manual

OMS

OMS DUKE EASY Instruction handbook

OMS

OMS LINEA PATAVIUM Instruction handbook

BRYANT DENTAL

BRYANT DENTAL Ignis Gesture A-494322 manual
