SIP CW2000 User manual
•

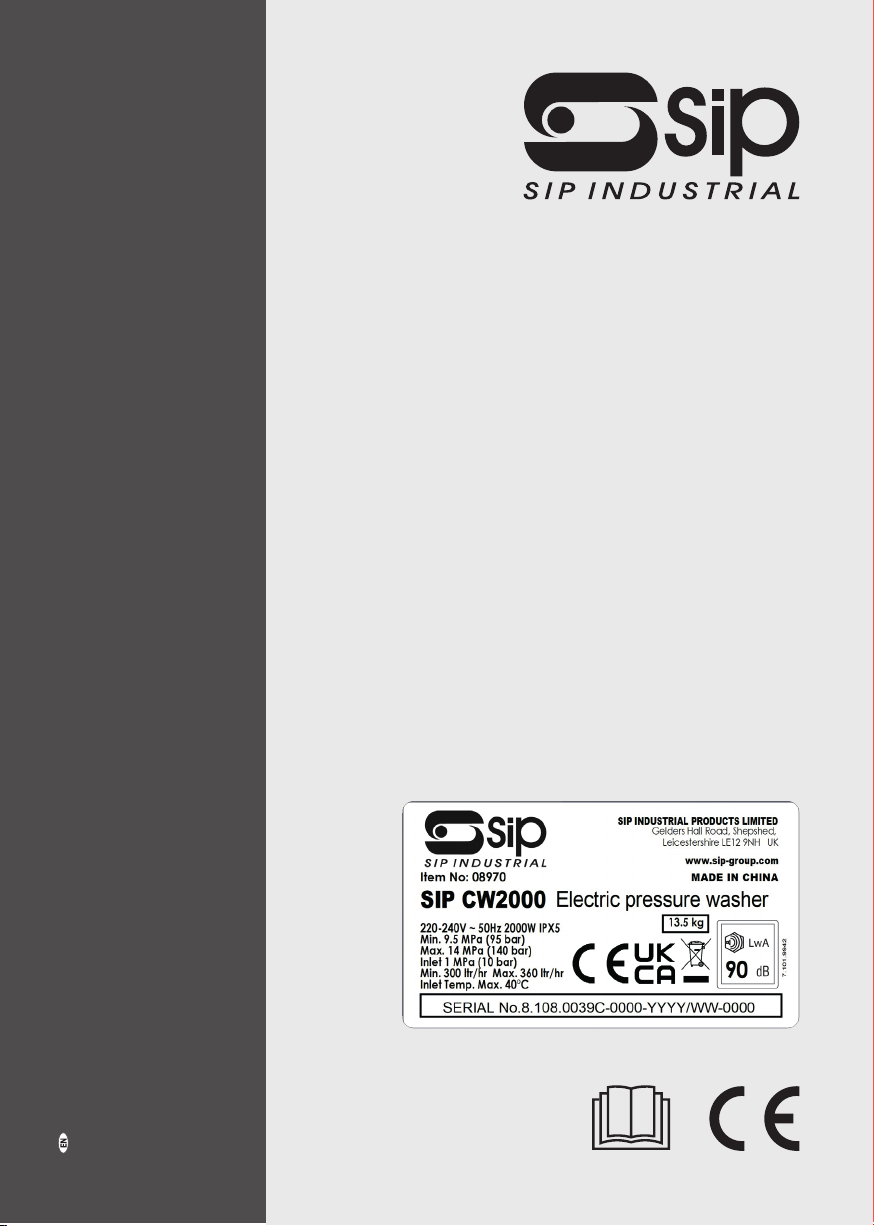

Technical data plate
HIGH PRESSURE CLEANER
WARNING: read the instructions carefully before use.
SIP CW2000
1
Handle
2
ON/OFF switch
3Detergent tank
4
Water outlet
5
High pressure hose
6
Gun
7
Lance
8a
Nozzle
8b
Turbo nozzle
8c
Detergent nozzle
9
Electric cable
10
Water inlet + filter+ Quick hose fitting
DESCRIPTION OF THE MACHINE
2
1
10
67 5
8a
8b
8c
3
4
9
click
X1
X4
1. 2. 3. 6. 7.
4. 5.
OPTIONAL
click
click
click
click
X2
2
click
X1
X4
1. 2. 3. 6. 7.
4. 5.
OPTIONAL
click
click
click
click
X2

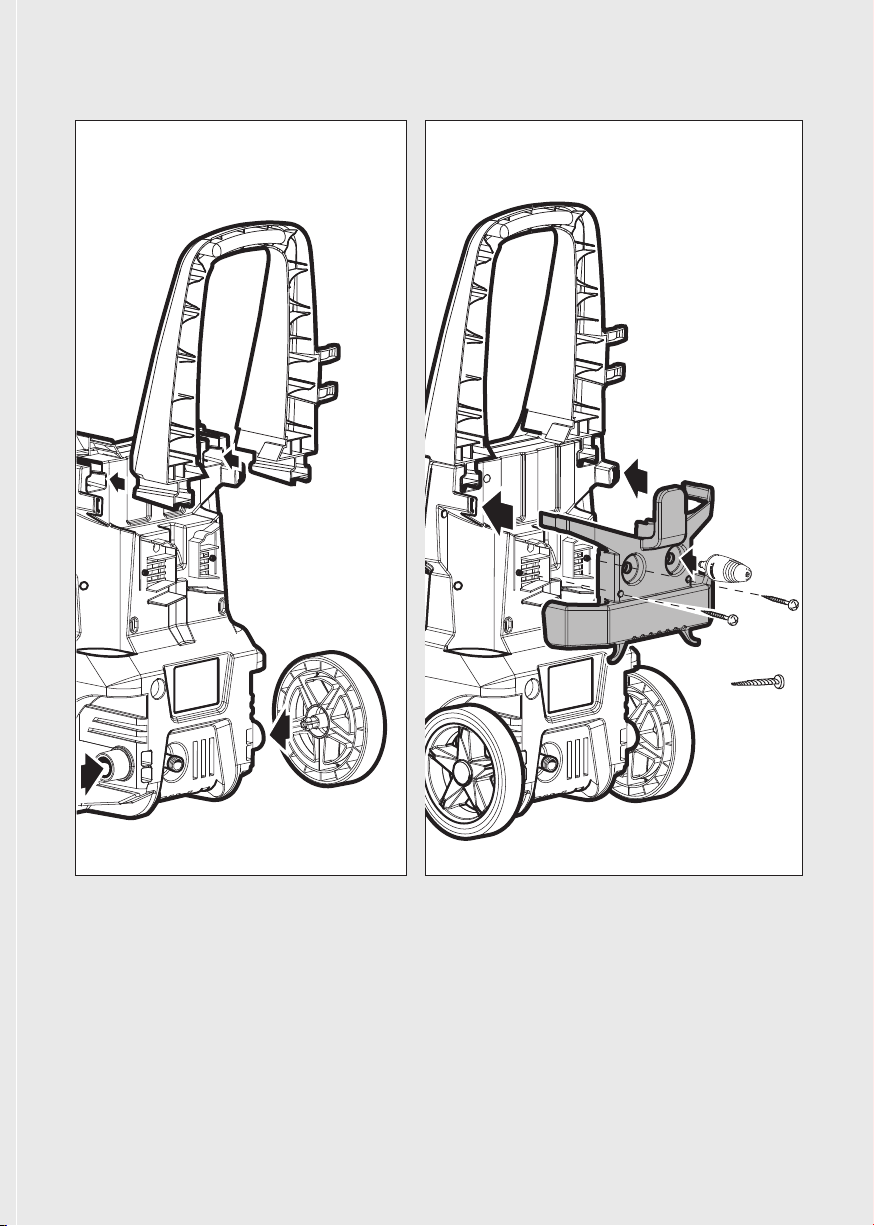

ASSEMBLY INSTRUCTIONS
Depending on the model, there are dierences in the scopes of delivery.
3
A
B
C
D
E
G
F
Optional
IN
OUT
1.
4.2. 3.
ON
I
5.
2.
5÷40°C
Optional
1/2 inch 13 mm
CLICK!
15
30
45
60
1.
1. 2.
3.
IN
1 min
click
click
click
4
A
B
C
D
E
G
F
Optional
IN
OUT
1.
4.2. 3.
ON
I
5.
2.
5÷40°C
Optional
1/2 inch 13 mm
CLICK!
15
30
45
60
1.
1. 2.
3.
IN
1 min
click
click
click
5
Click!
Click!
D
6
spread pattern/pencil jet
H
turbo lance
1.
2.
3.
L
Optional
2.1.
Optional
I
K
2.
3.
CLICK!
4C.3C.
N
OFF
1. 2. 3. 4.
M
4.
Optional
Use the hydrocleaner only if the hose is completely uncoiled and extended.
7
spread pattern/pencil jet
1.
2.
3.
L
Optional
2.1.
Optional
I
K
2.
3.
CLICK!
4C.3C.
N
OFF
1. 2. 3. 4.
M
4.
Optional
1.
2.
3.
L
Optional
2.1.
Optional
I
K
2.
3.
CLICK!
4C.3C.
N
OFF
1. 2. 3. 4.
M
4.
Optional
OPTIONALOPTIONAL
HIGH PRESSURE HOSE
Translation of the original instructions
EN
8
SAFETY PRECAUTIONS
> WARNINGS
• 01WARNING: This appliance is for outdoor use
only.
•02WARNING: Always disconnect the electricity
and water supplies on completion of every job.
•03WARNING: Do not use the machine if a supply
cord or important parts of the machine are dam-
aged, e.g. safety devices, high pressure hoses,
trigger gun.
•04WARNING: This appliance has been designed
for use with the detergent provided or the de-
tergent specied by the manufacturer, such as a
neutral shampoo based on biodegradable ani-
onic surface active detergents. The use of other
detergents or chemicals may put the appliance’s
safety at risk.
•05a WARNING: Do not use the machine within
range of persons unless they wear protective
clothing.
05b - Do not allow other people or animals within
a range of 5m when operating the machine.
05c - Always wear suitable protective clothing
in order to protect yourself against ricocheting
parts.
05d - Do not touch the plug and the appliance
with wet hands or when barefoot.
05e - Wear safety goggles and non-slip rubber
footwear.
•06WARNING: Do not direct the nozzle toward
mechanical parts containing lubricant grease, as
the grease will dissolve and spread over the sur-
rounding ground. Vehicle tyres/tyre valves may
only be cleaned from a minimum distance of 30
cm, otherwise the vehicle tyre/tyre valve could
be damaged by the high-pressure jet. The rst
indication of this is a discoloration of the tyre.
Damaged vehicle tyres/tyre valves can be deadly
dangerous.
•07WARNING: High pressure jets
can be dangerous if subject to mis-
use. The jet must not be directed at
persons, animal, live electrical equipment or the
machine itself.
•08WARNING: High pressure hoses, ttings
and couplings are important for the safety
of the machine. Use only hoses, ttings and
couplings recommended by the manufacturer.
GENERAL INFORMATION
>INTENDED USE
-The appliance can be used for washing surfaces
outdoors, whenever pressurised water is required
to remove dirt.
-With special optional accessories, it can be used
for foaming and sandingblasting, and for washing
with a rotary brush for application to the gun.
-This appliance’s performance and userfriendliness
make it suitable for NON PROFESSIONAL use.
> TECHNICAL DATA
(see technical data plate)
SYMBOLS
CAUTION! It is important to be careful of
the following items.
IMPORTANT
LOCKED
OPEN
IF PRESENT
Double insulated (IF PRESENT):
supplementary insulation is applied to
the basic insulation to protect against
electric shock in the event of failure of the
basic insulation.
INDEX ......................................................................... PAG.
PICTURES...................................................................... 17
GENERAL INFORMATION............................................... 8
SYMBOLS ......................................................................... 8
SAFETY PRECAUTIONS .................................................. 8
USAGE .............................................................................. 9
PUT INTO SERVICE / STARTING UP ............................. 11
CARE AND MAINTENANCE .......................................... 12
TROUBLESHOOTING .................................................... 12
DISPOSAL WEEE ........................................................ 12
WARRANTY CONDITIONS............................................ 13
EN
9
(it is extremely important to protect these
components against damage by avoiding their
improper use and protecting them against
bending, knocks and scratches).
•09WARNING: Appliances not equipped with
T.S. – Total Stop : must not be left in operation for
more than 2 minutes with the gun released. The
recycled water heats up considerably, seriously
damaging the pump.
•10WARNING: Appliances equipped with T.S.–
Total Stop : these appliances should not be left in
standby for more than 5 minutes.
•11WARNING: Switch the appliance o complete-
ly (master switch on (0)OFF) whenever it is left un-
attended.
•12WARNING: Every machine is tested in its oper-
ating conditions, so it is normal for a few drops of
water to be left inside it.
•13WARNING: Take care not damage the electric
cable. If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or
similarly qualied persons in order to avoid a haz-
ard
•13b WARNING: The power cord should not be
used to pull or lift the machine.
•14WARNING: Appliance with uid under pres-
sure. Keep a rm hold on the gun and be prepared
to take the kickback pressure. Only use the high
pressure nozzle provided with the appliance.
•16WARNING: This appliance is not intended for
use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of
experience and knowledge.
•17WARNING: Children should be supervised to
ensure that they do not play with the appliance.
•18WARNING: Never start the high-pressure
cleaner without rst completely unwinding the
high-pressure hose.
•19WARNING: When winding and unwinding the
pipe take care not to cause the high-pressure
cleaner to overturn.
•20WARNING: Before unwinding or winding the
hose, switch the machine o and release the pres-
sure in the hose itself (switching o).
•21WARNING: Risk of explosion — Do not spray
ammable liquids.
•22WARNING: To ensure machine safety, use only
original spare parts from the manufacturer or ap-
proved by the manufacturer.
•23WARNING: Do not direct the jet against your-
self or others in order to clean clothes or foot-
wear.
•WARNING:Water that has own through back-
ow preventers is considered to be non-potable.
• XX WARNING: the machine shall be disconnect-
ed from its power source, by removing the plug
from the socket-outlet, during cleaning or main-
tenance and when replacing spare parts
• XJ WARNING: If an extension cord is used, the
plug and socket must be of watertight construc-
tion.
• XY WARNING: Inadequate extension cords can
be dangerous.
> SAFETY DEVICE
•WARNING: the gun is tted with a safety catch.
Whenever use of the machine is interrupted it is
important to operate the safety catch to prevent
accidental activation of the jet.
- Safety features: gun equipped with safety locking
device, appliance equipped with (Class I) over-
load cutout, pump equipped with by-pass valve
or shutdown device.
- The safety button on the gun is not there to lock
the lever during operation, but to prevent its ac-
cidental operation.
•WARNING: The appliance is equipped with a mo-
tor protection device: in case of device interven-
tion, wait some minutes or, in alternative, discon-
nect and re-connect the product to the electric
system. In case this problem repeats again or if
the product does not start again, take the product
to the nearest After Sales Service Point
> STABILITY
•WARNING: The machine must be always kept on hori-
zontal bases, in a safe and stable way.
USAGE
> DESCRIPTION OF THE MACHINE
See the specic instructions manual provided.
> ASSEMBLY INSTRUCTIONS
See the specic instructions manual provided.
> WATER SUPPLY
Water supply collection
Water supply from the water main
-Connect a supply hose (not included) to the water
inlet of the unit and to the water supply.
-Open the water supply.
WARNING: (symbol) machine not suitable for
connection to the potable water mains.
EN
10
The cleaner can only be connected to the water
mains if the water mains is separated by a back-
ow preventer. Make sure that the hose is at least Ø
13mm-1/2 inch and that it is reinforced.
•WARNING: Water that has own through
backow preventers is considered to be
nonpotable.
IMPORTANT: Only clean or ltered water should
be used for intake. The delivery of the water
intake tap should be equal to the double of the
maximum pump range.
- Minimum delivery rate: 15 l/ min.
- Maximum intake water temperature: 40°C
- Max inlet water pressure: 1Mpa
Place the cleaner as close to the water supply system
as possible.
Water supply from an open container
-Unscrew the coupling part for the water inlet.
-Screw the suction hose with lter (not included)
onto the water connection of the unit.
-Hang the lter in the container.
-Vent the unit before operation.
-Unscrew the high-pressure line at the high-
pressure outlet of the unit.
-Switch on the unit and let it run until water free of
bubbles emerges at the high-pressure outlet.
-Switch o the unit and screw on the high-pressure
hose again.
Failure to comply with the above conditions causes
serious mechanical damage to the pump and the
loss of warranty cover.
> ELECTRICITY SUPPLY
- The appliance’s electrical connection must
comply with the IEC 60364-1 standard.
IMPORTANT: Before connecting the
appliance, make sure that the nameplate data are
the same as those of the electrical mains and that
the socket is protected by a dierential security
breaker with tripping sensitivity below 0.03 A - 30
ms.
- If the appliance’s plug is not compatible with the
socket, have the socket replaced with another of
suitable type by professionally qualied sta.
- Never use the appliance in ambient temperatures
below 0° C if it is equipped with a PVC (H VV-F)
cable.
•XY WARNING: Inadequate extension cords can
be dangerous.
•XJ WARNING: If an extension cord is used,
the plug and socket must be of watertight
construction.
Information for supply may also be obtained
from the plug manufacturer.
<16 A <25 A
<20 m ø 1,5 mm
2
- 14 AWG ø 2,5 mm
2
- 12 AWG
20 m - 50 m ø 2,5 mm
2
- 12 AWG ø 4,0 mm
2
- 10 AWG
> PLUG
HOW TO CONNECT THE CORD TO A U.K. PLUG:
IMPORTANT The wires in the mains lead are
coloured in accordance with the following code:
Blue Neutral
Brown Live
Yellow/Green Earth
Please read the instructions given below before con-
necting the cord to a plug. If in doubt please consult
a qualied electrician. As the colours of the wires in
the mains lead of this appliance may not correspond
with the coloured markings identifying the termi-
nals in your plug, proceed as follows:
The wires that is coloured Brown must be connected
to the terminal which is marked with the letter L or
coloured Red. The wire that is coloured Blue must be
connected to the terminal which is marked with the
letter N or coloured Black.
Safety points for rewireable or moulded plug:
The mains lead of this appliance may be already
tted with a BS1363 13A plug.
- If your socket outlet is not suitable for the plug,
then the plug must be removed (cut o if it is a
moulded on plug), the exible cord insulation
should be stripped back as appropriate and a
suitable 3 pin plug tted.
•
WARNING: Dispose of
a plug that has been
cut from the power
supply cord, as such
a plug is hazardous
if inserted in a live
13A socket outlet
elsewhere in the
house.
- Should the fuse
need to be replaced
an ASTA marked fuse,
approved to BS1362, of the same rating must be
used.
- Always replace the fuse cover after tting a fuse.
This manual suits for next models
1
Table of contents
Other SIP Pressure Washer manuals
