Simulab PacerMan User manual

www.simulab.com

USER GUIDE v1.0

System Set Up

Software Installation

Troubleshooting

PacerMan

Table of Contents

Overview .........................................3

System Components .................................4

Quick Start Guide ...................................7

System Set Up ......................................8

IInstall Software .........................................8

Bluetooth ............................................10

Unpack and Inspect .....................................12

Install Tissue ..........................................12

Prepare Fluid System ....................................14

Connect to Power.......................................15

Connect Body Form to USB ................................16

Connect PacerMan to your Pacing Generator ...................16

System Set Up Checklist ..................................17

Software Guide.................................... 18

Launching Software .....................................18

Home Page...........................................19

Instructor Mode Scenario Setup .............................20

Calibration ...........................................21

Monitor Page ......................................... 22

Patient Vitals .......................................... 23

New Scenario ......................................... 24

Additional Functionality Bar ...............................25

Debrillator Interface Options .............................. 26

Pacing Procedural Options ................................ 27

System Maintenance and Storage ......................28

Battery Charging .......................................28

Relling the Pulse Bulb ...................................28

Draining the System .....................................29

Power Down the System ..................................30

Cleaning the System.....................................31

Packing and Storing.....................................31

Troubleshooting ...................................33

Warranty and Maintenance Agreement..................39

Replacement Parts Catalog ........................... 41

Overview |3PacerMan System

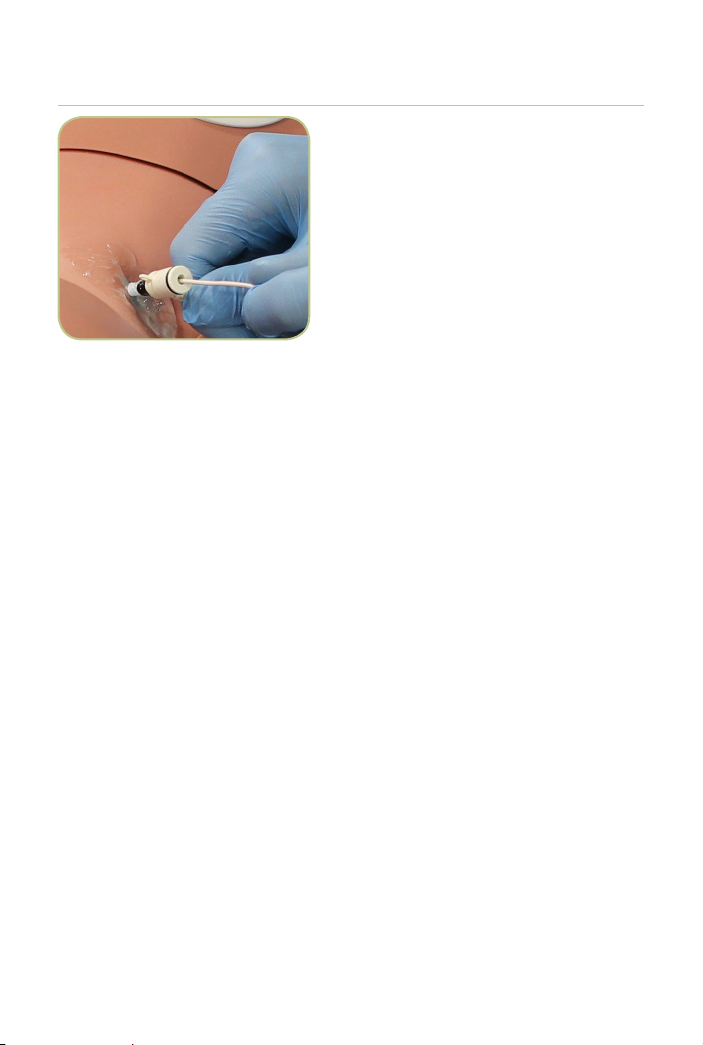

System Overview

PacerMan™ is the only high-delity

simulator for immersive transvenous

pacing—from needle insertion to capture

using all the clinical equipment. The system

offers a one of a kind opportunity to

practice the entire procedure—including

identifying intrinsic bradycardias, assessing

intracardiac waveforms and manipulating

output and rate with a pacing generator.

SKILL DEVELOPMENT

 Learn to manipulate the pacing generator and interact with your

procedural kit.

» Gain and lose capture

» Rene output and rate in real-time

 Improve procedural performance through instructor led competencies and

self directed repetition.

 Practice decision making based on outcome options.

 Train using blind and ECG guided techniques.

 Increase team engagement with scenario based learning.

COMPONENTS AND ACCESSORIES

Body Form

Replaceable Tissue

Head Cover

Torso Cover

Fluid Reservoir Cap

Vessel Channel Cover

Simulated Extension System

Body Form to USB Cable

Wall Power Supply

Battery Charger

Battery Pack

PacerMan requires your own pacing generator and kit.

OEM Extension Cable

Universal Extension Cable

Drain Tube with Stop Clip

Venous Fluid Mixing Bottle

SimuSensor Venous Blood Concentrate

Simulated Arterial Blood

Fill Port with Funnel

Arterial Hand Pump

Fill Line

Carrying Case

System Components

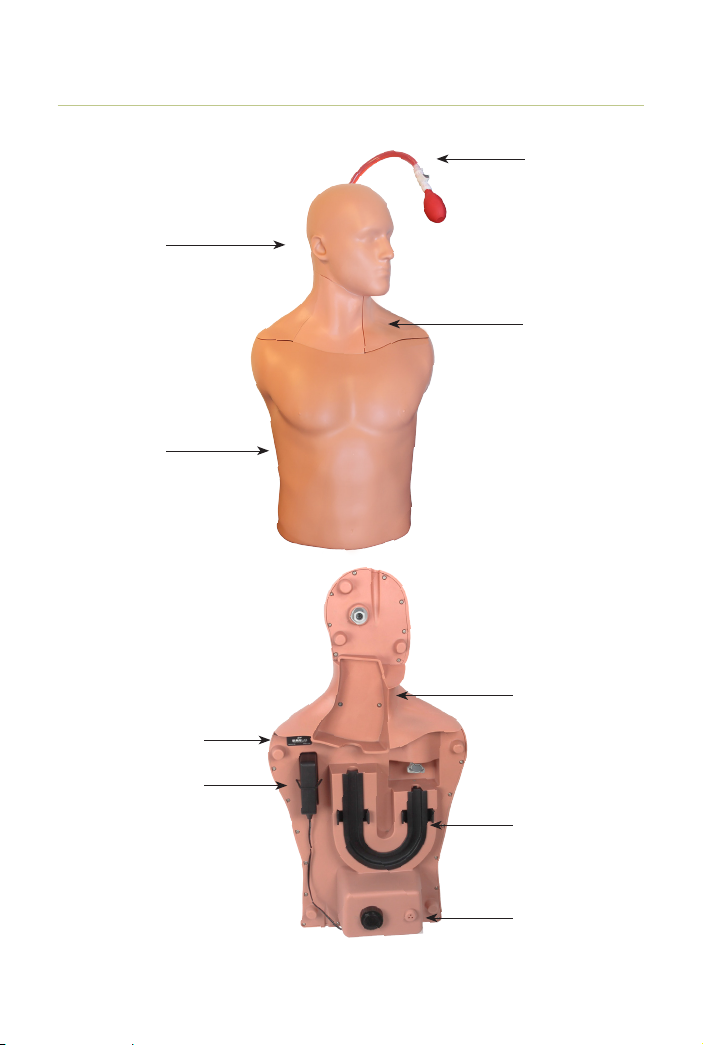

BODY FORM

Simulab Corporation4 |System Components

Replaceable Tissue

Vessel Channel

Cover

Tissue Cradle

Serial Number Label

Battery Well

Torso Cover

Fluid Reservoir

and Cap

Head Cover

Arterial Line

System Components |5PacerMan System

Replaceable Tissue

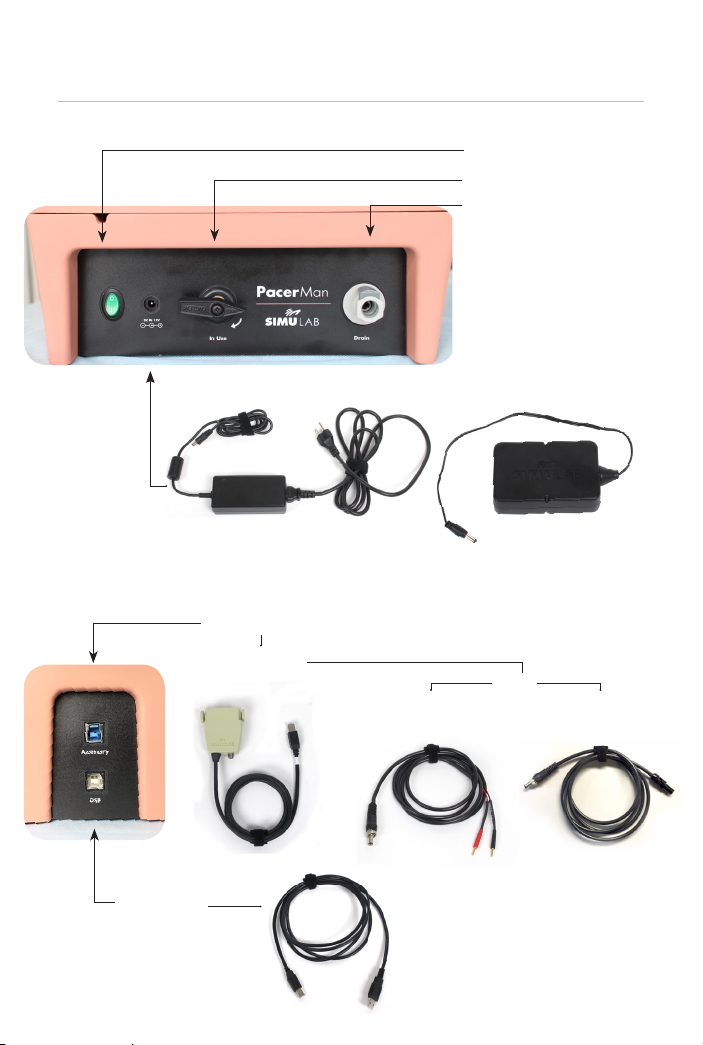

System Components (continued)

Accessory Port:

Body Form to

USB Port:

Power Switch

Power Cord

Connection:

In Use Valve

Drain Connection

POWER & DRAIN INTERFACE PANEL

COMMUNICATION PANEL

Battery PackOr

OEM Extension

Cable

Universal Extension

Cable

Body Form to

USB Cable

Wall Power Supply

Simulated

Extension System

Simulab Corporation6 |System Components

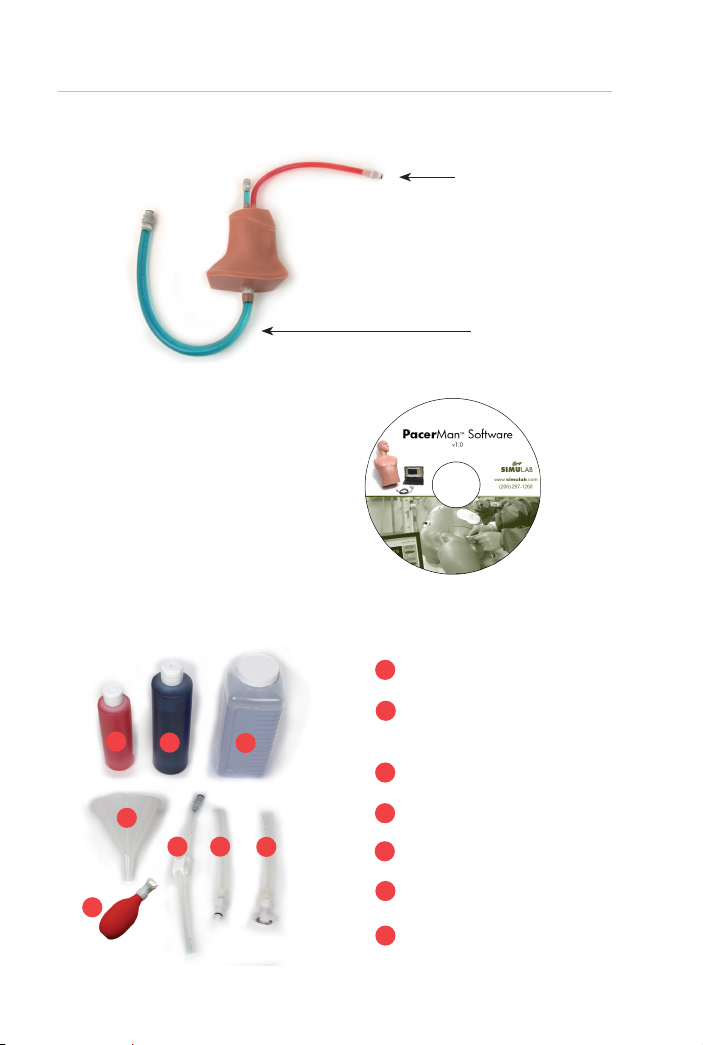

FLUID ACCESSORIES

System Components (continued)

Simulated Arterial Blood

SimuSensor Venous Blood

Concentrate

Venous Fluid Mixing Bottle

Fill Port with Funnel

Drain Tube with Stop Clip

Arterial Hand Pump

Fill line

PACERMAN SOFTWARE

Arterial

Line

Venous

Line

REPLACEABLE TISSUE

Quick Start Guide |7PacerMan System

Quick Start Guide

Load the PacerMan software onto your PC or laptop.

Insert the replaceable tissue and ll up the uid reservoir.

Connect body form to computer and power source.

Connect the body form to the pacing generator using the Simulated

Extension System.

Turn on power switch, and then turn the valve to the IN USE position.

Launch PacerMan software.

Choose Instructor or Student Mode.

If using Instructor Mode, set scenario parameters and then click begin.

You’ll hear the system self-calibrate and the status window will close,

opening the monitor page.

Turn on the vitals you want to present by toggling to the “ON” position

Your PacerMan System is ready to go.

NOTE: If any status items display “NO” check your connection

or see System Callibration on page: 21.

Simulab Corporation8 |System Set Up

System Set Up

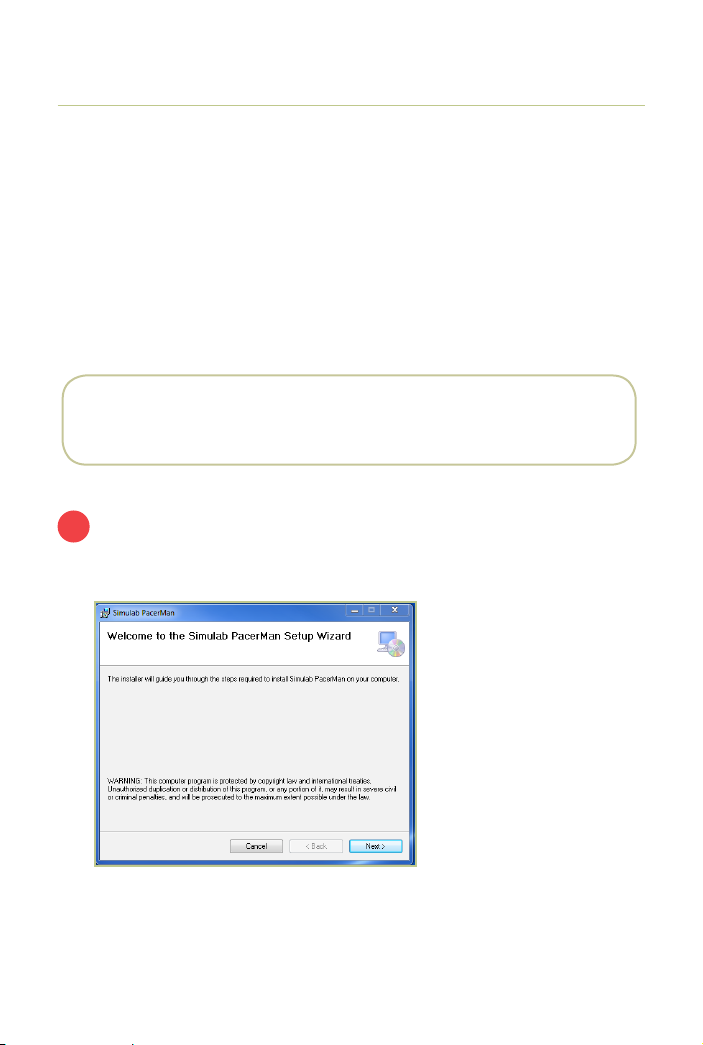

The “Welcome” screen will automatically display when you insert the

PacerMan set up CD.

Make sure your computer has an Internet connection. The software requires USB

and Bluetooth drivers to be installed when you use the PacerMan System for the

rst time.

 Window 7 or higher

 512 MB RAM

 Disk Space required if .net 4.5 is not already installed. If it is already

installed, then it requires less than 2MB of disk space

IMPORTANT NOTE: Install the PacerMan Software on your PC before

connecting the PacerMan System Body Form to your computer.

INSTALL SOFTWARE

REQUIREMENTS FOR SOFTWARE INSTALLATION

System Set Up |9PacerMan System

Install Software (continued)

Select the destination folder for installation. Choose the default location or

navigate to the desired location. Then click “Next”.

Click “Next” and proceed with the software installation.

Software installation will begin. Note: if you click “Cancel” on this screen it

will end the installation.

Once your software is successfully installed, the “Installation Complete” screen

will appear. Click “Close” and now the PacerMan set-up CD can be removed

from the disk drive. Please restart your computer before proceeding.

Simulab Corporation10 |System Set Up

Set up Bluetooth Connection

Ensure your PC is connected to the Internet the rst time you connect to

Bluetooth so the Bluetooth device driver can be properly installed. This will

happen automatically in the background when the system is rst paired.

To make PacerMan Bluetooth discoverable:

 Connect to wall or battery power

 Turn Power Switch ON

 Disconnect USB to Body Form Cable

Each PacerMan has a serial number that is a

unique identier and will be displayed in the

discoverable device name. The Serial number

can be found on a label under the PacerMan

body form cover.

The PacerMan and PC will usually automatically connect anytime the two

devices are in range of each other when the Body Form is turned on, and the

USB cord is not connected to the body form.

Connection may take up to 30 seconds after PacerMan has been turned on and

discoverable.

NOTE: If using multiple PacerMan Systems in the same room, make sure

to properly pair each individual PC with the intended PacerMan body form

serial number.
