Simplex TrueAlert 4009 Series User manual

1997 Simplex Time Recorder Co., Gardner, MA 01441-0001 USA

All specifications and other information shown were current as of publication, and are subject to change without notice

574-827

Rev. B

DO NOT INSTALL ANY SIMPLEX PRODUCT THAT APPEARS

DAMAGED. Upon unpacking your Simplex product, inspect the contents of the

carton for shipping damage. If damage is apparent, immediately file a claim

with the carrier and notify Simplex.

ELECTRICAL HAZARD - Disconnect electrical power when making any

internal adjustments or repairs. Servicing should be performed by qualified

Simplex Representatives.

STATIC HAZARD - Static electricity can damage components. Therefore,

handle as follows:

1. Ground yourself before opening or installing components.

2. Keep component wrapped in anti-static material at all times.

The Simplex 4009 NAC Power Extender (Figure 1) provides additional DC

signaling capacity to a Fire Alarm Control Panel (FACP) with a reverse polarity

Notification Appliance Circuit (NAC). The 4009 is UL-listed, electrically-

supervised, and protected against brown-out conditions and loss of primary AC

power.

Figure 1. Simplex 4009 NAC Power Extender

Continued on next page

Cautions and Warnings

Introduction

4009 NAC POWER EXTENDER

Technical Manuals Online! - http://www.tech-man.com

The 4009 connects as an end-of-line device to a compatible, dedicated

notification appliance circuit from the host panel (e.g., Simplex 4001 or 4002).

It provides eight amperes of DC signaling power to either four or eight

supervised reverse-polarity NACs, style Y or style Z. Alarms from the host

panel signal the four (or eight) 4009 NACs to extend the alarm.

The 4009 can also minimize transmission line losses associated with sending

large currents long distances within buildings. In a fire alarm system with the

4009, power supply and batteries for notification appliances are located near the

actual signaling devices, saving system power and battery capacity while

minimizing line losses. The 4009 monitors each output NAC if a trouble occurs.

EARTH fault detection is maintained by the host FACP. Simplex currently

provides for earth detection at the 4009 via an earth detect module. The signal

cards are set for isolated mode and the 4009 now provides EARTH fault

capability.

Features of the 4009 include:

•Style Y or Z (Class A or B) NACs

•Four or eight NACs, controlled in groups of four

•Eight amperes of DC Signaling Power

•EARTH fault capability of host FACP retained

•Earth fault capability at 4009 if desired

•Two-wire operation from host FACP

•4001-Size back box.

•18 Ah battery charger (Provides charging for 10 Ah batteries internally and

18 Ah batteries externally [4009-9801 battery cabinet required])

Modules available with the 4009 NAC Power Extender include:

•565-367 or 565-488 Power Supply

•565-386 or 565-569 Style Y (Class B) Signal Card

•565-388 or 565-545 Style Z (Class A) Signal Card

•565-558 Earth Detect Card

565-367 or 565-488 POWER SUPPLY

If the 4009 is used with a 4001 system, adequate power from the host FACP may

not be available for the NACs and system use. The power supply used in the

4009 is a linear supply with brownout and battery charger features. Power

supply capacity is adequate for battery charging. Battery charging is limited to

18 Ah, (10 Ah internally/ 18 Ah externally with 4009-9801 battery cabinet) so

provisions are made to allow connection of external battery power. The charger

is disabled when external batteries are used.

Continued on next page

Introduction,

Continued

Hardware Components

Technical Manuals Online! - http://www.tech-man.com

565-386 or 565-569 STYLE Y (CLASS B) SIGNAL CARD

This module allows supervision of four Style Y (Class B) circuits with one signal

circuit from a 4001, 4002, 4020, or 4100/4100+ (or any reverse polarity signal

circuit operating at 24 VDC). It also accepts a +24V auxiliary alarm input, and

can be supervised by the host FACP. All four signal circuit alarm relays

energize with an alarm from the host signal circuit. A short or open circuit

trouble on any of the four circuits results in an open condition at the host signal

circuit, causing the required trouble indication at the host FACP.

565-388 or 565-545 STYLE Z (CLASS A) SIGNAL CARD

This 565-388 is functionally identical to the 565-386 Signal Card and the 565-

545 is functionally identical to the 565-569 Signal Card, except that these Signal

Cards provide for Style Z (Class A) wiring of outgoing circuits.

A functional block diagram depicting the interconnections between modules is

shown in Figure 2. Alarm signal and 0V connections provide alarm and trouble

operation. The host FACP can detect EARTH faults on any NAC wiring from

the signal card.

POWER

SUPPLY

SIGNAL CARD #1

4 STYLE Y/Z NACs

SIGNAL CARD #2

4 STYLE Y/Z NACs

(OPTIONAL)

P. S. MONITOR

SIGNAL POWER

ALARM CONNECTION BETWEEN HOSTAND 4009

0V CONNECTION BETWEEN HOST AND 4009

ALARM

CONNECTION

FIELD

WIRING

Figure 2. 4009 Functional Block Diagram

Power to the second Signal Card is harnessed in the field, the card is installed as

an after-market option. The 733-805 wiring harness is provided in the after-

market kit, and is connected from P2 of the second signal card to TB1 of the

565-367 or 565-488 Power Supply.

Note:Make certain that the second Signal Card has its P3 jumper set to

position 1-2.

Hardware Components,

Continued

System Configuration

SEE NOTE

Note: 4009 installed local to host panel:

•Connect to NAC (+) and Panel 0V when earth detect module is not used.

•Connect to NAC (+) and NAC (-) when earth detect module is used.

4009 installed remote to host panel:

•Use earth detect module and connect to NAC (+) and NAC (-).

Technical Manuals Online! - http://www.tech-man.com

When using 565-386 or 565-388 signal cards the alarm input from the host

NAC must be 20 to 32 volts DC, with a maximum ripple voltage of 2 volts peak-

to-peak.

When using 565-545 or 565-569 signal cards the alarm input from the host NAC

must be 18 to 32 volts DC, unfiltered power supplies can be used.

Alarm current for all signal card configurations is a maximum of 2 A at 24 VDC

per circuit, and is power-limited. Minimum alarm current per Signal Card (total

of four circuits) must be 0.9 VDC. (See the 841-925 Field Wiring Diagram.)

Alarm Input

uirements

Technical Manuals Online! - http://www.tech-man.com

Important: Notify the appropriate personnel (building occupants, fire

department, monitoring facility, etc.) of the installation.

The following paragraphs contain material which is applicable to all 4009

NAC Power Extender systems. Be sure that you are thoroughly familiar with

this material before installing your 4009.

To help you with installation of this and other Simplex equipment, the following

publication is available for general reference: How to Wire a Building for a

Fire Alarm System.

The following tools and equipment are required to install the 4009:

•1/4-inch flat-tip screwdriver, 8-inches long

•1/8-inch flat-tip screwdriver, 4-inches long

•Volt-Ohmmeter

•Diagonal cutting pliers

•Wire strippers

•End-of-line resistors (supplied by Simplex)

•Field Wiring Diagram 841-925.

1. All wiring must be done in accordance with local codes.

2. A minimum of 6 inches of free conductor is required is each electrical box

to facilitate termination’s.

3. A 12-inch service loop of cable is required for all continuous pulls through

an electrical box.

4. All system wiring subject to physical damage must be mechanically

protected based on the environment to which the cable is subjected.

5. A neatly wired system helps assure an accurate inspection of all connections

and simplify troubleshooting.

Continued on next page

System Installation

General Information

Tools and Equipment

Required

General Notes

Technical Manuals Online! - http://www.tech-man.com

The installation checklist (shown in Table 1) provides a systematic method for

installing the 4009. When you finish a procedural step, place a check mark in

the appropriate box in the left column.

Table 1. Installation Checklist

;PROCEDURE



1. Mount 4009 back box.



2. Install system wiring as required and check for absence of

voltage, opens, and shorts.



3. Install peripheral devices and connect end-of-line resistors

across terminals of the last device in the circuit.



4. Connect ground wire from electrical distribution panel to the

4009 green grounding screw.



5. When 565-558 Earth Detect Module is not used, and on

non-isolated systems, connect separate wire from system

0V of the host FACP to 0V on the 565-367 Power Supply.



6. Connect external NACs to TB1-1 (SIG +) and TB1-2 (SIG -)

on the 4009 Signal Card.



7. Install jumper in position 1-2 of P3 on the 4009 Signal Card

if connected to a 4003, or install jumper in position 2-3 of P3

if connected to another panel..



8. Install and connect additional Signal Card by installing

jumper into position 1-2 of P3 on the second Signal Card.



9. Install battery charger options as required.

•For external batteries and charger, install jumper

position 1-2 on P4 of 565-367 or 565-488 Power

Supply.

•When external battery charger is used, splicing into

existing 733-807 harness is required. Refer to Field

Wiring Diagram 841-925.

•To use 4009 Battery Charger, install jumper position 2-3

on P4 of 565-367 or 565-488 Power Supply.



10. Install battery switch over option as required.

•For automatic switch to battery upon power failure,

install jumper to position 2-3 of 565-367 or 565-488

Power Supply.



11. Connect AC power leads to TB3 on the 565-367 Power

Supply or to transformer flying leads of 565-488 Power

Supply.



12. Apply system power.



13. If using internal batteries, connect as indicated.



14. If using external batteries from FACP, connect as indicated.



15. Test the system.

Continued on next page

System Installation,

Continued

Installation Checklist

Technical Manuals Online! - http://www.tech-man.com

Note: The following pages provide a detailed description of the installation.

If you experience problems that cannot be resolved, call your local

Simplex Branch Office.

Use the following procedure when mounting a 4009.

1. Carefully open the shipping container.

2. Remove the 4009 from the shipping container and lay the unit on a flat

surface.

3. Unlock and open the panel door.

4. Remove the knockout plugs on the back box for wire entry.

5. At the 4009 mounting location, install the 4009 back box as shown in Figure

a. Position the back box on two wall-mounted screws capable of

supporting the panel with batteries using the special keyholes at the top

of the box.

b. Tighten screws until snug.

c. Insert a mounting screw in each of the two mounting holes at the

bottom of the box and tighten these screws until snug.

Note:For semi-flush mounting, the back box must be extended 1 1/2 inches

from the finished wall.

4009 NAC POWER EXTENDER

DOOR WIDTH

16 1/2" (419mm)

BOX WIDTH

16 1/4" (413mm)

BEIGE SEMI-FLUSH TRIM (2975-9301)

1 7/16" WIDE (73mm)

WALL

SURFACE

BATTERY

MOUNTING AREA:

AVOID BOTTOM

ENTRY CONDUIT IN

THIS SPACE

3" (76mm)

13 1/2 (343mm)

4 3/16" (106mm)

Figure 3. Installing the 4009 Back Box

Continued on next page

System Installation,

Continued

Mounting the 4009

System Installation,

Continued

Technical Manuals Online! - http://www.tech-man.com

When wiring the 4009, refer to the 841-925 Field Wiring Diagram, the Wiring

Information mounted on the inside of the 4009 panel door, the 4009 NAC Power

Extender Connection Diagram (Figure 4), and the following system wiring

requirements.

•All wiring, except incoming power and ground connecting wires, must be

free from grounds or shorts and have a resistance of one megohm, or higher,

to EARTH.

•All wires are to be copper conductors only.

•All wiring must be terminated with UL listed devices (e.g., wire nuts,

pressure connectors). Wiring terminated with only electrical tape is not

permitted. All splicing (free ends of conductors) must be covered with an

insulation equivalent to that of the conductors.

•When running wires to the 4009, identify the wires appropriately: Input

power, dedicated NAC wiring, external battery connection (if required), and

the four NAC circuits (an additional four NAC circuits are available as a

field-installed option).

4009 NAC

POWER EXTENDER

TO AUDIBLE AND/OR VISIBLE

NOTIFICATION APPLIANCES

(SEPARATE CONTROL OF

STROBES REQUIRES AN

ADDITIONAL FOUR CIRCUIT

MODULE)

NOTIFICATION APPLIANCE CIRCUITS:

FOUR STYLE Y CIRCUITS STANDARD

(STYLE Z CIRCUITS AVAILABLE)

RATED 2A @ 25 VRMS PER CIRCUIT,

POWER LIMITED 8A TOTAL POWER

AVAILABLE

(ADDITIONAL FOUR CIRCUITS AVAILABLE)

EXTERNAL

BATTERY

CONNECTION

(IF REQUIRED)

AC INPUT

POWER

2, #18 AWG MINNAC OF HOST

FACP

CONNECT TO

ADDITIONAL NAC

OF HOST FACP

IF SEPARATE CONTROL

OF ADDITIONAL FOUR

CIRCUIT MODULE IS

REQUIRED

NOTES:

1. REFER TO 841-925 FIELD WIRING DIAGRAM FOR ADDITIONAL INFORMATION.

2. EXTERNAL BATTERY CHARGER REQUIRES SPLICING INTO EXISTING

BATTERY BATTERY HARNESS (733-807) SEE NOTE 1.

(SEE

NOTE 2)

2, #18 AWG MIN

Figure 4. 4009 NAC Power Extender Connection Diagram

Continued on next page

Wiring the 4009

System Installation,

Continued

Technical Manuals Online! - http://www.tech-man.com

Note: Use the resistor color code shown in Figure 5 to identify the End-of-

Line Resistors used in the installation.

Refer to the 841-925 Field Wiring Diagram and the procedure listed below when

installing the 4009 peripheral devices.

1. Determine the mounting locations of the peripheral devices and install

system wires from the mounting location of each peripheral device to the

565-386 or 565-569 Style Y (Class B) Signal Card or the 565-388 or 565-

545 Style Z (Class A) Signal Card.

2. Install all peripheral devices and connect them to appropriate wires. (Refer

to the installation instructions packed with the devices.)

3. For Style Y (Class B) devices, connect a 10K, 1/2 W End-of-Line Resistor

(EOLR) across the terminals of the last device in the circuit and mark the

device accordingly.

Figure 5. End-of-Line Resistor (EOLR) Color Code

Continued on next page

Mounting and Wiring

Peripheral Devices

BROWN

BLACK

RED

GOLD

BROWN

BLACK

ORANGE

GOLD

1,000-OHM (1K, 1/2 WATT)

RESISTOR 10,000-OHM (10K, 1/2 WATT)

RESISTOR

BROWN

GREEN

ORANGE

GOLD

15,000-OHM (15K, 1/2 WATT)

RESISTOR

System Installation,

Continued

Technical Manuals Online! - http://www.tech-man.com

The 4009 has the following system wiring configurations:

•Style Y (Class B)

•Style Z (Class A)

•Interconnection to Host Panel, Single Signal Card

•Interconnection to Host Panel, Two Signal Cards

•Interconnections as a Single Reverse Polarity Device (single or two signal

card(s), isolated or non-isolated configuration

Notes:

1. The 4009 terminal blocks are labeled with a “TB number”, and each

terminal on the terminal block has a number. (For example, Terminal

No. 1 on Terminal Block No. 1 is labeled TB1-1.)

2. Each terminal on the terminal block is also identified with an

abbreviation of the circuit wire that is connected to it. (For example,

TB2-1 on the 565-386 Signal Card is labeled “SIG3+”.)

Refer to the 841-925 Field Wiring Diagram and the procedure listed below when

installing the 4009 NAC Power Extender.

1. Connect a 12 AWG copper ground wire from safety ground in the electrical

distribution panel to the 4009 green grounding screw.

2. Connect external NACs to TB1-1 (SIG +) and TB1-2 (SIG -) on the first

Signal Card.

3. Install jumper in position 2-3 of P3 on the first 4009 Signal Card, install

jumper in position 1-2 of P3 if used with 4003 (Assemblies 565-360, 565-

386, 565-388, 565-545, 565-569).

4. Install and connect additional 4009 Signal Card as required.

5. Install jumper in position 1-2 of P3 on the second Signal Card (if installed).

6. Install battery charger options as required.

•For external batteries and charger, install jumper to position 1-2 on P4

of 565-367 or 565-488 Power Supply.

•When external battery charger is used, splicing into existing 733-807

harness is required. Refer to Field Wiring Diagram 841-925.

•To charge 18 Ah or 10 Ah lead-acid batteries, install jumper to position

2-3 on P4 of 565-367 or 565-488 Power Supply.

7. Install battery switch over option as required.

•For automatic switch to battery upon power failure, install jumper

to position 2-3 on P3 of 565-367 or 565-488 Power Supply.

Continued on next page

System Wiring Configurations

Jumper Placements and

Terminal Connections

System Installation,

Continued

Technical Manuals Online! - http://www.tech-man.com

Other manuals for TrueAlert 4009 Series

Table of contents

Other Simplex Extender manuals

Simplex

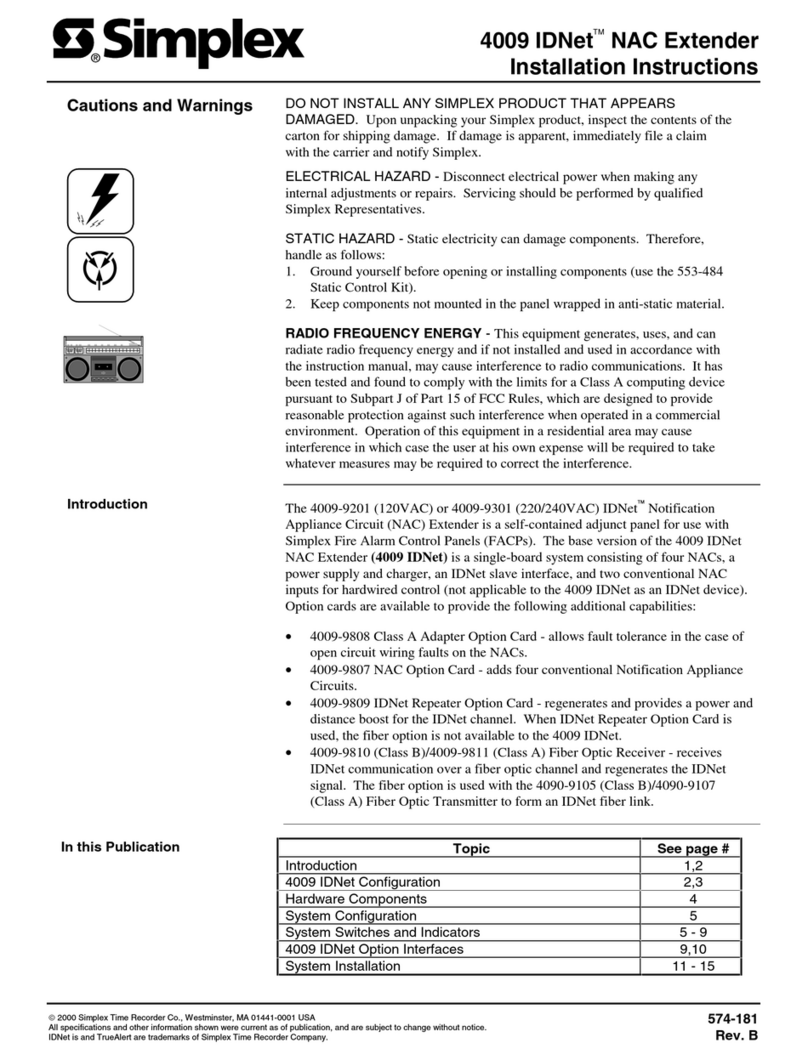

Simplex IDNet 4009 User manual

Popular Extender manuals by other brands

SY HDBT-60T installation guide

Appsys ProAudio

Appsys ProAudio ADX-16 user manual

Atlona

Atlona RS232 user manual

IDK

IDK OPF-TH1000-A user guide

Enable-IT

Enable-IT 824WP quick start guide

Worx

Worx Landroid RadioLink WA0864 Get started

TP-Link

TP-Link TL-WA730RE user guide

Camplex

Camplex CMX-HDMI-SFPL user manual

SC&T

SC&T HE03-4K user manual

Marmitek

Marmitek MegaView70 user manual

Samsung

Samsung SCS-26UC4 user guide

Foxun

Foxun SX-GES24 operating instructions

MuxLab

MuxLab 500771 Operation manual

foxunhd

foxunhd SX-AEX01 operating instructions

TERK Technologies

TERK Technologies LFIRX2 owner's manual

Devolo

Devolo Audio Extender supplementary guide

Edimax

Edimax EW-7438RPn V2 instructions

Shinybow USA

Shinybow USA SB-6335T5 instruction manual
