SilverStone Lascala LC11 User manual
LC11 / LC11M
Specification:
Product Overview
LC11
Disassemble Chart
MICRO ATX M/B
8025 FAN
RISER CARD(AGP*1+PCI*2)
TOP PANEL
FRONT IO(1394 + AUDIO)
FRONT IO (USB * 4)
LEFT PANEL
POWER SW
RESET SW
3.5 BAY * 1 ( HIDDEN )
5.25 BAY * 1
RIGHT PANEL
DRIVE BAY DOOR
BUTTON 8025 FAN
3.5 BAY * 2 ( HIDDEN )
BOTTOM PANEL
TFX 240W PFC POWER SUPPLY
Material: Aluminum front panel, 0.8mm SECC body
Color: Black & Silver
Motherboard: Micro ATX
Drive Bay: External - 5.25" x 1
Internal - 3.5" x 3
Cooling System: Front - 80mm intake, 2050rpm, 21dBA
Left side - 80mm exhaust, 2050rpm, 21dBA
Oversized mesh grill CPU air intake vent
Riser Cards: 1 AGP + 2 PCI
Expansion Slot: 3
Front I/O Port: USB2.0 x 4, IEEE1394 x 1, audio x 1, MIC x 1
Power Supply: TFX 240W PFC / TFX 300W PFC
Net Weight: 7.2 kg
Dimension: 424 mm (W) x 96 mm (H) x 430 mm (D)
Product Overview
Specification:
LC11M
Material: Aluminum front panel, 0.8mm SECC body
Color: Black & Silver
Motherboard: Micro ATX
Drive Bay: External - 5.25" x 1
Internal - 3.5" x 3
Cooling System: Front - 80mm intake, 2050rpm, 21dBA
Left side - 80mm exhaust, 2050rpm, 21dBA
Oversized mesh grill CPU air intake vent
Riser Cards: 1 AGP + 2 PCI
Expansion Slot: 3
Front I/O Port: USB2.0 x 4, IEEE1394 x 1, audio x 1, MIC x 1
Multimedia: VFD, IR, remote control, iMON media center software
Power Supply: TFX 240W PFC / TFX 300W PFC
Net Weight: 7.2 kg
Dimension: 424 mm (W) x 96 mm (H) x 430 mm (D)
M
Optional PCI EXPRESS X16 RISER CARD
Model Matrix
MODEL
240w(PFC) Multimedia
Multimedia
LC11B(Black)
LC11S(Silver)
LC11B - 300
LC11S - 300
LC11B - M
LC11S - M
LC11B -M300
LC11S -M300
300w(PFC)
RC01【Sold Separately】
1. Remove LC11 from the carton 2. Remove bottom cushion and plastic bag
from the case (do not peel off the protective
film on top of the case)
3. Rest case on the top cushion with the
bottom of the case facing up 4. Remove two lower screws to slide the
bottom cover off the case 5. Unscrew screws securing the 3.5" drive
bracket to remove it from the case 6. Use #6-32 X 6 screw for securing hard drive
in the 3.5"drive bracket as shown (up to two
hard drives can be installed)
7. Re-insert drive bracket back into the case
and secure with screws 8. Use included hex wrench to remove the
screw located near the optical drive bracket
as shown
9. Use hex wrench to remove two screws
located on the right side of the case as
shown
10. Carefully remove aluminum front panel
located in front of the optical drive 11. Slide optical drive into the drive bracket
as shown 12. Secure optical drive with M3 screws (an
additional 3.5" hard drive can be installed
in the slot beneath the optical drive)
13. Install Micro-ATX motherboard into the case 14. Connect all required cables and connectors
to installed drives 16. Remove screw from expansion slot fastener
as shown 17. Swing fastener into open position to
release expansion slot covers 18. AssembleAGP riser card, PCI riser card,
and riser card bracket into one module as
shown
19. Insert completed riser card module into
the motherboard 20. Secure riser card module with screw
removed from step 15 21. InstallAGP/PCI cards and secure them
with expansion slot fastener re-attached
to the back of the case
22. Take great care when installing an
appropriate CPU cooler, the height of the
cooler cannot exceed 75mm
23. After all required wires are connected,
re-install the bottom case cover back onto
the case
24. Turn case over on its feet and peel off the
protective film to complete installation
15. Remove riser card bracket as shown
11

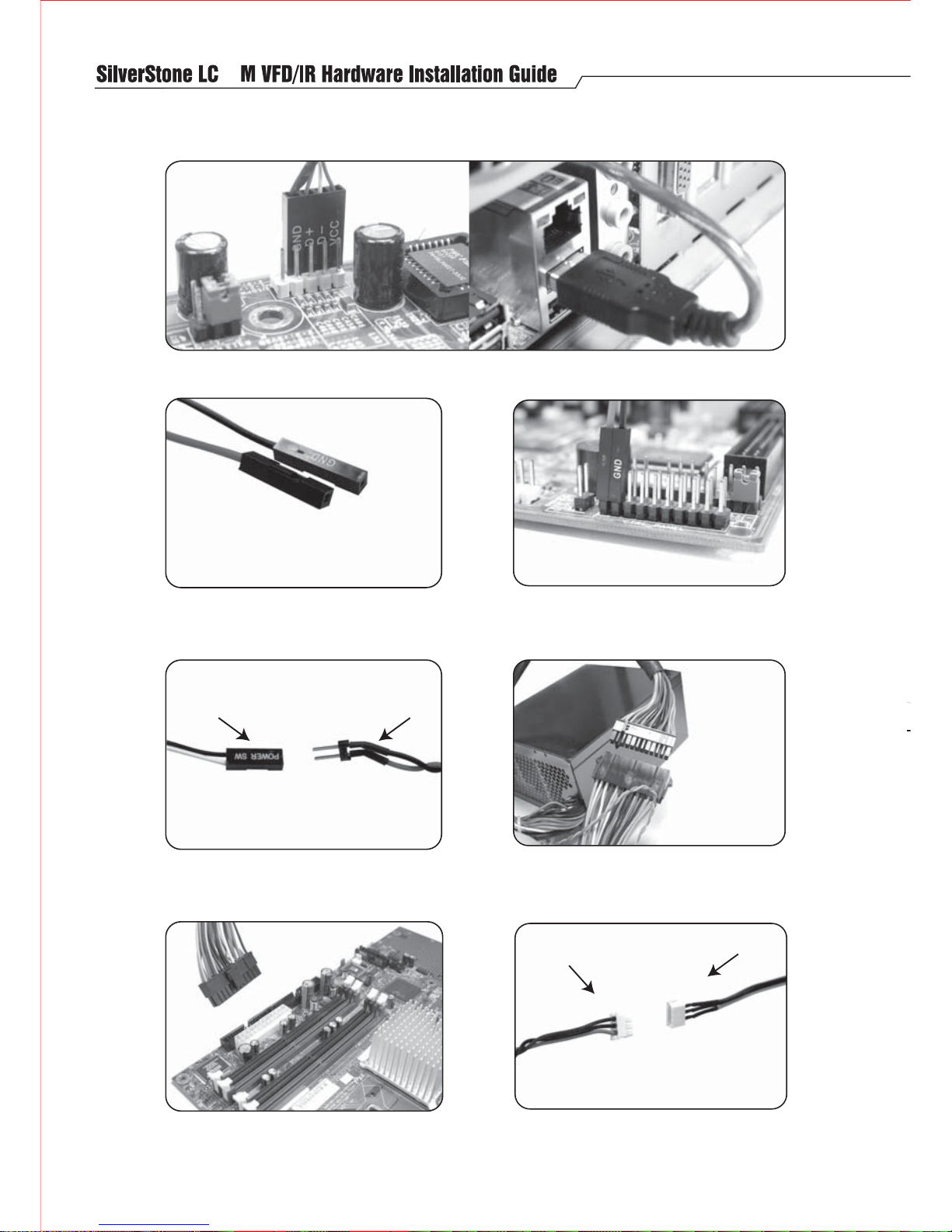

From front panel From VFD/IR module
From ATX adapter From VFD/IR module
Finally, connect the 3 pin power connector from
the VFD/IR module to the ATX adapter's 3pin cable
Connect the other end of the ATX adapter to your
motherboard. It is compatible with 24pin or 20pin
motherboards.
Connect the included ATX adapter to your power
supply's ATX connector.
Refer to your motherboard manual and connect
the two wire leads to "power switch" or "power
button" on the motherboard's front panel pin
headers
From the front panel VFD/IR module, locate two
female single wire leads colored in black and red.
The black wire should have the connector labeled,
"GND"
Insert the 4 pin USB connector from the VFD/IR module to your motherboard USB pin header. You can also
use the included USB adapter to connect to an external USB port header on the motherboard
Connect your power switch connector from the front
panel to the dual pin header from the VFD/IR module
ation
NO:11400208
December , 2005
