Silvercrest SAB 160 B2 User manual

IAN 101293

Bluetooth®Car Radio SAB 160 B2

Bluetooth®-Autoradio

Bedienungsanleitung

Bluetooth®autoradio

Gebruiksaanwijzing

Bluetooth®Car Radio

Operating instructions

GB/IE Operating instructions Page 1

NL/BE Gebruiksaanwijzing Pagina 39

DE/AT/CH Bedienungsanleitung Seite 77

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the

device.

Vouw vóór het lezen de beide pagina‘s met de afbeeldingen open en maak u vertrouwd met alle functies

van het apparaat.

Klappen Sie vor dem Lesen die beiden Seiten mit den Abbildungen aus und machen Sie sich anschließend

mit allen Funktionen des Gerätes vertraut.

234 5 6 7

1011121314151617

20 21 22

2324

25 26 27

2830

32 29

39 40

IAN 101293

Bluetooth®Car Radio SAB 160 B2

Bluetooth®-Autoradio

Bedienungsanleitung

Bluetooth®autoradio

Gebruiksaanwijzing

Bluetooth®Car Radio

Operating instructions

SAB 160 B2

Contents

Introduction . . . . . . . . . . . . . . 2

Preface . . . . . . . . . . . . . . . . . . . . . . . 2

Limitation of liability . . . . . . . . . . . . . 2

Notes on trademarks . . . . . . . . . . . . 2

Warnings . . . . . . . . . . . . . . . . . . . . . 3

Intended use. . . . . . . . . . . . . . . . . . . 3

Safety . . . . . . . . . . . . . . . . . . . . . . . . 4

Basic safety guidelines . . . . . . . . . . . 4

Package contents . . . . . . . . . . . . . . . 5

Controls . . . . . . . . . . . . . . . . . . 6

Installation . . . . . . . . . . . . . . . 8

Connection . . . . . . . . . . . . . . . . . . . . 8

Installation . . . . . . . . . . . . . . . . . . .10

Removing the device. . . . . . . . . . . .12

Initial operation . . . . . . . . . .12

Control panel . . . . . . . . . . . . . . . . .12

Handling and operation . . .13

Switching on and oﬀ . . . . . . . . . . .13

Device reset (RESET). . . . . . . . . . . .14

Settings. . . . . . . . . . . . . . . . . . . . . .14

Radio functions. . . . . . . . . . . . . . . .20

General CD functions. . . . . . . . . . .21

MP3 CD functions . . . . . . . . . . . . .23

USB port. . . . . . . . . . . . . . . . . . . . .24

Card reader (SD/MMC) . . . . . . . .25

Recording function . . . . . . . . . . . . .25

Connecting an external audio

device to the device . . . . . . . . . . . .27

Bluetooth®operation . . . . . . . . . .28

Cleaning . . . . . . . . . . . . . . . .31

Cleaning the display. . . . . . . . . . . .31

Disposal. . . . . . . . . . . . . . . . .31

Disposal of the device . . . . . . . . . .31

Disposal of packaging . . . . . . . . . .31

Troubleshooting . . . . . . . . . . 32

Fault causes and rectiﬁcation . . . . .32

Appendix . . . . . . . . . . . . . . .34

Technical data . . . . . . . . . . . . . . . .34

Warranty . . . . . . . . . . . . . . . . . . . .35

Importer . . . . . . . . . . . . . . . . . . . . .35

EC Declaration of Conformity . . . .36

IB_101293_SAB160B2_LB3.indb 1 07.07.14 16:08

2SAB 160 B2

Introduction

Preface

Congratulations on the purchase of your new device.

You have selected a high-quality product. These operating instructions are a con-

stituent part of your SAB 160 B2 Bluetooth®car stereo (henceforth designated

as the device) and provide important information on the intended use, safety,

installation and connection as well as operation of the device.

The operating instructions must be kept near to the device at all times. They are to

be read and their content is to be applied by all those working on the installation,

servicing and repair of the device.

Keep these operating instructions in a safe place and pass them on to any future

owner together with the device.

This documentation is protected by copyright.

All rights, including those of photographic reproduction, duplication and distribu-

tion by means of particular methods (such as data processing, data media and

data networks), in whole or in part, as well as substantive and technical changes,

are reserved.

Limitation of liability

All technical information, data and information in these operating instructions

pertaining to the installation, connection and operation correspond to the latest

available to us at the time of printing and take into account our previous experi-

ence and know-how.

No claims can be derived from the details, illustrations and descriptions in these

instructions.

The manufacturer assumes no responsibility for damage caused by failure to

observe these instructions, improper use, incompetent repairs, unauthorised

modiﬁcations or for the use of non-approved replacement parts.

Notes on trademarks

- USB®is a registered trademark of USB Implementers Forum, Inc.

- The Bluetooth®logotype and logos are registered trademarks of Bluetooth

SIG, Inc.

All other names and products may be trademarks or registered trademarks of

their respective owners.

IB_101293_SAB160B2_LB3.indb 2 07.07.14 16:08

SAB 160 B2

Warnings

The following warnings are used in these operating instructions:

WARNING

A warning at this hazard level indicates a potentially hazardous

situation.

Failure to avoid this hazardous situation could result in physical injury.

► Follow the instructions in this warning to prevent physical injury.

CAUTION

A warning at this hazard level indicates potential material

damage.

Failure to avoid this situation could result in material damage.

► Follow the instructions in this warning to prevent material damage.

NOTE

► A note provides additional information that will assist you in using the

device.

Intended use

This device is intended only for reception of FM/AM radio stations as well as

for the playback of audio and MP3 CDs, MP3 ﬁles from USB data media and

SD/MMC memory cards as well as audio signals from external audio devices.

In addition, you can pair the device with a Bluetooth mobile phone and use the

device as a hands-free set with the microphone unit The device is intended for

installation into a vehicle. It is not intended for any other use or use beyond that

speciﬁed.

WARNING

Danger if not used for correct purpose

Failure to use the device for its intended purpose and/or other type of use can

be hazardous.

► Use the device only for its intended purpose.

► Observe the procedures described in these operating instructions.

Claims of any kind for damage arising as a result of incorrect use will not be

accepted. The risk shall be borne solely by the user.

IB_101293_SAB160B2_LB3.indb 3 07.07.14 16:08

4SAB 160 B2

Safety

In this section, you will ﬁnd important safety instructions for using the device.

The device complies with the statutory safety regulations. However, incorrect use

can result in injury and material damage.

Basic safety guidelines

To ensure safe operation of the device, follow the safety guidelines set out below

■ Prior to use, check the device for visible external damage. Do not operate a

device that has been damaged or dropped.

■ If the cables or connections are damaged, have them replaced by an author-

ised specialist or the Customer Service department.

■ People who are incapable of using the device safely due to their physical,

intellectual or motor abilities may only use it whilst under the supervision or

direction of a responsible person

■ Do not allow children to use the device unless they are being supervised.

■ All repairs must be carried out by authorised specialist companies or by the

Customer Service department. Improper repairs can pose signiﬁcant risks to

the user. It will also invalidate any warranty claim.

■ Repairs to the device during the warranty period may only be carried out by

a customer service department authorised by the manufacturer. Otherwise

no additional warranty claims can be considered for subsequent damage.

■ Defective components must always be replaced with original replacement

parts. Compliance with safety requirements can only be guaranteed if original

replacement parts are used.

■ Protect the device from penetration by moisture and liquids.

Danger from laser radiation

WARNING

The device is equipped with a class 1 laser.

Laser radiation is dangerous to the eyesight!

Observe the following safety instructions to avoid exposing

yourself or others to laser radiation:

► Never open the device.

► Have the device repaired only by a specialist.

► Do not make any modiﬁcations to the device.

IB_101293_SAB160B2_LB3.indb 4 07.07.14 16:08

SAB 160 B2

Traﬃc safety

WARNING

Road traﬃc safety has the highest priority!

Follow the following safety instructions to avoid endangering yourself or others:

► Before starting your journey, familiarise yourself with the device and its

operation.

► Only use the device when the traﬃc situation allows it! Stop in a suitable

location if you wish to perform complicated operations.

► Only remove or attach the control panel when the vehicle is stationary.

► Set the volume to a moderate level so that the sirens of police vehicles, ﬁre

trucks and other emergency service vehicles can be heard in good time.

Package contents

(For illustrations see fold-out pages)

WARNING

► Packaging material must not be used as a plaything.

Risk of suﬀocation!

The following components are included in delivery:

▯ Car stereo (including control panel)

▯ Case for control panel 37

▯ Bezel frame (attached) 38

▯ Installation bracket (attached) 39

▯ Keys for installation frame (2x) 40

▯ Anchoring plate (including securing material) 41

▯ Adapter cable for ISO Block A 42

▯ Microphone unit with adhesive strip

▯ These operating instructions 43

NOTE

► Check the package for completeness and for signs of visible damage.

► If the contents are not complete or are damaged due to defective packaging

or transportation, contact the service hotline (see warranty card).

IB_101293_SAB160B2_LB3.indb 5 07.07.14 16:08

6SAB 160 B2

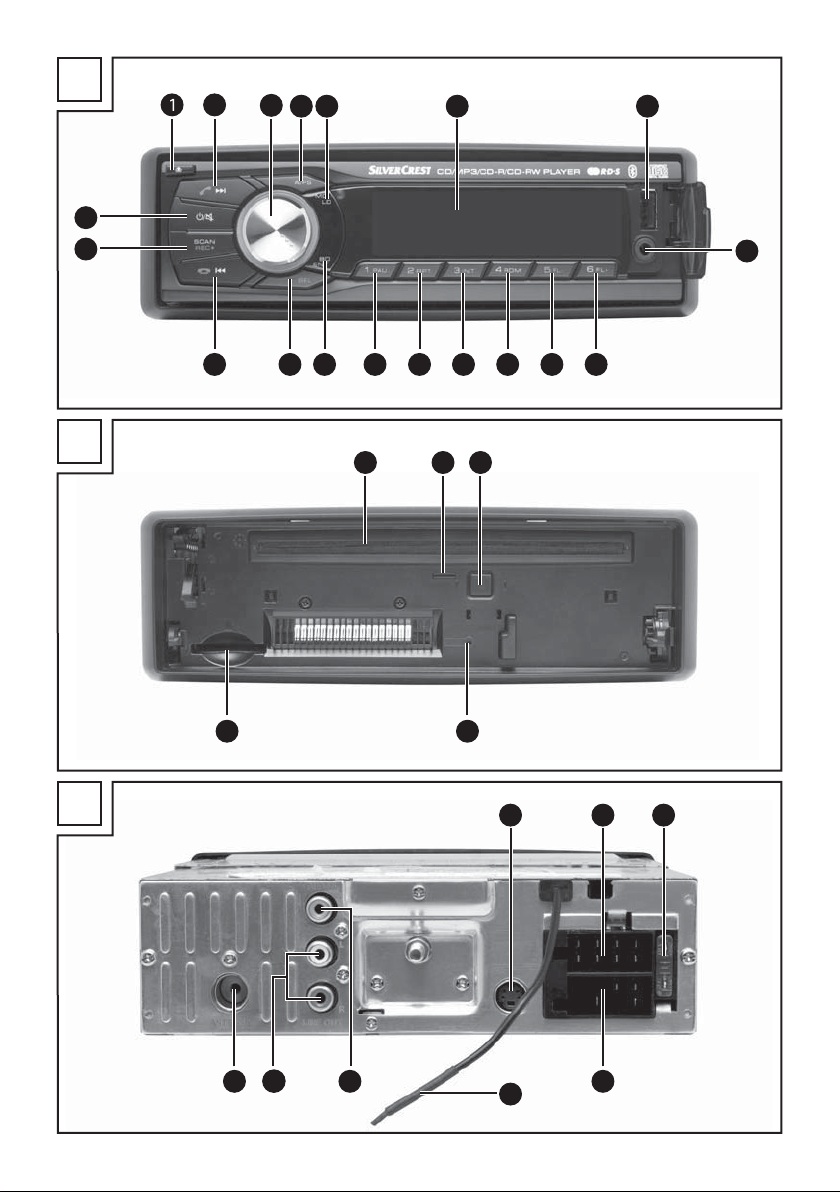

Controls

Car radio (see front fold out ﬂap)

Figure A:

button: release for the control panel

2/▸▸I button: accept telephone call, track/station search forwards

3Multi-controller: turn to set values/volume

4A/PS button: automatic station saving

5MD/LD button: set operating mode, switch loudness function on/oﬀ

6Display

7USB port

8AUX: 3.5 mm stereo socket for connecting an external audio device

96/FL+ button: station memory 6/directory forwards during MP3/WMA playback

10 5/FL- button: station memory 5/directory backwards during MP3/WMA playback

11 4/RDM button: station memory 4/random play during MP3/WMA playback

12 3/INT button: station memory 3/intro function during MP3/WMA playback

13 2/RPT button: station memory 2/repeat function during MP3/WMA playback

14 1/PAU button: station memory 1/pause playback

15 BD/ENT: select waveband range/conﬁrm selection

16 SEL button: call up Settings menu

17 /I◂◂ button: end telephone call, track/station search backwards

18 SCAN/REC: automatic station search/record onto a data medium connected

to the USB port or the SD/MMC card slot

19 / button: switch the device on and oﬀ/turn the sound oﬀ (MUTE)

Figure B:

20 CD compartment

21 Theft protection LED/CD compartment position LED

22 button: eject disc

23 RESET: reset the device

24 Card slot for SD/MMC cards

IB_101293_SAB160B2_LB3.indb 6 07.07.14 16:08

Other manuals for SAB 160 B2

This manual suits for next models

Table of contents

Languages:

Other Silvercrest Car Receiver manuals

Silvercrest

Silvercrest SAR 28 A1 User manual

Silvercrest

Silvercrest KH 2381 User manual

Silvercrest

Silvercrest SAR 28 A1 User manual

Silvercrest

Silvercrest KH 2375 User manual

Silvercrest

Silvercrest KH 2375 User manual

Silvercrest

Silvercrest KH 2381 User manual

Silvercrest

Silvercrest SAB 160 A1 User manual

Silvercrest

Silvercrest SAB 160 A1 User manual

Silvercrest

Silvercrest BLUETOOTH KH 2376 User manual

Silvercrest

Silvercrest KH 2375 User manual

Silvercrest

Silvercrest SAR 28 A1 User manual

Silvercrest

Silvercrest SAR 28 A1 User manual

Silvercrest

Silvercrest SKRI 2000 A1 User manual

Silvercrest

Silvercrest BLUETOOTH KH 2376 User manual

Silvercrest

Silvercrest SAB 160 A1 User manual

Silvercrest

Silvercrest KH 2382 User manual

Silvercrest

Silvercrest CRE-521 User manual

Silvercrest

Silvercrest BLUETOOTH KH 2376 User manual

Silvercrest

Silvercrest SAB 160 A1 User manual

Silvercrest

Silvercrest 75726 User manual

Silvercrest

Silvercrest SAB 160 A1 User manual

Silvercrest

Silvercrest CDV-710 User manual

Silvercrest

Silvercrest KH 2382 User manual

Silvercrest

Silvercrest SAR 28 A1 User manual

Popular Car Receiver manuals by other brands

Motorola

Motorola VWA63 Service manual

Nextar

Nextar D3201 instruction manual

Alpine

Alpine CDE-163BT owner's manual

Pioneer

Pioneer DEH-P645R installation manual

Axxera

Axxera XDMA7600 Installation & owner's manual

XM OnyX quick start guide

Sound Storm

Sound Storm STM93R user manual

Soundstream

Soundstream VIR-5000 owner's manual

Avson

Avson MKT Platform user manual

Sony

Sony MEX-1HD - Audio Library System operating instructions

Pioneer

Pioneer DVH-P500UB Operation manual

JVC

JVC KD-AHD69 Specifications

Blaupunkt

Blaupunkt SANTIAGO CR 87 operating instructions

Sony

Sony CDX-4160 - Cd Receiver operating instructions

XFIRE AUDIO

XFIRE AUDIO BMW42S owner's manual

VDO

VDO CD 2253 datasheet

Volvo

Volvo 13 84 580 installation instructions

ZENEC

ZENEC ZE-160DVD instruction manual
