1
eSATA II-150 PCI i/e
Quick Installation Guide
Introducing the eSATA II-150 PCI i/e
The eSATA II-150 PCI i/e is an ultra high-speed dual
channel Serial ATA Generation 2 controller for use in PCI
enabled systems.
Features and Benefits
• Adds one internal & one external (eSATA) ports to
your desktop computer
• New Serial ATA cable – easier to install & provides
better air circulation
• Supports two SATA channels and data transfer rate
up to 1.5Gb/s (150MB/s)
• Supports Native Command Queuing (NCQ) and
SATA TCQ commands
• Onboard bus master engine relieves the system
processor from book keeping and enhances
performance
• Features independent 256-byte FIFOs per channel
for host reads and writes
• Breaks the 137GB barrier! Works with various
brands of large capacity Serial ATA hard disks
• Supports SATA hard disk hot-plugging
• CompliantwithPCI2.3andeSATA(externalSATA)
connector specifications
• Compliant with Serial ATA 1.0 specifications and
complement of SATA II optional features
04-0410B
2
System Requirements
• Pentium or equivalent PC with an available PCI slot
• Windows 2000/XP/Server 2003
PackageContents
•SATA II-150 PCI i/e and spare low profile bracket
• SATA data cable and power cable
• Driver CD and this quick installation guide
Layout

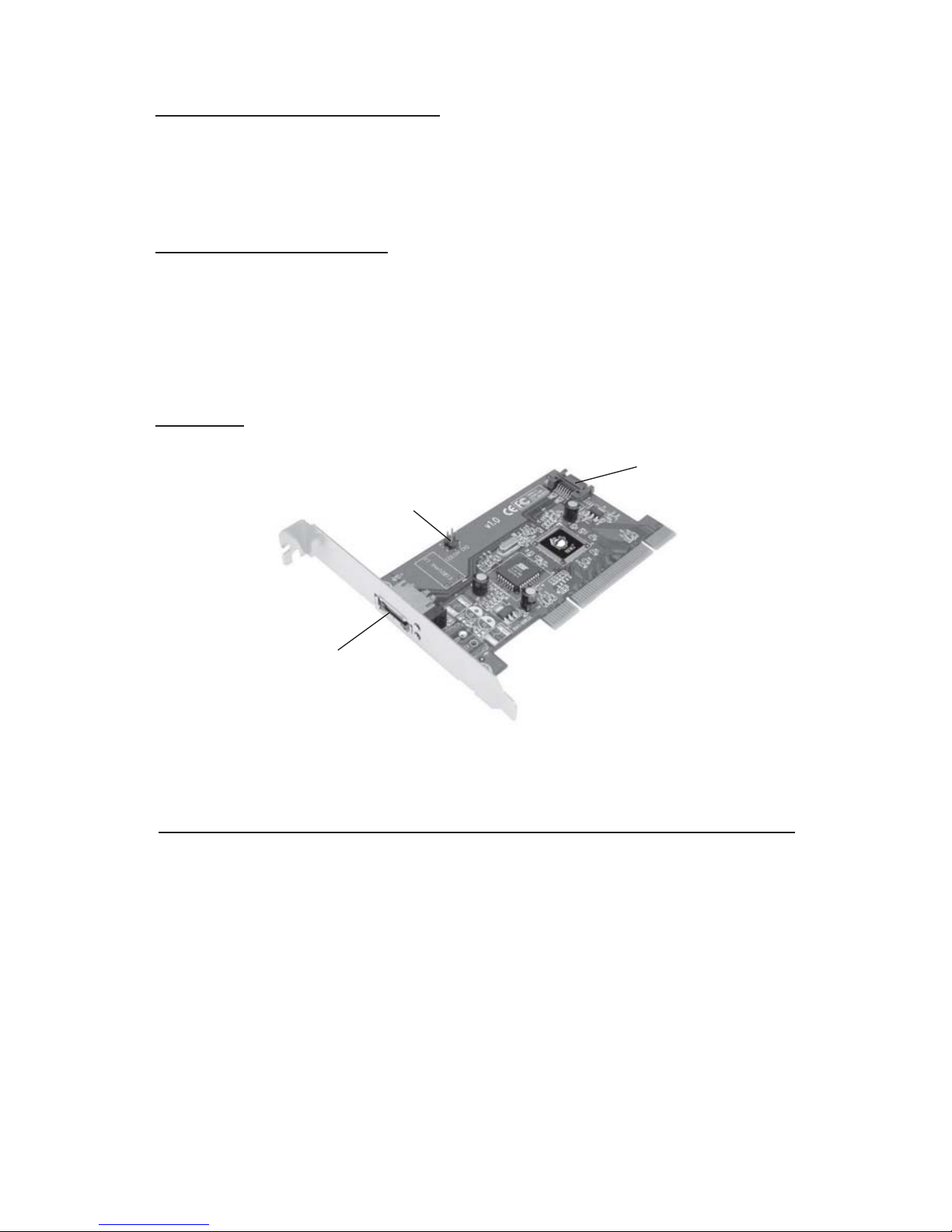

Figure 1. eSATA II-150 PCI i/e Board Layout
Hardware Installation
General instructions for installing the card are provided
below. Since the design of computer cases and
motherboards vary, refer to your computer’s reference
manual for further information, if needed.
Static Electricity Discharge may permanently damage
your system. Discharge any static electricity build up in
your body by touching your computer’s case for a few
seconds. Avoid any contact with internal parts and
handle cards only by their external edges.
Internal
connector
External
connector
HDD LED pins (Front chassis
LED; connects vertically)
3
1. Turn OFF the power to your computer and any
other connected peripheral devices.
2. Unplug the power cord from the back of the
computer.
3. Remove your computer’s cover.
4. Remove the slot bracket from an available PCI slot.
5. To install the card, carefully align the card's bus
connector with the selected PCI slot on the
motherboard. Push the board down firmly, but
gently, until it is well seated.
6. Replace the slot bracket's holding screw to secure
the card.
7. If needed, connect the HDD LED pins to monitor
HDD activity from the front panel of your chassis.
8. Replacethecomputercoverandreconnect thepower
cord.
Driver Installation
This section provides information on how to install the
SATA II-150 PCI i/e drivers for the following operating
systems.
Windows 2000
New Windows 2000 Installation
A new installation of Windows 2000 requires a floppy
disk for the driver installation. To make this floppy disk,
copy the contents of the Floppy folder, found on the
driver CD, onto a blank floppy disk then follow the
directions below.
1. Install the board and follow the Microsoft
procedures to install Windows 2000 accordingly.
4
2. Restart your system when prompted during
Windows' installation.
3. At the Windows 2000 Setup screen, press F6 to
install the driver.
4. Insert the driver diskette. Press S, then press Enter.
5. Select INITIO INIC1620 S-ATA Adapter For
Windows 2000 and press Enter.
6. Press Enter to continue and follow on-screen
instructions to complete the installation.
Existing Windows 2000 Installation
1. Install the board and boot up Windows.
2. At the Found New Hardware Wizard, click Next.
3. Select Search for a suitable driver for my device
(recommended) and click Next.
4. InsertthedriverCD,checkCD-ROMdrives,uncheck
the other boxes, and click Next. Click Next again to
continue.
5. Click Yes, then click Finish.
Note: Our driver has been thoroughly tested in
Windows for stability.
6. RestartWindowstocomplete the driver installation.
Windows XP/Server 2003
New Windows XP/Server 2003 Installation
A new installation of Windows XP/Server 2003 requires
a floppy disk for the driver installation. To make this
floppy disk, copy the contents of the Floppy folder,
found on the driver CD, onto a blank floppy disk then
follow the directions below.
1. Install the board and follow the Microsoft
procedures to install Windows accordingly.
5
2. Restart your system when prompted by Windows'
installation.
3. At the Windows Setup screen, press F6 to install the
driver.
4. Insert the driver diskette. Press Sthen press Enter.
5. Select INITIO INIC1620 S-ATA Adapter For
Windows XP/2003 and press Enter.
6. Press Enter to continue and follow on-screen
instructions to complete the installation.
Existing Windows XP/Server 2003 Installation
1. Install the board and boot up Windows.
2. At the Found New Hardware Wizard:
XP (w/SP1 or earlier)/Server 2003: continue to step #3.
XP (w/SP2 or later)/Server 2003 (w/ SP1 or later): select
No, not at this time, then click Next.
3. Insert the driver CD, select Install the software
automatically (Recommended), then click Next.
Click Next again to continue.
4. Click Continue Anyway, then click Finish.
Note: Our driver has been thoroughly tested in
Windows for stability.
5. RestartWindowstocomplete the driver installation.
6
To Verify Windows 2000/XP/2003 Installation
1. Right click My Computer and click Manage.
2. Select Device Manager.
3. Double click SCSI and RAID Controllers, then
double click Initio inic1620 S-ATA Adapter to
display driver properties. A message This device is
working properly is displayed in the dialog box, the
driver has been correctly installed.
External Device Connection
External Serial ATA devices should come with their own
accessories. In most cases, you just need to power up the
external device and connect it to the external port. For
more information, please refer to the external device's
manual.
Hot-Plugging Hard Disk Drives
To remove a drive from a powered up system, do the
following:
1. Right click My Computer and click Manage.
2. Select Device Manager.
3. Click Disk Drives, right click the target disk and
select Disable/Enable.
4. You can now remove the target disk.
BIOS Configuration
The SATA II-150 PCI i/e BIOS will appear everytime your
system starts up. If the BIOS doesn't show, please try
your controller in another PCI slot. During this (Post)
process, the BIOS will show up and indicate the devices
attached to it.
7
Technical Support and Warranty
QUESTIONS? SIIG’s Online Support has answers!
Simply visit our website at www.siig.com and click on Support.
Our online support database is updated daily with new drivers
and solutions. Answers to your questions could be just a few clicks
away. You can also submit questions online and one of our technical
support analysts will promptly respond.
A lifetime manufacturer warranty supplied with this product is
offered by SIIG, Inc. Please see SIIG website for more warranty
details. If you should happen to encounter any problems with this
product, please follow the procedures below.
If it is within the store's return policy period, please return the
product to the store where you purchased from.
If your purchase has passed the store's return policy period, please
follow these steps to have the product repaired or replaced.
Step 1: Submit your RMA request.
Go to www.siig.com, click Support, then RMA to submit a
request to SIIG RMA. If the product is determined to be
defective, an RMA number will be issued. SIIG RMA department
can also be reached at (510)413-5333.
Step 2: After obtaining an RMA number, ship the product.
•Properly pack the product for shipping. All software, cable(s)
and any other accessories that came with the original package
must be included.
•Clearly write your RMA number on the top of the returned
package. SIIG will refuse to accept any shipping package, and
will not be responsible for a product returned without an
RMA number posted on the outside of the shipping carton.
•You are responsible for the cost of shipping the product to
SIIG at the following address:
SIIG, Inc.
6078 Stewart Avenue
Fremont, CA 94538
RMA #: _________________
•SIIG will ship the repaired or replaced product via Ground
in the U.S and International Economy outside of the U.S at
no cost to the customer.
eSATA II-150 PCI i/e is a trademark of SIIG, Inc.
SIIG and SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are
registeredtrademarksofMicrosoftCorporation. Othernamesusedinpublicationareforidentification
onlyand maybe trademarksof theirrespective companies.
May, 2006 Copyright ©2006 by SIIG, Inc. All rights reserved.
PRODUCT NAME
eSATA II-150 PCI i/e
FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS
B OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE
FCC COMPLIANCE STATEMENT:
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE
SIIG, Inc.
6078 Stewart Ave.
Fremont, CA 94538-3152
About SIIG, Inc.
Foundedin1985,SIIG,Inc.isaleadingcomputerupgrademanufacturer
of I/O connectivity products, including PCI & ISA serial and parallel
ports, USB, Serial ATA & UltraATA controllers, FireWire (1394a/b),
Networking,SoundCards,andotheraccessories. SIIGisthepremier
one-stop source of upgrades.
SIIGproductsoffer comprehensiveusermanuals, manyuser-friendly
features, and are backed by an extensive manufacturer warranty.
High-quality control standards are evident by the overall ease of
installation and compatibility of our products, as well as one of the
lowest defective return rates in the industry. SIIG products can be
foundincomputerretailstores,mailordercatalogs,ande-commerce
sites in the Americas and the UK, as well as through major
distributors, system integrators, and VARs.
Table of contents
Other SIIG PCI Card manuals
SIIG
SIIG DP 4-Port USB 3.0 PCIe i/e User manual
SIIG
SIIG SoundWave 5.1 PCI-LP User manual
SIIG
SIIG CyberSerial Dual PCI Mounting instructions
SIIG
SIIG Low Profile PCI-1P User manual
SIIG
SIIG Low Profile PCI-2S User manual
SIIG
SIIG Cyber 2S1P PCI User manual
SIIG
SIIG CyberPro 1S1P User manual
SIIG
SIIG SC-SA2012-S1 User manual
SIIG
SIIG SC-SAE412-S3 User manual
SIIG
SIIG CyberPro PCI 2S User manual
SIIG
SIIG Hi-Speed USB 5-Port PCI User manual
SIIG
SIIG 1394 User manual
SIIG
SIIG SIIG 2S1P Combo-Value User manual
SIIG
SIIG CyberPro PCI 2S User manual
SIIG
SIIG Low Profile PCI I/O User manual
SIIG
SIIG Cyber 2S1P 950 PCI User manual
SIIG
SIIG CyberPro PCI 4S User manual
SIIG
SIIG 1394 PCI Adapter User manual
SIIG
SIIG JU-P40112-S1 User manual
SIIG
SIIG NN2630 User manual
Popular PCI Card manuals by other brands
ERMA
ERMA SSI 1417 instruction manual
Moxa Technologies
Moxa Technologies CP-102E Quick installation guide
I-Bus
I-Bus IBC2602 user guide
Exsys
Exsys EX-60102 manual
Chelsio Communications
Chelsio Communications T5 Series Installation and user guide
Conrad Electronic
Conrad Electronic 97 46 71 operating instructions
ADLINK Technology
ADLINK Technology cPCI-3548 user manual
Digium
Digium TE200 Series user manual
Allo.com
Allo.com 2nd Gen E1/T1/J1 Quick installation guide
Western Digital
Western Digital FireWire PCI Adapter installation guide
Pyle
Pyle Gamelink PLINK1 user guide
Alpha Networks
Alpha Networks WMP-A13V user manual
