Siemens FTI2001-U1 User manual

FTI2001-U1

Fire terminal board

Installation

Mounting

MP-UL 3.1

A6V10315040_b_en_-- Smart Infrastructure

2020-08-26

Legal notice

Technical specifications and availability subject to change without notice.

Transmittal, reproduction, dissemination and/or editing of this document as well as

utilization of its contents and communication thereof to others without express

authorization are prohibited. Offenders will be held liable for payment of damages. All

rights created by patent grant or registration of a utility model or design patent are

reserved.

Issued by:

Siemens Industry, Inc.

Smart Infrastructure

8 Fernwood Road

Florham Park, NJ 07932

Tel. +1 973-593-2600

www.usa.siemens.com/fire

Edition: 2020-08-26

Document ID: A6V10315040_b_en_--

A5Q00050753

Legal notice

2 | 14 A6V10315040_b_en_--

A6V10315040_b_en_-- 3 | 14

Table of contents

1 Fire terminal board FTI2001 ........................................................................... 5

1.1 Description...................................................................................................... 5

1.2 Installation ...................................................................................................... 6

1.3 Views .............................................................................................................. 8

1.4 Pin assignments ............................................................................................. 9

1.4.1 Wiring overview ................................................................................ 9

1.4.2 X15 Supply output ............................................................................ 11

1.4.3 X17/X16 Supply input 1/2 ................................................................. 11

1.5 Indicators ........................................................................................................ 11

1.6 Adjustment elements ...................................................................................... 12

1.7 Technical data ................................................................................................ 12

2 FCC Statement............................................................................................... 13

4 | 14 A6V10315040_b_en_--

1 Fire terminal board FTI2001

1.1 Description

The fire terminal board FTI2001 is used in the network terminal. The fire terminal board

is supplied via a UL Fire Protective Signaling Listed, regulated power supply or via the

DC24VAUX output of the periphery board of a fire control panel or voice alarm fire

control panel. For uninterrupted operation, the external power source requires battery

backup.

Remote displays FT2014 or remote terminals FT2015 are supplied via the auxiliary DC

output.

The FTI2001 has the following features:

Fire terminal board FTI2001

Description 1

A6V10315040_b_en_-- 5 | 14

● Two supply inputs for external DC24V supply

● Two peripheral data bus connections to the PMI & mainboard and to the periphery

options

● Two supervised power limited outputs rated at DC24V, 1A each

1.2 Installation

The fire terminal board FTI2001 is for the network terminal.

X400

X15

X16

X17

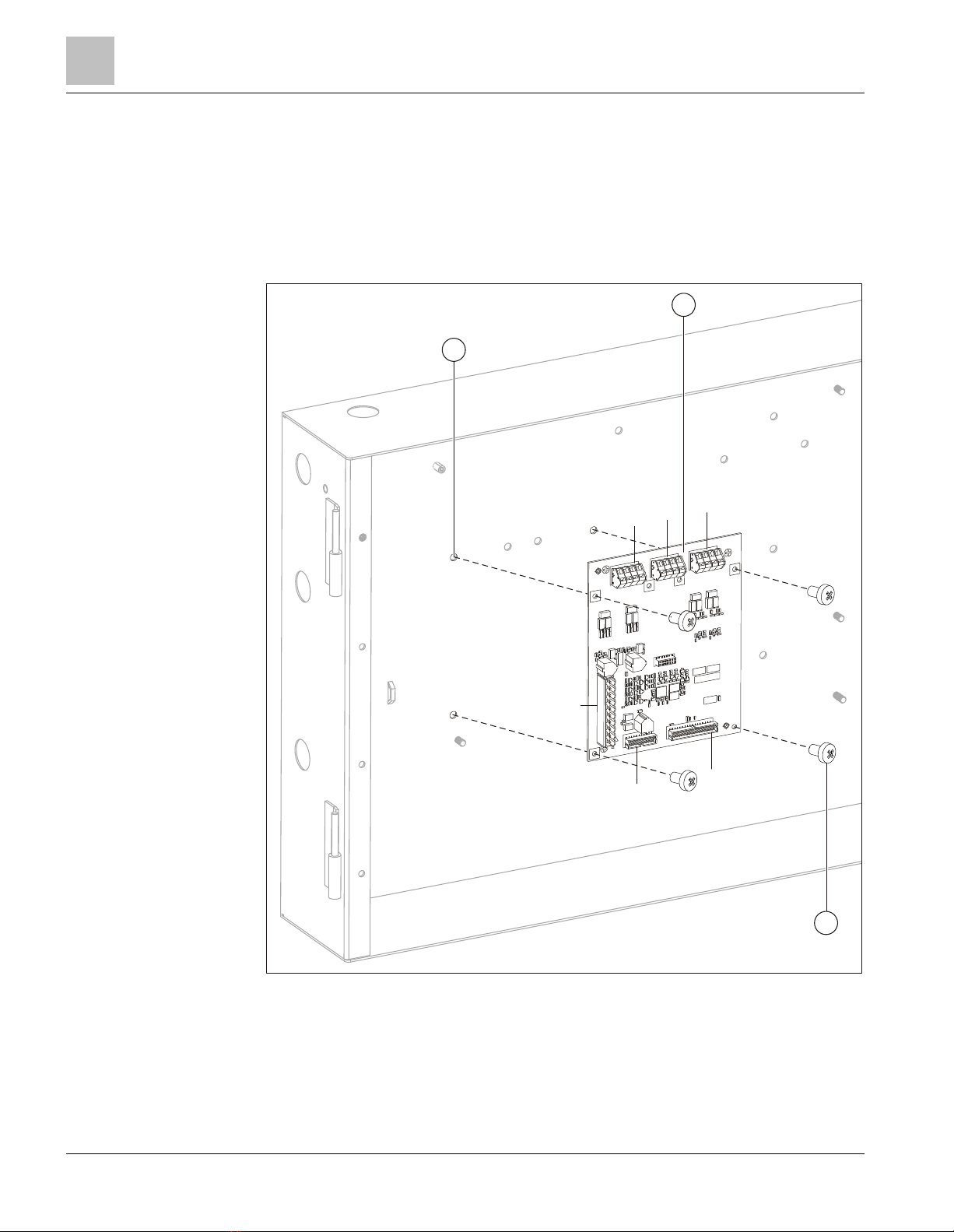

Figure 1: Installation of the fire terminal board FTI2001 into the network terminal

1 Holes for securing the fire terminal board on the back box

2 Fire terminal board FTI2001

3 4x fixing screw

X1 No connect

Fire terminal board FTI2001

Installation

6 | 14 A6V10315040_b_en_--

X3 Connector for operating unit via ribbon cable

X15 Connector for power supply output Vsys

X16 Connector for supply input Vsys 2

X17 Connector for supply input Vsys 1

X400 Connector for the periphery bus (for options)

1. Install the fire terminal board(2) on the back box using the four fixing screws(3).

2. Use the ribbon cable supplied with the operating unit to connect operating unit to

X3.

3. When connecting supplies, make sure no AC is applied. Connect power supply to

X5 Vsys input. If redundancy is needed, also connect power supply to X6 Vsys2

input.

4. Only apply AC after wiring is complete.

Fire terminal board FTI2001

Installation 1

A6V10315040_b_en_-- 7 | 14

1.3 Views

X400 X3

X17 X16 X15

X40

H206

H207

H205

H204 H203 H202 H201

F203 F204 F202 F201

Figure 2: Printed circuit board view of fire terminal board FTI2001

Fire terminal board FTI2001

Views

8 | 14 A6V10315040_b_en_--

Element Des. Function

Plugs and terminals X1 Not used

X3 Plug connection to the PMI & mainboard

X15 Plug-in terminal for supply outputs (output 1 and 2) DC24V

X16 Plug-in terminal for supply input 2 (Vsys2) DC24V

X17 Plug-in terminal for supply input 1 (Vsys1) DC24V

X40 Not used

X400 Plug connection for peripheral data bus

LEDs H201 Supervision of the fuse for supply output1

H202 Supervision of the fuse for supply output2

H203 Supervision of the voltage at the supply input2 (Vsys2)

H204 Supervision of the voltage at the supply input1 (Vsys1)

H205…

H207

Not used

Fuses F201 Fuse for supply output1

F202 Fuse for supply output2

F203 Fuse for supply input1 (Vsys1)

F204 Fuse for supply input2 (Vsys2)

Switch S1 Switch for supply supervision of X16 and X17

1.4 Pin assignments

1.4.1 Wiring overview

The supply must be routed redundantly if the network terminal is supplied in a fail-safe

manner via a fire control panel or a voice alarm fire control panel.

Features of the FTI2001 fire terminal board

● Two separate supply inputs for redundant supply

● Two supervised supply outputs for devices on the serial RS485 circuit

● Power limited acc. to NFPA70/NEC 760

● Ground faults detected at <1kΩ

● All wiring in accordance of article 760 of NEC or local building code

Fire terminal board FTI2001

Pin assignments 1

A6V10315040_b_en_-- 9 | 14

-+-+

-+- -

+ +

X400 X3

X17 X16 X15

Input 1 Input 2

Output 2

Output 1

PS 1

PS 2

Internal

Figure 3: Wiring for fire terminal board FTI2001

PS 1 Power supply input (necessary)

PS 2 Power supply input for redundant supply

Output 1/Output

Power supply outputs for peripherals

X3 Connector to X3 on PMI & mainboard

X400 Connection for peripheral data bus

Power supply connections allowed for PS1/PS2

● Periphery board, FCI2016/FCI2017: X1001, AUX 1, 2 (+); 3, 4 (-)

● PAD-3, AUX +/-

● PAD-4, AUX +/-

● UL Fire protective, signaling listed, regulated power supply

Power supply inputs, input1/input2

● All power-limited outputs are supervised in respect of input voltage

● Input1 is necessary for power supply

● Input2 is for redundant power supply

Power supply outputs, output1/output2

● Supervised and power-limited outputs

● DC24V output voltage

● Max. current of 1A per output

Fire terminal board FTI2001

Pin assignments

10 | 14 A6V10315040_b_en_--
