Siemens SIRIUS 3RV1936-3A User manual

SIRIUS 3RV1936-3A

3RV1946-3A

DE Motor-Fernantrieb ES Accionamiento motorizado a

distancia TR Motor uzaktan kumanda mekaniz-

ması

Remote motorized operating

mechanism IT

Azionamento a distanza del

motore РУ

Моторный привод для дистан-

ционного управления автома-

тическим выключателем

FR Commande à distance motorisée PT Operação de telecomando de

motor 中文电机远程控制

NEB469062010000/RS-AA/002 Last update: 14 July 2014

3ZX1012-0RV30-3AA1

Betriebsanleitung DE

Operating Instructions EN

Instructions de service FR

Instructivo ES

Istruzioni operative IT

Instruções de Serviço PT

İşletme Kılavuzu TR

Руководство по эксплуатации РУ

使用说明中文

IP20

+70 °C

-40 °C

+80 °C

-55 °C

IEC / EN 60947

Optionale Angaben

exemplarische Auswahl

Technical Assistance:

Telephone: +49 (911) 895-5900 (8°° - 17°° CET) SIEMENS AG

Fax: +49 (911) 895-5907 Technical Assistance

E-mail: technical-assistance@siemens.com Breslauer Str. 5

Internet: www.siemens.com/sirius/technical-assistance D-90766 Fürth

DE 3ZX1012-0RV20-5AB1 www.siemens.de/sirius/support

EN 3ZX1012-0RV20-5AC1 www.siemens.com/sirius/support

FR 3ZX1012-0RV20-5AD1 www.siemens.com/sirius/support

ES 3ZX1012-0RV20-5AE1 www.siemens.com/sirius/support

3RV19.6-3A

23ZX1012-0RV30-3AA1

DE GEFAHR Gefährliche Spannung. Lebensgefahr oder schwere Verletzungsgefahr.

Vor Beginn der Arbeiten Anlage und Gerät spannungsfrei schalten.

EN DANGER Hazardous voltage. Will cause death or serious injury.

Turn off and lock out all power supplying this device before working on this device.

FR DANGER Tension dangereuse. Danger de mort ou risque de blessures graves.

Mettre hors tension avant d’intervenir sur l’appareil.

ES PELIGRO Tensión peligrosa. Puede causar la muerte o lesiones graves.

Desconectar la alimentación eléctrica antes de trabajar en el equipo.

IT PERICOLO Tensione pericolosa. Può provocare morte o lesioni gravi.

Scollegare l’alimentazione prima di eseguire interventi sull’apparecchiatura.

PT PERIGO Tensão perigosa. Perigo de morte ou ferimentos graves.

Desligue a alimentação elétrica e proteja contra o religamento, antes de iniciar o trabalho no equipamento.

TR TEHLİKE Tehlikeli gerilim. Ölüm tehlikesi veya ağır yaralanma tehlikesi.

Çalışmalara başlamadan önce, sistemin ve cihazın gerilim beslemesini kapatınız.

РУ ОПАСНОСТЬ Опасное напряжение. Опасность для жизни или возможность тяжелых травм.

Перед началом работ отключить подачу питания кустановке икустройству.

中文危险危险电压。可能导致生命危险或重伤危险。

操作设备时必须确保切断电源。

3ZX1012-0RV30-3AA1 3

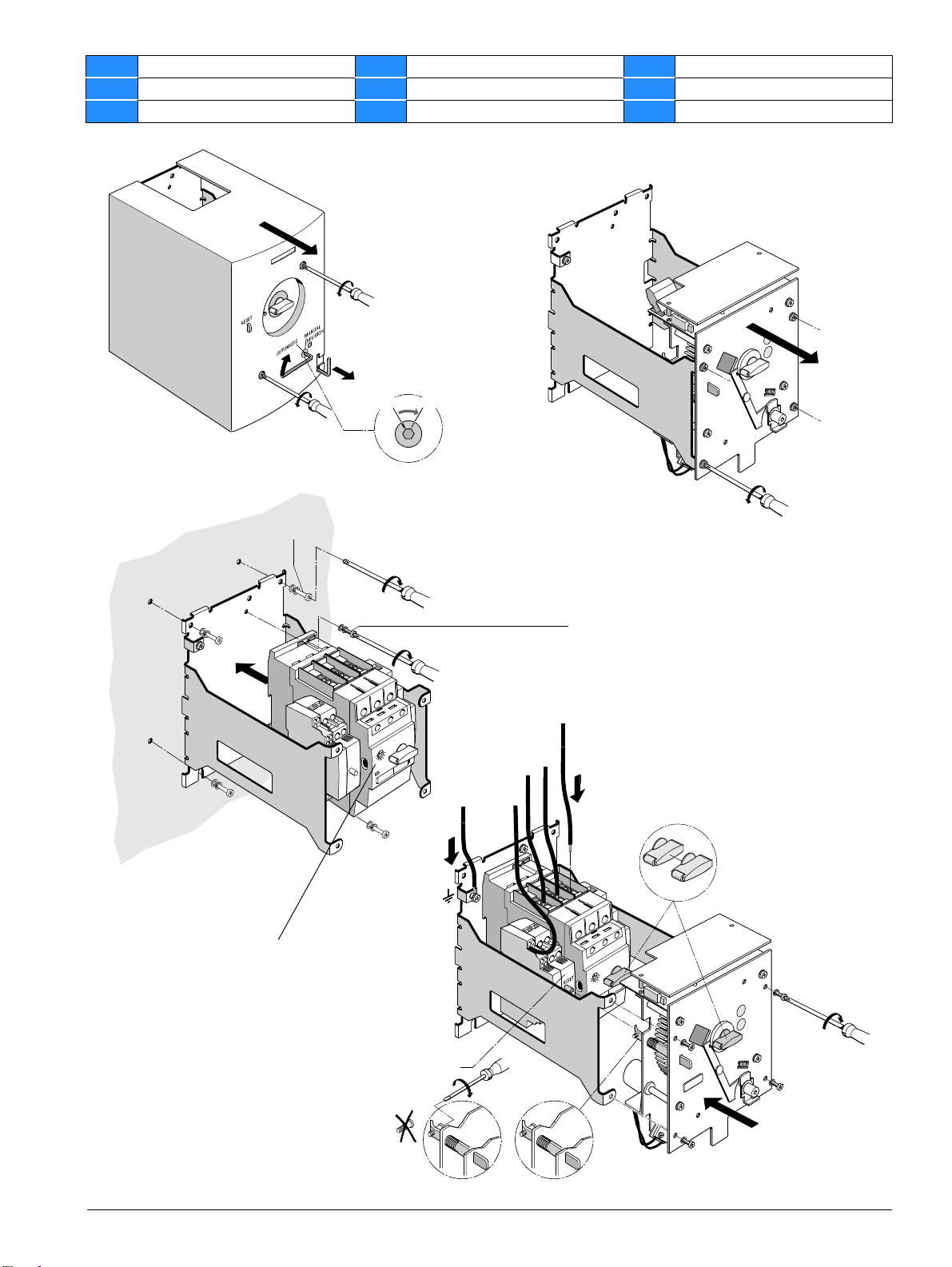

DE Montage ES Montaje TR Montaj

EN Assembly IT Montaggio РУ Монтаж

FR Montage PT Montagem 中文安装

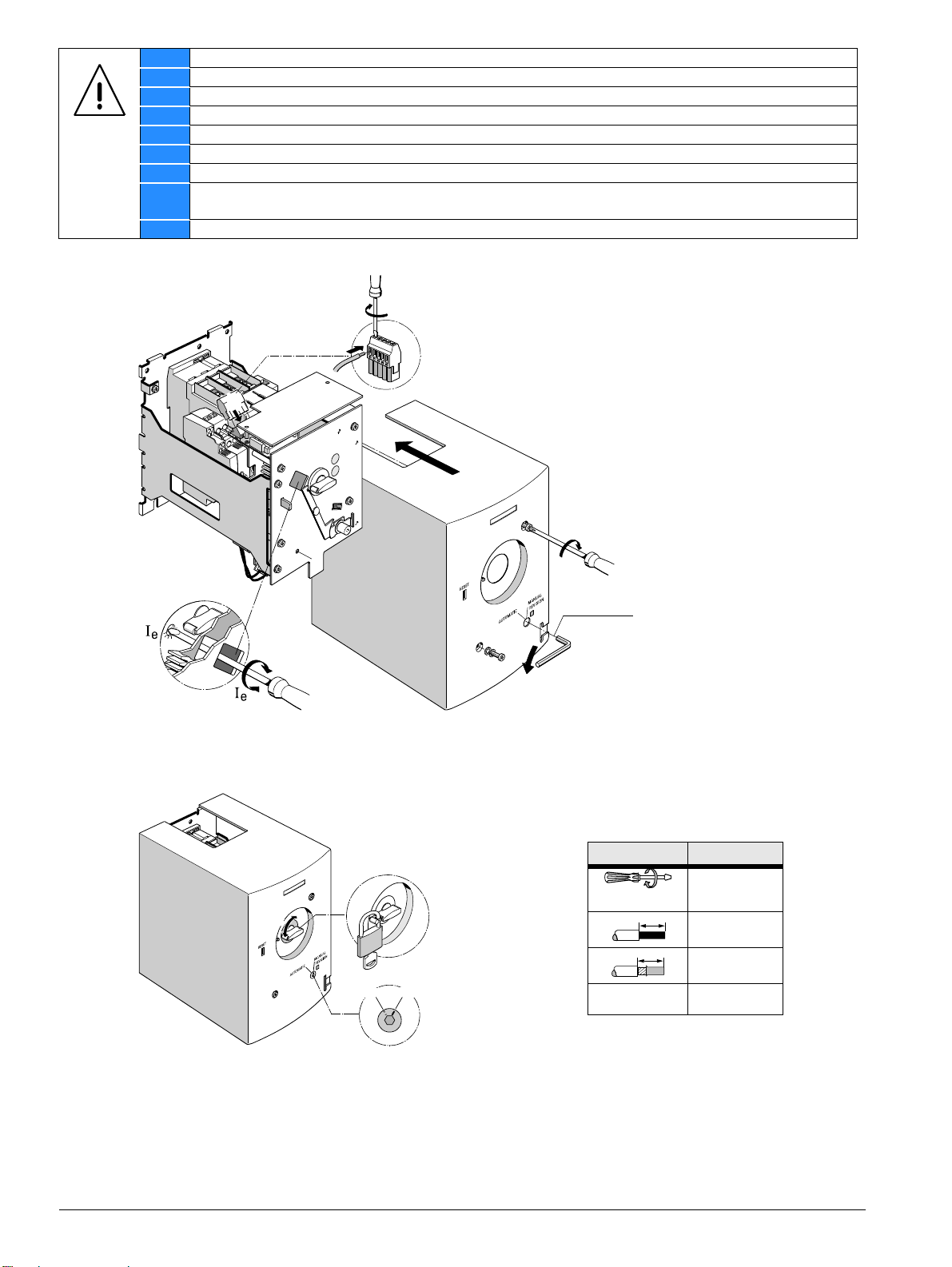

MANUAL

AUTOMATIC 2

RT-00544

5(4 x)

RT-00545

S2: M4/S3: M5

M5 (4 x)

RT-00546

(2 Stck/pc/pz/Adet/шт./ 个:l = 14 mm)

3RV1921-1M:

Manual-

RESET 14

(4 x)

Automatic-

RESET

RT-00547

3RV1.3

3RV1.4

43ZX1012-0RV30-3AA1

DE Bei Verwendung als NOT-AUS, Einschalten von Hand nicht zulässig!

EN If used as an EMERGENCY STOP switch, manual closing not permissible!

FR En cas d’utilisation en tant qu’ARRÊT D’URGENCE, la fermeture manuelle n’est pas permise !

ES ¡Si se utiliza como interruptor de PARADA DE EMERGENCIA no se permite un cierre manual!

IT Nell’impiego come arresto di emergenza non è ammessa l’inserzione manuale!

PT Não é permitida a ativação manual se for utilizado desligamento de emergência!

TR ACİL KAPAMA olarak kullanılmasıhalinde, elle açılamaz!

РУ Вслучае использования прибора вкачестве устройства аварийного останова включение вручную

запрещено!

中文在作为紧急停车使用时，不允许用手进行接通操作！

RT-00548

21 22

AUTOMATIC

(22)

MANUAL

AUTOMATIC

RT-00554

3... 3,6 mm / PZ2

0,5 Nm

7 to 10.3 lb·in

0,5 ... 2,5 mm²

AWG 28 to 14

Technische Änderungen vorbehalten. Zum späteren Gebrauch aufbewahren.

Subject to change without prior notice. Store for use at a later date.

3ZX1012-0RV30-3AA1

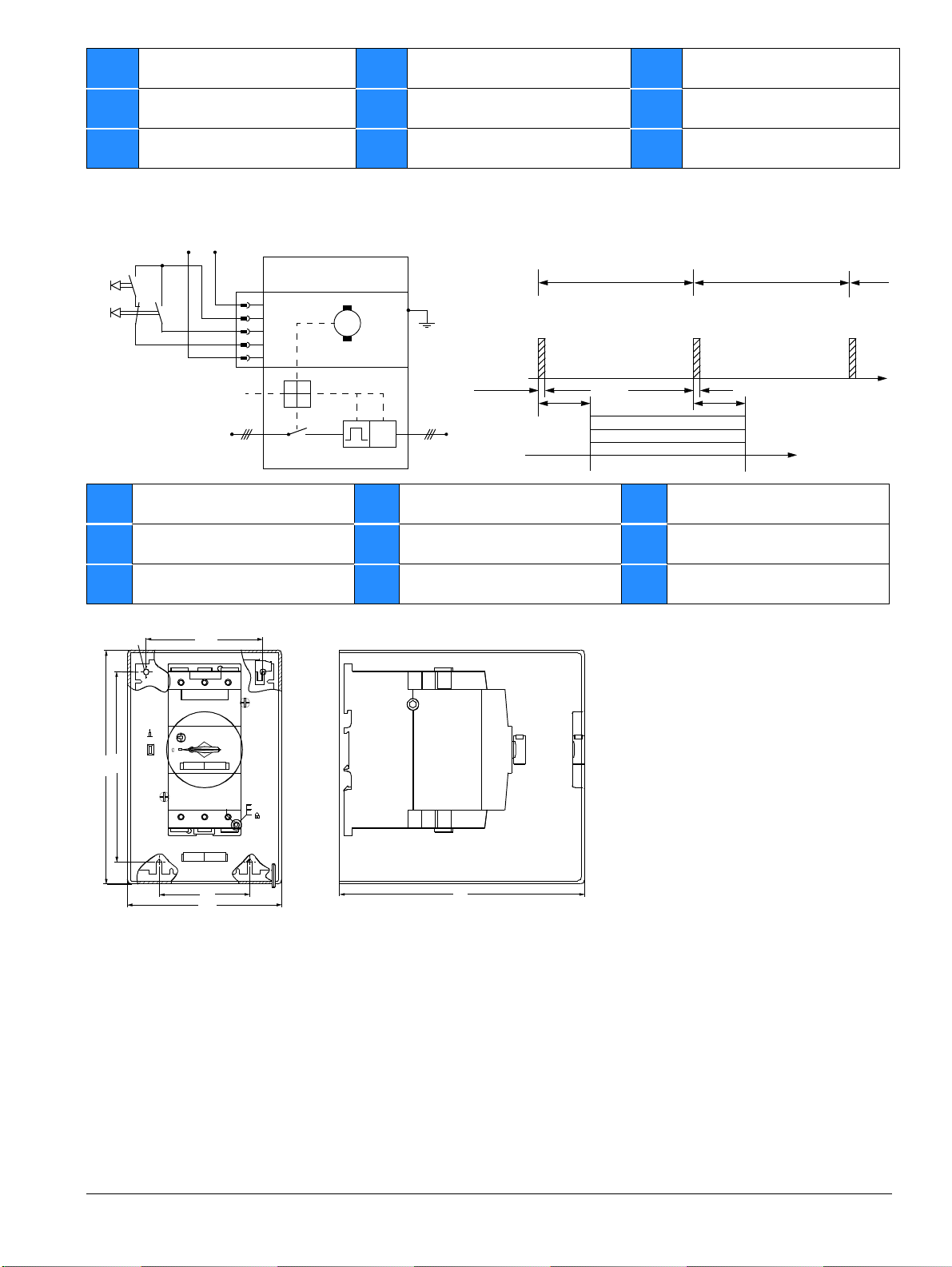

DE Schalthäufigkeit: max. 25 1/h ES Frecuencia de maniobra:

máx. 25 1/h TR Operasyon frekansı: maks. 25 1/h

EN Switching frequency: max. 25 1/h IT Frequenza di commutazione:

max. 25 1/h РУ Частота коммутации: не более 25

вчас

FR Fréquence de commutation :

max. 25 1/h PT Frequência de manobra: máx. 25 1/h 中文开关操作转换频率 :

最大 25 1/h

DE Maßzeichnungen

(Angaben in mm) ES Dibujos dimensionales

(medidas en mm) TR Ölçü resimleri

(Bilgiler mm olarak)

EN Dimension drawings

(all dimensions in mm) IT Disegni quotati

(indicazioni in mm) РУ Размерные эскизы

(Данные вмм)

FR Encombrements

(indications en mm) PT Desenhos cotados

(dimensões em mm) 中文尺寸图

( 单位：mm)

3RV19.6

(+)

(-)

AC 50 Hz 230 V

DC 24 V

OFFOFF

L3 - T3

L2 - T2

L1 - T1

t1 s t 1 s

t (s)

t 100 ms

t 2,5 s t 2,5 s

(max. 5x in Serie;

max. 5x successively;

max. 5x en série ;

máx. 5x en serie;

max. 5x in serie;

máx. 5x em série;

ard arda maks. 5x;

последовательное

соединение: не более 5;

最大 5x 相连续 )

a) 3RV1936-3A..: 211 mm

3RV1946-3A..: 236 mm

NSB00044

RESET I>

AUTOMATIC REVISION

MANUAL

SI EMENS

5

182

224

148

112
