Siemens FDB181 Series User manual

Building Technologies

Fire safety and security products

FDB181 Detector Base

Product Manual

Overview

The FDB181detector bases is a universal base. It’s fixed on fire detection site and used

for installations of FD181 series detectors：

−FDO181 smoke detector

−FDT181 heat detector

Characteristics

– Universal bases，applicable to both surface install and conceal install

– Large opening in the detector base for easy cable insertion

– Adopt environmental friendly material

Installation

The installation of a base should strictly follow the engineering design drawings. The

bases should be evenly distributed.

Procedure of installation：

1．Insert the cables through the base and connect them to the terminals.

2．Fix the base to the ceiling with screws.

Note:

The detector should be installed after the construction has been finished.

In order to ensure the reliability of the connection between the base and the detector,

please do not use U-type terminals.

Twisted-pairs with the wiring requirement of 1.0~1.5mm2 are recommended.

Beijing Siemens Cerberus Electronics Limited

No.1,Fengzhidonglu, Xibeiwang, HaiDian District,

Beijing, 100094, China

Tel: +10 6476 8806

Fax: +10 6476 8899

Doc No.

A6V10326265_d_en_--

Manual FD18

Edition

07.2012

100858266

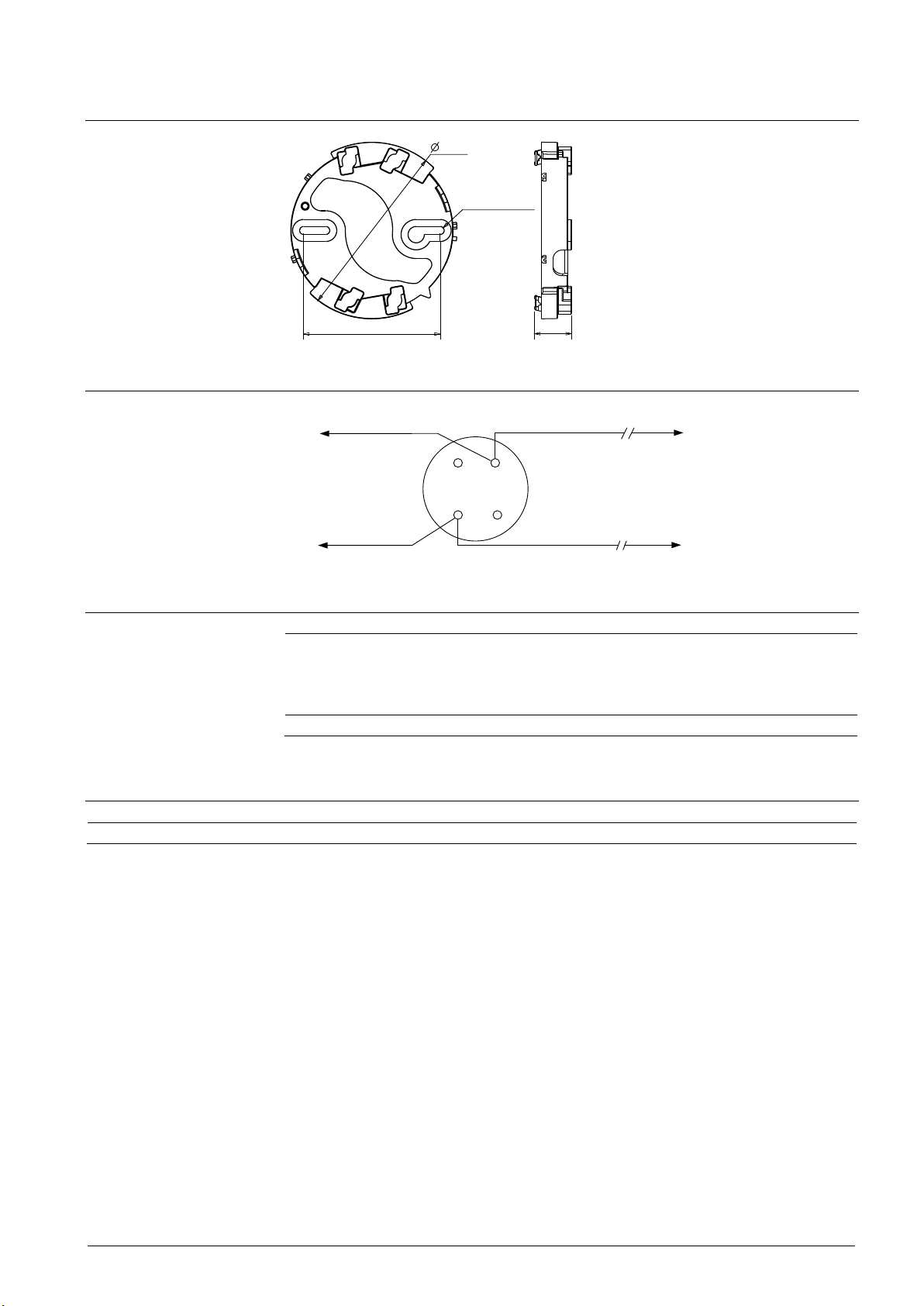

Dimensions

In：mm

95.6

R2.15 0.50±

74.0 0.1±20.1

Electric connection

51a

6 1b

To next base

Terminal resistor

is not necessary

To controller

FDB181 Base

Technical data

Connecting terminals

1.0 ... 1.5 mm

Operating temperature

Storage temperature

Humidity

Protection category EGB4208-93

According to data of detectors

Color

White

，

RAL 9010

Details for ordering

Type

Material No.

Part No.

Designation

Weight

FDB181

S54320-F1-A1

100856213

Detector base

0.027 kg

This manual suits for next models
