Safety and warning

information

Before you switch ON the

appliance

Please read the operating and

installation instructions carefully!

They contain important

information on how to install,

use and maintain the appliance.

The manufacturer is not liable if

you fail to comply with the

instructions and warnings.

Retain all documents for

subsequent use or for the next

owner.

Technical safety

Fire hazard

The tubes of the

refrigeration circuit convey a

small quantity of an

environmentally friendly but

flammable refrigerant (R600a). It

does not damage the ozone

layer and does not increase the

greenhouse effect. If refrigerant

escapes, it may injure your eyes

or ignite.

If damage has occurred

■Keep naked flames and/or

ignition sources away from the

appliance,

■thoroughly ventilate the room

for several minutes,

■switch off the appliance and

pull out the mains plug,

■inform customer service.

The more refrigerant an

appliance contains, the larger

the room must be in which the

appliance is situated. Leaking

refrigerant can form a

flammable gas-air mixture in

rooms which are too small.

The room must be at least 1 m³

per 8 g of refrigerant. The

amount of refrigerant in your

appliance is indicated on the

rating plate inside the appliance.

When installing the appliance,

ensure that the mains cable is

not trapped or damaged.

If the power cord of this

appliance is damaged, it must

be replaced by the

manufacturer, Customer Service

or a similarly qualified person.

Improper installations and

repairs may put the user at

considerable risk.

Repairs may be performed by

the manufacturer, customer

service or a similarly qualified

person only.

Only original parts supplied by

the manufacturer may be used.

The manufacturer guarantees

that only these parts satisfy the

safety requirements.

Do not use multiple sockets,

extension leads or adapters.

Fire hazard

Portable multiple outlets or

power supplies may overheat,

causing a fire.

Never leave portable multiple

outlets or portable power

supplies behind the appliance.

Important information when

using the appliance

■Never use electrical

appliances inside the

appliance (e.g. heaters,

electric ice makers, etc.). Risk

of explosion!

■Never defrost or clean the

appliance with a steam

cleaner! The steam may

penetrate electrical parts and

cause a short-circuit. Risk of

electric shock!

■Do not use additional means

to accelerate the defrosting

process other than those

recommended by the

manufacturer. Risk of

explosion!

■Do not use pointed or sharp-

edged implements to remove

frost or layers of ice. You

might damage the refrigerant

tubes.Leaking refrigerant may

cause eye injuries or ignite.

■Do not store products which

contain flammable propellant

(e.g. spray cans) or explosive

substances in the appliance.

Risk of explosion!

■Do not stand on or lean

heavily against the base of the

appliance, drawers, doors,

etc.

■For defrosting and cleaning,

pull out the mains plug or

switch off the fuse. Do not pull

out the mains plug by tugging

on the power cord.

■Store high-percentage alcohol

tightly sealed and in an

upright position.

■Keep plastic parts and the

door seal free of oil and

grease. Otherwise, plastic

parts and the door seal will

become porous.

■Never cover or block the

ventilation openings of the

appliance.

■Avoiding placing children

and vulnerable people at

risk:

At risk here are children,

people who have limited

physical, mental or sensory

abilities, as well as people

who have inadequate

knowledge concerning safe

operation of the appliance.

Check that children and

vulnerable people have

understood the hazards.

A person responsible for

safety must supervise or

instruct children and

vulnerable people who are

using the appliance.

Only children aged 8 years

and above may use the

appliance.

Supervise children while the

appliance is being cleaned or

maintained.

Never allow children to play

with the appliance.

■Do not store bottled or

canned liquids (especially

carbonated drinks) in the

freezer compartment.Bottles

and cans may burst!

■Never put frozen food straight

from the freezer compartment

in your mouth.

Risk of low-temperature burns!

■Avoid prolonged touching of

frozen food, ice or the

evaporator pipes, etc.

Risk of low-temperature burns!

Children in the household

■Keep children away from

packaging and its parts.

Danger of suffocation from

folding cartons and plastic

film!

■Do not allow children to play

with the appliance!

■If the appliance features a

lock:

keep the key out of the reach

of children!

General regulations

The appliance is suitable

■for refrigerating and freezing

food,

■for making ice.

This appliance is intended for

use in the home and the home

environment.

The refrigeration circuit has

been checked for leaks.

This appliance complies with the

relevant safety regulations for

electrical appliances and is

fitted with noise suppression.

This appliance is intended for

use up to a maximum height of

2000 metres above sea level.

Information concerning

disposal

*Disposal of packaging

The packaging protects your appliance

from damage during transit. All utilised

materials are environmentally safe and

recyclable. Please help us by disposing

of the packaging in an environmentally

friendly manner.

Please ask your dealer or inquire at your

local authority about current means of

disposal.

*Disposal of your old

appliance

Old appliances are not worthless

rubbish! Valuable raw materials can be

reclaimed by recycling old appliances.

m Warning

Redundant appliances

1. Pull out the mains plug.

2. Cut off the power cord and discard

with the mains plug.

3. Do not take out the trays

and receptacles: children are

therefore prevented from climbing in!

4. Do not allow children to play with

the appliance once it has spent its

useful life. Danger of suffocation!

Refrigerators contain refrigerant

and gases in the insulation. Refrigerant

and gases must be disposed

of professionally. Ensure that tubing

of the refrigerant circuit is not damaged

prior to proper disposal.

Scope of delivery

After unpacking all parts, check for any

damage in transit.

If you have any complaints, please

contact the dealer from whom you

purchased the appliance or our

customer service.

The delivery consists of the following

parts:

■Free-standing appliance

■Interior fittings (depending on model)

■Bag containing installation materials

■Operating instructions

■Installation manual

■Customer service booklet

■Warranty enclosure

■Information on the energy

consumption and noises

This appliance is labelled in

accordance with European

Directive 2012/19/EU concerning

used electrical and electronic

appliances (waste electrical and

electronic equipment - WEEE).

The guideline determines the

framework for the return and

recycling of used appliances as

applicable throughout the EU.



Installation location

A dry, well ventilated room is suitable as

an installation location. The installation

location should not be exposed to direct

sunlight and not placed near a heat

source, e.g. a cooker, radiator, etc. If

installation next to a heat source is

unavoidable, use a suitable insulating

plate or observe the following minimum

distances from the heat source:

■3 cm to electric or gas cookers.

■30 cm to an oil or coal-fired cooker.

The floor of the installation location must

not give way; if required, reinforce floor. If

the floor is uneven, compensate with

supports.

Distance from wall

When installing the appliance, ensure

that the door can be opened by 90°.

Observe ambient

temperature

and ventilation

Ambient temperature

The appliance is designed for a specific

climate class. Depending on the climate

class, the appliance can be operated at

the following temperatures.

The climate class can be found on

the rating plate. Fig. 0

Note

The appliance is fully functional within

the room temperature limits

of the indicated climatic class. If

an appliance of climatic class SN

is operated at colder room temperatures,

the appliance will not be damaged up to

a temperature of +5 °C.

Ventilation

Fig. "

The air on the rear panel and on the side

panels of the appliance heats up.

Conduction of the heated air must

not be obstructed. Otherwise,

the refrigerating unit must work harder.

This increases power consumption.

Therefore: Never cover or block

the ventilation openings!

Climate class Permitted ambient

temperature

SN +10 °C to 32 °C

N+16 °C to 32 °C

ST +16 °C to 38 °C

T+16 °C to 43 °C

Connecting

the appliance

After installing the appliance, wait at least

1 hour until the appliance is switched on.

During transportation the oil in

the compressor may have flowed into

the refrigeration system.

Before switching on the appliance for

the first time, clean the interior of

the appliance (see chapter “Cleaning

the appliance”).

Electrical connection

The socket must be near the appliance

and also freely accessible following

installation of the appliance.

m Warning

Risk of electric shock!

If the length of the mains cable is

inadequate, never use multiple sockets

or extension leads. Instead, please

contact Customer Service for

alternatives.

The appliance complies with protection

class I. Connect the appliance to 220–

240 V/50 Hz alternating current via a

correctly installed socket with protective

conductor. The socket must be protected

by a 10 A to 16 A fuse.

For appliances operated in non-

European countries, check whether the

indicated voltage and current type match

the values of your electricity supply. This

information can be found on the rating

plate, Fig. 0.

m Warning

Never connect the appliance

to electronic energy saver plugs.

Our appliances can be used with mains

and sine-controlled inverters. Mains-

controlled inverters are used

for photovoltaic systems which

are connected directly to the national

grid. Sine-controlled inverters must be

used for isolated applications (e.g. on

ships or in mountain lodges) which are

not connected directly to the national

grid.

Getting to know your

appliance

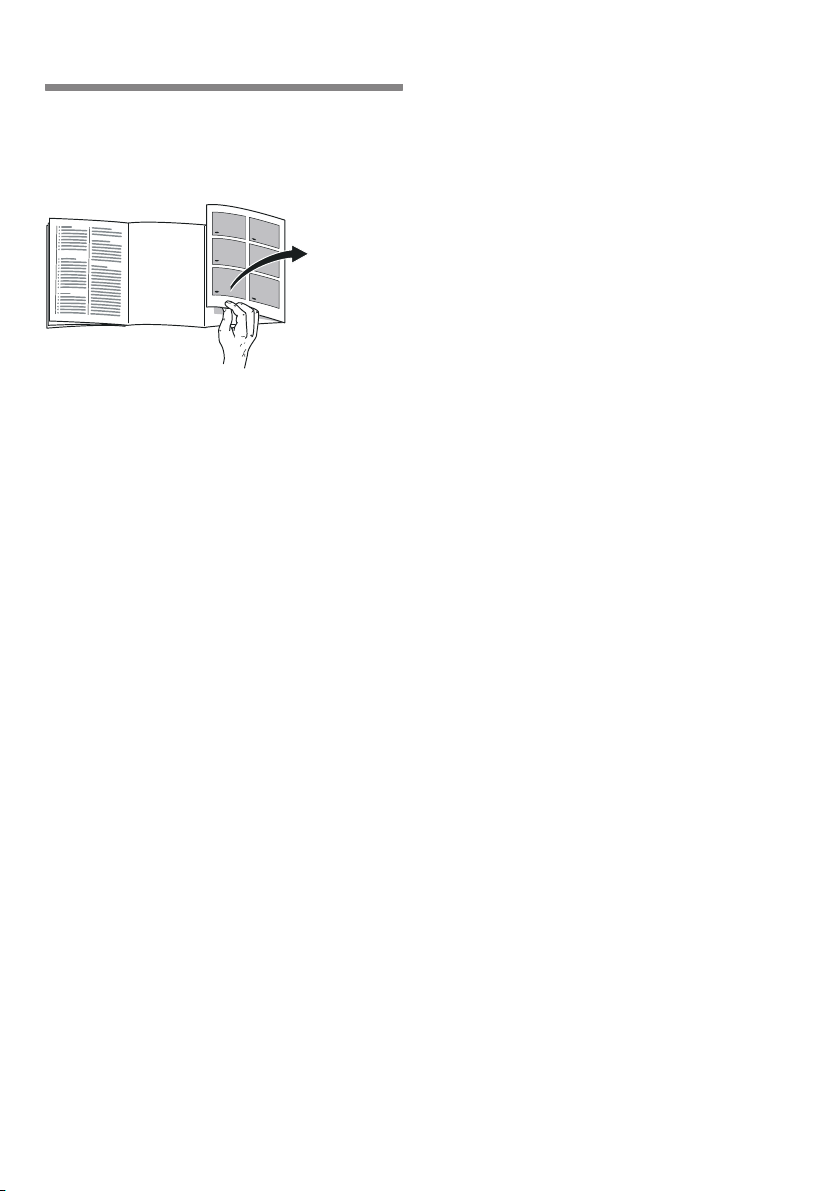

Please fold out the illustrated last page.

These operating instructions refer

to several models.

The features of the models may vary.

The diagrams may differ.

Fig. !

* Not all models.

Controls

Fig. $

A Refrigerator compartment

B Freezer compartment

1–18 Controls

19* Butter and cheese compartment

20* Shelf for small bottles

21 Shelf for large bottles

22 Light (LED)

23* Bottle shelf

24* Breakfast set

25 Cold storage compartment

26 Fresh-mist system

27 Vegetable container with humidity

control

28* Frozen food container

1Temperature display refrigerator

compartment

The numbers correspond to the

set refrigerator compartment

temperatures in °C.

2Display super cooling

This lights up if super cooling is in

operation.

3Temperature display freezer

compartment

The numbers correspond

to the set freezer compartment

temperatures in °C.

4Display super freezing

This lights up if super freezing is

in operation.

5Display vacation

This lights up when the vacation

mode is switched on.

6Display fresh

This lights up when the freshness

mode is switched on.

7Eco mode indicator

This lights up when the eco mode

is switched on.

8Button mode

Selecting the special functions.

9Super button

Used to switch on the functions

super cooling (fridge

compartment) and super freezing

(freezer compartment).

10 Setting buttons +/-

The buttons are used to set the

temperatures of the refrigerator

and freezer compartment.

11 lock button

Used to switch on the lock

function.

Controls for fresh-mist system

Fig. %

12 °C button to select the room and

alarm off

Used to select a room. This is

necessary to change its

temperature or to switch on

certain special functions.

Used to switch off the alarm.

13 Button “lock” function

If this function is switched on, no

settings are possible via

the controls.

14 Display alarm off

This lights up if the appliance

becomes too warm.

15 Display alarm

This lights up if the freezer

compartment is too warm or if the

freezer compartment door is open

too long.

16 Display freeze

This lights up if the freezer

compartment is selected.

17 Alarm display

This lights up if the refrigerator

compartment door is open too

long.

18 Display cool

This lights up if the fridge

compartment is selected.

1Display automatic mode

Lights up if automatic mode is

selected.

2Display manual mode

Lights up if manual mode is

selected.

3Clean water tank indicator

Lights up 7 days after the tank

was last cleaned.

Mist generation stops.

4Fill water tank indicator

Lights up / flashes when there is

too little or no water in the water

tank or the water tank is not

inserted.

Mist generation stops.

5Fresh-mist function setting

button

Used to switch the fresh-mist

function on and off and to select

fresh-mist mode.

Table of contents

Other Siemens Refrigerator manuals

Siemens

Siemens 4 Series User manual

Siemens

Siemens KI..N series User manual

Siemens

Siemens S18ID Series Installation guide

Siemens

Siemens iQ300 KA90N Series Operation manual

Siemens

Siemens KA D Series User manual

Siemens

Siemens CI24RP Series User manual

Siemens

Siemens GT-M Series User manual

Siemens

Siemens S20CS Series Installation guide

Siemens

Siemens KI41R Series Specification sheet

Siemens

Siemens KF96NVPEAL User manual

Siemens

Siemens KI24LNSF3 User manual

Siemens

Siemens KAN series Setup guide

Siemens

Siemens KU..R.. series User manual

Siemens

Siemens KG39NVW316 User manual

Siemens

Siemens iQ500 KI51R Series User manual

Siemens

Siemens GI..N.. User manual

Siemens

Siemens KA58NA75 Setup guide

Siemens

Siemens iQ300 KS V Series User manual

Siemens

Siemens KI 38VX20 User manual

Siemens

Siemens KG 39NVI30 User manual

Siemens

Siemens KG series N User manual

Siemens

Siemens KI86V Series User manual

Siemens

Siemens iQ700 KF86F Series Setup guide

Siemens

Siemens KT16RP22GB User manual

Popular Refrigerator manuals by other brands

Bonnet Neve

Bonnet Neve SKYVIEW PLUS User instructions

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Instruction book

Sharp

Sharp SJ-BA31IEXW2-EU user manual

CORBERO

CORBERO CC2300MCW Instruction booklet

KitchenAid

KitchenAid 2205264 Use and care guide

Stengel

Stengel KU 1101 A++ user manual

NEFF

NEFF KI181 Series user manual

Hoshizaki

Hoshizaki Reach-In instruction manual

Amana

Amana ASD2524VES00 User instructions

BOMANN

BOMANN KGC 213 instruction manual

Danby

Danby DAR044A1SLDD Owner's use and care guide

Samsung

Samsung RF323TE user manual

Beko

Beko CSA31022 Instructions for use

IKEA

IKEA FROSTIG C 185 E manual

Electrolux

Electrolux ER 6821 D Instruction book

True

True TS-28 Specifications

Frigidaire

Frigidaire FSC23R5DW9 installation guide

Beko

Beko LSP4579W Instructions for use
