1 About this document

Overview

The FDM275-O radio manual call point is intended for use in areas of a house

where a fire can be detected by people who can manually trigger an alarm.

The radio manual call point FDM275-O consists of a back box, a switching unit,

and a battery pack.

Goal and purpose

This document contains all the information required to install the radio manual call

point FDM275-O.

Prerequisites:

● The installation location of the radio manual call point has been established.

● Mounting should be performed by a specialist in compliance with safety

regulations.

You will find more information on the FDM275-O radio manual call point in

document A6V10425652 'Technical Manual Radio manual call point FDM275-O'.

Document ID Title

A6V10431682 Data sheet Radio fire detection system

OEM

A6V10425603 Planning Radio fire detection system

OEM

A6V10425652 Technical Manual Radio manual call

point FDM275-O

Intended use

The radio manual call pointFDM275-O may only be used in a fire detection system

with a radio gateway approved by the manufacturer.

The radio manual call point FDM275-O is compatible with the radio module

FDRF272-O.

About this document 1

A6V10425655_en--_g 5 | 16

2 Mounting and installation

2.1 Mounting radio manual call point FDM275-O

Secure the radio manual call point FDM275-O at a height of 0.9…1.6m on an

even surface. Observe the country-specific regulations for the exact mounting

height!

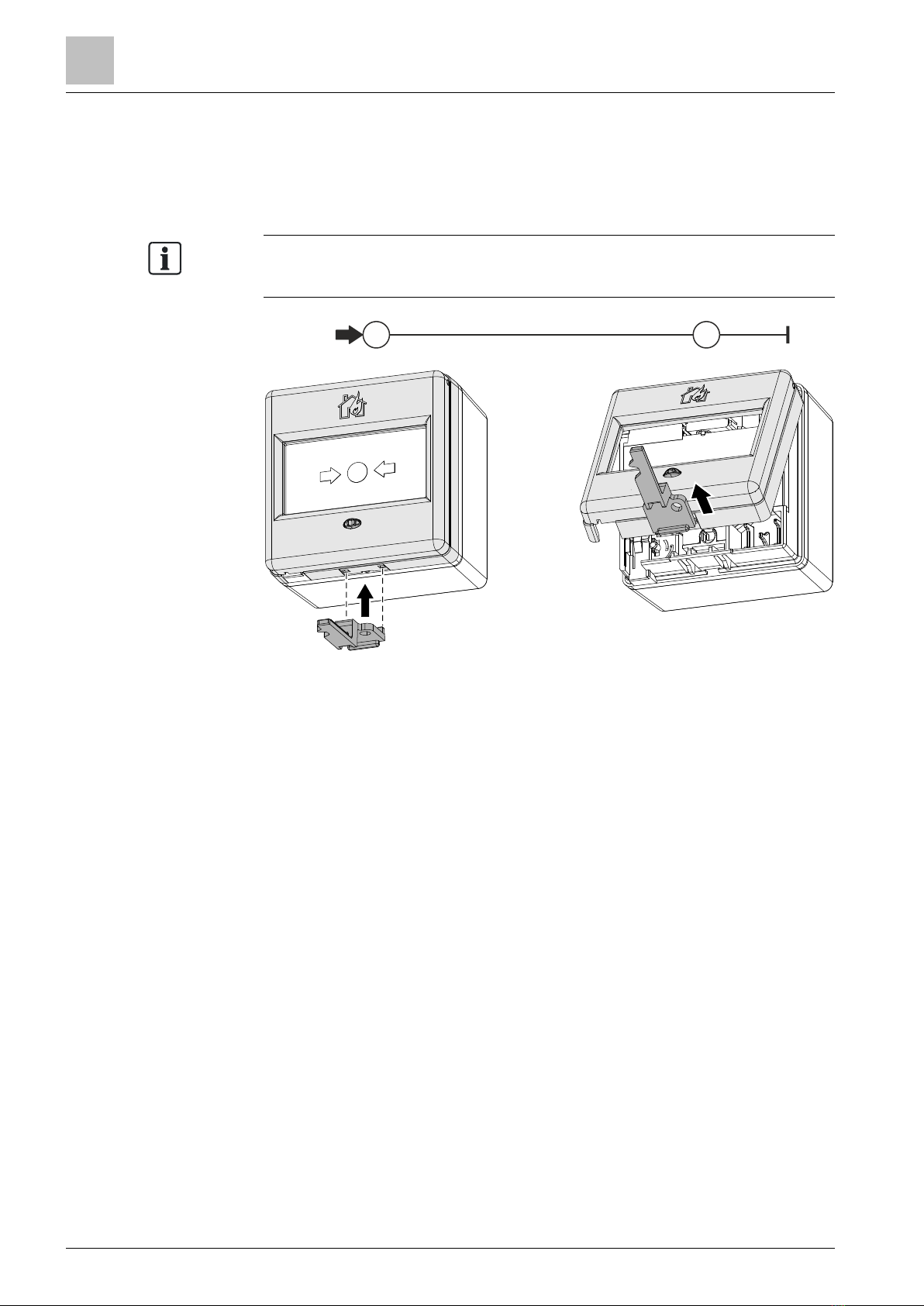

Figure 1: Opening the housing with the key FDMK295

wThe position of radio manual call point FDM275-O has been established.

wYou have a tool and two screws (max. ∅4mm) for securing purposes.

1. Remove the housing cover with the key.

– Insert the key into the opening at the bottom of radio manual call point

FDM275-O.

– Use the key to pull the housing cover forward and off the back box.

2. NOTICE!Keep the key in a safe place.

3. Remove the switching unit from the back box.

4. For securing the back box, select two screw positions that are spaced far apart

from one another. See also chapter 'Master gage for recesses [➙15]'.

5. Screw the back box tightly in place.

aThe manual call point is now prepared for installation.

Mounting and installation

Mounting radio manual call point FDM275-O

6 | 16 A6V10425655_en--_g

2.2 Installation

180°

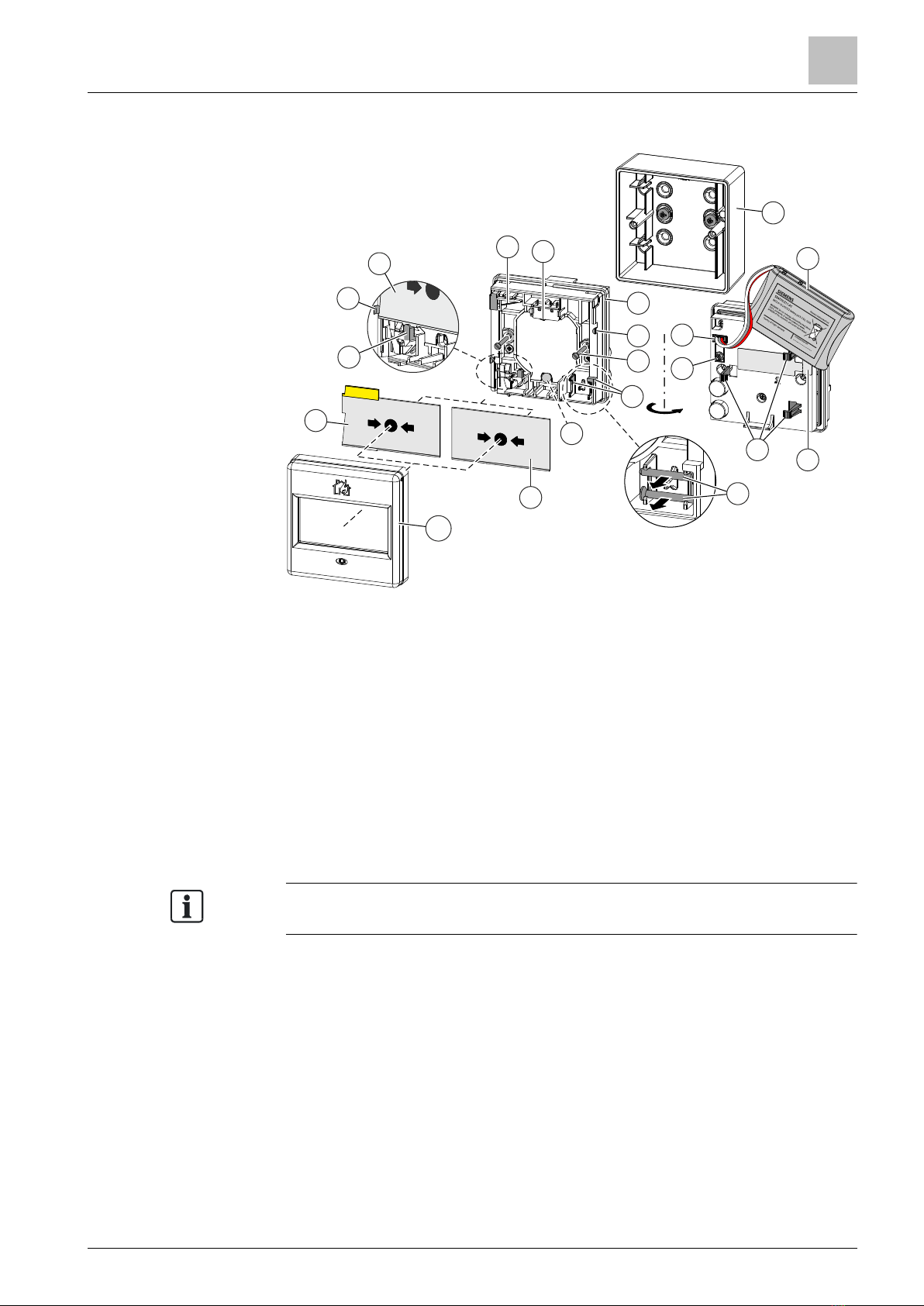

1 Back box 9 Screws for switching unit

2 Battery pack BAT3.6-10110 Internal alarm indicator

3 Type plate with adhesive label 11 Plastic/glass insert

4 Battery holders 12 Housing cover

5 Battery connector 13 Retainer

6 Housing switching contact 14 Spring

7 Switching unit 15 Triggering device

8 Stop

1not included in the scope of delivery

The flashing behavior of the internal alarm indicator is described in document

A6V10425652 in the 'Internal alarm indicator' chapter.

wThe back box is fastened.

wYou have a new, undamaged battery pack to hand.

wYou have key FDMK295 and a Phillips screwdriver to hand.

wThe radio gateway has been activated and switched to maintenance mode.

1. Remove the adhesive label with the serial number from the type plate (3) on

the switching unit. Use the adhesive label to mark the position of the radio

manual call point FDM275-O on the device location plan.

2. Label the battery pack(2) with the current date.

3. If the switching unit(7) needs to be switched to 'factory setting'

Mounting and installation

Installation 2

A6V10425655_en--_g 7 | 16

– Close the battery connector(5) and press the button in the'new' opening

with a slim pen or pencil for approx. five seconds.

aThe internal alarm indicator flashes red.

aThe radio manual call point FDM275-O is set to the factory setting.

4. Insert the battery pack into the switching unit so that it snaps into place in the

three battery holders(4).

5. Lay the connection cable according to the diagram and connect the battery

connector(5).

aThe internal alarm indicator (10) lights up red.

aAfter a further 10seconds, the radio manual call point FDM275-O signals

that it is not installed in the housing, and the internal alarm indicator flashes

every two seconds:

– If it flashes red, this indicates the factory setting.

– If it flashes green, this indicates that the radio manual call point FDM275-O

has already been logged on to a radio gateway.

aIf this does not happen, this means the battery pack is defective and must

not be used.

6. Place the switching unit with the battery pack into the back box(1).

7. Remove the plastic/glass insert(11). Details on replacing the glass can also be

found in the 'Replacing the plastic insert with a glass insert [➙10]' chapter.

8. Screw the switching unit tightly to the back box(1) using the two screws

supplied with the switching unit(9).

9. Place the glass/plastic insert(11) between the stops(8) and slide the plastic/

glass insert against the triggering device(15), as shown in the diagram.

aThis pre-stresses the spring(14).

aThe internal alarm indicator flashes green and the radio manual call point

FDM275-O is logged on to the radio gateway.

aIf the process of logging on to the radio gateway is successful, the internal

alarm indicator stops flashing.

10. If the logon process has not been successful after a long period of time,

remove the switching unit from the back box and then re-insert it.

aThe search for the radio network starts again.

11. Install the housing cover on the back box.

– Hook the top housing cover into the back box.

– Snap the bottom housing cover into place in the back box.

aRadio manual call point FDM275-O is mounted and ready for commissioning.

WARNING

Deactivating the manual call points prevents alarms from being forwarded.

The alarm is not triggered.

● Mark deactivated manual call points or those which are not fully functional

with the notice 'NOT IN USE'!

Mounting and installation

Installation

8 | 16 A6V10425655_en--_g

OUT OF ORDER

AUSSER BETRIEB

HORS SERVICE

FUORI SERVIZIO

FUERA DE SERVICIO

BUITEN GEBRUIK

A5Q00030603

Figure 2: 'Not in use' label

2.3 Installing the protective cover

If a protective cover (accessories) is being used, proceed as described below:

wThe radio manual call point has been installed and electrically connected. See

the chapter 'Installation [➙7]'.

wA compatible protective cover is available. See the chapter 'Protective cover

FDMC295'.

lSnap the protective cover FDMC295(2) into place in the recesses in the

housing cover(1) intended for this purpose. See also 'Protective cover

FDMC295' chapter.

aThe protective cover is installed.

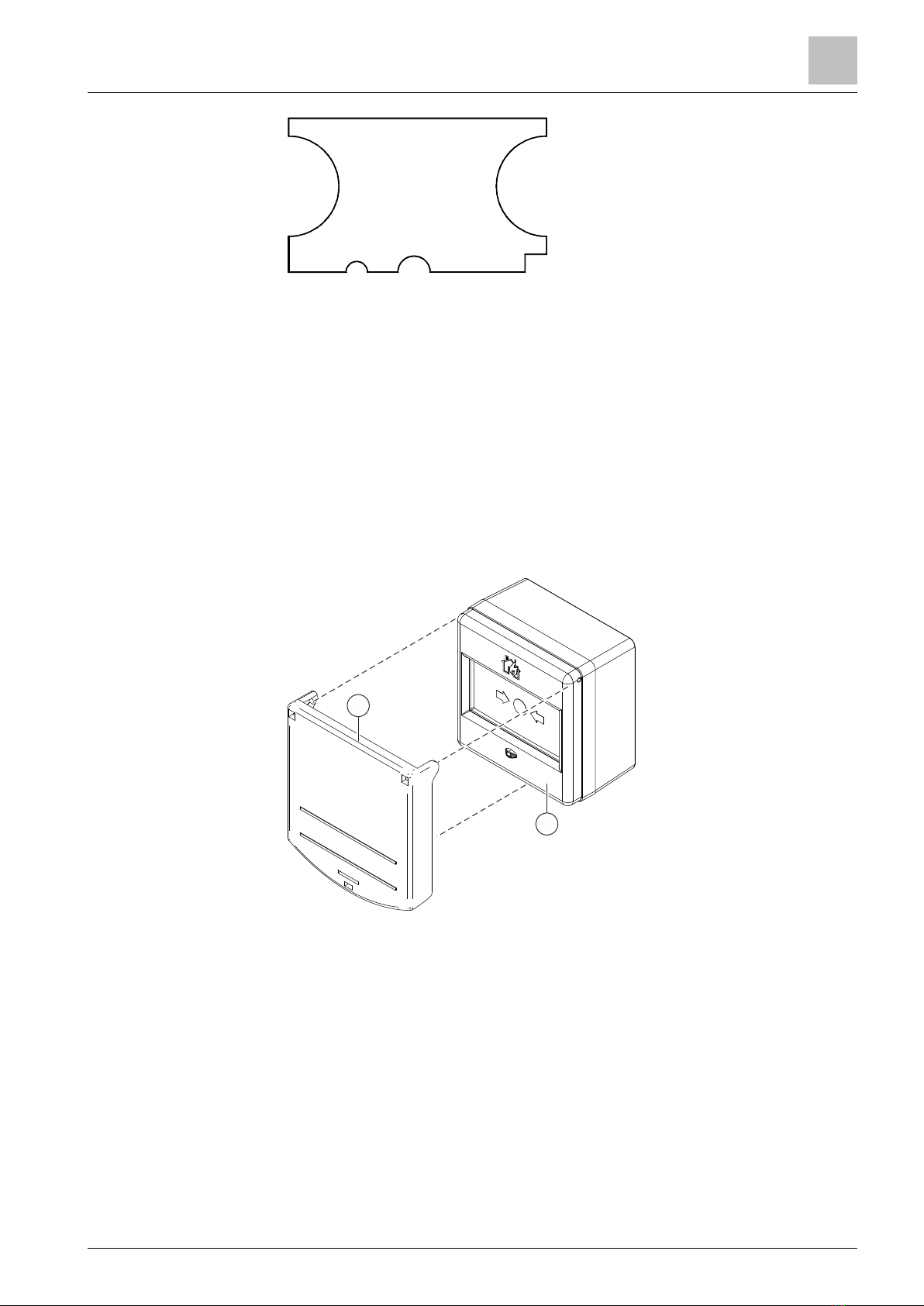

Figure 3: Installing the protective cover FDMC295

1 Radio manual call point FDM275-O 2 Protective cover

Mounting and installation

Installing the protective cover 2

A6V10425655_en--_g 9 | 16

2.4 Replacing the plastic insert with a glass insert

Proceed as follows to replace the plastic insert with a glass insert:

wThe detector line to which the manual call point is connected is switched off.

1. Remove the housing cover with the key.

2. Remove the plastic insert(1) and dispose of it properly.

3. Place the glass insert(6) between the following points:

– Retainer(5)

– Left and right stops(4)

– Spring(2)

– Triggering device(3)

aThis pre-stresses the spring(2).

4. Install the housing cover on the back box.

– Hook the top housing cover into the back box.

– Snap the bottom housing cover into place in the back box.

aThe plastic insert is replaced with a glass insert.

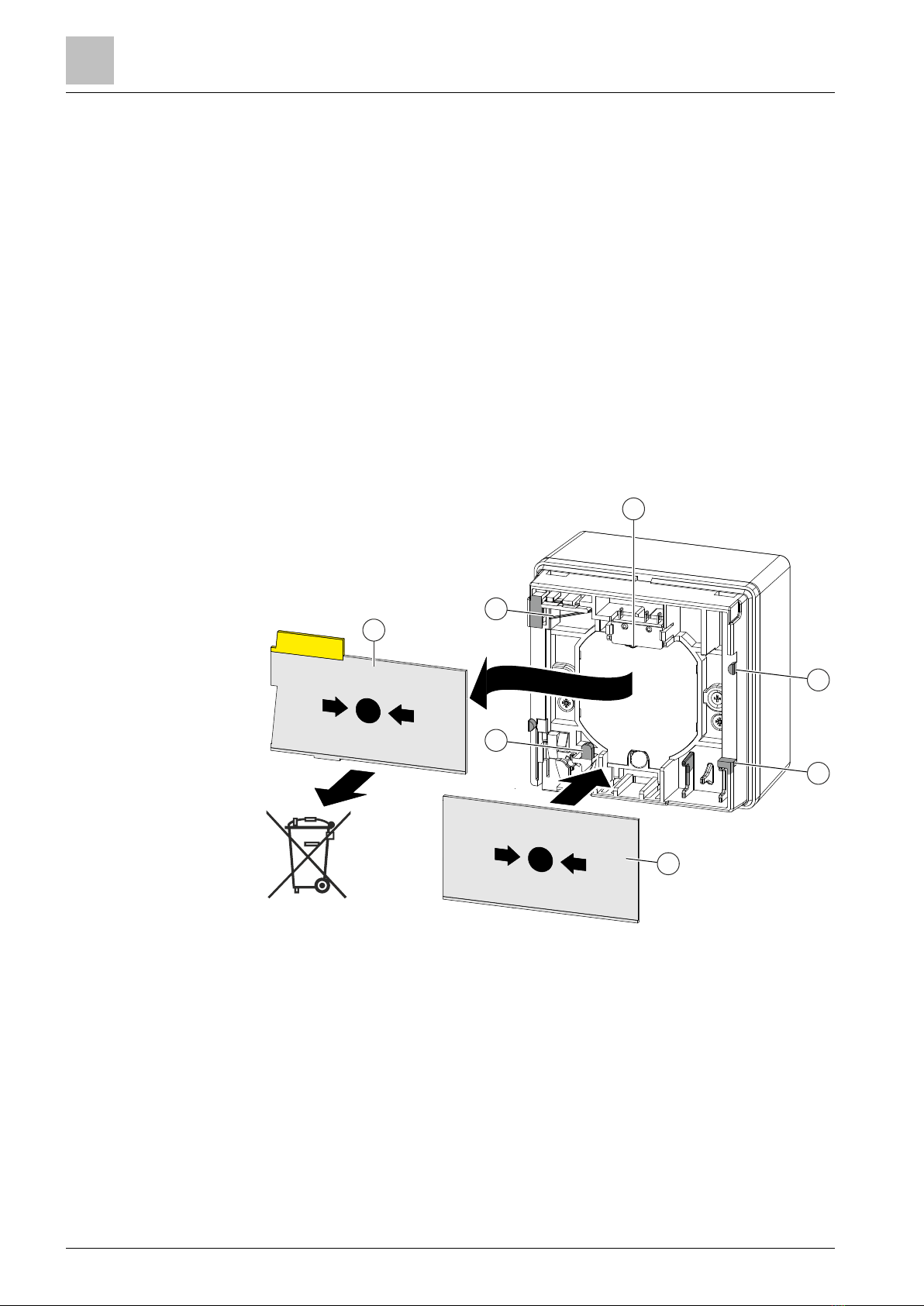

Figure 4: Replacing the plastic insert with a glass insert

1 Plastic insert 4 Stop

2 Spring 5 Retainer

3 Triggering device 6 Glass insert

Mounting and installation

Replacing the plastic insert with a glass insert

10 | 16 A6V10425655_en--_g
