Siemens PXG3 Series User manual

CM1N9270en_10

2017

-10-16

Building Technologies

9270

Desigo™ PX

BACnet router for

•BACnet/IP

•BACnet/LonTalk

•BACnet MS/TP

PXG3.L

PXG3.M

•Routing between BACnet/IP , BACnet/LonTalk (PXG3.L only),

and BACnet MS/TP

•Supports BACnet/IPv4 and BACnet/IPv6

•ANSI/ASHRAE 135-2012 Annex J compliant

•ISO 16484-5 compliant

•BTL label (BACnet communications passed the BTL test)

•BBMD support (BACnet Broadcast Management Device)

•Third-party device support

•Configuration via Xworks Plus or Web browser (via IPv4)

•Web browser access to network statistics

•Firmware update via Ethernet and USB Device

•LED indication for Ethernet link and activity

•LED indication for BACnet/LonTalk and BACnet MS/TP (diagnostics)

•2-port Ethernet switch for low-cost cabling (10/100 baseT)

•BACnet MS/TP (RS-485) baud rates: 9600, 19200, 38400, 76800, 115200

•Plug-in screw terminal blocks for supply, LONWORKS,and MS/TP

•RJ45 plug for PXM20 (LONWORKS)

•Operating voltage: AC 24 V or DC 24 V

•DIN rail mounting

•BACnet MS/TP Slave Proxy

•SNMP (v2), MIB-2

•BACnet NAT

2 / 10

Siemens PXG3... BACnet router for Ethernet - LONWORKS - MS/TP CM1N9270en_10

Building Technologies 2017-10-16

Use

The PXG3... BACnet router connects a BACnet/IP network to a BACnet/LonTalk

network (PXG3.L only), and/or a BACnet MS/TP channel. BACnet objects are

transmitted simultaneously throughout any and all networks.

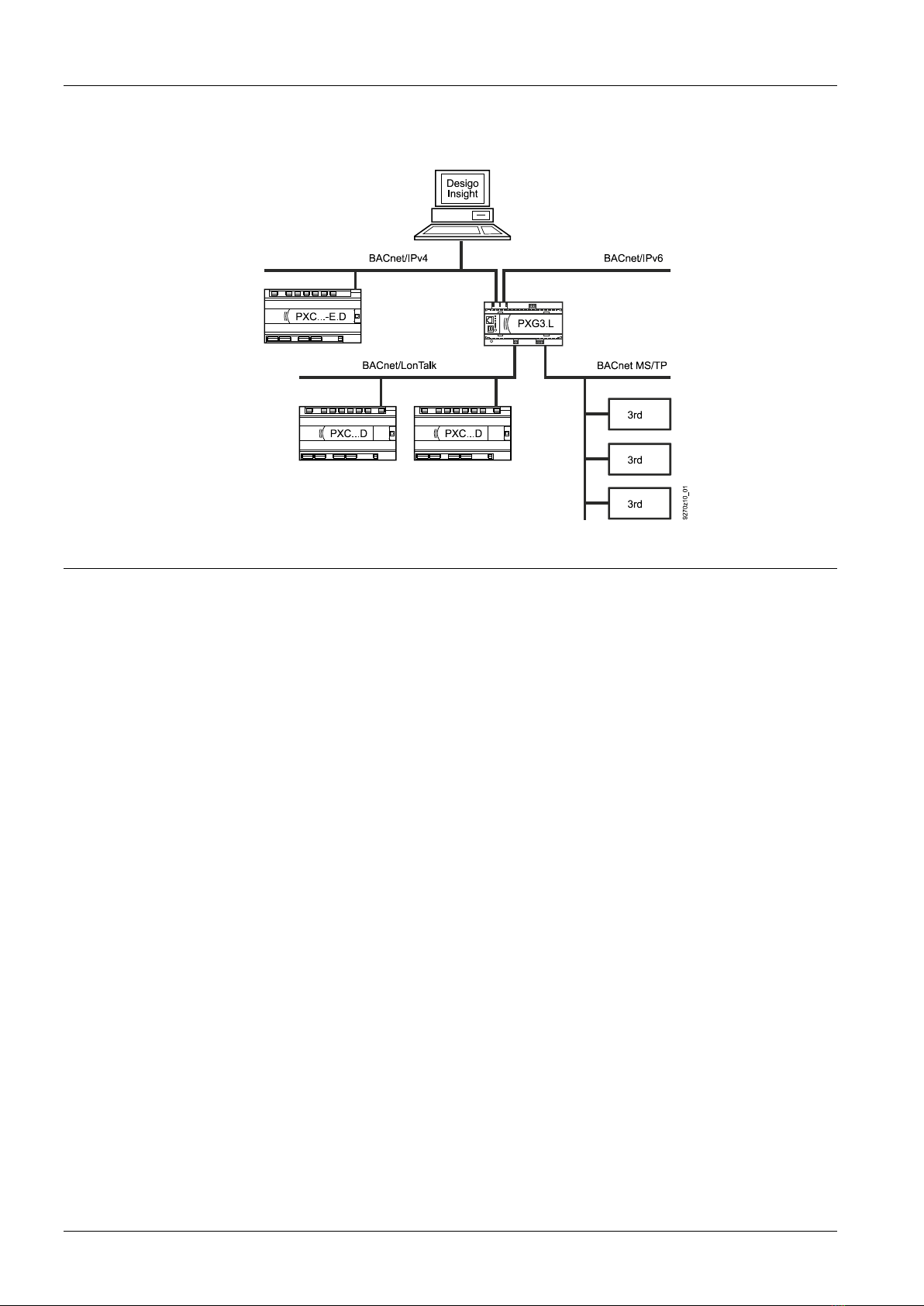

Router functions

The PXG3... BACnet router transmits BACnet protocol between a BACnet/IPv4

network, a BACnet/IPv6 network, a BACnet/LonTalk network (PXG3.L only), and a

BACnet MS/TP channel. BACnet objects are simultaneously transmitted thoughout

any and all networks.

Broadcast Management Device, used to distribute BACnet Broadcast messages

across IP Routers.

The BACnet router includes a Device Object and can be operated by a BACnet

Client. Present operating state, date and time as well as statistics on sent

packages can be viewed via web server.

The BACnet router can serve as a Slave Proxy for slaves that are connected to its

MSTP port. In other words, it responds to Who-Is messages on the slaves’ behalf

by sending an I-Am message.

Simple Network Management protocol MIB-2, for monitoring and diagnosing the

BACnet router network interface.

Supports setup of a BACnet network over a NAT device. Additionally, remote

access from a public network to BACnet devices is possible on a private network.

Important: the public IP address must be static.

For security reasons we recommend using VPN tunneling with BACnet NAT.

For details see standard 135-2012 Annex J.

When routing between BACnet/IP and BACnet/IP on one IP network, the BACnet

router address must be the same on both BACnet networks. The difference is that

different BACnet UDP ports are used on the BACnet network.

Four-way routing

BBMD

Web server

MS/TP Slave Proxy

SNMP v2

BACnet NAT

BACnet/IP to BACnet/IP

3 / 10

Siemens PXG3... BACnet router for Ethernet - LONWORKS - MS/TP CM1N9270en_10

Building Technologies 2017-10-16

Communication

•The router complies with ANSI/ASHRAE 135-2012 Annex J and ISO 16484-5.

•A 2-port Ethernet switch allows low-cost cabling via line topology. This is the

preferred commissioning medium.

•The LONWORKS network is connected via a 2-pin connection terminal.

•The MS/TP channel is connected via RS485 or a 3-pin connection terminal.

•An RJ45 plug on the device front allows connecting to a PXM20 operator unit

(PXG3.L only).

•A USB port is available for connecting the tool.

Type summary

Type (ASN)

Product number (SSN)

Name

Ethernet ports

LONWORKS

MS/TP

PXG3.L

S55842-Z105-A100

BACnet Router

Ethernet/IP-

LonTalk-MS/TP

PXG3.M

S55842-Z106-A101

BACnet Router

Ethernet/IP-MS/TP

Mechanical design

Plastic housing

Plug-in terminal block (operating voltage)

2-port Ethernet switch (with 2 LEDs each for display purposes)

LEDs for device and system status indication

RJ45 interface for PXM20 (PXG3.L only)

Tool interface (USB Device)

Service button for identification on network (Ethernet, LONWORKS)

LONWORKS terminal block (PXG3.L only)

MS/TP terminal block

Slider for mounting on DIN rail

4 / 10

Siemens PXG3... BACnet router for Ethernet - LONWORKS - MS/TP CM1N9270en_10

Building Technologies 2017-10-16

LEDs

RUN

FLT

HMI/Tool

LED

Color

Activity

Function

RUN Green •Continuously ON

•Continuously OFF

•Flashing

•Device ready.

•At least one internal power supply out

of range.

•Start-up of device.

FLT

Red

•Continuously OFF

•Continuously ON

•Flashing

•OK

•HW fault or program fault.

•Incorrect or corrupt FW.

INF

(Not used)

COM1

Yellow

•Flashing

•Sends MS/TP packages.

COM2

Yellow •Flashing •Sends LONWORKS packages

(PXG3.L only).

SVC Red •Continuously OFF

•Continuously ON

•Flashing

•Flashing per wink

command *)

•Configured.

•Defective Hardware.

•Unconfigured.

•Physical identification of the router.

9270Z05

8 7 6 5 4 3 2 1

Ethernet

1 / 2

Green •Continuously ON

•Continuously OFF

•Flashing

•Link active

•Link inactive

•Network activity

Yellow •Continuously ON

•

Continuously OFF

•Link 100 Mbps

•

Link 10 Mbps

*) Wink command

pattern:

2s 1s

21s

5 Hz 5 Hz

9222z02

2s 1s

9270z03

Button

Press

Description

•Short

Physical identification on the network (Ethernet).

Proceed as follows to reset the device to a factory state:

1. Power off device.

2. Power on device.

3. Wait for all LEDs to light up and turn off again,

then push the SVC button.

4. Keep SVC button pressed until all LEDs light up, then release.

Up to Desigo V6_SP (FW V01.15.15.144): Keep SVC button

pressed until the green RUN LED flashes, then release.

5. Wait for device to fully start up unconfigured

(RUN LED on, SVC LED flashes).

Any device passwords and other settings are lost.

Service button

5 / 10

Siemens PXG3... BACnet router for Ethernet - LONWORKS - MS/TP CM1N9270en_10

Building Technologies 2017-10-16

Engineering

•The router does not require programming. It is configured either using Xworks

Plus or the Desigo SSA-DNT via Ethernet or using a USB device. For details

see SSA (Setup & Service Assistant) Commissioning, CA111050).

•Each device has a unique identification number to ensure efficient

commissioning. The number is located on a removable barcode label.

•Each device has a unique MAC address.

For more details see document “Ethernet, TCP/IP, MS/TP and BACnet - Principles”

(CM110666).

Installation

Ethernet: See installation manual Desigo TRA, CM111043.

LONWORKS: See installation manual Desigo RXC, CA110336.

HMI (RJ45 plug): only the PXM20 can be connected. Otherwise the PXG3.L or the

mistakenly connected device may be damaged.

Mounting

The router is designed for mounting on a standard mounting rail or on a wall.

Power is supplied by connecting the plug-in screw terminal blocks.

Commissioning

To prevent equipment damage and/or personal injuries adhere to local safety

regulations and related safety standards.

Maintenance

No maintenance required. A supercap supports the real-time clock (3 days).

Disposal

The devices are considered electronic devices for disposal in terms of the

European Directive 2012/19/EU (WEEE) and may not be disposed of as

domestic waste.

Dispose of the devices via the proper channels.

Observe all local and applicable laws.

Note

6 / 10

Siemens PXG3... BACnet router for Ethernet - LONWORKS - MS/TP CM1N9270en_10

Building Technologies 2017-10-16

Technical data

Operating voltage

(24 V~, ⊥, )

Operating voltage

Half-wave load

= Technical ground

AC 24 V ± 20 % (SELV/PELV) or

AC/DC 24 V class 2 (US)

48...63 Hz

Symmetric

Power consumption At AC 24 V

At DC 24 V

Max. 9 VA

Max. 4 W

Max. permissible transit power AC/DC 24 V

(RJ45 interface, HMI)

Max. 0.5 A

Internal fuse

With PTC

Hardware information

Processor Series B

Series C

Atmel ARM9

Texas Instruments AM3352,

600MHz

Memory Series B

Series C

256 MB Flash, 64 MB SDRAM

512 MB Flash, 512 MB SDRAM

(DDR3)

Response to power /

communication failure

Energy reserve (Supercap) to support real-time clock (3 days).

Data available only if saved to flash memory.

Ethernet interface

Plug

2 x RJ45, screened

Interface type

100BaseTX, IEEE 802.3 compatible

Bit rate

10/100 Mbps, half / full duplex,

auto-negotiation

Protocol

BACnet over UDP/IP

HMI interface

Generic, for HMI (LONWORKS)

RJ45 (PXG3.L only

USB interface

Plug

Type B (USB device)

Data rate (USB 1.0 full speed)

12 Mbps

Galvanic isolation of ⊥

Protective switch against surges and

overcurrent

Yes

LONWORKS interface

Interface type

TP/FT-10

(PXG3.L only

Transceiver

FT 5000 smart transceiver

Galvanic isolation

Yes

Bit rate

78 kbps

Protocol

BACnet over LonTalk

MS/TP interface

Interface type

RS485

Galvanic isolation

Yes

Baud rates

9600, 19200, 38400, 76800, 115200

Protocol

BACnet over MS/TP

Connection terminals,

plug-in

Design type

Cu-wire or Cu-strand with wire end

sleeve

Cu-strand without wire end sleeve

Plug-in screw terminals

1 x 0.6 mm dia. to 2.5 mm2

or 2 x 0.6 mm dia. to 1.0 mm2

1 x 0.6 mm dia. to 2.5 mm2

or 2 x 0.6 mm dia. to 1.5 mm

Screwdriver Slot screws

Screwdriver, size 1

with shaft dia. ≤ 4.5 mm

Max. tightening torque

0.6 Nm

7 / 10

Siemens PXG3... BACnet router for Ethernet - LONWORKS - MS/TP CM1N9270en_10

Building Technologies 2017-10-16

Assignment as per

EN 60730

Operation of automatic controller

Degree of pollution

Design type

Type 1

Protection class III

Housing protection

standard

Protection type as per EN 60529

Front parts in the DIN section

Terminal part

IP30

IP20

Ambient conditions

Operation

Climatic conditions

Temperature

Humidity

Mechanical conditions

As per IEC 60721-3-3

Class 3K5

–5 ... 50 °C

5…95% r.h. (non-condensing)

Class 3M2

Transport

Climatic conditions

Temperature

Humidity

Mechanical conditions

As per IEC 60721-3-2

Class 2K3

-25...70 °C

5…95% r.h. (non-condensing)

Class 2M2

Standards, directives, and

approvals

Product standard EN 60730-1 Automatic electrical controls for

household and similar use

Product family standard EN 50491-x General requirements for Home

and Building Electronic Systems

(HBES) and Building Automation

and Control Systems (BACS)

Electromagnetic compatibility (Applications)

For use in residential, commerce,

light-industrial and industrial

environments

EU conformity (CE)

CM1T9270xx *)

UL certification (US)

UL 916, http://ul.com/database

RCM-conformity (EMC)

CM1T9222en_C1 *)

EAC conformity

Eurasia conformity

Certificate

Environmental compatibility Product environmental declaration (contains

data on RoHS compliance, materials

composition, packaging, environmental

benefit, disposal)

CM1E9270 *)

Color

Housing

RAL 7035 (light-gray)

Dimensions

Housing as per DIN 43880, see dimensions

Weight

Without/with packaging

286 g / 332 g

*) The documents can be downloaded at http://siemens.com/bt/download.

8 / 10

Siemens PXG3... BACnet router for Ethernet - LONWORKS - MS/TP CM1N9270en_10

Building Technologies 2017-10-16

Connection terminals and interfaces

9270z04

HMI

1, 2

2 x RJ45 interface for Ethernet

24 V ~, ⊥,

/ DC 24 V operating voltage

CLA, CLB

LONWORKS interface (PXG3.L only)

+, –,

MS/TP interface

HMI

RJ45 interface for HMI (PXG3.L only)

USB

USB tool interface

Service

Service button

RJ45 pin assignment

for HMI

Pin Name Description Pin Name

Description

9215Z01

8 7 6 5 4 3 2 1

CLA

LONWORKS A

Not connected

CLB

LONWORKS B

Not connected

AC24V_N

AC24V Neutral

Not connected

AC24V_L

AC24V Line max. 500mA

Not connected

Operating voltage

pin assignment

Pin Name Description

24 V ~

AC 24 V

⊥

System neutral

Technical ground

ORKS

assignment

Pin Name Description

CLA

LONWORKS A

CLB

LONWORKS B

MSTP pin assignment

Name

Description

Data +

–

Data –

Reference wire

9 / 10

Siemens PXG3... BACnet router for Ethernet - LONWORKS - MS/TP CM1N9270en_10

Building Technologies 2017-10-16

Dimensions

9270M01

All dimensions in mm

10 / 10

Siemens PXG3... BACnet router for Ethernet - LONWORKS - MS/TP CM1N9270en_10

Building Technologies 2017-10-16

Published b

Siemens Switzerland Ltd.

Building Technologies Division

International Headquarters

Gubelstrasse 22

6301 Zug

Switzerland

Tel. +41 41

-724 24 24

www.siemens.com/buildingtechnologies

Delivery and technical specifications subject to change

This manual suits for next models

Table of contents

Other Siemens Network Router manuals

Siemens

Siemens SIMATIC NET SCALANCE W700 Series User manual

Siemens

Siemens RUGGEDCOM i803 User manual

Siemens

Siemens RUGGEDCOM RM1224 User manual

Siemens

Siemens RUGGEDCOM RS416PF User manual

Siemens

Siemens gigaset se 105 User manual

Siemens

Siemens PXG3.L User manual

Siemens

Siemens Santis ADSL 50 User manual

Siemens

Siemens SIMATIC NET RUGGEDCOM RS920W User manual

Siemens

Siemens SL2-141 User manual

Siemens

Siemens SCALANCE XB-200 User manual

Siemens

Siemens 2614 User manual

Siemens

Siemens RUGGEDCOM RS1600 User manual

Siemens

Siemens RUGGEDCOM RS930W User manual

Siemens

Siemens RUGGEDCOM RX1100 User manual

Siemens

Siemens SIMATIC NET SCALANCE W760 User manual

Siemens

Siemens RUGGEDCOM RS416 User manual

Siemens

Siemens RUGGEDCOM RX1400 User manual

Siemens

Siemens 4100 Series User manual

Siemens

Siemens SCALANCE M812 User manual

Siemens

Siemens SIMATIC ET 200SP User manual

Siemens

Siemens RUGGEDCOM RSG2200 User manual

Siemens

Siemens CL-110 User manual

Siemens

Siemens RUGGEDCOM RSG2288 User manual

Siemens

Siemens RUGGEDCOM ROX II User manual

Popular Network Router manuals by other brands

Allnet

Allnet ALL0333AU user guide

HomeSeer

HomeSeer HT-SEL Getting started guide

Sercomm

Sercomm Genesis OC3505D Quick installation guide

Billion

Billion BIPAC 5102 Series user manual

TP-Link

TP-Link TD-8817 QIG

Motorola

Motorola MR1900 user guide

Digi

Digi IX14 user guide

Cisco

Cisco NCS 540 Hardware installation guide

XAVi

XAVi X8821e user manual

BEC

BEC 6200WZL Quick installation guide

MikroTik

MikroTik hAP ac3 Series quick start

Korenix

Korenix JetNet 5428G Series user manual

NETGEAR

NETGEAR FS526T - Switch installation guide

Korenix

Korenix JetNet 5710G Series user manual

Automated Logic

Automated Logic ZN551 Technical instructions

Cisco

Cisco ASR 1000 Series Installation and configuration guide

EnGenius

EnGenius ESR-9710 quick start guide

Cisco

Cisco 805 Series Product overview
