Siemens SIREMOBIL Compact L User manual

Siremobil Compact L

English

Print No.: SPR2-130.841.03.02.02 Doc. Gen. Date: 06.05

Replaces: SPR2-130.841.03.01.02

The reproduction, transmission or

use of this document or its contents

is not permitted without express

written authority. Offenders will be

liable for damages. All rights,

including rights created by patent

grant or registration of a utility

model _or_design,_are_reserved.

Replacement Instructions

15" TFT Display 71 42 354

Siremobil Compact L SPR2-130.841.03 Page 2 of 20 Siemens AG

Rev. 02 06.05 CS PS 24 Medical Solutions

2 Replacement of the 15" LCD Color TFT Display 1

Document revision level 1

The document corresponds to the version/revision level effective at the time of system

delivery. Revisions to hardcopy documentation are not automatically distributed.

Please contact your local Siemens office to order current revision levels.

Disclaimer 1

The installation and service of equipment described herein is to be performed by qualified

personnel who are employed by Siemens or one of its affiliates or who are otherwise

authorized by Siemens or one of its affiliates to provide such services.

Assemblers and other persons who are not employed by or otherwise directly affiliated

with or authorized by Siemens or one of its affiliates are directed to contact one of the

local offices of Siemens or one of its affiliates before attempting installation or service pro-

cedures.

Replacement of the 15" LCD Color TFT Display 3

Siemens AG SPR2-130.841.03 Page 3 of 20 Siremobil Compact L

Medical Solutions Rev. 02 06.05 CS PS 24

Notes and symbols 1

Emphasized texts in technical documentation have the following meaning:

DANGER indicates an immediate danger that if disregarded will

cause death or serious physical injury.

WARNING indicates a possible danger that if disregarded can

cause death or serious physical injury.

CAUTION used with the safety alert icon indicates a possible dan-

ger that if disregarded will or can lead to minor or moderate phys-

ical injury and/or damage to property.

NOTICE used without the safety alert icon indicates a possible

danger that if disregarded may or will lead to an undesirable

result or state other than death, physical injury or property

damage.

DANGER

WARNING

CAUTION

NOTICE

Siremobil Compact L SPR2-130.841.03 Page 4 of 20 Siemens AG

Rev. 02 06.05 CS PS 24 Medical Solutions

4 Replacement of the 15" LCD Color TFT Display

Validity of these instructions 1

These instructions are valid for the replacement of the 15" LCD Color TFT Display,

part no. 07142354.

Required documents 1

•System manual and Service instructions of the system.

Required tools, measurement and auxiliary devices 1

Available spare parts 1

The following spare parts are available:

All tools, measurement and auxiliary devices with the exception

of those marked "*", are listed along with their specifications in

the STC (Service Tools Catalogue).

•Protective conductor meter (e.g. Safety tester UNIMET 1100 ST, part no. 51 38 727)

•To o l k i t *

•1 set Allen keys*

•Luminance meter (e.g. SMfit Kit luminance meter, part no. 88 81 281)

Part description Part number Remarks

15" LCD Color TFT Display (REP) 07142354 External switched-mode power supply

is included in the repair kit.

230V ~ Power cable not included.

External switched-mode power

supply

07141083 230V ~ Power cable not included.

Display holder 07142347 Fastening screws not included

NOTE

Replacement of the 15" LCD Color TFT Display 5

Siemens AG SPR2-130.841.03 Page 5 of 20 Siremobil Compact L

Medical Solutions Rev. 02 06.05 CS PS 24

Safety Information 1

Risk of physical injury or death and property damage!

Observe

- the product-specific safety information in these instructions

and the service instructions of the product,

- the general safety information in the instructions

TD00-000.860.01... and

- the general safety information according to ARTD Part 2.

Noncompliance can lead to death, physical injury or property

damage.

Electrical voltage

Certain components inside the TFT Display are under

high voltage!

Do not open the TFT Display housing! This is not necessary in a

service situation.

Do not insert objects into the TFT Display housing!

Electrical voltage!

Noncompliance can lead to death, physical injury or property

damage.

After completing all service work and attaching all system covers,

you must perform a protective ground wire test according to

ARTD-002.731.17... .

The protective ground wire resistance must not exceed 0.2 ohms.

Risk of being burned by hot parts or components!

Noncompliance can lead to light or medium burns, especially of

the hands.

Once the covers have been removed, parts or components (e.g.

power components, heat sinks, solenoid brakes) become acces-

sible which may exhibit temperatures of up to 50°C in operation.

To prevent burns, switch off the system power supply before con-

tacting any parts or components and let the system cool off for at

least 5 minutes before resuming work.

Electrical voltage!

Noncompliance can lead to property damage.

ESD protection guidelines must be observed when servicing.

WARNING

CAUTION

Siremobil Compact L SPR2-130.841.03 Page 6 of 20 Siemens AG

Rev. 02 06.05 CS PS 24 Medical Solutions

6 Replacement of the 15" LCD Color TFT Display

Operating key switches 1

Unlocking / Locking the OSD Menu 1

Locking or unlocking is performed with the same work steps.

•Switch off the display.

•During power on, press and hold the keys "UP" and "DOWN" simultaniously

for approx. 10 seconds.

If the OSD menu was locked, the message "OSD is locked" is displayed.

POWER 1

TFT Display on or off.

MENU 1

Opens or closes the OSD menu.

The OSD menus are described in the user manual of the TFT Display.

The OSD menu will be closed automatically after 20 seconds.

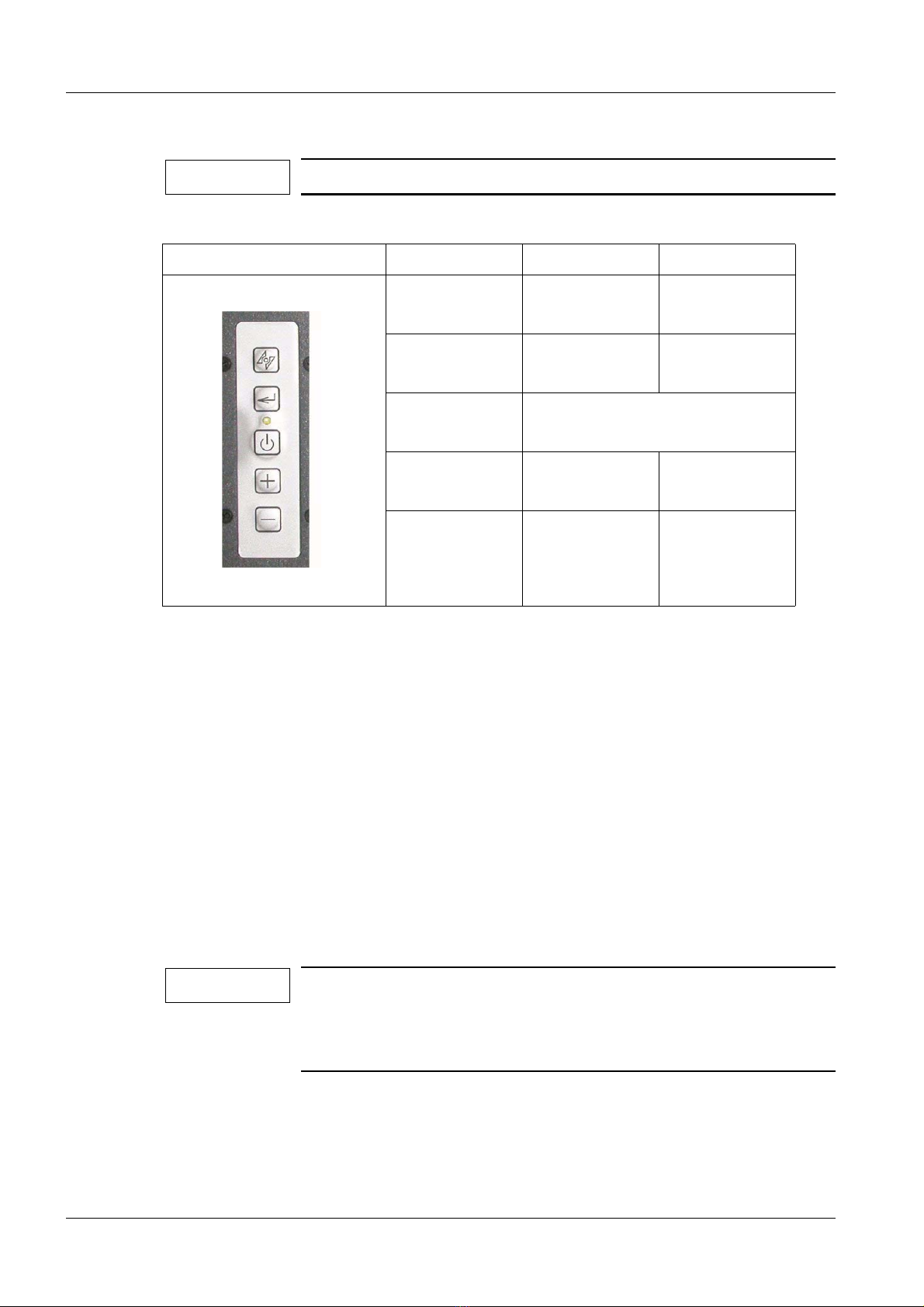

The key switches are fitted on the back of the TFT display.

Name of key OSD not active OSD active

MENU Open

OSD menu

Exit

OSD menu

ENTER Enter

function

POWER TFT Display

ON/OFF

UP Search

Video Input

Increase

value

DOWN

Video Input

Decrease

value

For the adjustments, set the OSD time to "Off"

(permanent visible OSD menu) by selecting the OSD menu

"Options" - "Onscreen Menu" - "OSD Time".

After the adjustments, set it back to the default value (20 seconds)

NOTE

Replacement of the 15" LCD Color TFT Display 7

Siemens AG SPR2-130.841.03 Page 7 of 20 Siremobil Compact L

Medical Solutions Rev. 02 06.05 CS PS 24

ENTER 1

Selects the available sub menu or parameter.

If the parameter was changed, the enter key confirms the selected value and returns to

the previous displayed OSD menu.

UP / DOWN 1

If the OSD menu is inactive (not visible), pressing the key selects the automatic search of

a video signal at the video input connectors.

If the OSD menu is active, pressing the key up or down scrolls though the available menu

items of the OSD menu (highlighted in blue)

or changes the available parameter value (if highlighted in red).

Troubleshooting 1

External switched-mode power supply 1

•Measure the output voltage, printed on the external switched-mode power supply.

•It can also be checked by swapping the low voltage connectors from one to the other

installed TFT display.

TFT Display 1

•Depending on the malfunction, ensure that the display is the defective part.

- Check the switched-mode power supply.

- Check the connectors (low voltage input, video signal input)

- Check the video signal of the MEMOSKOP with the SMPTE test pattern

(300mV Sync +/- 10%, 1Vss +/- 10% (in 100% peak white field)).

- Check the input selection switch (at the bottom side of the TFT display).

The switch can be set in 3 positions:

1. Position to the rear: VGA input selected

2. Middle position: BNC-Input selected, 75Ohm termination resistor is off.

3. Position to the front: BNC input selected, 75 Ohm termination resistor is on.

- Check the settings of the on screen menu, in accordance with the user manual.

The TFT display includes no repairable parts and has to be

changed completely if defective.

NOTE

Siremobil Compact L SPR2-130.841.03 Page 8 of 20 Siemens AG

Rev. 02 06.05 CS PS 24 Medical Solutions

8 Replacement of the 15" LCD Color TFT Display

Replacements 1

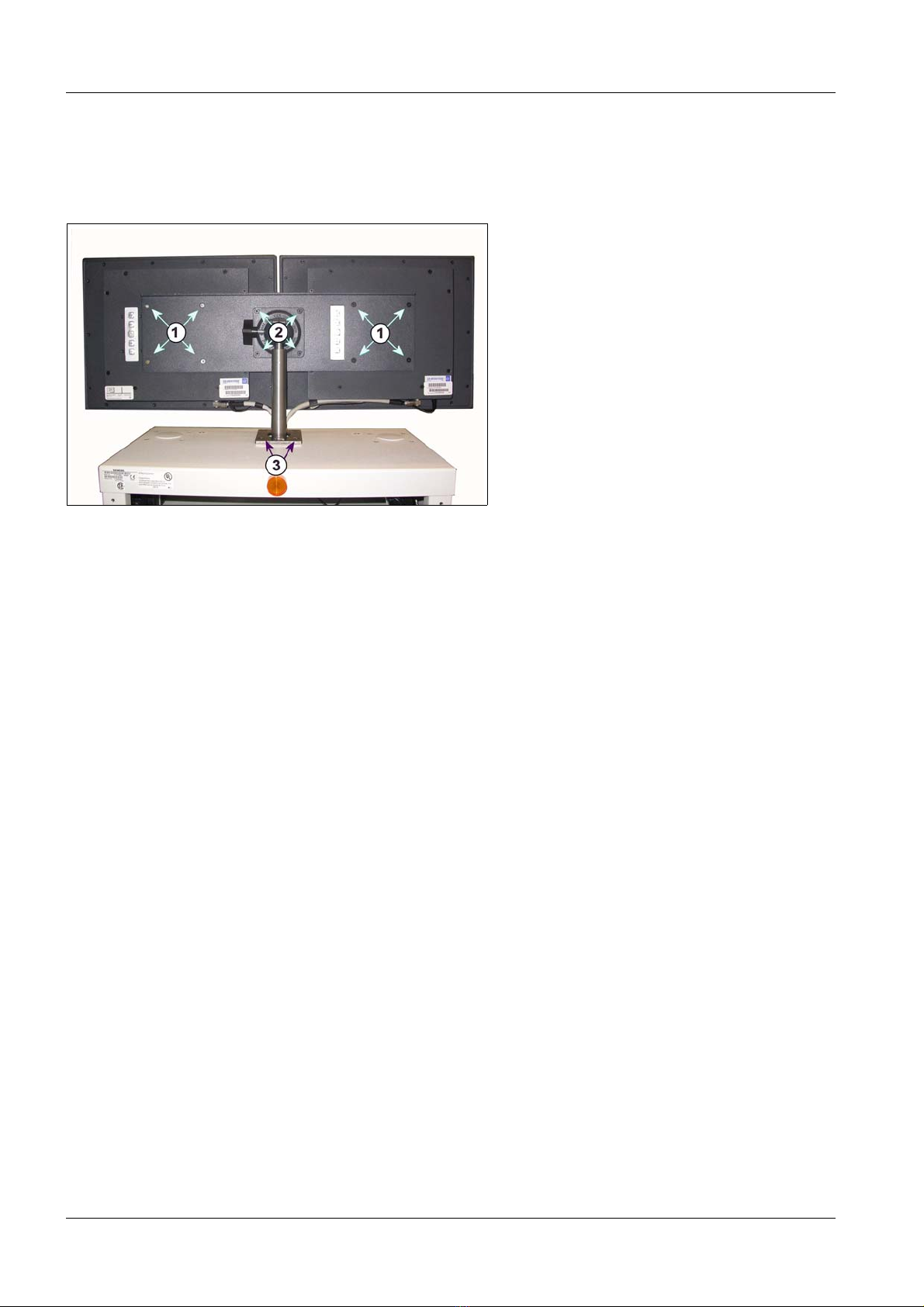

Replacing the display holder 1

•Unplug all connectors from the display(s).

•Loosen the display(s) from its(their) holders (4 screws each, see 1 / Fig. 1).

•Unscrew the holder from the monitor cart (3 / Fig. 1).

•Install the new holder on the monitor cart.

•If 2 TFT displays are present, install the extension plate on the holder and fix it in the

position, shown in Fig. 1 with the 4 screws 2 / Fig. 1.

•Install the display(s) on the holder (1 / Fig. 1).

•Reconnect the low voltage connector and video signal connector to each TFT display.

•Check the functions of the TFT displays.

Fig. 1

Replacement of the 15" LCD Color TFT Display 9

Siemens AG SPR2-130.841.03 Page 9 of 20 Siremobil Compact L

Medical Solutions Rev. 02 06.05 CS PS 24

Replacing the switched-mode power supply 1

•Disconnect the low voltage plug from the TFT display.

•Disconnect the power plug of the switched-mode power supply.

•Loosen the cable ties of the low voltage cable and pull it back to the log book

compartment.

•Take out the switched-mode power supply from the log book compartment.

•Install the new switched-mode power supply in the log book compartment, using new

cable ties.

•Install the low voltage cable to the TFT display and connect it.

•Fix the low voltage cable with cable ties.

•Connect the power plug to the switched-mode power supply.

•Check the function of the TFT display.

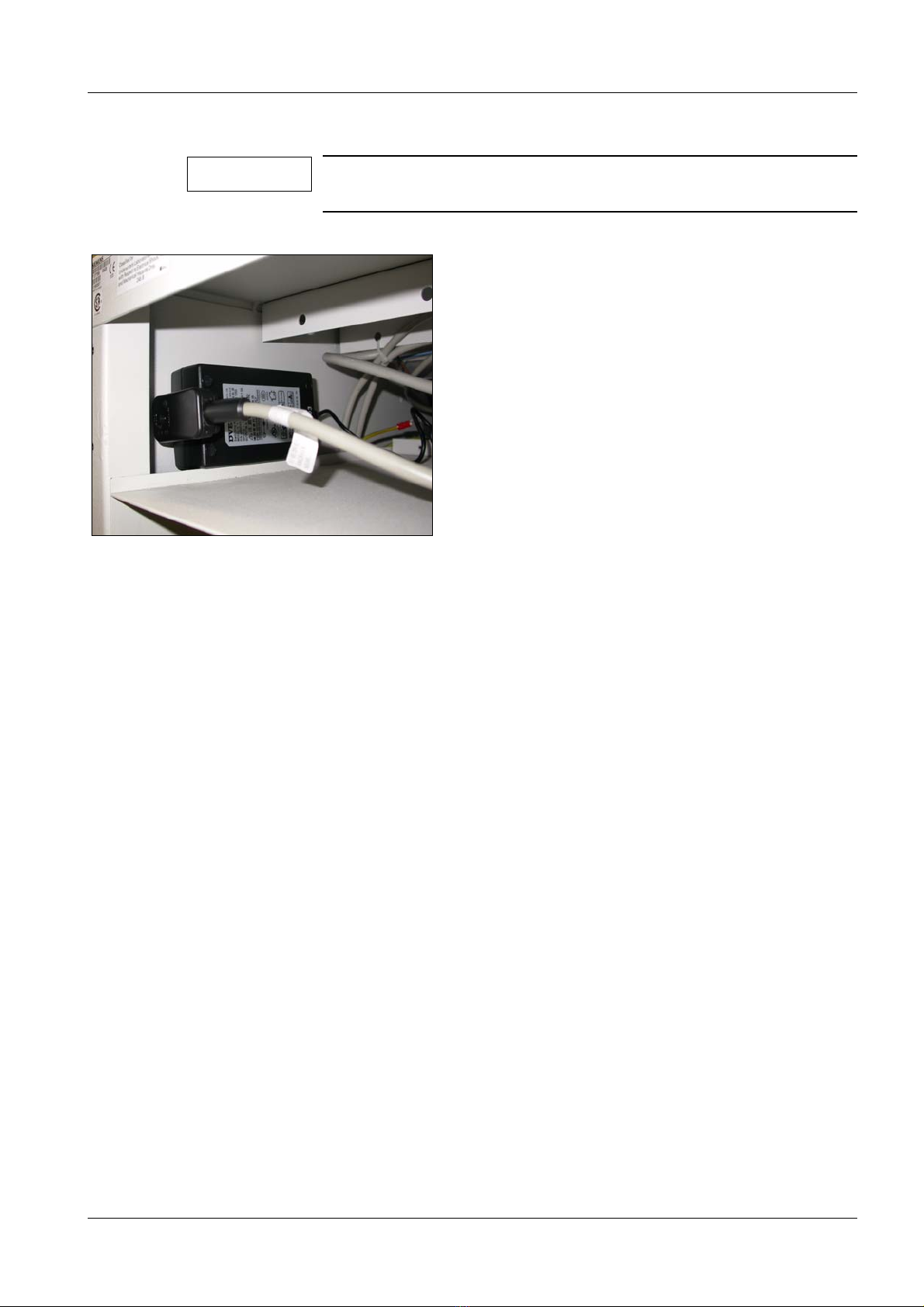

The switched-mode power supplies are installed in the log book

compartment and are fixed with cable ties.

Fig. 2

NOTE

Siremobil Compact L SPR2-130.841.03 Page 10 of 20 Siemens AG

Rev. 02 06.05 CS PS 24 Medical Solutions

10 Replacement of the 15" LCD Color TFT Display

Replacing the TFT display 1

•Disconnect the low voltage plug from the TFT display

•Disconnect the VGA plug from the TFT display.

•Loosen the 4 screws at the rear side of the TFT display and remove it from the holder

•Install the new display with the 4 mounting screws.

•Connect the low voltage plug and the VGA plug at the new display.

•Check the input selection switch (at the bottom side of the TFT display).

The switch can be set in 3 positions:

Position to the rear: VGA input selected

- Set this position, if VGA video cables are used.

Middle position: BNC-Input selected, 75 Ohm terminating resistor is off.

- Set this position only, if additional video components are installed at the same video

source as the TFT display.

Position to the front: BNC input selected, 75 Ohm terminating resistor is on.

- Set this position, if BNC video cable is used and no additional video component is

installed at the same video source as the TFT display is connected.

•Check the functions of the TFT displays.

•Check the automatically detected video mode.

•Check the geometry of the displayed image.

•Adjust the brightness, contrast and back light intensity.

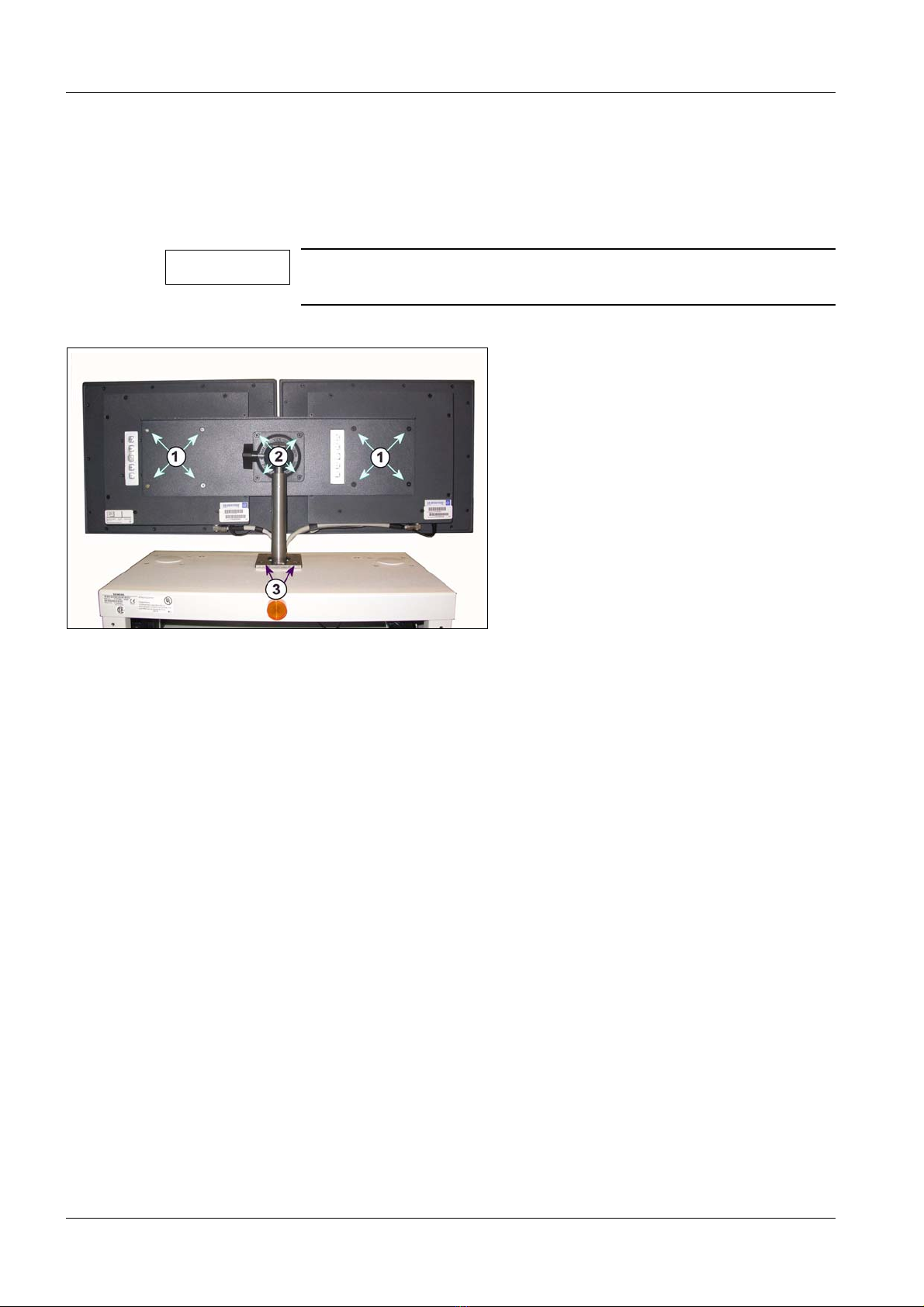

Hold the TFT display while loosening the mounting screw to

prevent damage to the TFT display or the environment

Fig. 3

NOTE

Other manuals for SIREMOBIL Compact L

Table of contents

Other Siemens Monitor manuals

Siemens

Siemens SITRANS RD100 User manual

Siemens

Siemens DSP800 User manual

Siemens

Siemens AZL66 Series User manual

Siemens

Siemens DSP800 User manual

Siemens

Siemens SCD 1297 Series User manual

Siemens

Siemens CMCC1020 User manual

Siemens

Siemens SIMOMED HM Operating instructions

Siemens

Siemens SCD 1597 User manual

Siemens

Siemens SCD 1297-C1 User manual

Siemens

Siemens SITRANS RD100 Guide

Siemens

Siemens 3TK2810-1 User manual

Siemens

Siemens SIMATIC HMI IRD400 User manual

Siemens

Siemens MCF 3501 T User manual

Siemens

Siemens SIMATIC HMI series User manual

Siemens

Siemens SCD 1997-E User manual

Siemens

Siemens MCM-21T2 User manual

Siemens

Siemens SIMATIC HMI series User manual

Siemens

Siemens SCD 1597-I User manual

Siemens

Siemens INOX PRO SIMATIC IFP1900 User manual

Siemens

Siemens INOX PRO SIMATIC IFP1900 User manual

Siemens

Siemens SISTORE AX9 User manual

Siemens

Siemens SIMATIC S7-200 User guide

Siemens

Siemens 30 64 581 B5310 Operating and maintenance instructions

Siemens

Siemens PBC User manual

Popular Monitor manuals by other brands

Linear Acoustic

Linear Acoustic LQ-1000 user guide

AOC

AOC I2579V user manual

Gateway

Gateway FPD1520 user guide

Furuno

Furuno Mu 120c Operator's manual

Asus

Asus VB171D - 17" LCD Monitor Service manual

Dell

Dell S2230MX Setting up

Philips

Philips 107C64 user manual

Dell

Dell S2409WFP user guide

EverFocus

EverFocus EN-7517E instruction manual

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Service manual

Dell

Dell Precision 7680 Connection guide

LG 50PM1M - - 50" Plasma Panel Service manual

Bosch

Bosch DDU 9 manual

Acer

Acer A231HL user manual

Philips

Philips 86BDL4152T user manual

NEC

NEC AccuSync LCD5V user manual

Emay

Emay SleepO2 user manual

IBM

IBM 6360 Product support manual
