Siemens RHVE6 User manual

Installation Instructions / Instructivo de Instalación

Item: RHVE6

RHVE12

RHVE24

RHVEEM6

RHVEEM12

RHVEEM24

For Use With Frame EG

Para Usar Con Caja Base EG

Rotary HandleOperator Variable Depth

Accionamiento giratorio con extensión

Commande rotative sur porte avec

1 / 7

Use only with Siemens certified components.

Utilizar únicamente con componentes certificados de Siemens.

A utiliser uniquement avec les composants certifiés Siemens.

Turn off and lock out all power supplying this device before

working on this device.

Replace allcovers before powersupplying this deviceis

turned on.

Couper l'alimentation de l'appareil et barrer avant de

travailler.

Remplacez touts les couverts avant que

l'approvisionnement depouvoir soit alimenté.

Tensión peligrosa.

Puede causar la muerte o lesiones graves. Tension dangereuse.

Danger de mort ou risque de blessures graves.

Hazardous Voltage.

Will cause death or serious injury.

Desenergice totalmente antes de instalar o darle servicio.

Reemplace todas las barreras y cubiertas antes de

energizar el interruptor.

Turn off and lock out all power supplying this device before

working on this device.

Replace allcovers before powersupplying this deviceis

turned on.

Couper l'alimentation de l'appareil et barrer avant de

travailler.

Remplacez touts les couverts avant que

l'approvisionnement depouvoir soit alimenté.

Tensión peligrosa.

Puede causar la muerte o lesiones graves. Tension dangereuse.

Danger de mort ou risque de blessures graves.

Hazardous Voltage.

Will cause death or serious injury.

Desenergice totalmente antes de instalar o darle servicio.

Reemplace todas las barreras y cubiertas antes de

energizar el interruptor.

IL01219051EH03

Only

[ Solamente ]

O / OFF

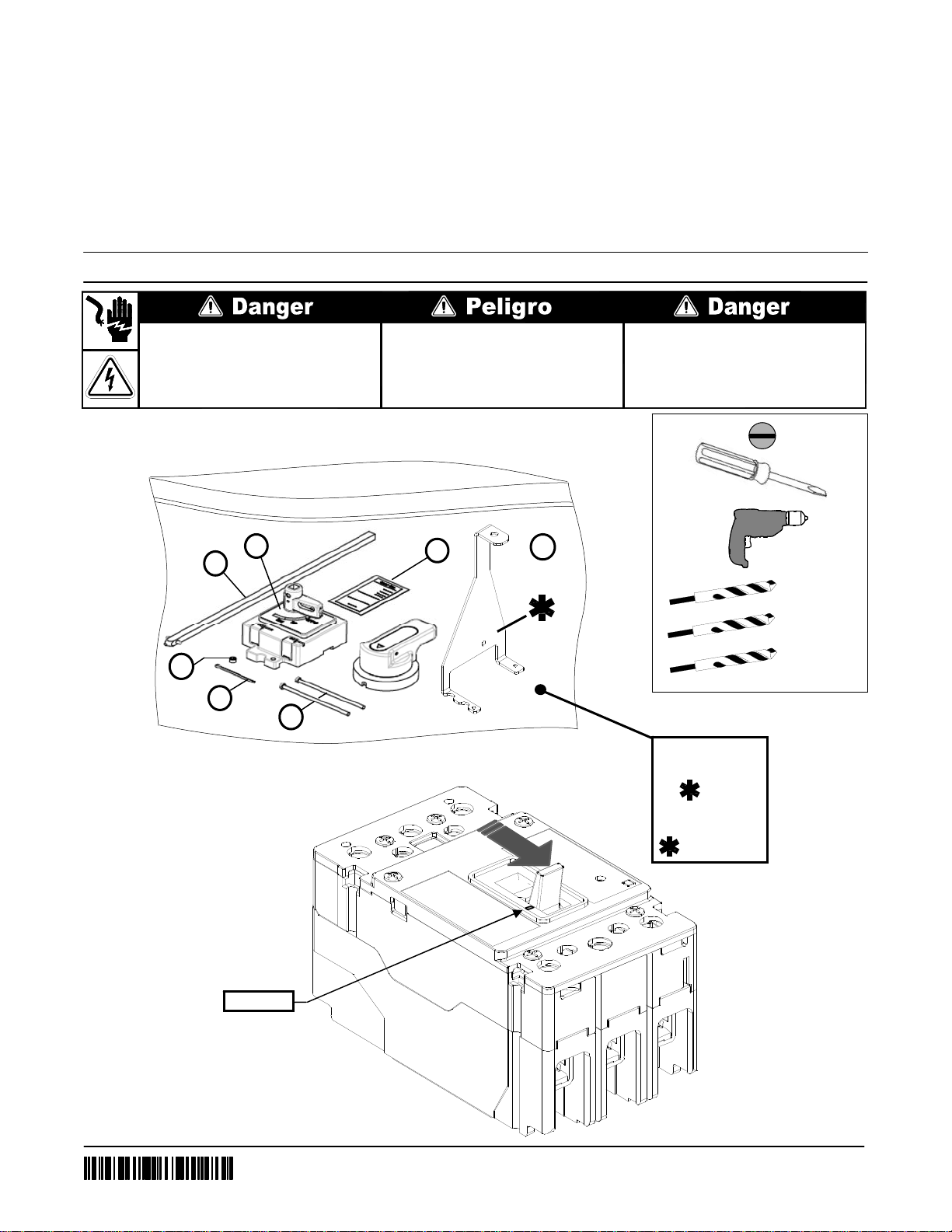

1Disconnect Voltage.

Place Handle in OFF Position.

[Desconecte Voltaje.

Coloque la manija en la posición de O /OFF ]

Ø = .110“

[ Ø = 2.8 mm ]

Ø = .188“

[ Ø = 5 mm ]

Ø = 1.375“

[ Ø = 35 mm ]

RHVE6

RHVE12

RHVE24

RHVEEM6

RHVEEM12

RHVEEM24

807908A02

2 / 7

807908A02

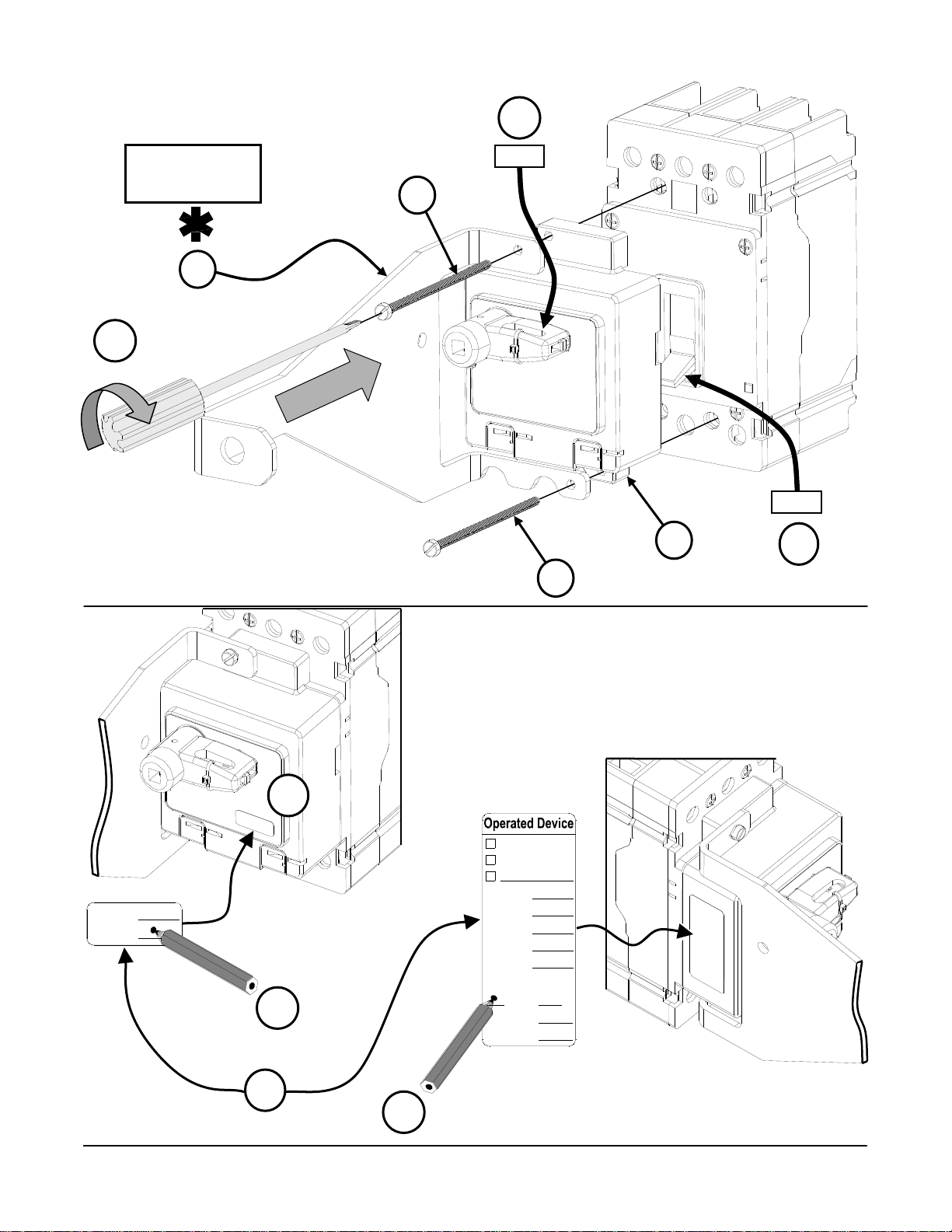

2Place both handles in the OFF / O position.

[ Coloque ambas manijas en la posición de OFF/ O.]

2 X

10 lb. In.

[1.1 Nm]

Only / [ Solamente ]

RHVE244X

RHVEEM244X

Breaker

Switch

In / A

Ir / A

Ue / V

Icu / Ka

Ics / Ka

Poles °C

Wire Size

In / A

Ir / A

OFF / O

3 / 7

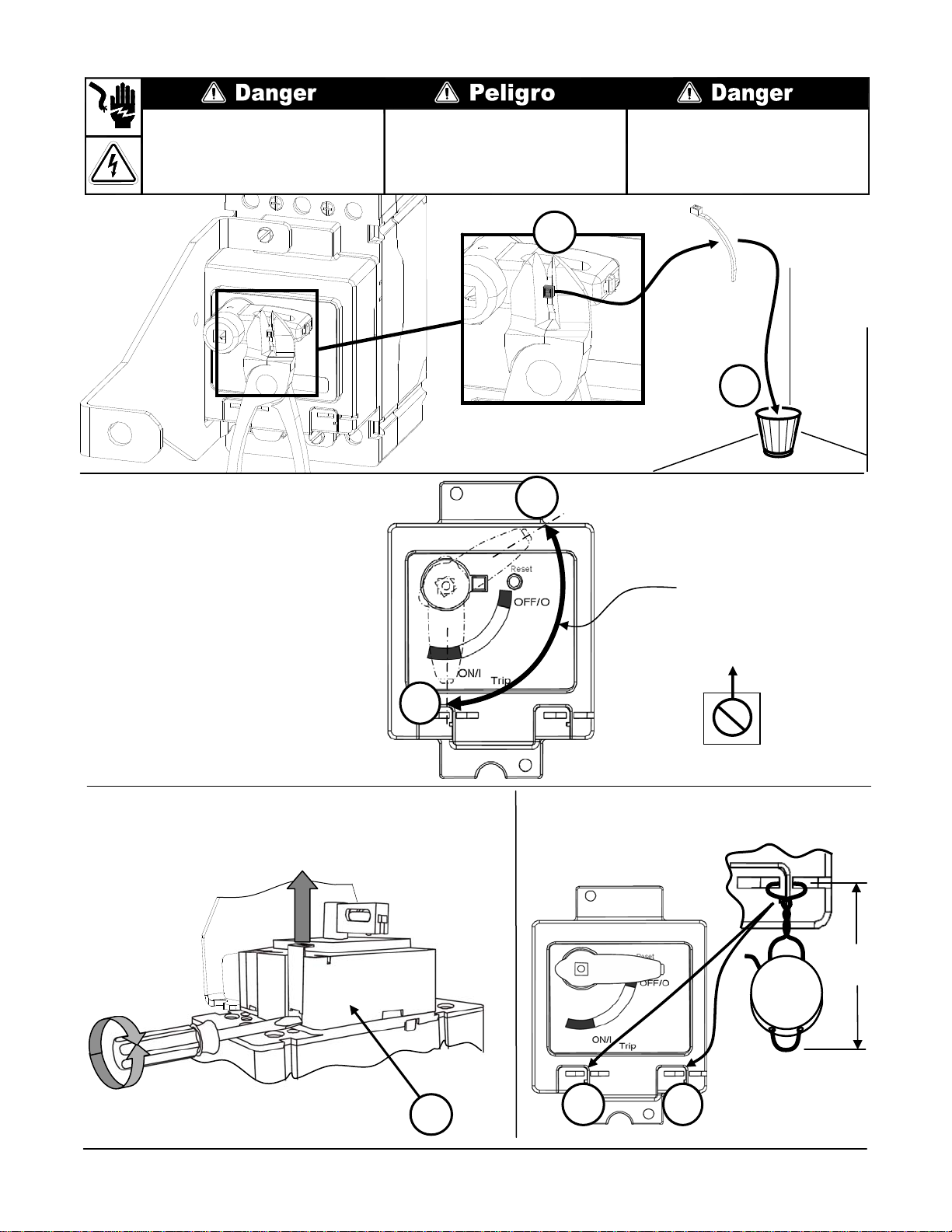

5Test full range of motion.

[ Pruebe la gama completa del movimiento.]

Remove covers to access breaker adjustments and Push-To-Trip

Button.

[ Quite las cubiertas para tener acceso al botón de disparo y

ajustes del interruptor. ]

807908A02

Turn off and lock out all power supplying this device before

working on this device.

Replace all covers before power supplying this deviceis

turned on.

Couper l'alimentation de l'appareil et barrer avant de

travailler.

Remplacez touts les couverts avant que

l'approvisionnement depouvoir soit alimenté.

Tensión peligrosa.

Puede causar la muerte o lesiones graves. Tension dangereuse.

Danger de mort ou risque de blessures graves.

Hazardous Voltage.

Will cause death or serious injury.

Desenergice totalmente antes de instalar o darle servicio.

Reemplace todas las barreras y cubiertas antes de

energizar el interruptor.

Turn off and lock out all power supplying this device before

working on this device.

Replace all covers before power supplying this deviceis

turned on.

Couper l'alimentation de l'appareil et barrer avant de

travailler.

Remplacez touts les couverts avant que

l'approvisionnement depouvoir soit alimenté.

Tensión peligrosa.

Puede causar la muerte o lesiones graves. Tension dangereuse.

Danger de mort ou risque de blessures graves.

Hazardous Voltage.

Will cause death or serious injury.

Desenergice totalmente antes de instalar o darle servicio.

Reemplace todas las barreras y cubiertas antes de

energizar el interruptor.

Twist

[ Torcedura ]

Twist

[ Torcedura ]

Option

[ Opción ]

44a

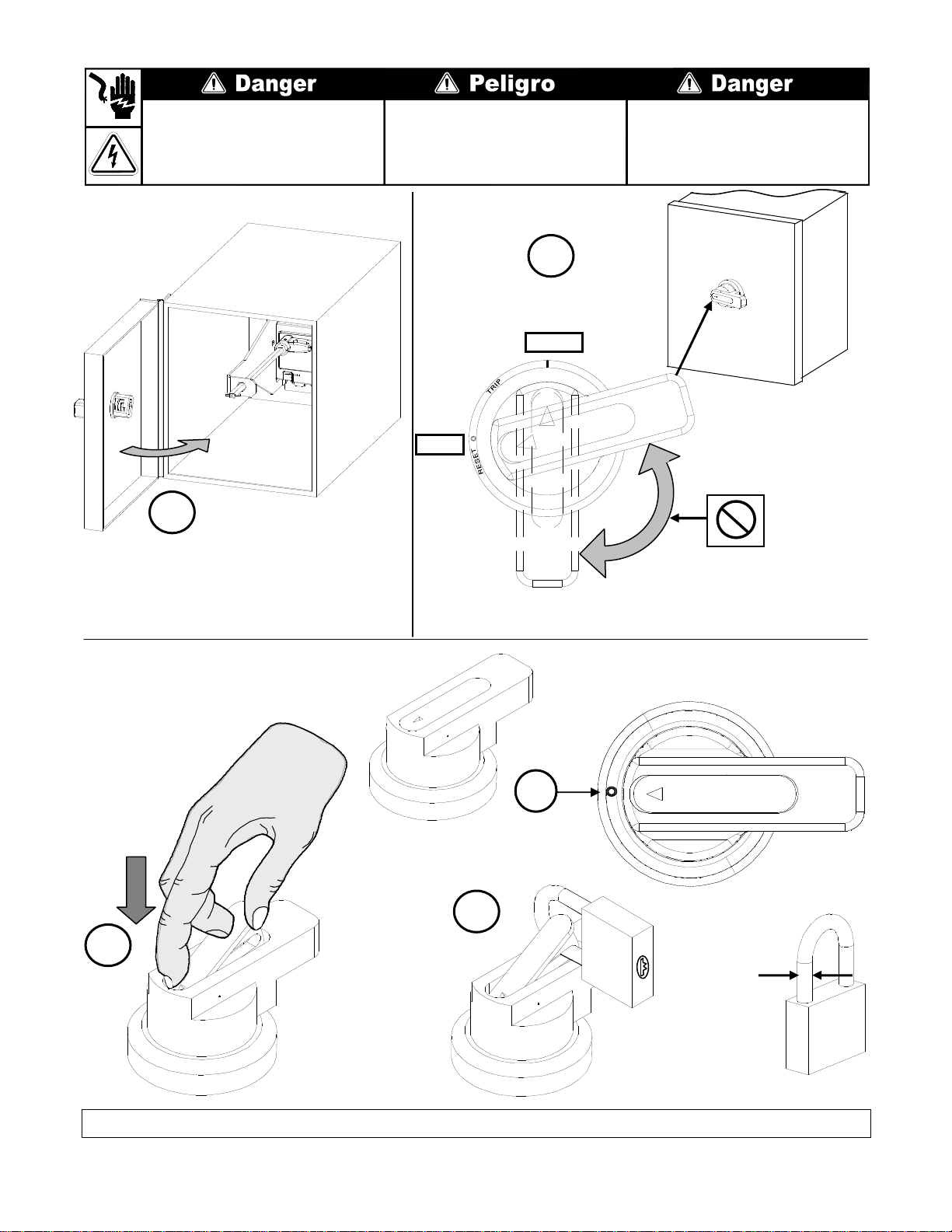

If no full motion,

call Customer Support

[ Si no hay movimiento completo,

llame a servicio de cliente. ]

Option

[ Opción ]

Customer supplied sealing wire.

[ Alambre del lacre provisto por cliente. ]

7a 7b

1.5”

MAX

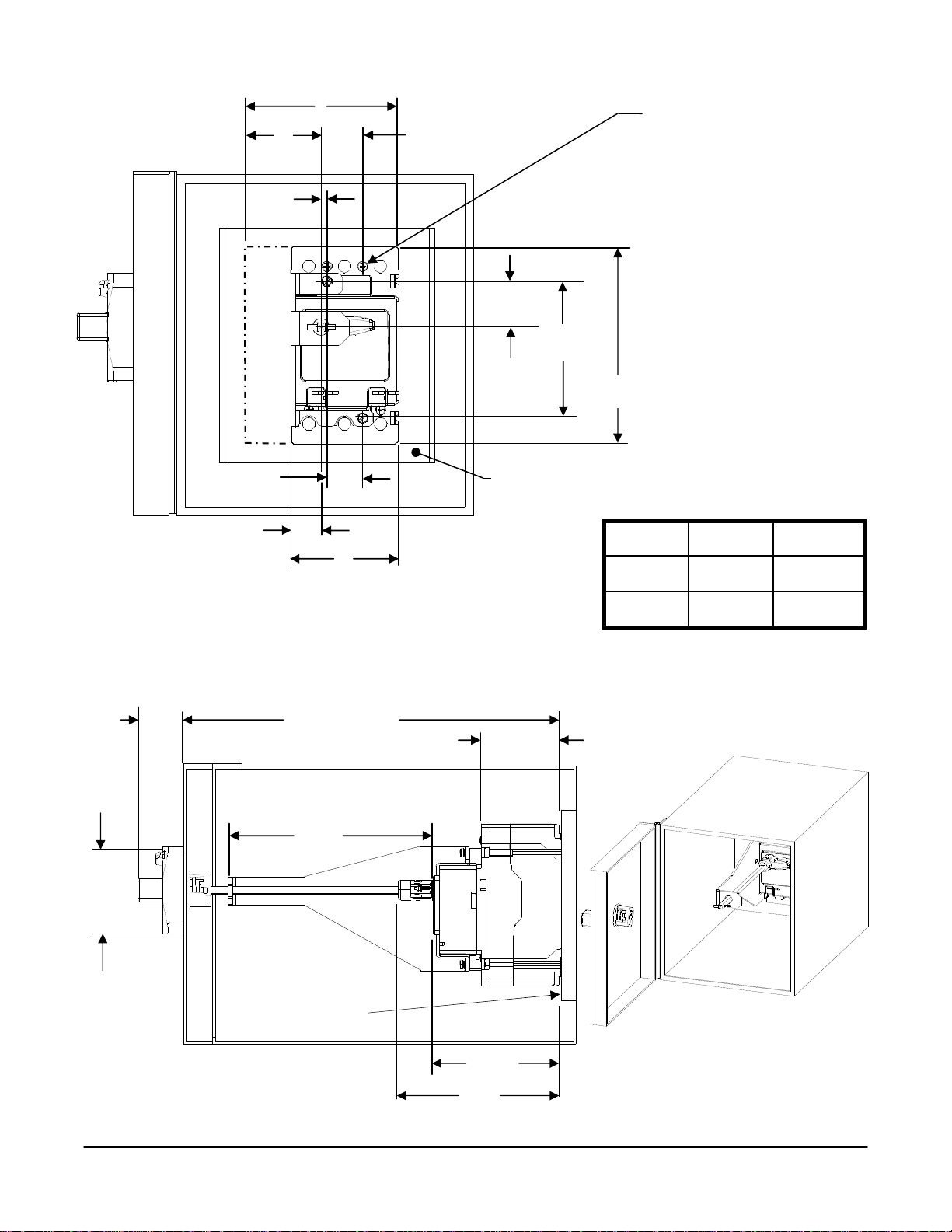

FOR MOUNTING THREE POLE

BREAKER.

DRILL AND TAP FOUR M4 X .7 DEEP

HOLES INTO THE MOUNTING PLATE

FOR MOUNTING FOUR POLE BREAKER.

DRILL AND TAP SIX M4 X .7 DEEP

HOLES INTO THE MOUNTING PLATE

[ PARA MONTURA DE INTERRUPTOR DE

3 POLOS.

TALADRE Y HAGA ROSCA DE M4 X .7 A

CUATRO AGUJEROS EN LA PLACA DE

MONTAJE PARA MONTURA DE

INTERRUPTOR DE 4 POLOS.

TALADRE Y HAGA ROSCA DE M4 X .7 A

SEIS AGUJEROS EN LA PLACA DE

MONTAJE. ]

4 Pole

[ 4 Polos ]

3 Pole

[ 3 Polos ]

“B”

“A”

Breaker

[ Interruptor ]

4.00”

[ 101.6 mm ]

.85”

[ 21.59 mm ]

1.85”

[ 47 mm ]

3.00”

[ 76.2 mm ]

4 / 7

807908A02

Mounting Plate

[ Placa de Montaje ]

.16”

[ 4.06 ]

1.28”

[ 32.51 ]

1.00”

[ 25.4 ]

3.81”

[ 96.77 ]

5.50”

[ 139.7 ]

1.00”

[ 25.4 ]

Mounting Plate

[ Placa de Montaje ]

LINE

[ LINEA ]

LOAD

[ CARGA ]

5.62”

[ 142.75 ]

“D” See Step 8

[ “D” Ver Paso 8 ]

4.40”

[ 111.76 ]

2.77”

[ 70.36 ]

1.57”

[ 39.88 ]

3.00”

[ 76.2 ]

7.05

[ 179.07 ]

5 / 7

807908A02

Insert shaft.

Make sure pins are parallel to the handle.

[ Inserte el Eje.

Cerciórese de que lospernos estan

parallel la manija ]

Front of Panel Cover

[ Vista Frontal de Tapa]

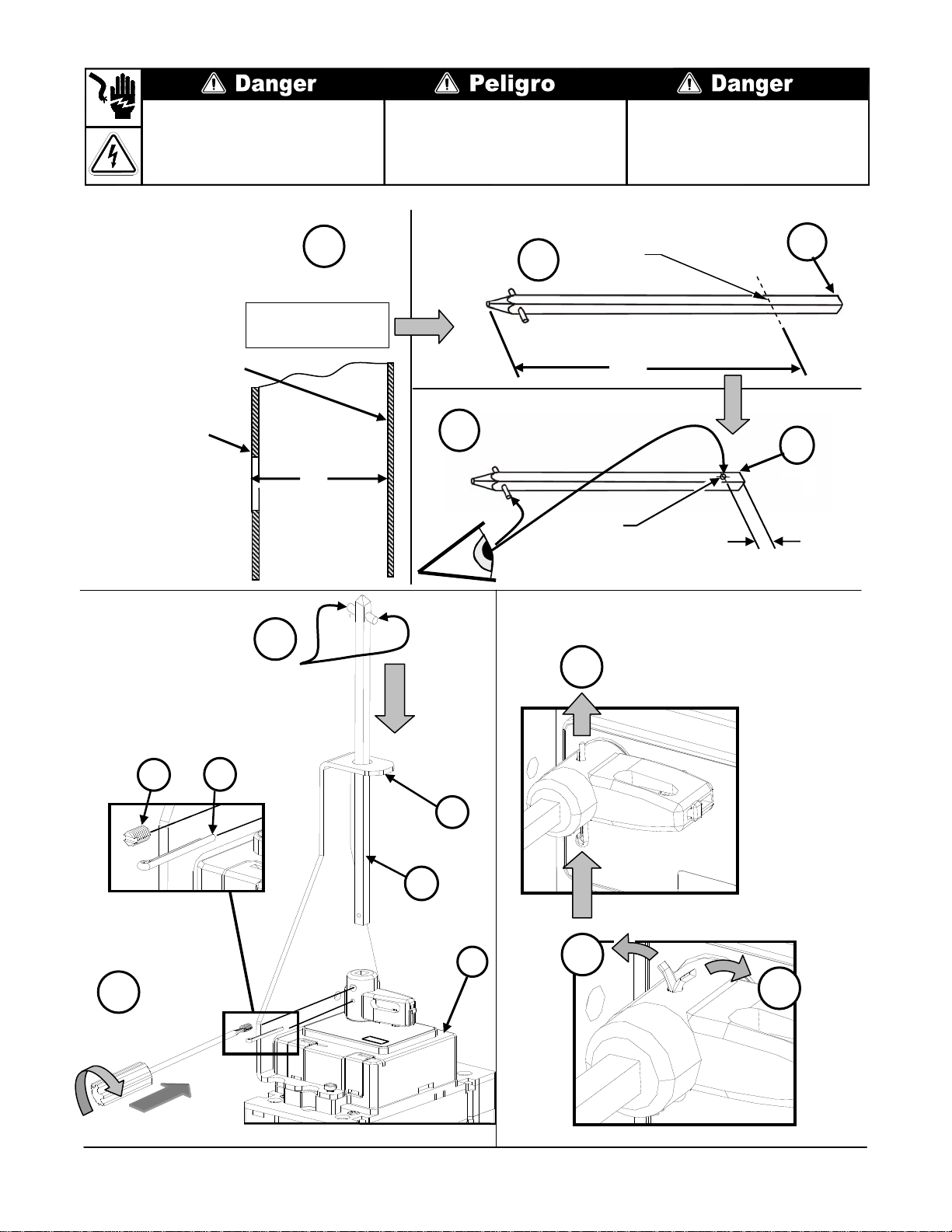

Cut shaft to length.

[ Corte el Eje a este largo. ]

8Enclosure Shaft Modification

[ Modificación del Eje del Cajón ]

Breaker Mounting Plate

[ Placa de Montaje Interruptor ]

L = D – 3.65”

[ L = D – 93 mm ]

Measurement

[ Medida ]

Cut here

[ Corte aquí ]

Drill hole in shaft.

[ Taladre agujero en Eje. ]

Ø.110”

[ 2.8 mm ] .25”

[ 6.4 mm ]

45-55 lb. in.

[ 5.1 – 6.2 Nm ]

Turn off and lock out all power supplying this device before

working on this device.

Replace all covers before power supplying this deviceis

turned on.

Couper l'alimentation de l'appareil et barrer avant de

travailler.

Remplacez touts les couverts avant que

l'approvisionnement depouvoir soit alimenté.

Tensión peligrosa.

Puede causar la muerte o lesiones graves. Tension dangereuse.

Danger de mort ou risque de blessures graves.

Hazardous Voltage.

Will cause death or serious injury.

Desenergice totalmente antes de instalar o darle servicio.

Reemplace todas las barreras y cubiertas antes de

energizar el interruptor.

Turn off and lock out all power supplying this device before

working on this device.

Replace all covers before power supplying this deviceis

turned on.

Couper l'alimentation de l'appareil et barrer avant de

travailler.

Remplacez touts les couverts avant que

l'approvisionnement depouvoir soit alimenté.

Tensión peligrosa.

Puede causar la muerte o lesiones graves. Tension dangereuse.

Danger de mort ou risque de blessures graves.

Hazardous Voltage.

Will cause death or serious injury.

Desenergice totalmente antes de instalar o darle servicio.

Reemplace todas las barreras y cubiertas antes de

energizar el interruptor.

Insert cotter pin through handle and shaft

[ Inserte chaveta a través de la manija y eje ]

10a

10b

10c

6 / 7

807908A02

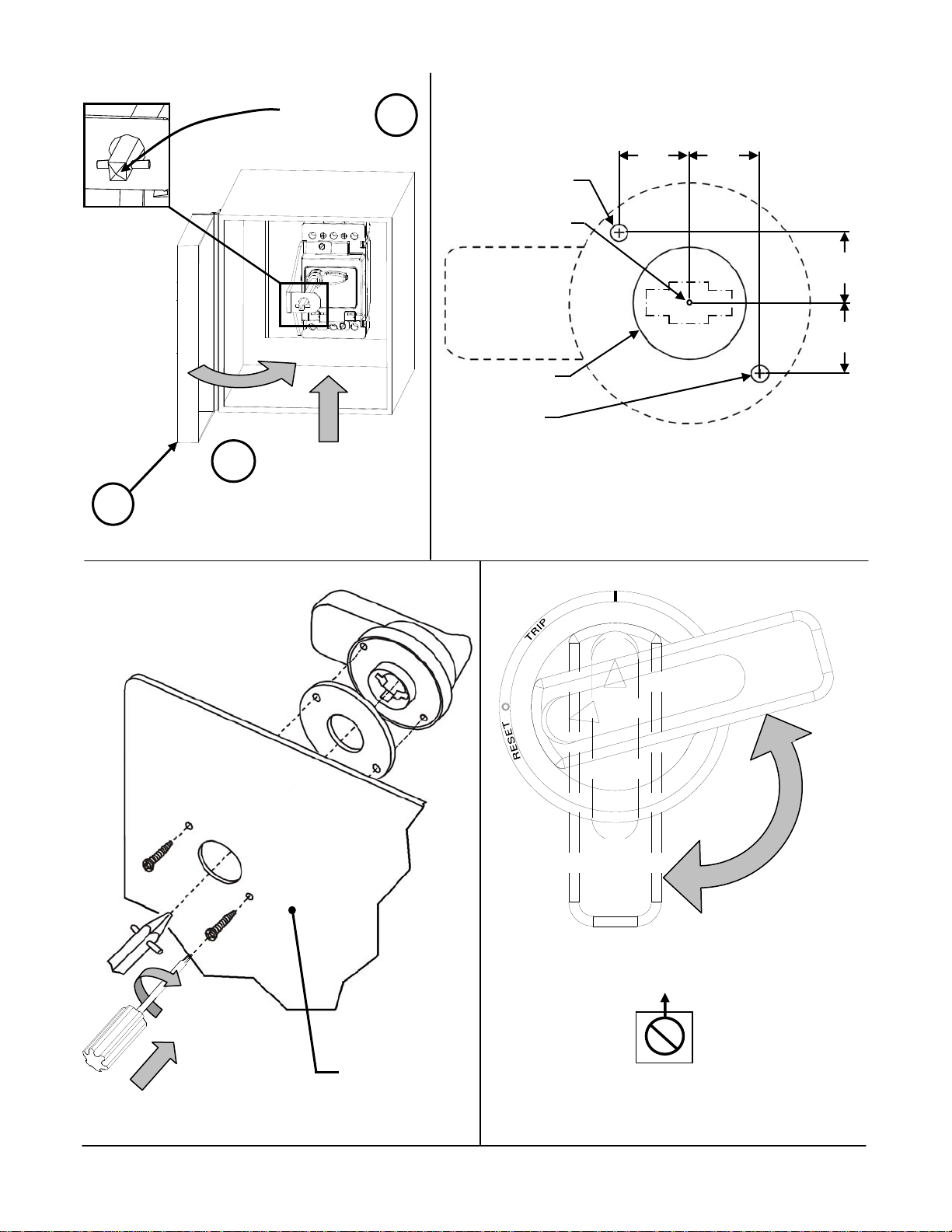

Test for full range of motion

[ Pruebe la gama completa de movimiento ]

2 X

10-13 lb. in.

[ 1.1-1.5 Nm ]

Inside of door

[ Interior de la puerta ]

Viewed from inside of cover.

[ Vista desde el interior de la

cubierta. ]

Ø.188”

[ 5 mm ]

Ø1.375”

[ 35 mm ]

Transferred paint mark

[ Marca de pintura

transferida ]

0.75”

[ 19mm ]

Ø.188”

[ 5 mm ]

0.75”

[ 19mm ]

0.75”

[ 19mm ]

0.75”

[ 19mm ]

Apply paint.

[ Aplique pintura ]

Place enclosure upright

[ Posicione el Cajón parado ]

Close door and transfer paint to inside of door

[ Cierre la puerta y transfiera la pintura al interior de la puerta ]

10c

10a

10b

If no full motion,

call Customer Support

[ Si no hay movimiento completo,

llame a servicio de cliente. ]

Option

[ Opción ]

15c

15a

15b

TRIP

RESET

Subject to change without prior notice © Siemens Industry, Inc. 2010

Siemens Industry, Inc. , Norcross, GA 30092 U.S.A. 7 / 7

Technical Support: Toll Free: 1-800-241-4453 Internet: www.usa.siemens.com/powerdistribution

IL01219051EH03

807908A02

14a

Ø .188 - .340”

[ Ø 4.78 - 8.63 ]

If no full motion,

call Customer Support

[ Si no hay movimiento completo,

llame a servicio de cliente. ]

14b

O / OFF

I / ON

Test for full range of motion

[ Pruebe la gama completa de movimiento ]

Turn off and lock out all power supplying this device before

working on this device.

Replace all covers before power supplying this deviceis

turned on.

Couper l'alimentation de l'appareil et barrer avant de

travailler.

Remplacez touts les couverts avant que

l'approvisionnement depouvoir soit alimenté.

Tensión peligrosa.

Puede causar la muerte o lesiones graves. Tension dangereuse.

Danger de mort ou risque de blessures graves.

Hazardous Voltage.

Will cause death or serious injury.

Desenergice totalmente antes de instalar o darle servicio.

Reemplace todas las barreras y cubiertas antes de

energizar el interruptor.

Turn off and lock out all power supplying this device before

working on this device.

Replace all covers before power supplying this deviceis

turned on.

Couper l'alimentation de l'appareil et barrer avant de

travailler.

Remplacez touts les couverts avant que

l'approvisionnement depouvoir soit alimenté.

Tensión peligrosa.

Puede causar la muerte o lesiones graves. Tension dangereuse.

Danger de mort ou risque de blessures graves.

Hazardous Voltage.

Will cause death or serious injury.

Desenergice totalmente antes de instalar o darle servicio.

Reemplace todas las barreras y cubiertas antes de

energizar el interruptor.

This manual suits for next models

Other Siemens Industrial Electrical manuals

Siemens

Siemens E87010-A0104-T003-A6-CLM0 Assembly instructions

Siemens

Siemens SIRIUS 3RT1.3 User manual

Siemens

Siemens 3VA9157-0PK11 User manual

Siemens

Siemens SENTRON VL 3VL94-7D Series User manual

Siemens

Siemens 3RV1952-1E Series User manual

Siemens

Siemens 3VL9550-6CP30 User manual

Siemens

Siemens SIRIUS 3RF24 AB Series User manual

Siemens

Siemens 3TF68 Q Series User manual

Siemens

Siemens 3AD Series User manual

Siemens

Siemens MICROMASTER 430 Operating and maintenance instructions

Siemens

Siemens RCD110 User manual

Siemens

Siemens 3VL9300-8CE00 User manual

Siemens

Siemens SIRIUS 3RA232 8 Series User manual

Siemens

Siemens 3VA94-0KP00 Series User manual

Siemens

Siemens SIVACON 8PS BD2 Series User manual

Siemens

Siemens SIRIUS 3RA1.5 User manual

Siemens

Siemens SG-3118 Owner's manual

Siemens

Siemens ASC9.8 Guide

Siemens

Siemens 3VA9.70-0WC00 User manual

Siemens

Siemens SIMATIC NET RUGGEDCOM RX1536 Technical Document

Siemens

Siemens RAJA+ 3TE7421 Guide

Siemens

Siemens TA6PG750 User manual

Siemens

Siemens 3VA9111-0WJ 0 Series User manual

Siemens

Siemens SIRIUS 3RA243-8X 32-1 Series User manual

Popular Industrial Electrical manuals by other brands

Rexroth Indramat

Rexroth Indramat DURADRIVE SYSTEM200 Project planning manual

Abtech

Abtech HVJB Series Installation, operation & maintenance instructions

Murata

Murata GRM0335C1H8R1DA01 Series Reference sheet

SAF-HOLLAND

SAF-HOLLAND CBX 5415.5 Installation and operation manual

Eaton

Eaton Ulusoy HMH24-04 user manual

Newlong

Newlong NP-7H NSTRUCTION MANUAL/PARTS LIST

Murata

Murata GJM0335C1E4R4BB01 Series Reference sheet

Stahl

Stahl 8575/12 operating instructions

SI Pegasus installation instructions

Murata

Murata GRM1555C1H2R7CA01 Seies Reference sheet

Murata

Murata GRM0225C1E6R4BA03 Series Reference sheet

Cooper Power Systems

Cooper Power Systems VXE15 Installation and operation instructions

S&C

S&C Vista SD manual

Murata

Murata GRM0335C2A7R3CA01 Series Reference sheet

Murata

Murata GRM32ER60G227ME05 Series Reference sheet

Rockwell Automation

Rockwell Automation Allen-Bradley MP-Series installation instructions

Phasemation

Phasemation DG-100 owner's manual

Murata

Murata GRM219R61C225KA88 Series Reference sheet
