Siemens 12CLN500 User manual

806856A03

Compression Lugs

Bornes de Compresión

Crochets De Compression

1 / 4

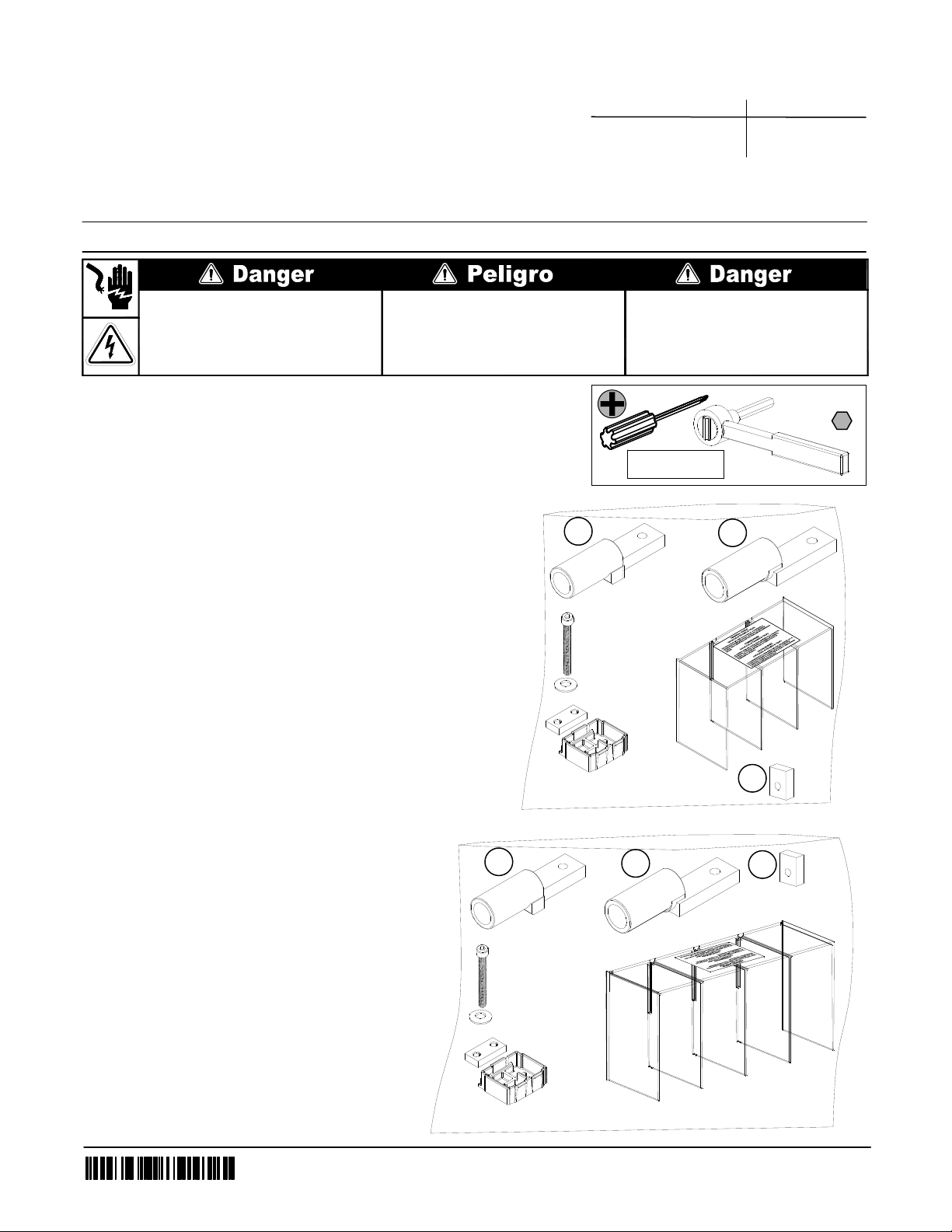

Installation Instructions / Instructivo de Instalación

Use only with Siemens certified Components.

Utilizar únicamente con componentes certificados de Siemens.

A utiliser uniquement avec les composants certifiés Siemens.

Turn off and lock out all power supplying this device before

working on this device.

Replace allcovers before power supplyingthis deviceis

turned on.

Couper l'alimentation de l'appareil et barrer avant de

travailler.

Remplacez touts les couverts avant que

l'approvisionnement de pouvoirsoit alimenté.

Tensión peligrosa.

Puede causar la muerte o lesiones graves. Tension dangereuse.

Danger de mort ou risque de blessures graves.

Hazardous Voltage.

Will cause death or serious injury.

Desenergice totalmente antes de instalar o darle servicio.

Reemplace todas las barreras y cubiertas antes de

energizar el interruptor.

Turn off and lock out all power supplying this device before

working on this device.

Replace allcovers before power supplyingthis deviceis

turned on.

Couper l'alimentation de l'appareil et barrer avant de

travailler.

Remplacez touts les couverts avant que

l'approvisionnement de pouvoirsoit alimenté.

Tensión peligrosa.

Puede causar la muerte o lesiones graves. Tension dangereuse.

Danger de mort ou risque de blessures graves.

Hazardous Voltage.

Will cause death or serious injury.

Desenergice totalmente antes de instalar o darle servicio.

Reemplace todas las barreras y cubiertas antes de

energizar el interruptor.

Item: 12CLN500 3VL9750-4TM31

16CLN500 3VL9750-4TM41

For Use With Frame NG

Para Usar Con Caja Base NG

U.S. Cat. No. Euro Order No.

I.L. No. 806856A03

1/4“

Cal. ISO 6789

12CLN500 / 3VL9750-4TM31

-6X

-3X

-6X

6 X 5/16”-18 X 2.25”

-6X

16CLN500 / 3VL9750-4TM41

-8X

a-8X

-4X

-8X

8 X 5/16”-18 X 2.25”

-8X

NOTE - These instructions do not purport to cover

all details or variations in equipment, or to provide

for every possible contingency to be met in

connection with installation, operation or maintenance.

Should further information be desired or

should particular problems arise, which are not

covered sufficiently for the purchaser’s purposes,

the matter should be referred to the local Siemens

sales office. The contents of this instruction

manual shall not become part of or modify any

prior or existing agreement, commitment or

relationship. The sales contract contains the entire

obligation of Siemens. The warranty contained in

the contract between the parties is the sole

warranty of Siemens. Any statements contained

herein do not create new warranties or modify the

existing warranty.

Trademarks - Unless otherwise noted, all names

identified by ® are registered trademarks of

Siemens AG or Siemens Industry, Inc.

The remaining trademarks in this publication may

be trademarks whose use by third parties for their

own purposes could violate the rights of the owner.

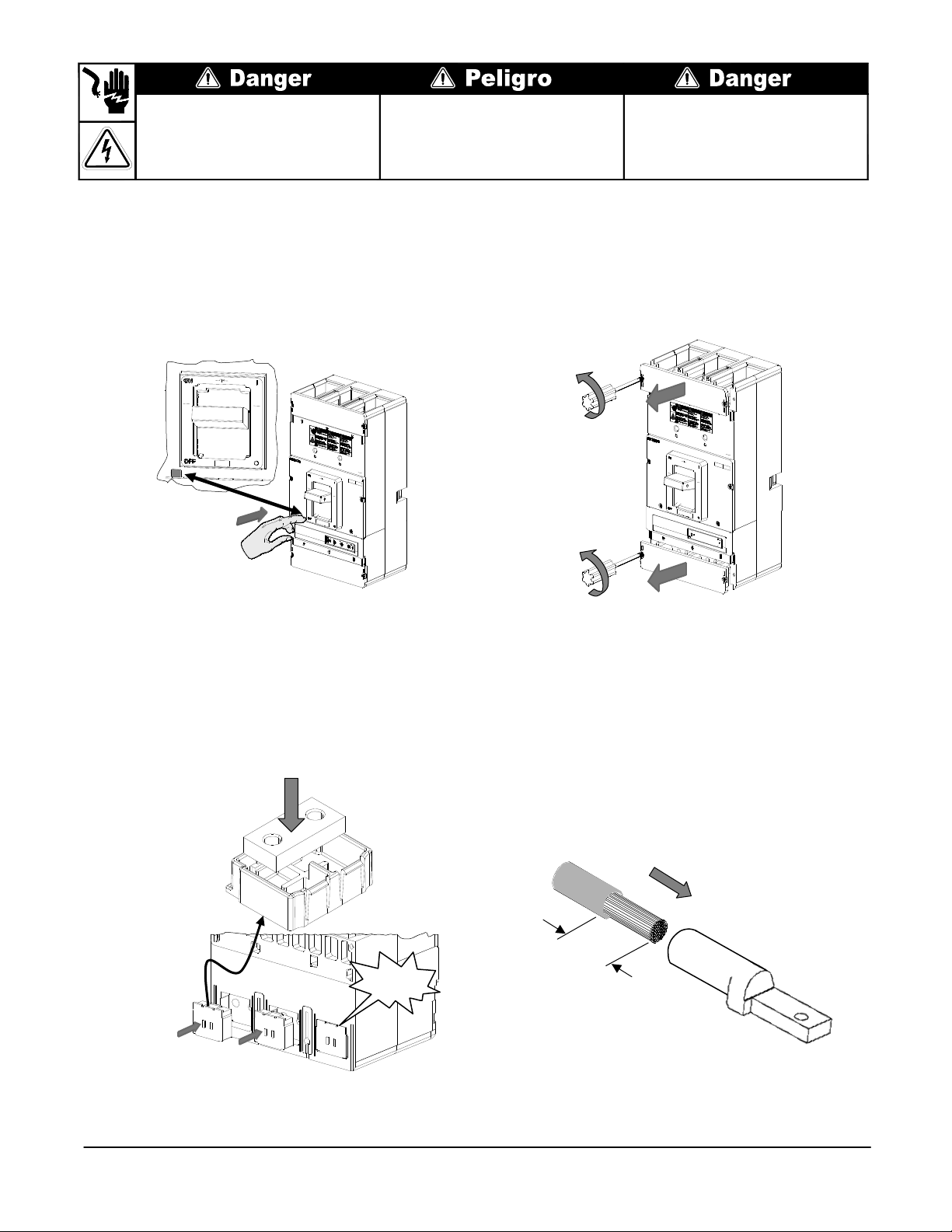

clic

Trip

[ Interrumpir ]

Turn off and lock out all power supplying this device before

working on this device.

Replace allcovers before power supplying this device is

turned on.

Couper l'alimentation de l'appareil et barrer avant de

travailler.

Remplacez touts les couverts avant que

l'approvisionnement depouvoir soit alimenté.

Tensión peligrosa.

Puede causar la muerte o lesiones graves. Tension dangereuse.

Dangerde mort ou risque de blessures graves.

Hazardous Voltage.

Will cause death or serious injury.

Desenergice totalmente antes de instalar o darle servicio.

Reemplace todas las barreras y cubiertas antes de

energizar el interruptor.

Turn off and lock out all power supplying this device before

working on this device.

Replace allcovers before power supplying this device is

turned on.

Couper l'alimentation de l'appareil et barrer avant de

travailler.

Remplacez touts les couverts avant que

l'approvisionnement depouvoir soit alimenté.

Tensión peligrosa.

Puede causar la muerte o lesiones graves. Tension dangereuse.

Dangerde mort ou risque de blessures graves.

Hazardous Voltage.

Will cause death or serious injury.

Desenergice totalmente antes de instalar o darle servicio.

Reemplace todas las barreras y cubiertas antes de

energizar el interruptor.

1.8”

[ 46mm ]

2 / 4 806856A03

3 / 4

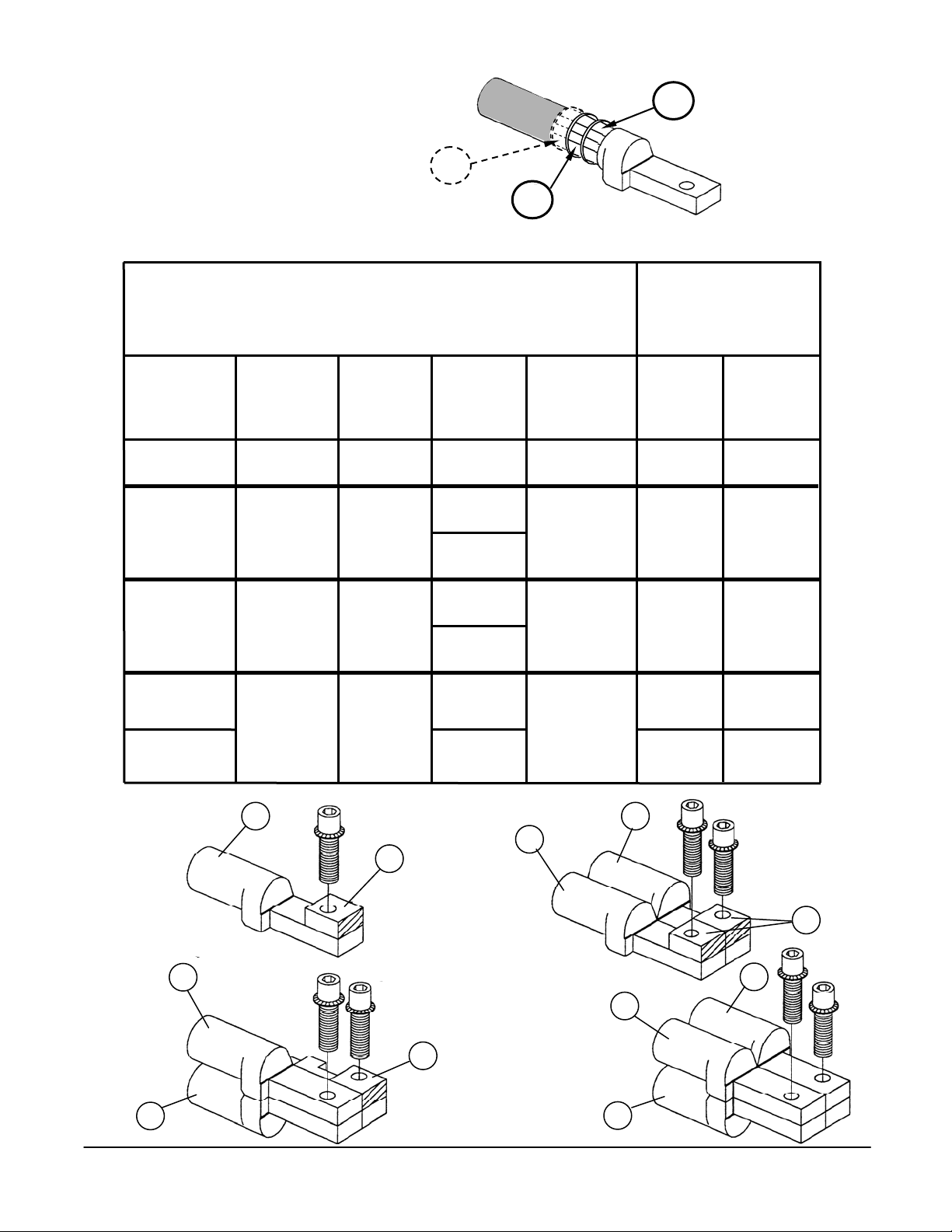

Compression Tool and Die chart for copper and aluminum

conductors

[ Tabla de herramienta y molde para conductores de aluminio y

cobre ]

No. of Crimps

[ Cantidad de

Compressiones ]

500 kcmil

Tool Mfg.

[ Suplidor de

Herramienta ]

Tool No.

[ Número de

Herramienta ]

Die No.

[ Torquel

Número de ]

Wire Size

[ Rango Cable ]

500 kcmil

Hubbell –

Anderson

250 – 500 kcmil

[ 125 – 240 mm² ]

500 kcmil

Y - 35

Burndy

Kearny

Homac

WH - 2

VC-6-3

VC6-FT ----------

UT - 15

316

1 1/8 - 2

94, 96

1 1/2 - 1

655, 321

----------

UL 486A - 486B

Req. Wire Stranding

( Cable )

Class

CU / AL

Class

1/0 – 4/0 kcmil

[ 70 – 95 mm² ]

6137

3719

6137

806856A03

Option: 2

[ Opción: ]

Option: 3

[ Opción: ]

Option: 1

[ Opción: ]

Option: 4

[ Opción: ]

5 No. of Crimps [ Cantidad de Compressiones ]

See table

[ Ver tabla ]

4 / 4 806856A03

4 X

11 lb. in.

[ 1.2 Nm ]

Turn off and lock out all power supplying this device before

working on this device.

Replace allcovers before power supplying this device is

turned on.

Couper l'alimentation de l'appareil et barrer avant de

travailler.

Remplacez touts les couverts avant que

l'approvisionnement depouvoir soit alimenté.

Tensión peligrosa.

Puede causar la muerte o lesiones graves. Tension dangereuse.

Dangerde mort ou risque de blessures graves.

Hazardous Voltage.

Will cause death or serious injury.

Desenergice totalmente antes de instalar o darle servicio.

Reemplace todas las barreras y cubiertas antes de

energizar el interruptor.

Turn off and lock out all power supplying this device before

working on this device.

Replace allcovers before power supplying this device is

turned on.

Couper l'alimentation de l'appareil et barrer avant de

travailler.

Remplacez touts les couverts avant que

l'approvisionnement depouvoir soit alimenté.

Tensión peligrosa.

Puede causar la muerte o lesiones graves. Tension dangereuse.

Dangerde mort ou risque de blessures graves.

Hazardous Voltage.

Will cause death or serious injury.

Desenergice totalmente antes de instalar o darle servicio.

Reemplace todas las barreras y cubiertas antes de

energizar el interruptor.

For Support in Europe refer to :

Bestell-Nr. / Order No.: 3ZX1012-0VL68-3AA6 Internet: www.siemens.de/lowvoltage/technical-assistance GWA 4NEB 179 6856-10 DS 04

6 X

1/4“

228 lb. In.

[ 25.8 Nm ]

]

Subject to change without prior notice © Siemens Industry Inc. 2010

Siemens Industry, Inc. , Norcross, GA 30092 U.S.A.

Technical Support: Toll Free: 1-800-241-4453 Internet: www.usa.siemens.com/powerdistribution
