SIC SIC4340 User manual

USER MANUAL

SIC4340

Development Kit

Rev 1.0 (Dec 2020)

This document describes how to get start with

SIC4340 Development kit board.

Revision History

SIC4340 USER MANUAL

SIC4340 Development Kit

PROPRIETARY AND CONFIDENTIAL

USER MANUAL SIC4340

DEC, 2020

V1.0

Revision History

Revision

Date

Software

Version

Description

1.0

December 2020

1.0.2

1st Release

The information herein is for product information purposes. While the contents in this

publication have been carefully checked; no responsibility, however, is assumed for

inaccuracies. Silicon Craft Technology PLC. reserves the right to make changes to the products

contained in this publication to improve design, performance, or reliability.

Contents

SIC4340 USER MANUAL

SIC4340 Development Kit

PROPRIETARY AND CONFIDENTIAL

USER MANUAL SIC4340

DEC, 2020

V1.0

Contents

SIC4340 Development Kit................................................................................................................................................ 1

Revision History................................................................................................................................................................... 2

Contents................................................................................................................................................................................. 3

List of Figures....................................................................................................................................................................... 4

1. Introduction ..................................................................................................................................................................... 5

2. Instruments ...................................................................................................................................................................... 5

3. Installation ........................................................................................................................................................................ 6

3.1 Installation on Android..................................................................................................................................................6

3.2 Installation on IOS ...........................................................................................................................................................7

4. Application Demonstration ......................................................................................................................................... 8

4.1 Setting ..................................................................................................................................................................................8

4.2 NFC Communication.......................................................................................................................................................9

4.3 Result Display ..................................................................................................................................................................12

4.4 Blank NDEF setting........................................................................................................................................................13

5. Legal Information .........................................................................................................................................................14

5.1 Disclaimer..........................................................................................................................................................................14

List of Figures

SIC4340 USER MANUAL

SIC4340 Development Kit

PROPRIETARY AND CONFIDENTIAL

USER MANUAL SIC4340

DEC, 2020

V1.0

List of Figures

Figure 1: Detail of SIC4340 development kit board.........................................................................5

Figure 2: SIC4340 Tools app on Google Play Store..........................................................................6

Figure 3: SIC4340 Tools APP on IOS App Store................................................................................7

Figure 4: Setting page of SIC4340 Tools ...........................................................................................8

Figure 5: Bias current setting...............................................................................................................9

Figure 6: tap on 'PROCESS' to start NFC session..............................................................................9

Figure 7: Tap a tag status ..................................................................................................................10

Figure 8: Success status .....................................................................................................................10

Figure 9: Error status ..........................................................................................................................11

Figure 10: Result page .......................................................................................................................12

Figure 11: Write Blank NDEF feature................................................................................................13

Introduction and Instruments

SIC4340 USER MANUAL

SIC4340 Development Kit

PROPRIETARY AND CONFIDENTIAL

USER MANUAL SIC4340

DEC, 2020

V1.0

1. Introduction

SIC4340 is NFC tag type 2 with built-in ADC for physical sensor measurement for 3-

channels selectable. These built-in ADC can drive the current from 1µA to 504µA and measure

the electrical value (e.g. voltage, resistance, and capacitance). The measured value is provided

with 10-bit resolution. SIC4340 Development kit board with SIC4340 Tools application is

developed to help the user learn how to use SIC4340 features with many sensors such as light

sensor, gas sensor or temperature sensor. In the app, the user can set the bias current for each

channel and measure the result from SIC4340 IC. The voltage and resistance result will be

displayed on the app after measurement.

Silicon Craft Technology PLC. (SIC) creates this document to describe how to get start

with SIC4340 development kit board and how to install and use SIC4340 Tools application on

both Android and IOS platform.

2. Instruments

To get start with SIC4340 development kit board, there are some instruments

required as below.

1. NFC mobile which can be a. or b.

a. Android mobile with Android operation version 4.1 (Jelly Bean) or above.

b. iPhone with IOS13 or above.

2. SIC4340 Development kit board as Figure 1

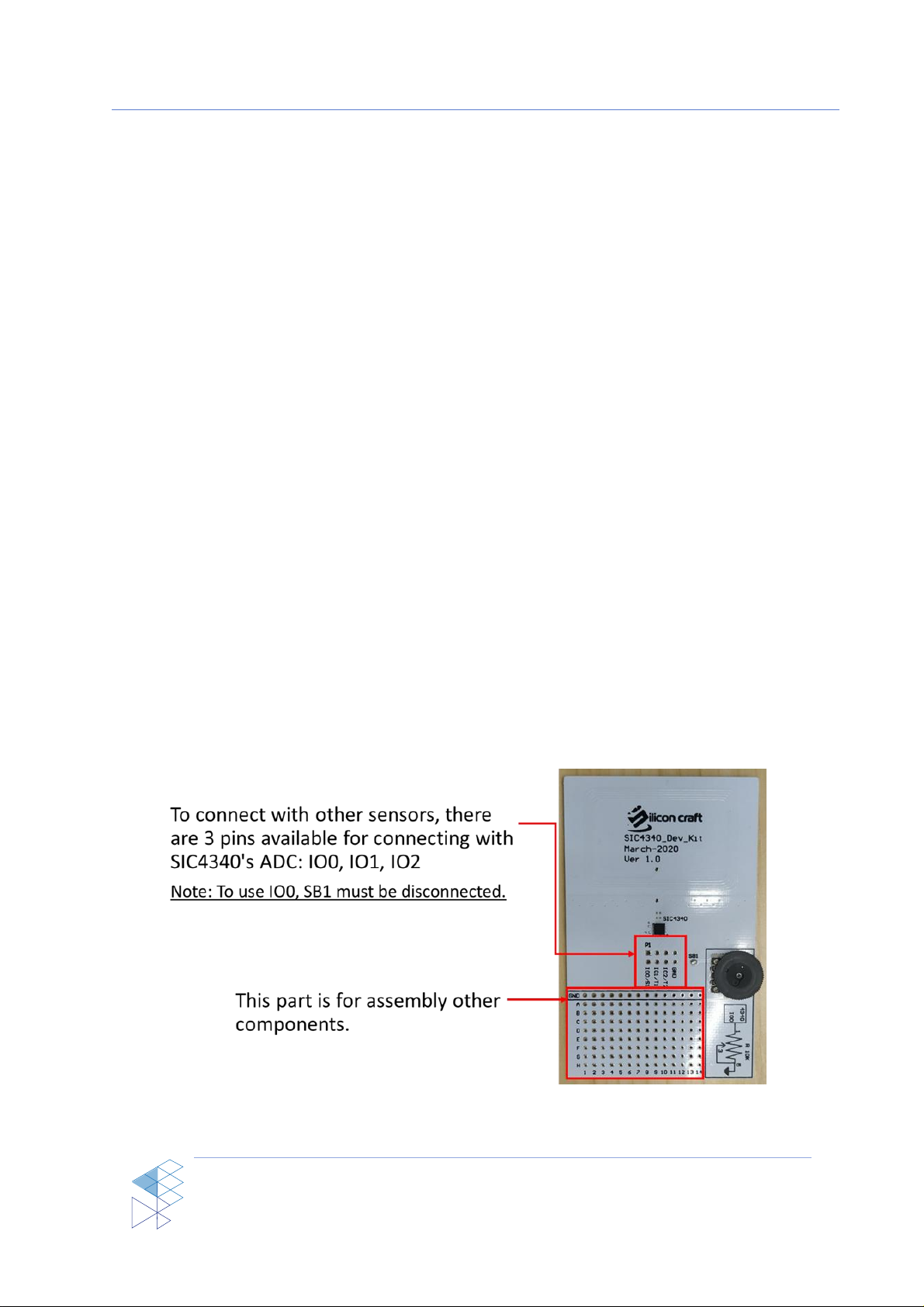

Figure 1: Detail of SIC4340 development kit board

Installation

SIC4340 USER MANUAL

SIC4340 Development Kit

PROPRIETARY AND CONFIDENTIAL

USER MANUAL SIC4340

DEC, 2020

V1.0

3. Installation

There are SIC4340 Tools application available on both Android and IOS Platform.

3.1 Installation on Android

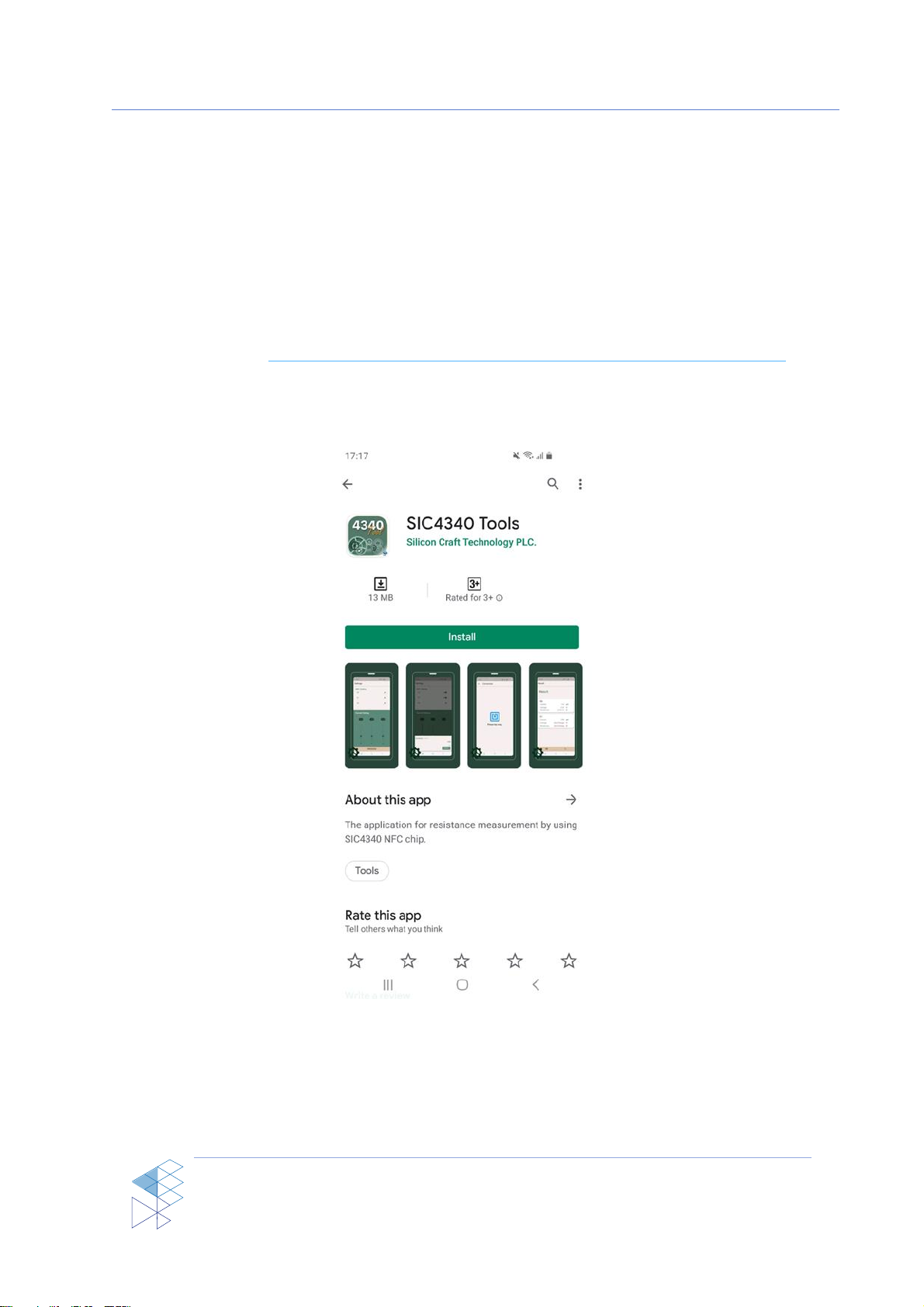

For SIC4340 Tools application on Android. It can be downloaded and installed from

Google Store link: https://play.google.com/store/apps/details?id=com.sic.sic4340rmeas or

search for ‘SIC4340 Tools’ in Google Play Store.

Figure 2: SIC4340 Tools app on Google Play Store

Installation

SIC4340 USER MANUAL

SIC4340 Development Kit

PROPRIETARY AND CONFIDENTIAL

USER MANUAL SIC4340

DEC, 2020

V1.0

3.2 Installation on IOS

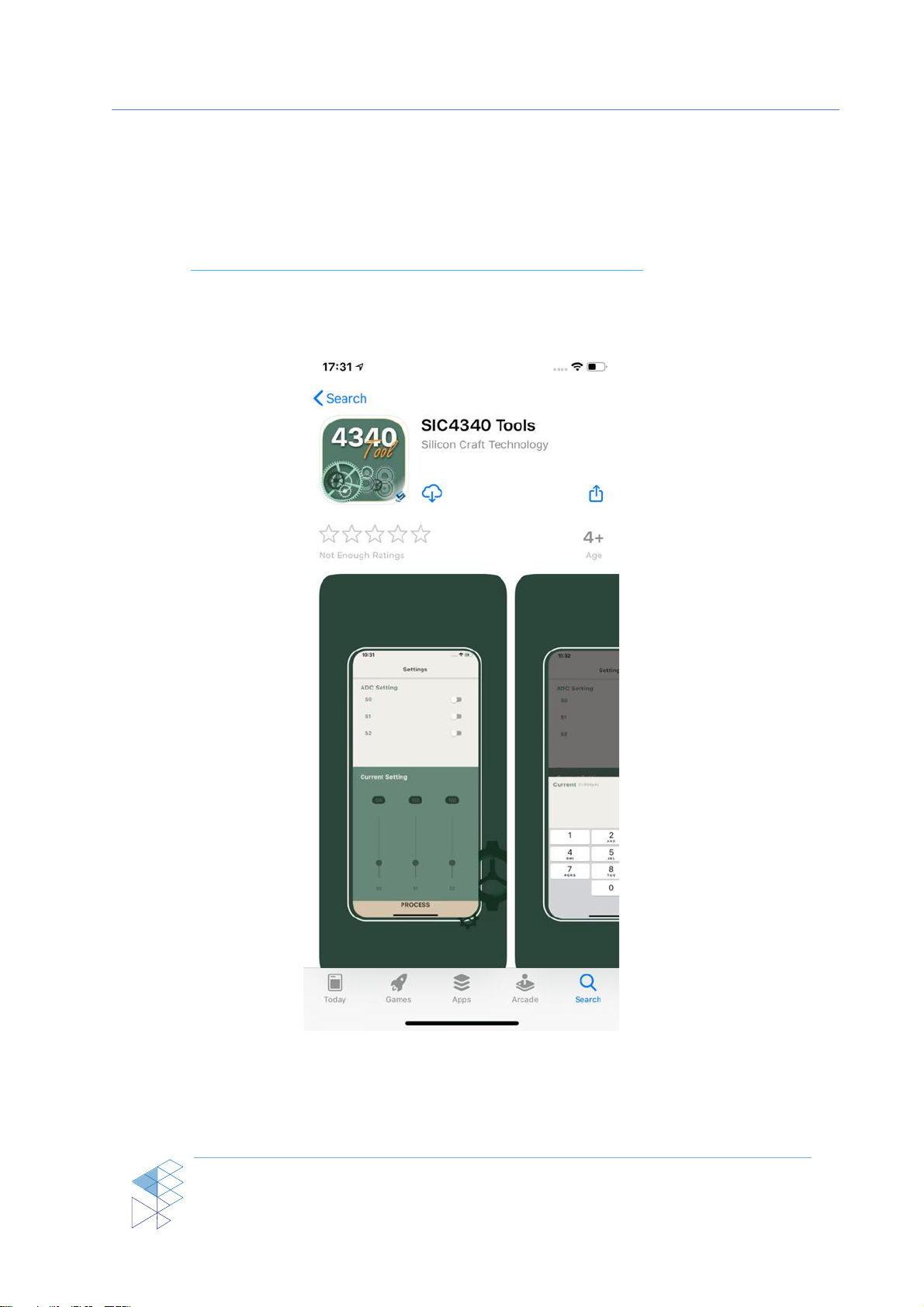

For SIC4340 Tools application on IOS, It can be downloaded and installed from App

Store link: https://apps.apple.com/us/app/sic4340-tools/id1518973827 or search for ‘SIC4340

Tools’ in IOS App Store.

Figure 3: SIC4340 Tools APP on IOS App Store

Application Demonstration

SIC4340 USER MANUAL

SIC4340 Development Kit

PROPRIETARY AND CONFIDENTIAL

USER MANUAL SIC4340

DEC, 2020

V1.0

4. Application Demonstration

This part demonstrates how to use SIC4340 Development kit board with SIC4340 Tools

application. The content in this part includes setting, NFC communication, result display, and

blank NDEF setting.

4.1 Setting

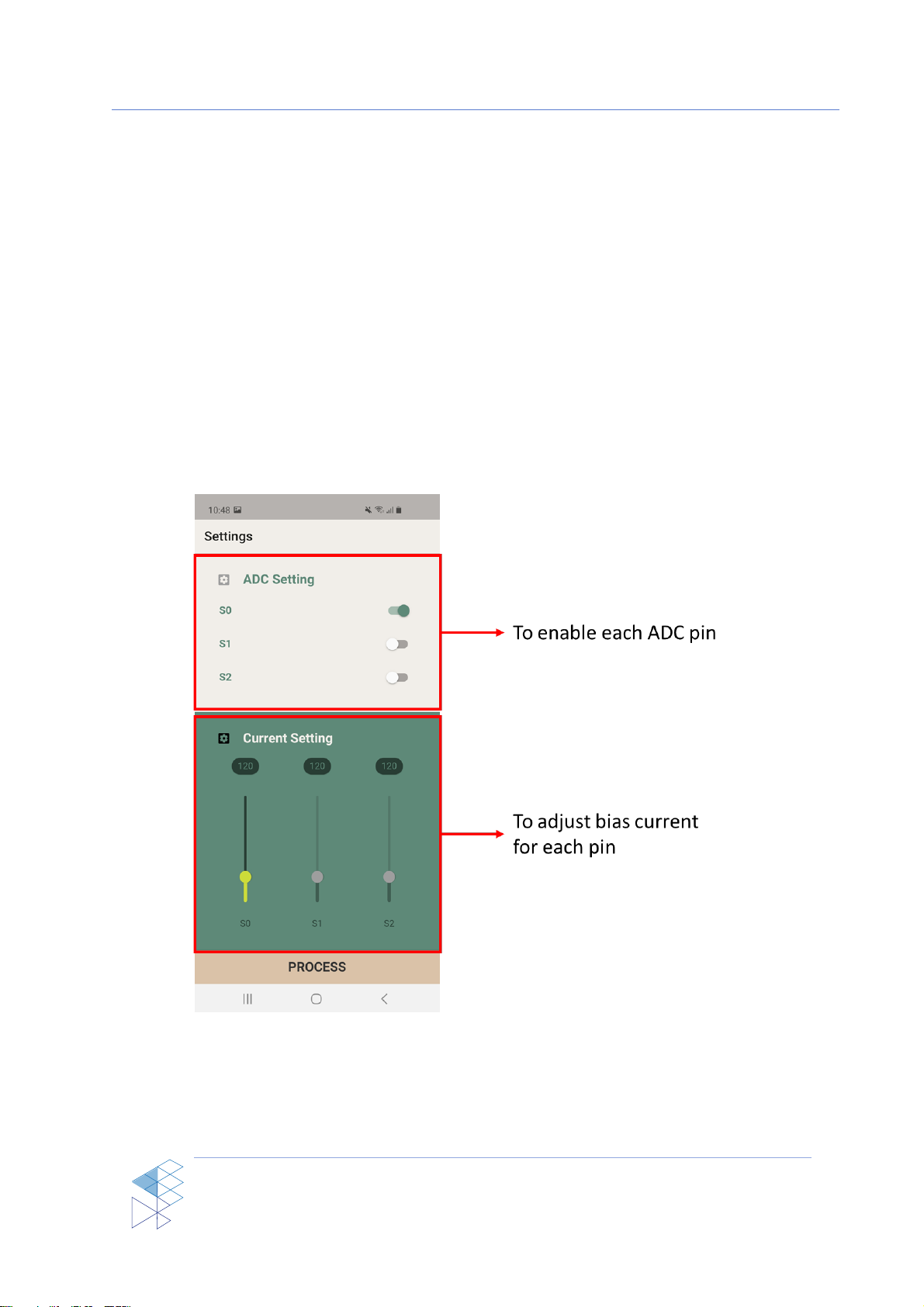

In the setting page of SIC4340 Tools, user can enable or disable each pin and set the

bias current separately for each pin as shown in Figure 4

Figure 4: Setting page of SIC4340 Tools

Application Demonstration

SIC4340 USER MANUAL

SIC4340 Development Kit

PROPRIETARY AND CONFIDENTIAL

USER MANUAL SIC4340

DEC, 2020

V1.0

The bias current can be set from slider bar or click the value on the top of slider bar to

manually type the value as shown in Figure 5

Figure 5: Bias current setting

4.2 NFC Communication

After finished the setting, push ‘PROCESS’ button to start the NFC session as shown in

Figure 6

Figure 6: tap on 'PROCESS' to start NFC session

Application Demonstration

SIC4340 USER MANUAL

SIC4340 Development Kit

PROPRIETARY AND CONFIDENTIAL

USER MANUAL SIC4340

DEC, 2020

V1.0

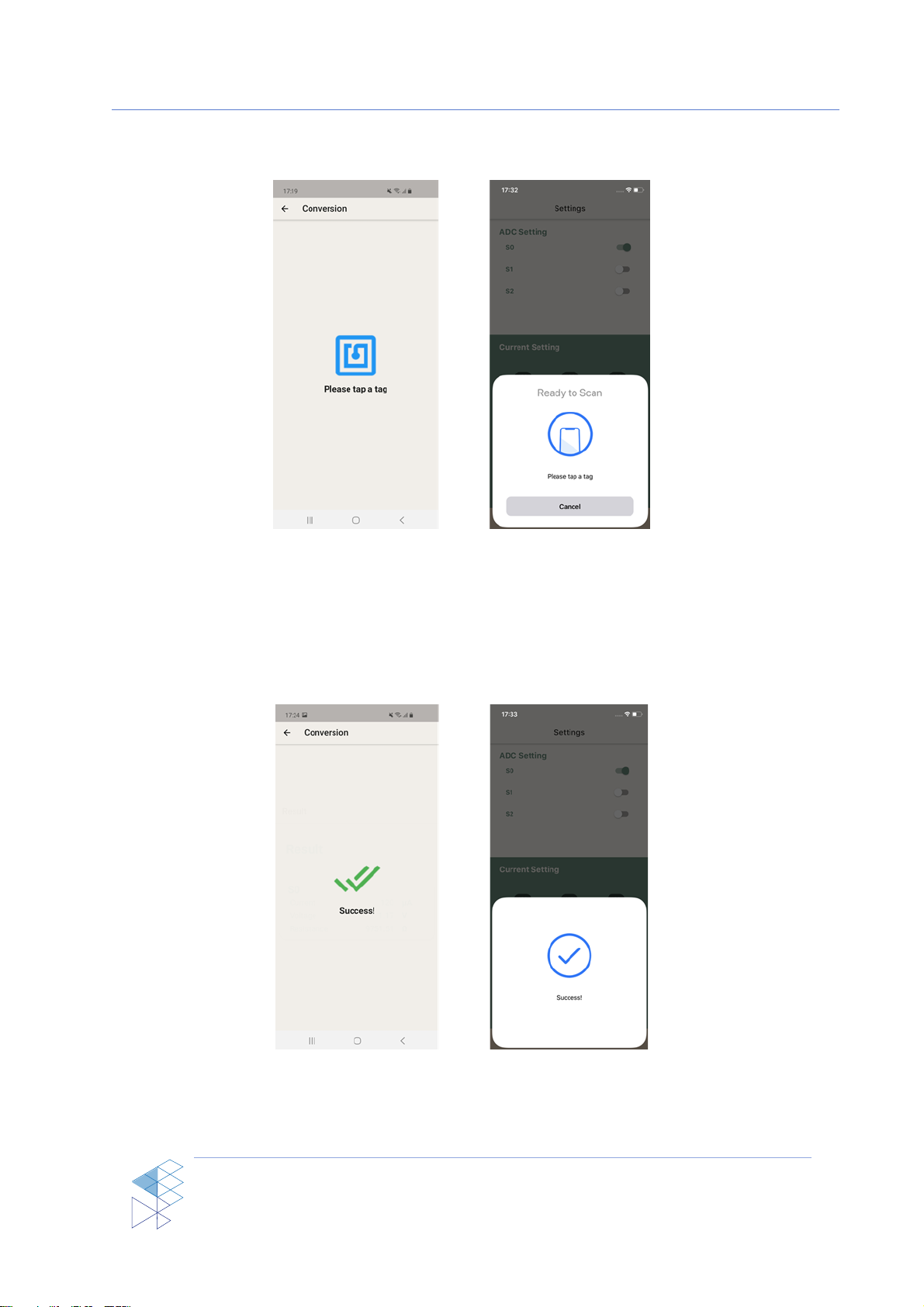

After the NFC session has started, the NFC dialog will show the status as in Figure 7 (a)

for Android and Figure 7 (b) for iPhone.

Figure 7: Tap a tag status

After the status has shown as in Figure 7, user have to tap and hold the mobile on the

antenna of SIC4340 development kit board until the status changed to success as in Figure 8

(a) for Android and Figure 8 (b) for iPhone

Figure 8: Success status

(a)

(b)

(a)

(b)
