Shure PS9 User manual
1/5
PS9 -- Battery Eliminator
General Description
The PS9 takes the place of a 9V battery, allowing you to connect a PS4 AC adaptor to the following Shure body
pack receivers and transmitters:
•P2R
•P4R
•P4HW
•T1
•T1G
•LX1
•UT1
•ULX1
•MX1BP
Shure Incorporated
2/5
The PS9 also works with the VP3 cameramount receiver.
To install the PS9:
1. Turn off the bodypack.
2. Open the battery door and remove the 9V battery.
3. Remove the battery door as follows: with the battery door flipped open, grip its base by the edges and squeeze
firmly while twisting and pulling it out.

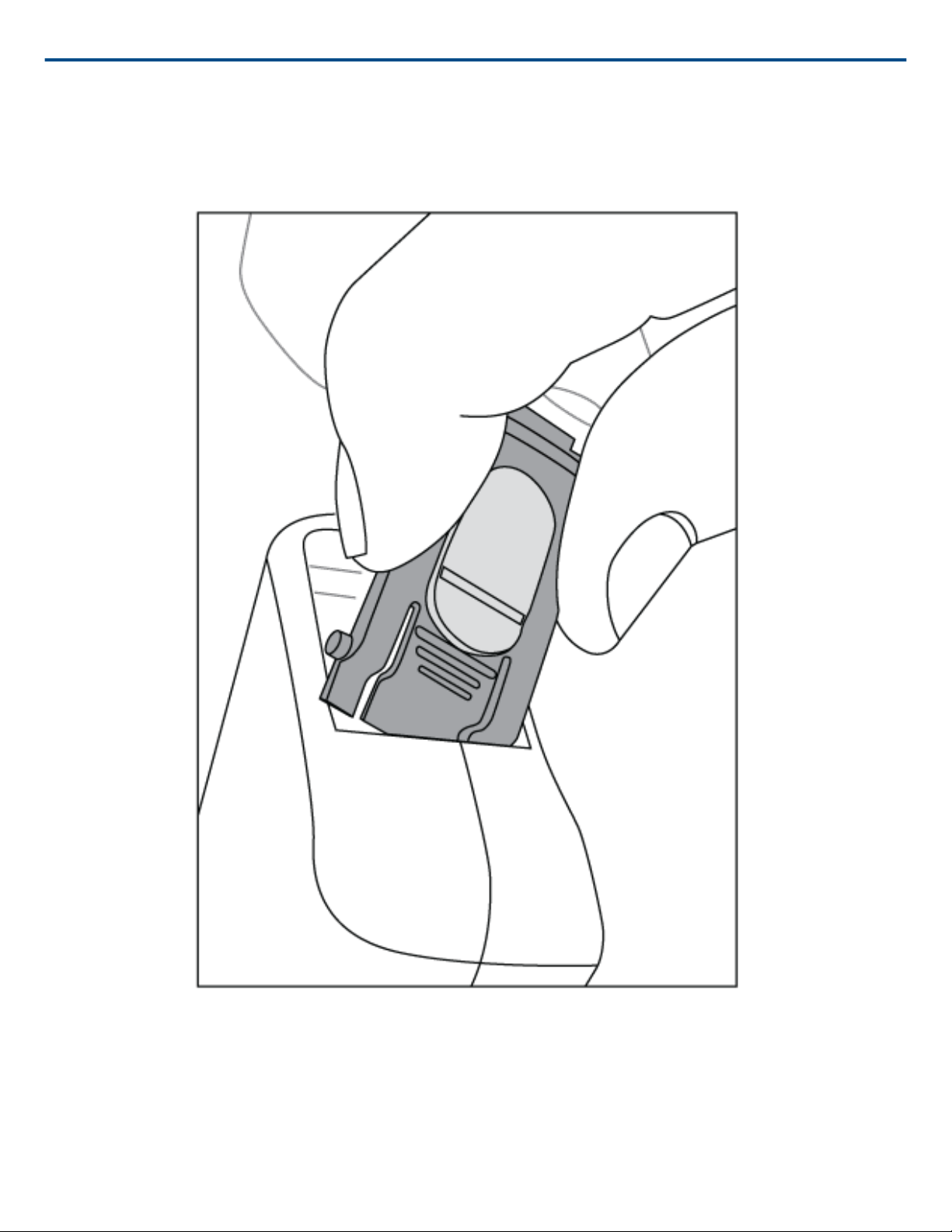

4. Insert the flexible door as follows: dock one of the pegs at the base of the door into the side of the battery com
partment, as shown in Figure one. Then firmly squeeze the bottom edges of the door together while twisting it
and pressing in.
Once this door is installed it is not necessary to change back to the original door in order to use a 9V battery.
5. Insert the PS9 into the battery compartment, observing proper polarity.
6. Close the flexible door, lifting the rubber plug to allow the threaded DC connector to extend outward.
7. Attach the PS42 locking connector to the PS9 threaded DC connector, as shown in Figure two.
8. Plug the PS42 into a power source.
9. Turn the bodypack on and confirm that it is working.
Do not attach a 9V battery to the PS9. It is not a battery charger and this may damage the PS9.
Shure Incorporated
3/5
Figure 1
Shure Incorporated
4/5
To use a 9V battery in place of the PS9:
1. Turn off the bodypack.
2. Disconnect the PS42 from the PS9 threaded DC connector.
3. Open the flexible door and remove the PS9.
4. Insert the 9V battery, observing proper polarity.
5. Flip the rubber plug shut and close the door.
Figure 2
Shure Incorporated
5/5
Specifications
Input
12–15 V
Output
9 V at 100 mA
Accessories
Furnished Accessories
PS9 Battery Eliminator 90A4794
Power Supply PS42_PS42E_PS42UK
Flexible Door Assembly 90A4796
Replacement Battery Door 90A4797
