Showven Sparkular mini BT06 User manual
User Manual
Sparkular mini
V1.0
Liuyang Xiaowen Electronic Technologies Co., Ltd
User Manual
Sparkular mini
Please read this manual carefully before operating this product.
Responsibility Excellence Innovation
This manual contains the warranty card, please keep it well.
1-1 Security Considerations .
Page-1/8
》Unauthorized repair are prohibited, it may cause serious incident.
》Keep SPARKULAR mini dry and do NOT use in rain or snow.
》Make sure lid of feeding hopper are well covered when use Sparkular mini.Acci
dentally Burning of Composite Ti can only use sands to extinguish. Composite Ti should keep
away from moisture and stored in a dry sealed environment.
》Keep audience and flammable material at a minimum distance of 3m from
SPARKULAR mini. Make sure sparks shoot out from Sparkular mini can NOT touch any
objects.
》Clear material for Sparkular mini is necessary both before the show and after the show, to
clear the Composite Ti remains in the pipe. Check whether there are Composite Ti aggregate
in the nozzle after each show, if any, please clean it up, or it will affect the shooting effect or
even damage Sparkular mini.
》The Sparkular mini power supply cable (sparkular mini power supply EX-cable) maximum
allowed cascade for Sparkular mini is 6pcs, exceed connecting may result in damage or even
cause fire.
》For better heat dissipation, block the air intake and air outlet is prohibited.
》Cover of nozzle of Sparkular mini is prohibited.
Responsibility Excellence Innovation
Advantages：
Page-2/8
》Integrating wireless technology,Not exposed,anti-collision.
》One button start.
》Tilt protection function. More secure.
》Sophisticated design, light weighted and portable.

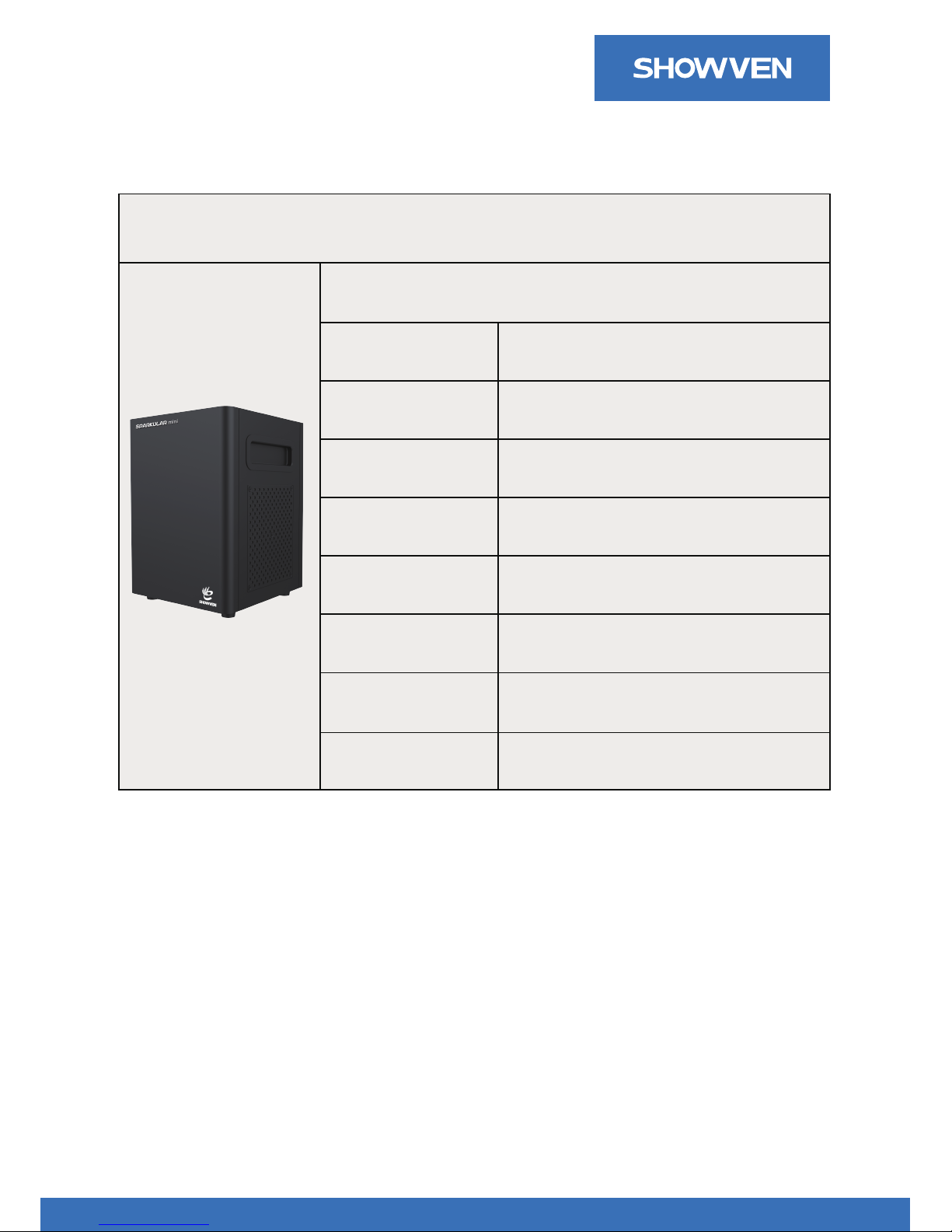

Sparkular Mini Model No.BT06
Parameter
Size
Weight
Input Parameter
Working Power
Working Temperature
Casing
Fountain Height
Interface
4.5kg
200-240VAC, 50/60Hz
300w
-10℃~ 50 ℃
ABS
2.0m~3.5m,Depend on different type of
composite Ti
Double DMX input interfaces, double AC
power interfaces
168×180×228mm
Responsibility Excellence Innovation
Operation Panel:
Page-3/8
LCD information display area, showing operate menu and working status of machine.
》Composite Ti with RFID card, swiping cards used to identify
parameters and types of granules.
》Please note that granules RFID card can increase the single
machine specific working time. The card is disposable,one
card can only use one time.
Light emitting diode display area：
Control button area：
Radio frequency identification area：
READY：After turn on machine, it will automatically preheat around 5 minutes, when the
"READY" green light turns from flashing into long on, indicates that the machine is ready to
work.
DMX ：Flashing shows that DMX signal is connected, otherwise is without signal.
FAULT ：When any malfunction , the light turn on.
HEAT ：When the machine is heating, signal light turn on.
MENU ：Short press to switch interface, press for 3 seconds can switch to the advanced
setup interface.
﹣：Parameters down.
+ ：Parameters up.
ENTER：Confirm and save parameters.
Responsibility Excellence Innovation
Interface
Main Interface:
Error informations display table：
Setting interface：
Page-4/8

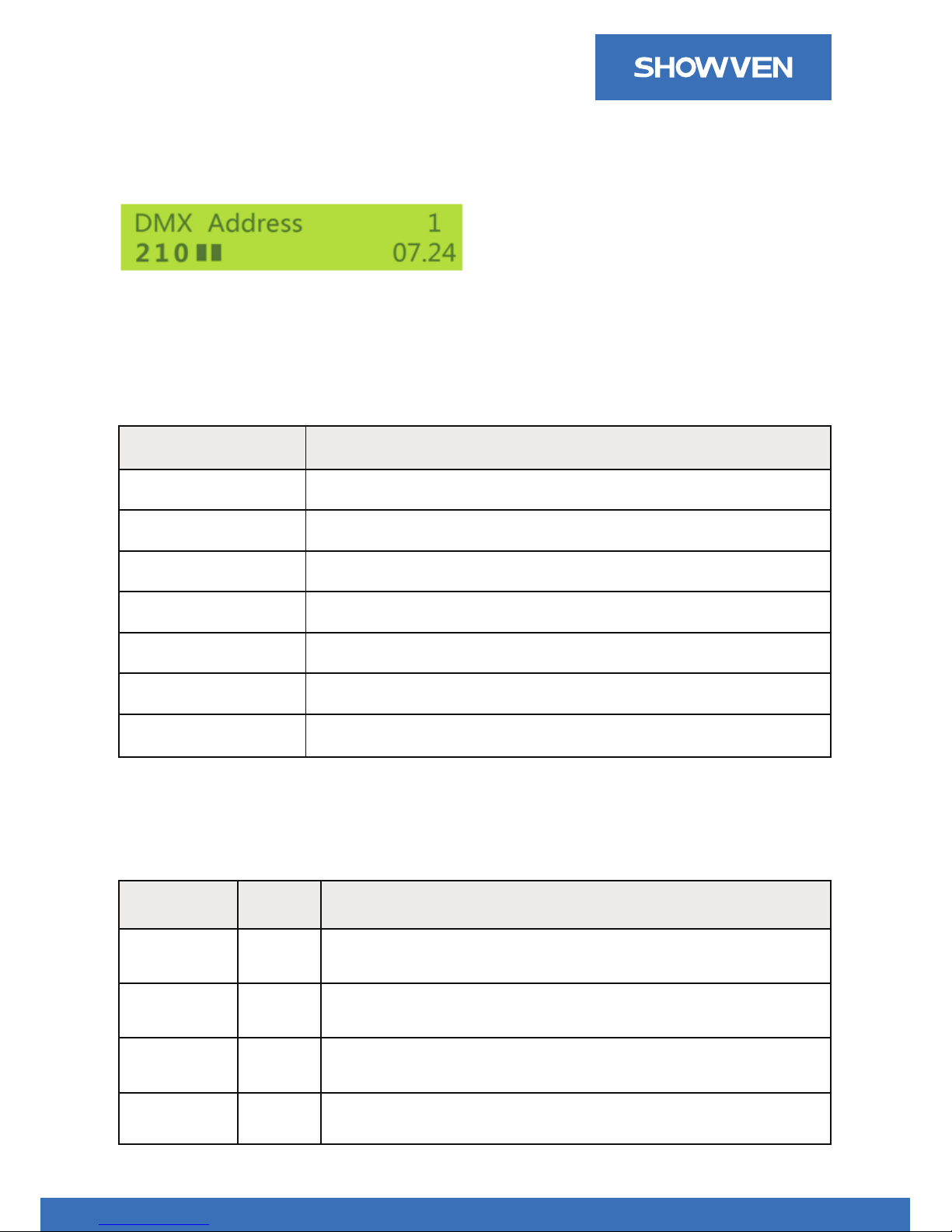

First line : Display DMX address is “1”.
Second line : Display the present inner core temperature and the temperature progress bar;
displays remianing time is 7 minutes and 24 seconds.
Press “MENU” to enter the Setting interface, press the “MENU” button to enter different
options until you return to the main interface.
Options
Set DMX
Address
Wireless
Control
Manual
Fountain
Auto Clear
Delay
Range
1-512
ON/OFF
ON/OFF
0.1-0.9s
Instructions
Set the DMX address. machine become a wireless host and
can send out DMX signal when it’s address is “1++”.
Wireless function switch. you can match codeWhen shows “ON”
Manual fountain switch , for testing purposes only.
Automatic clear material settings.
Error Informations Introductions
E0 System IC System error.
E2 Temp. Sensor Temperature sensor was damaged.
E3 P Temp. Over Chassis temperature too high lead to shut down.
E4 Time Remain Insufficient granules or remaining time, please swiping time card.
E5 K Temp. Over Inner core temperature too high lead to shut down
E6 Heat Fail Heating failed.
E7 Tip Over Dumping alarm when machine is tilted at less than 45 degrees.
machine stop working when tilt alarm starts.
Responsibility Excellence Innovation
Power cable connection：
Wireless remote control mode：
Advanced menu：
Use:
Page-5/8
Press “MENU” 3 seconds to enter the advanced setup interface, press MENU key to enter
different options, press MENU till 3 seconds to return to the main interface.
》For convenient use, there are power supply cable and power supply ex-cable. power
Supply ex-cable can achieve multiple devices connected, maximum cascade is 6pcs. All
power plugs are industrial plug with lock, it need to toggle snap and rotate when using.
》If you use mobile power plate, be sure to use good quality and match rated power products.
6 pcs machines requires around 2000 watts, cores should be over 1.5 square.

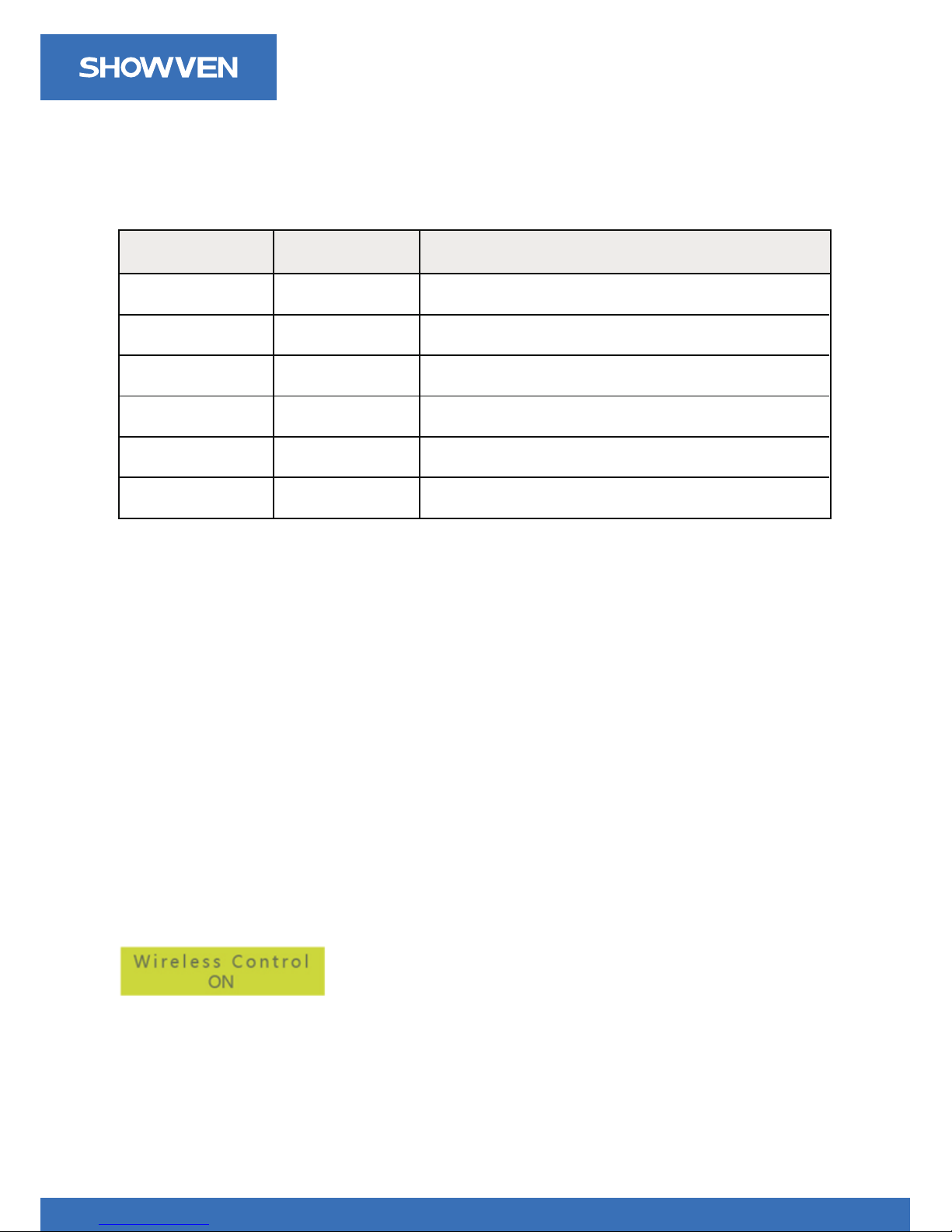

》If the remote control cannot work, please check whether wireless function was turn on.
Press MENU to switch to wireless control setting , menu is set to “ON” , press “ENTER”. This
interface can also be mactching code with remote controller.
》Sparkular mini can controlled by both DMX and remote controller, when there are DMX
signal input, wireless remote controller will not work.
》When using remote control you need to pull out the antenna.
Options Range
500-610
ON/OFF
70-100
Factory Mode/
User Mode
ON/OFF
Instructions
Set Temperature Setup inner Core temperature.
Auto Heat Auto preheat function switch after turn on machine
Auto Heat Adjust the sparks density.
Mode Selection Factory Mode is factory debugging mode, User
Mode is using mode
Tip Over Error Tilt function switch.
Default Parameter Press “ENTER” to restore all parameters to the
factory settings.
Responsibility Excellence Innovation
Attention：
Battery model：12V 23A

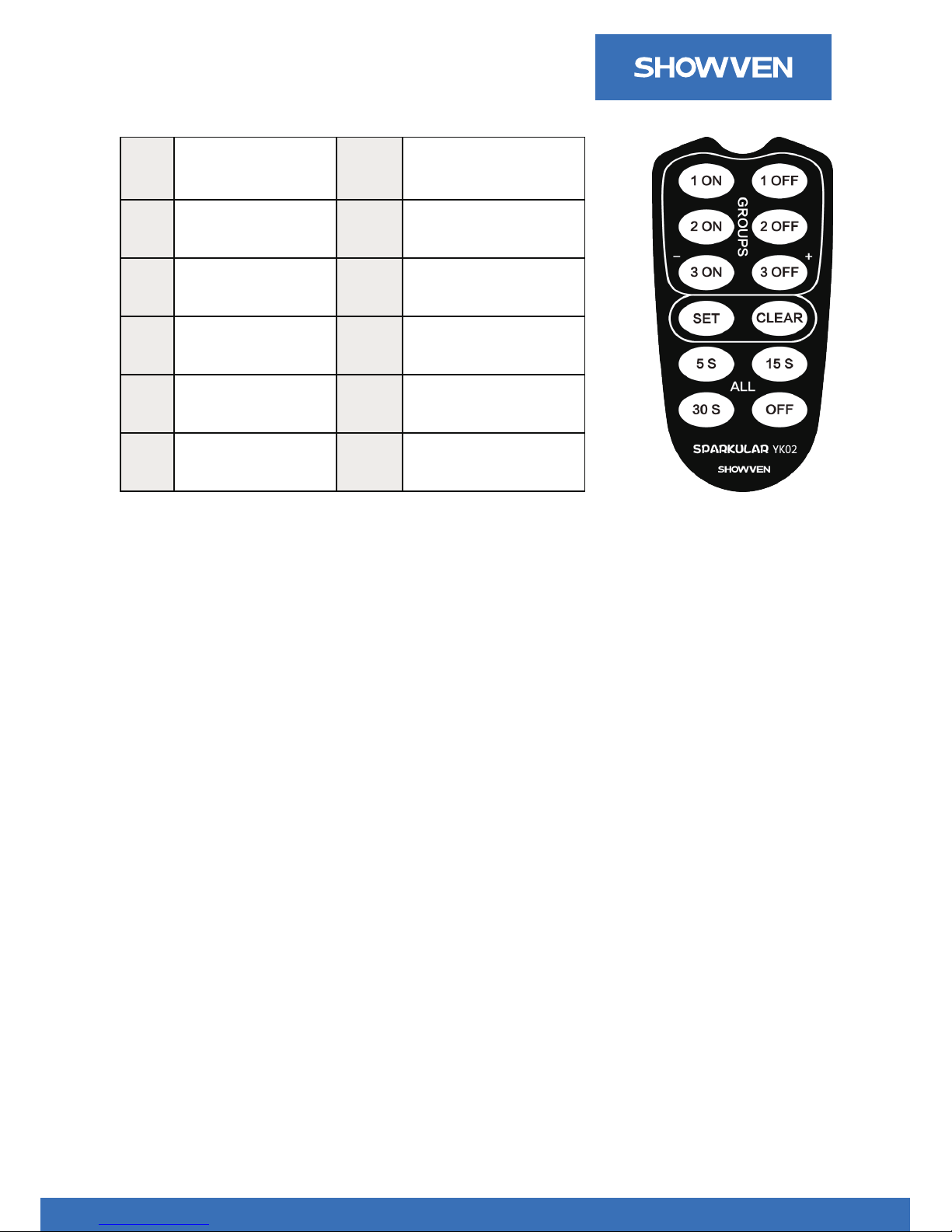

Wireless host Sparkular mini mode (requires communication cables):
Page-6/8
》The first group machines correspond to DMX address “1”, the second group DMX
addressis “3”, the third DMX address is “5”, remote controller controls 3 group machines. It
also can set all Sparkular mini address as “1”.
》When the lamp is not lit or become weak on the remote controller, replace the battery. It is
better to take battery out when transporting to prevent consumption of battery power by
unmeant press of button.
》When the machine is occasionally not working, may be caused by interference,
pleasepress the start button again.
》Wireless control is easy influenced by interference, it is suggest to stay as close to machine
as possible when use remote controller, and machines cannot use metal shielding.
In occasion of strong interference, using the wireless host can avoid interference, ensure
stable control. Set the first unit of Sparkular mini DMX address into “1++”, this machine
address is “1”, but it can also output DMX signal and turns into wireless host Sparkular mini.
Use communication cables to connect all the Sparkular mini, the host Sparkular mini will
receive the signal from remote controller and transfer to all other Sparkular mini via communi-
cation cable to realize stable signal transmission.
1 ON
2 ON
3 ON
SET
5 S
30 S
Address “1” ON 1 OFF
Address “3” ON 1 OFF
Address “5” ON 1 OFF
When use different
remote control CLEAR
All Starts 5
seconds 15 S
All Starts 30
seconds OFF
Address “1” OFF
Address “3” OFF
Address “5” OFF
Automatically clean
material for 3
seconds
All starts 15 seconds
All stop
Responsibility Excellence Innovation
Cable DMX mode：
Page-7/8
When using the DMX controller, the system takes 2 channels
The First channel Functions
0-15 Fountain OFF
16-255s Fountain ON
The second channel Functions
60-80 Clear Material
20-40 Emergency Stop
0-10
240-255
Pre-heat OFF
Pre-heat ON
Responsibility Excellence Innovation
Below situation NOT included in warranty service:
Warranty instructions
Warranty card
Page-8/8
▲Sincere thanks for your choosing our products, you will receive quality service from us.
▲The product warranty period is one year, If there is any quality problems, we can
exchangea brand new same model machine to you within seven days after receive the
product.
▲We will offer free of charge maintenance service for machines which with hardware
malfunction (except for the instrument damage caused by human factors) in warrantyperiod.
Please don't repair machine without factory permission.
1.Damage caused by improper transportation, using, management, and maintenance, or
damage caused by human factors;
2.Disassemble, modified or maintenance products without Showven’s permission;
3.Damage caused by external reasons (lightning strike, power supply etc);
4.Damage caused by improper installation or use;
For product damage not included in warranty range, we can provide paid service.
Invoice and warranty card are necessary when asking for service from SHOWVEN.
--------------------------------------------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------------
Product Name：Serial NO.：
Maintenance Date:
Purchase Date:
Contact Number:
Address:
Customer Feedback
Information:
Actual malfunction:
Maintenance details:
Maintenance person:
Liuyang Xiaowen Electronic Technologies Co., Ltd
Responsibility Excellence Innovation
Add：Building B1, Changsha E-center No.18, Xiangtai Road, Economic & Technology
Development Zone, Hunan, China
Tel：+86-731-83833068
Fax：+86-731-83833069
Web：www.showven.com
E-mail：[email protected]
