Shindaiwa Speed-Feed 450 Setup guide

Shindaiwa Illustrated Parts List

www.shindaiwa.com

11975 SW Herman Road

Tualatin, Oregon 97062, U.S.A.

1 + 503.692.3070 • fax 1 + 503.692.6696 •

Speed-Feed®450

Trimmer Head

Part Number 81008 Rev. 02MB Effective 05/08

All Speed-Feed®trimmer heads are pre-wound with .095” (2.4mm)

Silentwist™ trimmer line.

SPEED-FEED®450

P/N 28820-08000........................................................................................ 2

P/N 28820-09000........................................................................................ 3

P/N 28820-11000 ........................................................................................ 4

P/N 28820-12000........................................................................................ 5

P/N 28820-13000........................................................................................ 6

ADAPTOR KITS.......................................................................................... 6

PAGE 2

NO. PART NUMBER DESCRIPTION DESCRIPCIÓN NOM DE LA PIÈCE QTY.

1 28820-07370 SPOOL LH CARRETE LH BOBINE LH 1

2 28820-07360 BUSHING BUJE BAGUE 1

3 28820-07320 KNOB PERILLA POIGNÉE 1

4 28820-07350 CORE BASE CENTRAL MOYEU 1

5 28820-07330 EYELET CARRIER SOPORTE DE BOQUILLAS CORP DE POULIE 1

6 28820-07340 EYELET BOQUILLAS PASSE-CÃBLE 2

7 28820-07380 CAP TAPA CAPUCHON 1

8 17500-23600 spring resorte ressort 1

9 28820-07390 COVER TAPA COUVERCLE 1

10 28820-07400 STUD, 7MM LH PERNO, 7MM LH BOULON, 7MM LH 1

11 28820-07410 STUD, 8MM LH PERNO, 8MM LH BOULON, 8MM LH 1

12 28820-07420 STUD, 10MM LH PERNO, 10MM LH BOULON, 10MM LH 1

P/N 28820-08000

7MM LH

8MM LH

10MM LH

(Fits all Shindaiwa

Straight Shaft Trimmers)

NOTE: Trimmer head is pre-wound with .095" (2.4mm) Silentwist™ trimmer line.

Speed-Feed®450

10, 11, 12

PAGE 3

NOTE: Trimmer head is pre-wound with .095" (2.4mm) Silentwist™ trimmer line.

Speed-Feed®450

P/N 28820-09000

7MM LH

(Fits Shindaiwa 22T,

C20, C230, C242,

C250, C2510, LT18,

LT20, M230, M231,

M2500, M2510, T18,

T20, T230, T231, T242,

T250, T2500, T2510)

NO. PART NUMBER DESCRIPTION DESCRIPCIÓN NOM DE LA PIÈCE QTY.

1 28820-07370 SPOOL LH CARRETE LH BOBINE LH 1

2 28820-09310 ARBOR BOLT 7MM LH PERNO, 7MM LH BOULON, 7MM LH 1

3 28820-07320 KNOB PERILLA POIGNÉE 1

4 28820-07350 CORE BASE CENTRAL MOYEU 1

5 28820-07330 EYELET CARRIER SOPORTE DE BOQUILLAS CORP DE POULIE 1

6 28820-07340 EYELET BOQUILLAS PASSE-CÃBLE 2

7 28820-07380 CAP TAPA CAPUCHON 1

8 17500-23600 SPRING RESORTE RESSORT 1

9 28820-07390 COVER TAPA COUVERCLE 1

PAGE 4

NOTE: Trimmer head is pre-wound with .095" (2.4mm) Silentwist™ trimmer line.

Speed-Feed®450

P/N 28820-11000

8MM LH

(Fits Shindaiwa C25, C27, C260, C270,

C3410, T25, T27, T260, T261, T270,

T272, T350, T3410)

NO. PART NUMBER DESCRIPTION DESCRIPCIÓN NOM DE LA PIÈCE QTY.

1 28820-07370 SPOOL LH CARRETE LH BOBINE LH 1

2 28820-11310 ARBOR BOLT 8MM LH PERNO, 8MM LH BOULON, 8MM LH 1

3 28820-07320 KNOB PERILLA POIGNÉE 1

4 28820-07350 CORE BASE CENTRAL MOYEU 1

5 28820-07330 EYELET CARRIER SOPORTE DE BOQUILLAS CORP DE POULIE 1

6 28820-07340 EYELET BOQUILLAS PASSE-CÃBLE 2

7 28820-07380 CAP TAPA CAPUCHON 1

8 17500-23600 SPRING RESORTE RESSORT 1

9 28820-07390 COVER TAPA COUVERCLE 1

PAGE 5

NOTE: Trimmer head is pre-wound with .095" (2.4mm) Silentwist™ trimmer line.

Speed-Feed®450

P/N 28820-12000

10MM LH

(Fits Shindaiwa 22F, B45, B450,

B530, C35, C350, F195S)

NO. PART NUMBER DESCRIPTION DESCRIPCIÓN NOM DE LA PIÈCE QTY.

1 28820-07370 SPOOL LH CARRETE LH BOBINE LH 1

2 28820-12310 ARBOR BOLT 10MM LH PERNO, 10MM LH BOULON, 10MM LH 1

3 28820-07320 KNOB PERILLA POIGNÉE 1

4 28820-07350 CORE BASE CENTRAL MOYEU 1

5 28820-07330 EYELET CARRIER SOPORTE DE BOQUILLAS CORP DE POULIE 1

6 28820-07340 EYELET BOQUILLAS PASSE-CÃBLE 2

7 28820-07380 CAP TAPA CAPUCHON 1

8 17500-23600 SPRING RESORTE RESSORT 1

9 28820-07390 COVER TAPA COUVERCLE 1

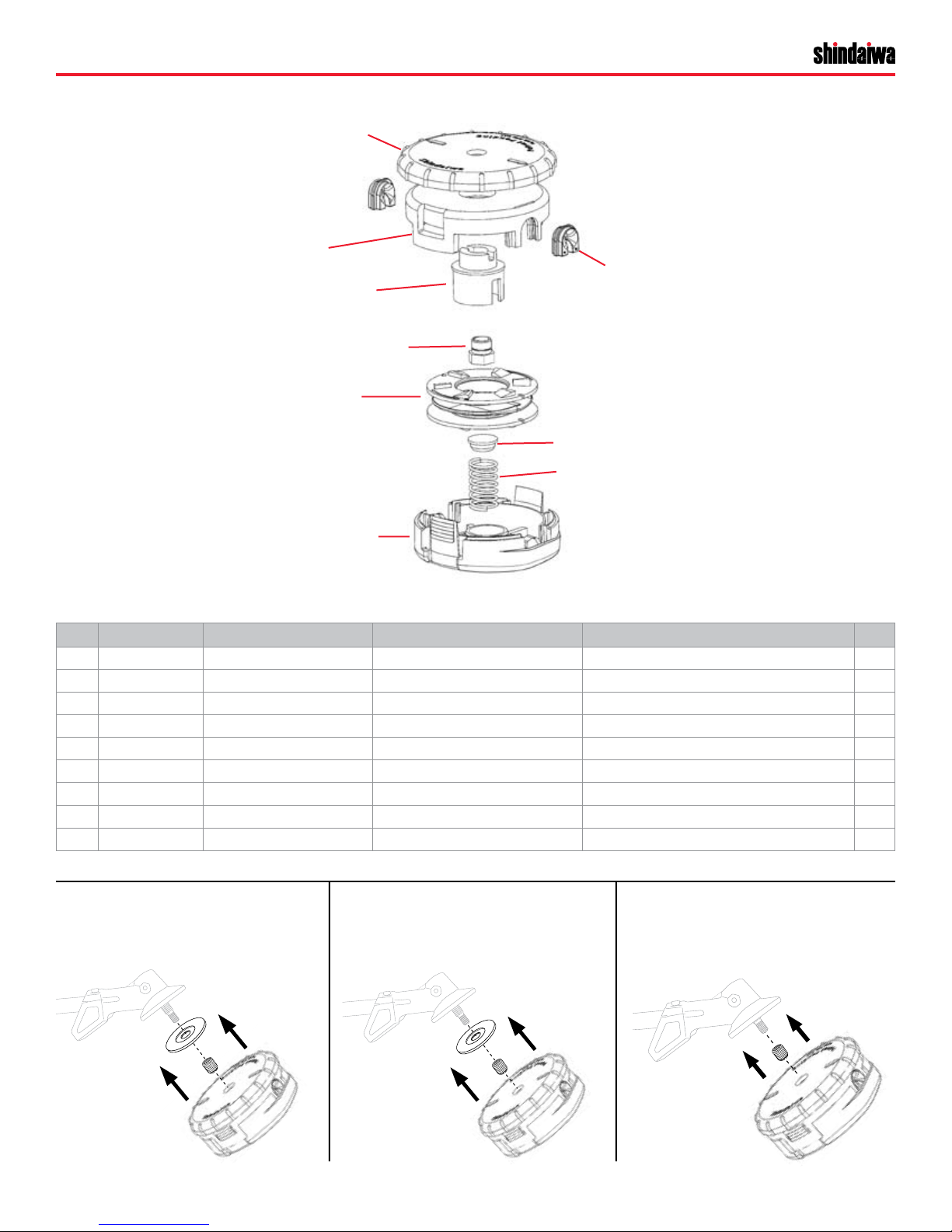

PAGE 6

Speed-Feed®450

P/N 28820-13000

This head with adaptor

kits shown below will fit;

STIHL 10MM X 1.0 LH,

ECHO 10MM X 1.25 LH,

RED MAX 10MM X 1.25 LH

NOTE: Trimmer head is pre-wound with .095" (2.4mm) Silentwist™ trimmer line.

NO. PART NUMBER DESCRIPTION DESCRIPCIÓN NOM DE LA PIÈCE QTY.

1 28820-07370 SPOOL CARRETE BOBINE 1

2 28820-07360 BUSHING BUJE BAGUE 1

3 28820-07320 KNOB PERILLA POIGNÉE 1

4 28820-07350 CORE BASE CENTRAL MOYEU 1

5 28820-07330 EYELET CARRIER SOPORTE DE BOQUILLAS CORP DE POULIE 1

6 28820-07340 EYELET BOQUILLAS PASSE-CÃBLE 2

7 28820-07380 CAP TAPA CAPUCHON 1

8 17500-23600 SPRING RESORTE RESSORT 1

9 28820-07390 COVER TAPA COUVERCLE 1

28820-07430

SELECTED STIHL STRAIGHT

SHAFT UNITS

10MM X 1.0 LH

28820-07440

SELECTED ECHO STRAIGHT

SHAFT UNITS

10MM X 1.25 LH

28820-07480

SELECTED RED MAX STRAIGHT

SHAFT UNITS

10MM X 1.25 LH

AVAILABLE ADAPTOR KITS

Trimmer head

not included

Trimmer head

not included

Trimmer head

not included

PAGE 7

NOTES

www.shindaiwa.com

11975 SW Herman Road, Tualatin, Oregon 97062, U.S.A.

1 + 503.692.3070 • fax 1 + 503.692.6696 • Part Number 81008

Rev. 02MB Effective 05/08
