SFA Pro-Lift PL2920 Instructions for use

Hydraulic

Low Prole

Floor Jack

Operating Instructions & Parts Manual

Model Number

PL2920

Capacity

2 Ton

This is the safety alert symbol. It is used to alert you to potential hazards. Obey all

safety messages that follow this symbol to avoid personal injury and/or property

damage.

SFA Companies, Inc.

10939 N. Pomona Ave.

Kansas City, MO 64153

Phone (816)891-6390, Fax (816)891-6599 Printed in China

PL2920-M0_092022

WARNING: Cancer and Reproductive Harm.

www.P65Warnings.ca.gov

SAFETY AND GENERAL INFORMATION

Save these instructions. For your safety, read, understand, and follow the information

provided with and on this jack before using. The owner and/or operator of this jack shall

have an understanding of the jack and safe operating procedures before attempting to

use. The owner and/or operator shall be aware that the use and repair of this product

may require special skills and knowledge. Instructions and safety information shall be

conveyed in the operator’s native language before use of this jack is authorized. If any

doubt exists as to the safe and proper use of this jack, remove from service immediately.

Inspect before each use. Do not use if broken, bent, cracked, or damaged parts

(including labels) are noted. Any jack that appears damaged in any way, operates

abnormally or is missing parts, shall be removed from service immediately. If you suspect

that the jack was subjected to a shock load (a load dropped suddenly, unexpectedly upon

it), immediately discontinue use until the jack has been checked by a factory authorized

service center (contact distributor or manufacturer for list of Authorized Service Centers).

It is recommended that an annual inspection be done by qualied personnel. Labels and

owner’s manuals are available from manufacturer (see page 7).

PRODUCT DESCRIPTION

This Hydraulic Floor Jack is designed to lift, but not support, one end of a vehicle. This

Jack must be used in conjunction with a pair of appropriately rated jack stands.

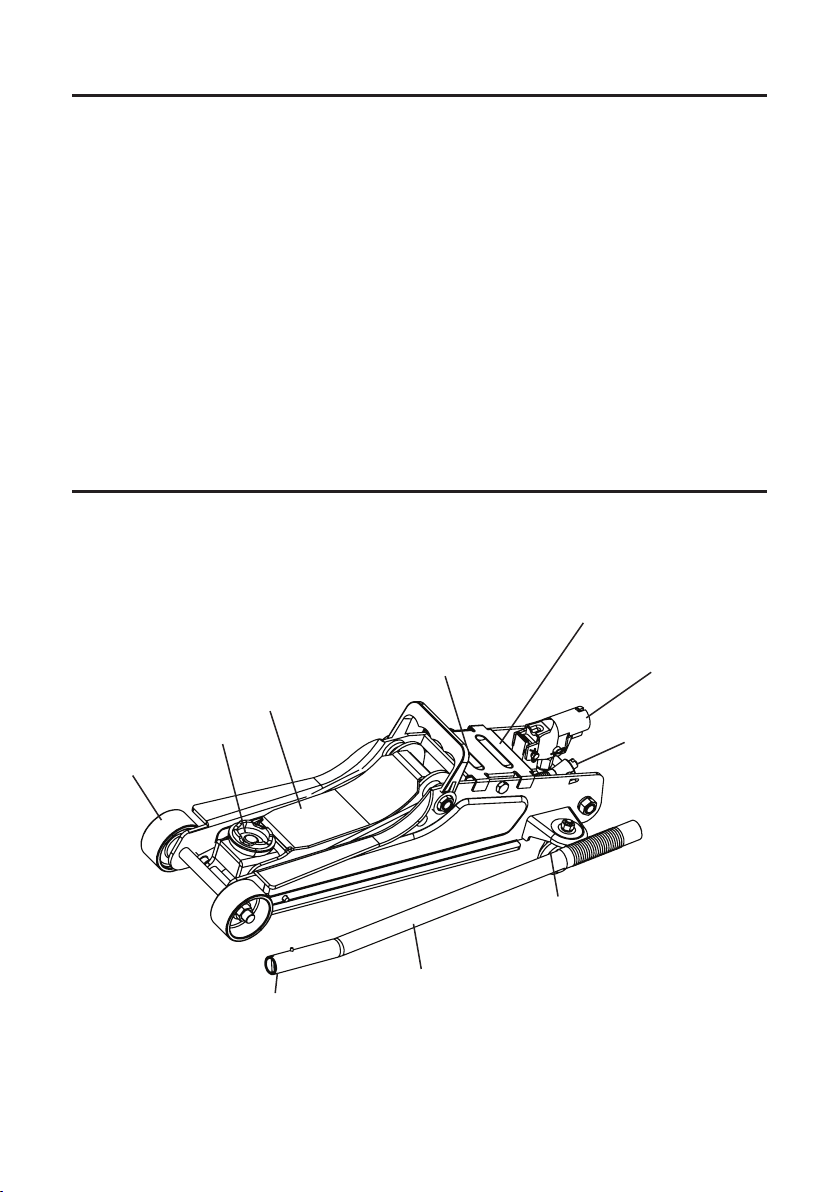

Figure 1 - Typical Floor Jack Nomenclature

Cover plate

(Remove to access

oil ller plug)

Engage release

valve with this end

Jack handle

Caster

Release valve

Handle sleeve

Oil ller plug

(not shown, on

reservoir)

Lifting arm

Saddle

Front wheel

• Study, understand, and follow all instructions before operating this device.

• Do not exceed rated capacity.

• Use only on hard, level surface.

• Lifting device only. Immediately after lifting, support the vehicle with appropriate

means.

• Do not move or dolly the vehicle on the jack.

• Lift only on areas of the vehicle as specied by the vehicle manufacturer.

• No alteration shall be made to this product.

• Failure to heed these markings may result in personal injury and/or property

damage.

The paint on this product contains lead, a chemical known in the State of California

to cause cancer, birth defects and other reproductive harm. Do not ingest paint

chips and keep product away from children. Wash hands after each use.

PREPARATION

Before Use

Verify that product and application are compatible. If you have questions about the use of

this jack or its compatibility with your vehicle, contact Pro-Lift Customer Support at (816)

891-6390.

2. Before using this product, read the owner’s manual completely and familiarize

yourself thoroughly with the product, its components and recognize the hazards

associated with its use.

3. To familiarize yourself with basic operation, use stamped end of the provided handle

to engage and turn release valve:

Clockwise until rm resistance is felt

to further thread engagement. This is the

‘CLOSED’ release valve position used to raise the load.

Counter-clockwise, but no more than 1/2 full turn from the closed position.

This is the

‘OPEN’ release valve position used to lower the load.

4. With saddle fully lowered, locate and remove cover plate, then remove oil ller plug.

Insert handle into handle sleeve, then pump 6 to 8 full strokes. Check oil level.

Proper oil level will vary from just covering ram cylinder to 3/16” above it as seen

from oil ller plug hole. Reinstall oil ller plug.

5. Ensure that jack rolls freely and that pump operates smoothly before putting into

service. Replace worn or damaged parts and assemblies with factory Authorized

Replacement Parts only. Contact Pro-Lift Customer Service or distributor of this

product for a list of factory authorized service centers (see Replacement Parts List,

page 7). Lubricate as instructed in Care and Maintenance section, page 5.

WARNING

PREPARATION (cont.)

Bleeding/Venting Trapped Air

With release valve in OPEN position (3b above) and with saddle fully lowered, locate

and remove oil ller plug. Insert provided handle into handle sleeve; then pump 6 to

8 full strokes. This will help release any pressurized air which may be trapped within

reservoir. Proper oil level will vary from just covering ram cylinder to 3/16” above it as

seen from oil ller plug hole. Reinstall oil ller plug.

OPERATING INSTRUCTIONS

WARNING: DO NOT use this device to lift, level, lower, support, adjust or otherwise

move a house, mobile home, travel trailer, camper, or building structure of any type,

size, or conguration.

NOTICE: Use ONLY on vehicles whose lift points are compatible with the saddle of

this jack. Incompatibility may result in structural damage to vehicle and/or jack.

Lifting

1. Place vehicle in park, with emergency brake on and wheels securely chocked to

prevent inadvertent vehicle movement.

Locate and close release valve by turning handle clockwise until rm resistance is felt

to further thread engagement. Center jack saddle under lift point.

3. Insert handle into handle sleeve and pump until saddle contacts lift point. Verify

proper lift point, then pump handle until load reaches desired height.

4. Transfer load immediately to appropriately rated jack stands.

WARNING: Never work on, under, or around a load supported only by a hydraulic

jack.

NOTICE: ONLY use handle provided with this jack. Handle

is specially designed to

be compatible with handle sleeve and properly engage release valve. If handle is

damaged, operates abnormally, or will not positively engage release valve, STOP,

discontinue use of jack until a factory replacement handle assembly can be acquired.

Lowering

1. Raise load high enough to clear jack stands; then carefully remove them.

2. Slowly turn handle counter-clockwise, but no more than 1/2 full turn. If load fails to

lower:

a. Use another jack to raise vehicle high enough to reinstall jack stands.

b. Remove malfunctioning jack, then repeat Lowering procedure from Step 1.

c. Using functioning jack, lower vehicle.

After removing jack from under vehicle, push saddle down to reduce ram exposure

rust and contamination.

CARE AND MAINTENANCE

NOTICE: Use only good quality hydraulic jack oil. NEVER use brake uid, turbine oil,

transmission uid, motor oil or glycerin. Improper uid can cause jack failure and sudden

loss of load. Mobil DTE13M or equivalent is recommended.

Adding Oil

1. With saddle fully lowered set jack in its upright, level position. Locate and remove oil

ller plug.

2. Proper oil level will vary from just covering inner cylinder to ~3/16” above inner

cylinder as seen from oil ller plug hole. If oil level is too low, jack will not raise to

advertised maximum height. Reinstall oil ller plug.

NOTICE: Do not overll reservoir. Overlled reservoir can cause a variety of

performance problems and create an oil spill on shop oor (see Troubleshooting, page

6).

Changing Oil

For best performance and longest life, completely replace uid supply at least once per

year.

1. With saddle fully lowered, remove oil ller plug.

2. Lay jack on its side and drain uid into a suitable container.

NOTICE: Dispose of hydraulic uid in accordance with local environmental regulations.

3. Fill with oil. Proper oil level will vary from just covering inner cylinder to ~3/16” above

inner cylinder as seen from oil ller plug hole. Reinstall oil ller plug.

Lubrication

A periodic coating of light lubricating oil to pivot points, axles and hinges will help to

prevent rust and assure that wheels, casters and pump assemblies move freely.

Cleaning

Periodically check pump piston and ram for signs of rust or corrosion. Clean as needed

and wipe with an oily cloth.

NOTICE: Never use sandpaper or abrasive material on ram or pump piston.

Storage

Store the jack with pump piston, ram plunger, and saddle fully lowered and release

valve open, but never more than 1/2 turn. This will help prevent rust and corrosion to

critical surfaces.

TROUBLESHOOTING

Symptom Possible Causes Corrective Action

Jack will not lift load

• Release valve not

tightly closed.

• Load is too heavy.

•

Ensure release valve tightly

closed. Use the provided handle

to engage release valve. Turn

release valve clockwise until rm

resistance is felt.

• Use

higher capacity jack.

Jack slowly and

unintentionally lowers

after lifting

•

Hydraulic unit

malfunction.

• Discontinue use, contact

Customer Support.

While lowering, uid

leaks from reservoir

area or jack saddle will

not descend to lowest

advertised height

• Reservoir overlled.

• Ram plunger/cylinder

deformed, seized up

in ram cylinder and/

or top nut, likely the

result of o󰀨-center

• Drain uid to proper level.

• Contact Customer Support.

Jack saddle will not

remain lowered after

released from contact

with load (creeps up)

• Air trapped in

system.

• If jack saddle is not in contact

with lifted load, remove jack and

follow instructions on page 4

for bleeding air from system. If

there is loaded contact between

saddle and raised vehicle,

STOP, use another jack to raise

vehicle high enough to re-install

jack stands. Remove a󰀨ected

jack, then jack stands. Using

a functioning jack, lower load,

then follow instructions on page

4 for bleeding air from system.

Poor lift performance

• Fluid level low.

• Air trapped in

system.

•

Hydraulic unit

malfunction.

• Ensure proper uid level.

• With saddle fully lowered, follow

instructions for bleeding air on

page 4.

• Contact Customer Support.

Will not lift to full height • Fluid level low. • Ensure proper uid level.

REPLACEMENT PARTS

Not all components of the jack are replacement items, but are illustrated as a convenient

reference of location and position in the assembly sequence. When ordering parts, give

model number, serial number and item/description below. Call or write for current pricing:

Pro-Lift Customer Support, 10939 N. Pomona Ave., Kansas City, MO 64153. Phone

(816) 891-6390, Fax (816) 891-6599

Replacement Parts for Model PL2920

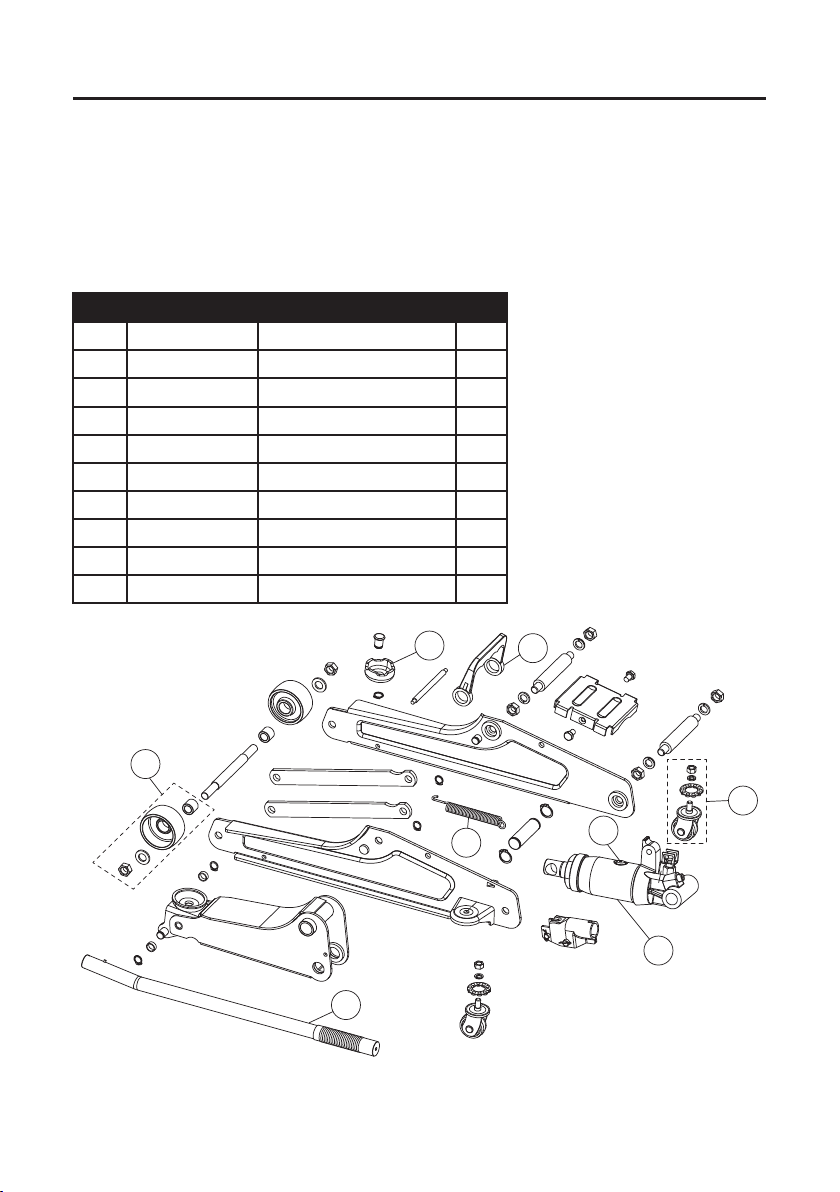

Figure 2 - Replacement Parts Illustration

Item Part No. Description Qty

1 N/A Power Unit 1

2 N/A Front Wheel Assembly 2

3 N/A Rear Caster Assembly 2

4 N/A Saddle 1

5 F36100-0001 Oil Filler Plug 1

6 N/A Return Spring 1

7 F-767-7 Pumping Handle 1

8 F-767-8 Carry handle 1

- PL2920-L1 Labels 2

- PL2920-M0 Owner’s Manual 1

SFA Companies, Inc.

10939 N. Pomona Ave., Kansas City, MO 64153

Phone (816)891-6390, Fax (816)891-6599

ONE YEAR LIMITED WARRANTY

For a period of one (1) year from date of purchase, SFA Companies, Inc. will repair or replace, at its

option, without charge, any of its products which fails due to a defect in material or workmanship under normal usage.

This limited warranty is a consumer's exclusive remedy.

Performance of any obligation under this warranty may be obtained by returning the warranted product,

freight prepaid, to SFA Companies, Inc. Warranty Service Department, 10939 N. Pomona Ave., Kansas City, MO

64153.

Except where such limitations and exclusions are specifically prohibited by applicable law, (1)

THE CONSUMER'S SOLE AND EXCLUSIVE REMEDY SHALL BE THE REPAIR OR REPLACEMENT OF

DEFECTIVE PRODUCTS AS DESCRIBED ABOVE. (2) SFA Companies, Inc. SHALL NOT BE LIABLE FOR ANY

CONSEQUENTIAL OR INCIDENTAL DAMAGE OR LOSS WHATSOEVER. (3) ANY IMPLIED WARRANTIES,

INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR

A PARTICULAR PURPOSE, SHALL BE LIMITED TO ONE YEAR, OTHERWISE THE REPAIR, REPLACEMENT

OR REFUND AS PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF

THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. (4) ANY

MODIFICATION, ALTERATION, ABUSE, UNAUTHORIZED SERVICE OR ORNAMENTAL DESIGN VOIDS THIS

WARRANTY AND IS NOT COVERED BY THIS WARRANTY.

Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may

not apply to you. Some states do not allow the exclusion or limitation of incidental or consequential damages, so

the above limitation or exclusion may not apply to you. This warranty gives you specic legal rights, and you may

also have other rights, which vary from state to state.

Cric Rouleur

Hydraulique à

Prole Bas

Mode d’emploi & liste des pièces

Modèle Numéro

PL2920

Capacité

2 Ton

Ceci est le symbole de prudence. Il indique un risque potentiel de danger. Pour

ne pas subir de blessures et/ou causer des dégâts matériels, veuillez toujours

observer les consignes de sécurité.

CONSEILS DE SÉCURITÉ ET RENSEIGNEMENTS GÉNÉRAUX

Conservez ces directives. Avant d’utiliser ce cric, et pour votre sécurité, lisez

attentivement ce guide et assurez-vous de bien le comprendre et de suivre les

instructions. Avant d’utiliser ce cric, le propriétaire et/ou l’utilisateur doi(ven)t savoir

comment il fonctionne et comment l’utiliser en toute sécurité. Le propriétaire et/ou

l’utilisateur doi(ven)t être conscient(s) que l’utilisation et la réparation de ce cric requièrent

des compétences et des connaissances particulières. Avant d’autoriser l’utilisation de

ce cric, les consignes de sécurité et les renseignements doivent avoir été transmis

à l’utilisateur dans sa langue maternelle. Si un doute subsiste quant à la sécurité ou

l’usage correct du cric, le retirer immédiatement du service.

Inspectez le cric avant chaque usage. Si vous remarquez que certaines pièces (y

compris les étiquettes) sont cassées, déformées, ssurées ou endommagées, ne

l’utilisez pas. Un cric qui semble endommagé, qui fonctionne mal ou don’t il manque

des pièces doit immédiatement être retiré du service. Si l’on pense que le cric a été

soumis, ou semble avoir été soumis, à une surcharge d’impact (charge qui serait tombée

accidentellement dessus), cessez immédiatement de l’utiliser et faites-le vérier par un

centre de réparation agréé par l’usine (adressez-vous au distributeur ou au fabricant

pour une liste des centres de réparation agréés). Il est recommandé qu’un personnel

qualié inspecte annuellement le cric. Vous pouvez vous procurer des étiquettes et des

modes d’emploi en vous adressant au fabricant (voir page 15).

DESCRIPTION DU PRODUIT

Ce cric rouleur hydraulique est conçu pour soulever, et non soutenir, l’extrémité d’un

véhicule. Le cric doit être utilisé en conjonction avec une paire de chandelles d’une

capacité adéquate.

Figure 1 - Nomenclature typique du cric rouleur

Bouchon du réservoir

d’huile (sur le réservoir,

non représenté)

Enclenchez la

soupape de

décharge avec cet

embout

Levier du

cric

Roulette

Soupape de

décharge

Manchon

du levier

Couvercle (pour

accéder au bouchon

d’huile, retirez-le)

Bras de levage

Tête

Roue avant

Table of contents

Languages:

Other SFA Jack manuals

SFA

SFA Blackhawk Automotive BH2129 Instructions for use

SFA

SFA Platinum Series Instructions for use

SFA

SFA Pro-Lift F-2315PE Instructions for use

SFA

SFA OMEGA 21030B Instructions for use

SFA

SFA GasMonkey Garage GMG29031 User manual

SFA

SFA Pro-Lift F-767 Instructions for use

SFA

SFA American Lifting AL2300 Instructions for use

SFA

SFA OMEGALIFT 23222C Instructions for use

SFA

SFA AMERICAN LIFTING AL2301 User manual

SFA

SFA Pro-Lift G-4030 Instructions for use

SFA

SFA OMEGALIFT 23221C Instructions for use

Popular Jack manuals by other brands

Omega Lift Equipment

Omega Lift Equipment 18122C Operating instructions & parts manual

Pittsburgh

Pittsburgh 58816 Owner's manual & safety instructions

Unimec

Unimec TP Assembly instructions

Sonic

Sonic 4800703 instructions

BGS technic

BGS technic 70039 instruction manual

TradeQuip

TradeQuip 1128T owner's manual

VEVOR

VEVOR TJD-12000SP-F quick start guide

ULTIMATE SPEED

ULTIMATE SPEED URW 2 A1 HYDRAULIC TROLLEY JACK operating instructions

Stels

Stels 51131 user manual

Bushranger

Bushranger RJX01 instruction manual

Clarke

Clarke CTJ2500QLG Operating & maintenance instructions

Valex

Valex 1650520 Translation of the original instructions

Pfaff

Pfaff Merkur M0 Operating instruction

Beta

Beta 3050/K Operation manual and instructions

Sealey

Sealey 1050CXHV manual

Jung

Jung JH Series operating instructions

URIAH

URIAH UC200020 quick start guide

Kennedy

Kennedy KSJ010 instruction manual
