Severtson Cinema Series User manual
Instruction Manual for
Cinema & Tension Deluxe Series Electric
MODELS: GE43***, GE169***, GE1610***, GT43***, GT169***, GT1610***
Thank you for purchasing a Severtson projection screen. Before use, please read the instructions
carefully. After installation, store the instructions for future reference.
Rev 191205
Instruction Manual for Cinema & Tension Deluxe Series Electric
Overview

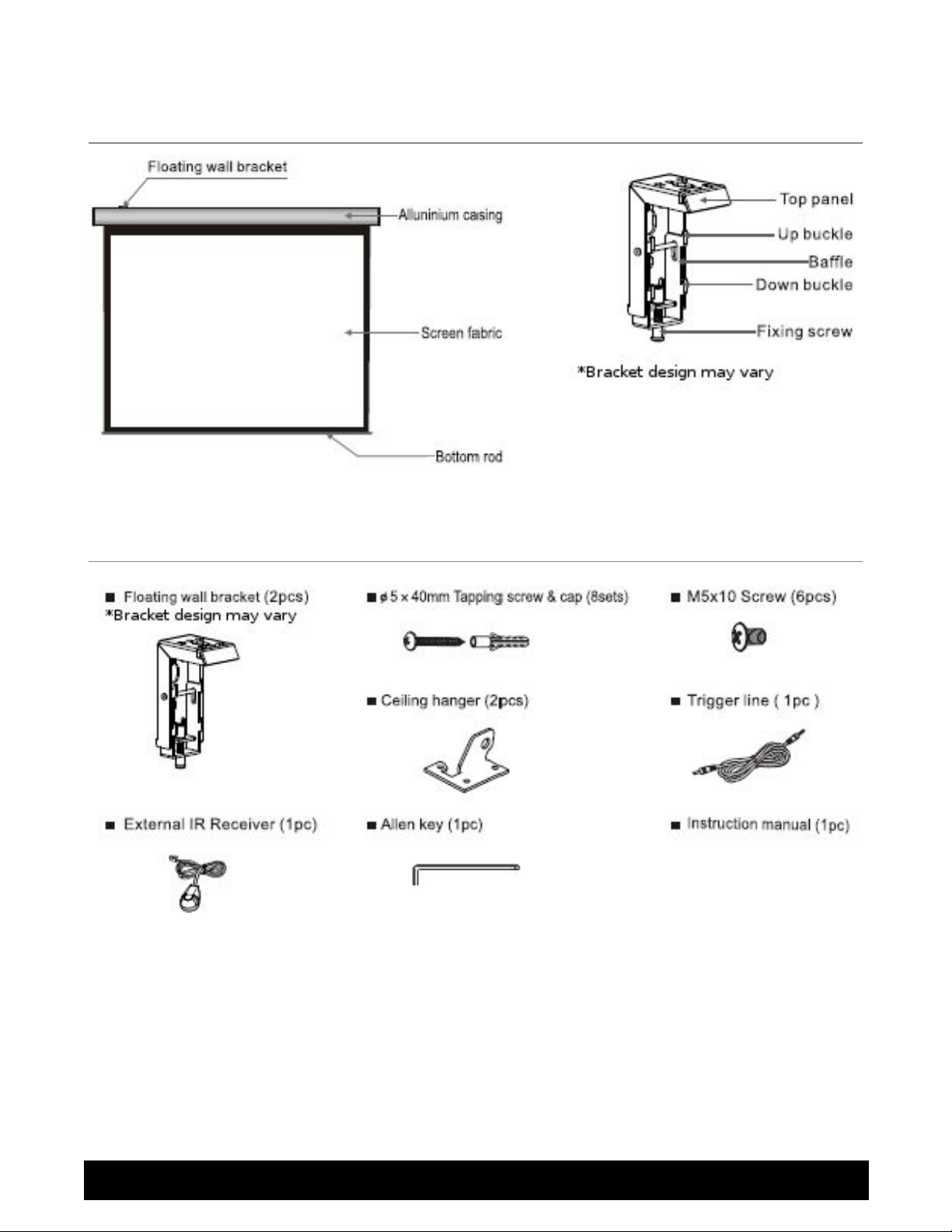

Parts Included
1
Instruction Manual for Cinema & Tension Deluxe Series Electric
Installation Instructions
Take out all the parts from the packaging and verify that all the parts have been included, then
follow the steps below to install the screen.
Note 1.1: When installing the projection screen it is important to choose the correct fasteners
for the ceiling type. Choosing the wrong fasteners can lead to severe injuries or screen damage.
1. Remove any shipping tape or screws that are holding the weight bar.
2. Determine the desired mounting method and follow the correct procedure for installing
the mounting brackets (see Table 1.1 below). Make sure the brackets are level before
securing them in place. For hanging by wire installation, see Note 1.2.
Table 1.1
Mounting Method
Screw Placement
Instructions
Wood Framed Wall
Using four wood screws
(5x40mm) for each bracket,
secure each bracket to the wall.
Make sure that the screws
penetrate into the studs of the
framed wall, otherwise the
brackets will not be securely
fastened.
Wood Framed Ceiling
Using four wood screws
(5x40mm) for each bracket,
secure each bracket to the
ceiling. Make sure that the screws
penetrate into the studs of the
ceiling, otherwise the brackets
will not be securely fastened.
Concrete Wall
Use an electric drill to drill four
holes for each bracket and
hammer the provided tapping
anchors into each hole. Secure
the brackets onto the wall by
fastening the tapping screws
(5x40mm) to the tapping
anchors.
2
Instruction Manual for Cinema & Tension Deluxe Series Electric
Concrete Ceiling
Use an electric drill to drill four
holes for each bracket and
hammer the provided tapping
anchors into each hole. Secure
the brackets onto the ceiling by
fastening the tapping screws
(5x40mm) to the tapping
anchors.
Note 1.2: To mount the screen to the ceiling by hanging wire, attach the wire-hanging
attachments to the standard mounting brackets using the included screws (M5x10). The wire
can now be strung through the additional loops in the brackets (see images below).
3. In preparation to put the screen on the brackets, loosen the fixing screw on each bracket to
lower the baffle. Make sure any shipping tape or screws have been removed from the
weight bar.
3
Instruction Manual for Cinema & Tension Deluxe Series Electric
4. Now place the screen on the baffle hooks making sure they latch onto the screen casing.
Then tighten the fixing screws on the bottom of each bracket to lock the screen onto the
brackets.
5. The screen should now be securely mounted to your installation surface.
4
Instruction Manual for Cinema & Tension Deluxe Series Electric
Controlling the Screen
There are many different options included to control the projection screen. Only connect the
screen to the options that will be used.
RS-232 Pinouts
Note 1.1: When the screen is set to manual control, only manual control of the screen will work.
For any other type of control set the screen to remote control.
1. Manual Control. The push-button located on the left end of the screen face near where the
projection screen extends. Pushing the button will cause the motor to switch between
several different modes. The state change pattern can be seen in the diagram below:
5
Instruction Manual for Cinema & Tension Deluxe Series Electric
1. Trigger Connection. The trigger jack recognizes outputs of DC 5V-12V. When power is
sensed the screen will automatically lower. When power is off the screen will rise back into
the case.
2. IR Remote. The remote control will work up to 25’ from the IR eye and an angle of up to 30°.
The remote will not work if the signal or receiver is covered. Keep the remote away from
high temperatures and humidity. Change the battery when the signal is low.
3. RS-232. Home automation systems that are compatible with RS-232 communication can
remotely operate the screen via the RJ-45 connector on the left-side control panel.
6
Instruction Manual for Cinema & Tension Deluxe Series Electric
Appendix A: Adjusting the Screen Limits
We only recommend that experience AV installers adjust the motor limits of the projection screen.
The upper limit should never be adjusted - it controls the point at which the screen stops
retracting into the case and is factory-set to flush. Improperly adjusting the limits of the motor will
cause damage to the screen and motor and will void all warranty. Severtson Screens is not
responsible for any damage caused by adjusting limits for any reason.
Always make small adjustments and test before continuing.
Limit adjustment controls may vary. It is the responsibility of the installer to verify drop
and retraction limit controls.
1. Remove the small rubber stopper on the underside of the screen case near the left-side of
the case and extend the screen enough to be able to locate the limit controls inside the
screen case.
2. Identify the upper (retraction) and lower (drop) limit switches and then adjust the
appropriate limit according to the respective steps below. In some cases, the drop and
retraction limit screws may be reversed, so it is crucial that small adjustments be made to
verify the correct screw is being adjusted.
3. To adjust the up limit (this should usually not be adjusted since it is factory-set):
a. Bring the screen to the down position.
7
Instruction Manual for Cinema & Tension Deluxe Series Electric
b. Press “up” on the remote control.
c. If the screen does not fully ascend into the case use the accessory tool to adjust the
up limit. Turn the Up limit towards the “+” symbol until the screen is at the desired
position.
d. If the screen ascends too far then simply turn the same positioning screw towards
the “-“.
4. To adjust the down limit:
Make sure to test the screen between each small adjustment.
a. Bring the screen to the up position.
b. Press “down” on the remote control.
c. If the screen does not fully drop to your desired position from the case use the
accessory tool to adjust the down limit. Turn the Down limit towards the “+” symbol
until the screen is at the desired position.
d. If the screen drops too far then simply turn the same positioning screw towards the
“-“.
8
Instruction Manual for Cinema & Tension Deluxe Series Electric
Appendix B: Adjusting the Screen Tension
This section is only for applicable models (tab-tensioned models beginning with “GT”). The tension of
the screen may need to be adjusted occasionally if the screen begins to appear wavy.
1. To increase string tension, rotate the knob clockwise; to decrease string tension, rotate the
knob counter-clockwise until desired tension is reached.
9
