MySentio WiFi
1-053-313 / S-WIFI01
Installation and operating instructions p. 2/8
1. About this instruction manual
Symbols used for warning notices
In these instructions for installation and use, a warning notice located next to
an activity indicates that this activity poses a risk. Always observe the warning
notices. This prevents damage to property and injuries.
ATTENTION!
This keyword is a warning that damage to property can occur.
Other symbols
This symbol indicates tips and useful information.
THIS IS A QUICK START GUIDE.
The installation and operating instructions can also be found in the
downloads section of our website: www.sentiotec.com/downloads.
2. Important information for your safety
2.1. Intended use
Sentiotec WiFi is used to control the sauna remotely.
A sauna heater controlled by the remote start function of the
sauna control unit must pass the combustion test as specied in
EN 60335-2-53 paragraph 19.101. If the heater does not meet
this requirement, an appropriate safety precaution must be used
(for example: safety switch-o or door monitoring)
Any use exceeding this scope is considered improper use. Improper
use can result in damage to the product, severe injuries or death.
EN
Installation and operating instructions p. 3/8
2.2. Safety information for the installer
●Installation and connection work on the devices may only be
carried out with the power supply disconnected.
●Observe the installation instructions for the sauna control unit
used.
●Also comply with the regulations applicable at the installation
location.
●For your own safety, consult your supplier in the event of prob-
lems that are not explained in sucient detail in the installation
instructions.
2.3. Safety information for the user
●The WiFi must not be used by children under 8 years of age.
●The WiFi may only be used by children over 8 years of age, by
persons with limited psychological, sensory or mental capabilities
or by persons with a lack of experience/knowledge under the
following conditions:
– They are supervised.
– They have been shown how to use the device safely and
are aware of the hazards that could occur.
●Observe the operating instructions for the sauna control unit used.
●For your own safety, consult your supplier in the event of prob-
lems that are not described in sucient detail in the operating
instructions.
Installation and operating instructions p. 4/8
3. Product description
3.1. Scope of delivery
●WiFi adapter
●1 pc. 1 m Ethernet cable, 8-pin RJ45
●Installation material
●Assembly instructions
3.2. Optional accessories
● Door sensor system (1-052-722 / SAB00102)
● Door sensor set (1-052-723 / SAB00103)
● Safety shutdown (SFE-xxxxx)
3.3. Product features
Sentiotec WiFi enables the functions of all existing sauna control units to be
operated using devices such as smartphones and tablets. This is done using
the MySentio app in a local network (WiFi), which is available free of charge for
Android (Google Play Store) and for iOS (App Store).
Compatible sauna control units:
● home.com4 RS485 (1-052-984 HC4-B-RS485 / 1-052-985 HC4-W-RS485)
● Pro B2 (1-015-455 / PRO-B2)
● Pro B3 (1-015-457 / PRO-B3)
● Pro C2 (1-015-448 / PRO-C2)
● Pro C3 (1-015-451 / PRO-C3)
● Pro D (only in combination with BUS-CON-D / 1-053-348)
ATTENTION!
Standard-compliant operation
To ensure standard-compliant operation, safety devices must be installed in
accordance with the operating instructions for your sauna control unit.
EN
Installation and operating instructions p. 5/8
ATTENTION!
Interference can impair signal transmission
●Route all data cables separately from other mains cables and control cables.
●Protect cables with only one layer of insulation by using a conduit (double
insulation).
ATTENTION!
Damage to the device!
Installation of the app and input of the settings (see “5. Commissioning”) must
be completed before the sauna control unit is switched on.
30
27.5
4. Installation and connection
Work may only be carried out when the power has been disconnected.
During installation, observe the technical data on Page 8.

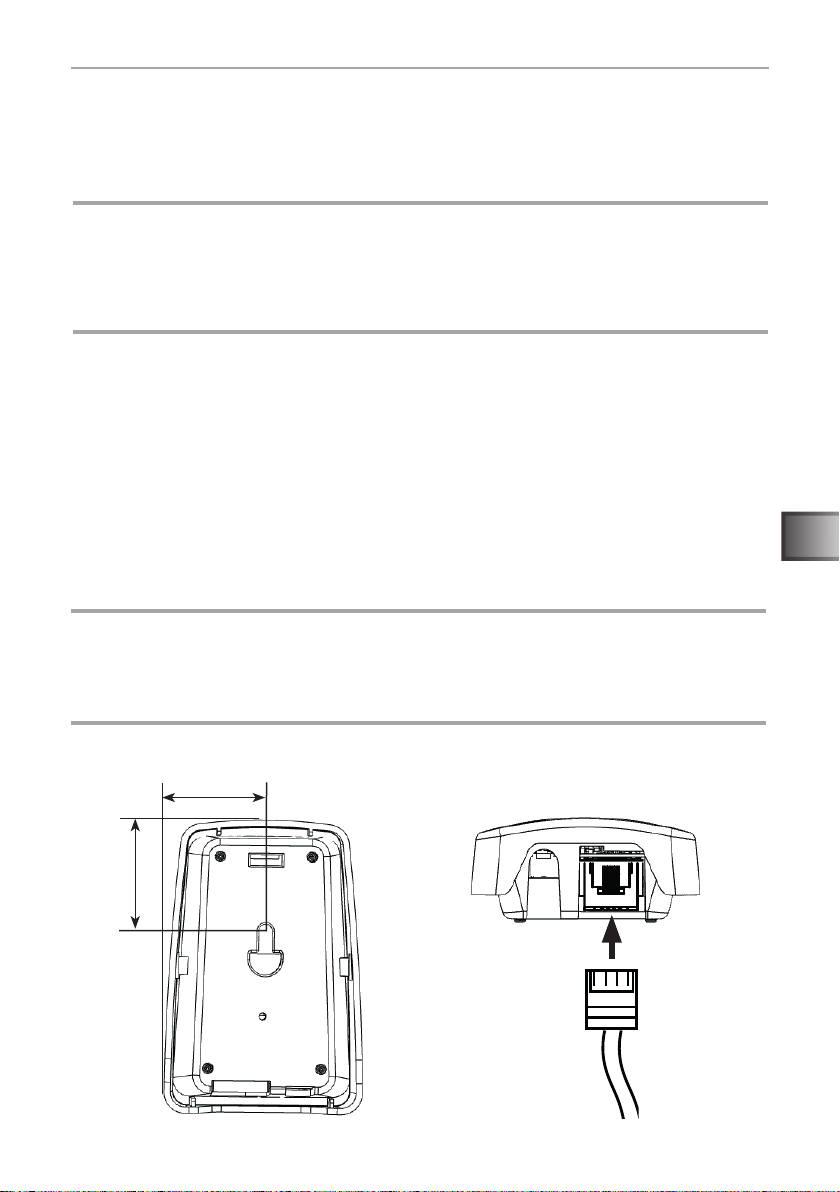

1. Secure the WiFi module somewhere near the sauna control unit and within
the range of its network (WiFi) using the screws provided.
2. Sentiotec WiFi is connected to the sauna control unit using the 8-pin Ethernet
cable in accordance with the following diagrams:
3. Make a note of the serial numbers (10 digits) of your devices to ensure you
can enter them in the app later on.
Sauna heater................................................................................................
Sauna control unit ........................................................................................
Other products..............................................................................................
4.1. Mounting and connecting MySentio WiFi
home.com4
PRO-B series
PRO-C series
PRO-D series
STB
Auto
FF
rd wt bk
RJ45
8-pin
Installation and operating instructions p. 6/8
156
193
238
156
238
193
193
156
193
238
156
238
193
193
MySentio WiFi
STB
Auto
FF
rd wt bk

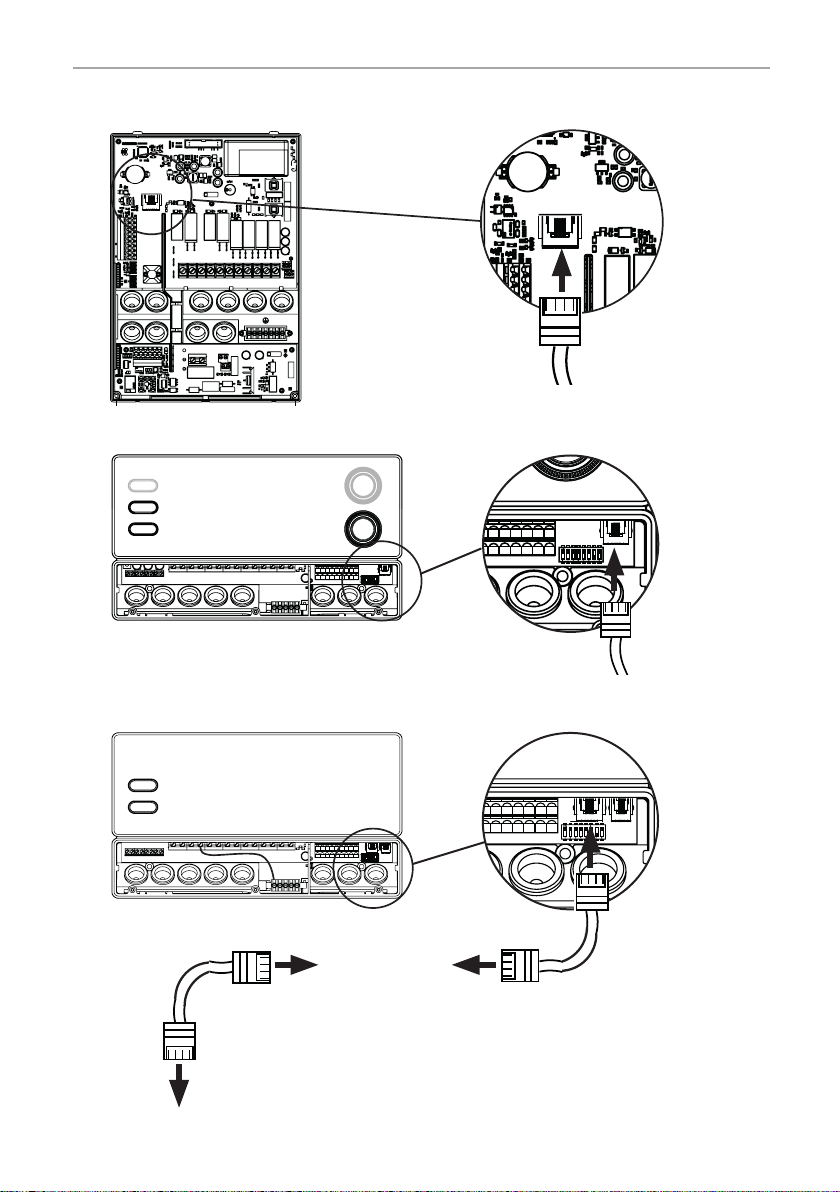

4.4. Connection to home.com4
4.2. Connection to PRO B (B2, B3) and PRO C (C2, C3)
STB
Auto
FF
rd wt bk
MySentio WiFi
MySentio WiFi
BUS converter
STB
Auto
FF
rd wt bk
STB
Auto
FF
rd wt bk
STB
Auto
FF
rd wt bk
STB
Auto
FF
rd wt bk
RJ12
6-pin
RJ45
8-pin
4.3. Connection to PRO D (D2, D2I, D3, D3I)
RJ45
8-pin
RJ45
8-pin
EN
Installation and operating instructions p. 7/8
5. Commissioning
To activate remote start, refer to the operating instructions for the respective
control unit.
1. Download the “MySentio” app onto your smartphone or tablet
►Open the app and sign up.
►Following the instructions provided in the app.
►Follow the instructions in the user manual available at the following link:
In case you have forgotten your password, simply enter the email address
you used when you registered. You will then be given instructions on how
to change the password.
DANGER!
Make sure that no ammable objects are ever left on the sauna heater
when the sauna cabin is put into operation.
www.sentiotec.com/de/downloads/bedienungsanleitungen
Android
Apple App Store
Google Play Store
Apple App Store
Google Play Store
IOS
Installation and operating instructions p. 8/8
●Dispose of packaging materials in accordance with the applicable
waste disposal regulations.
●Used devices contain reusable materials as well as hazardous
substances. Therefore, do not dispose of your used device with
household waste, but do so in accordance with the locally appli-
cable regulations.
6. Maintenance
The device is maintenance-free. Updates take place automatically.
7. Disposal
8. Technical data
Ambient conditions
Ambient temperature: -20 °C to +40 °C
Protection class (protected against splashing water): IP 20
Minimum requirement WiFi 2.4 GHz: 1 Mbit
Control unit
Dimensions: 83 x 56 x 24.5 mm
Operating voltage: 24 V DC max. 1W
Connection cables
Power supplied by Ethernet cable: 8-pin RJ45 max. 30m
Kurzanleitung
Deutsch
Version 09/22 Ident-Nr. 1-053-313
DE
MySentio Wi
1-053-313 / S-WIFI01
Montage- und Gebrauchsanweisung S. 2/8
1. Zu dieser Anleitung
Symbole in Warnhinweisen
In dieser Montage- und Gebrauchsanweisung ist vor Tätigkeiten, von denen eine
Gefahr ausgeht, ein Warnhinweis angebracht. Befolgen Sie diese Warnhinweise
unbedingt. So vermeiden Sie Sachschäden und Verletzungen.
ACHTUNG!
Dieses Signalwort warnt Sie vor Sachschäden.
Andere Symbole
Dieses Symbol kennzeichnet Tipps und nützliche Hinweise.
DIES IST EIN QUICK START GUIDE.
Sie nden die Montage- und Gebrauchsanweisung auch im Down-
loadbereich unserer Webseite auf www.sentiotec.com/downloads.
2. Wichtige Hinweise zu Ihrer Sicherheit
2.1. Bestimmungsgemäßer Gebrauch
Das Sentiotec Wi dient zur Steuerung der Sauna aus der Ferne.
Ein Saunaofen, der mittels Fernstartfunktion der Saunasteuerung
geregelt wird, muss die Abdeckprüfung laut EN 60335-2-53 Absatz
19.101 bestehen. Erfüllt der Ofen diese Vorraussetzung nicht,
muss eine entsprechende Sicherheitsvorkehrung getroen werden
(z. Bsp.: Sicherheitsabschaltung oder Türüberwachung)
Jeder darüber hinausgehende Gebrauch gilt als nicht bestimmungs-
gemäß. Nicht bestimmungsgemäßer Gebrauch kann zur Beschä-
digung des Produkts, zu schweren Verletzungen oder Tod führen.
