SENSIRION EK-P4 User manual
Quick Start Guide
EK-P4
Quick Start Guide EK-P4
1Install FTDI USB driver for the sensor cable.
(http://www.ftdichip.com/Drivers/VCP.htm)
3Connect the USB sensor cable to the sensor PCB and the PC.
4Start up the USB RS485 Sensor Viewer.

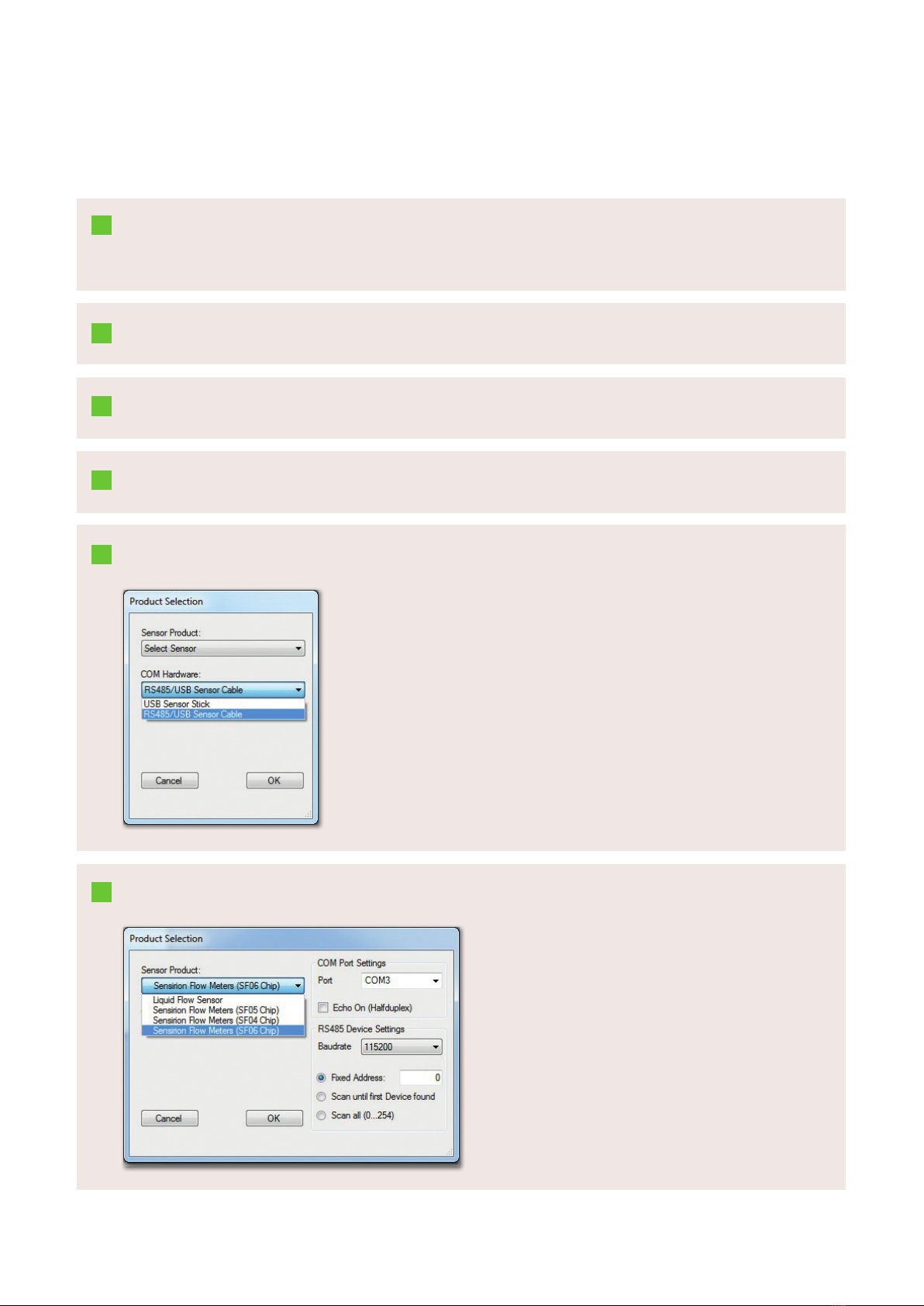

5Under COM Hardware, select «RS485/USB Sensor cable».
6Select the sensor product «Sensirion Flow Meters (SF06 Chip)».
2Install software after download from: www.sensirion.com/USB-viewer
7Select COM port and press «OK». Highest COM port is most often correct.

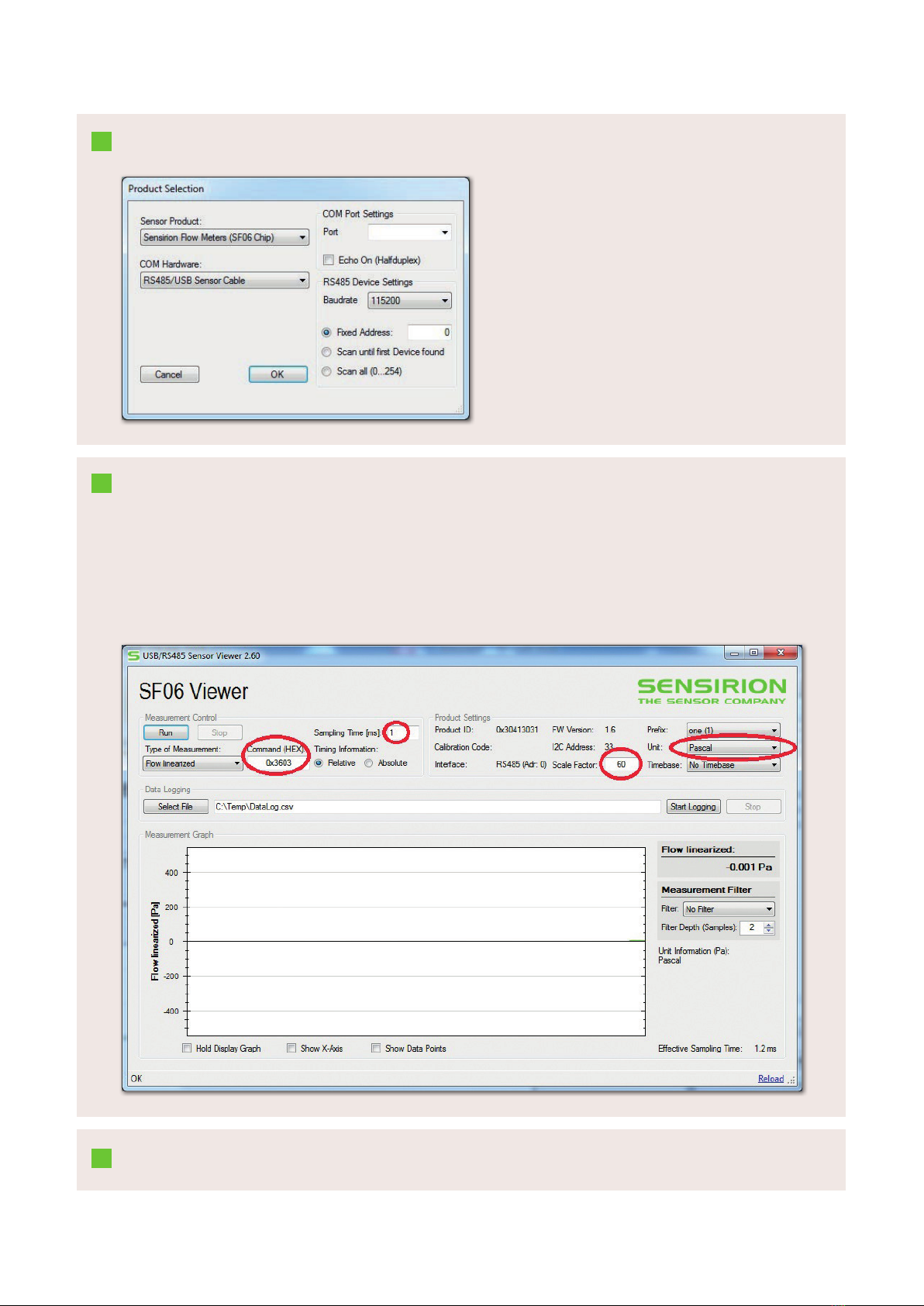

9Press «Run».
8The SF06 Viewer appears. Adjust the following settings first:
§Change units to «Pascal».
§Set scale factor to 60.
§Set sampling time to 1ms or more.
§Enter command HEX 0x3603.
160600-EK-P4
SENSIRION AG
Laubisruetistrasse 50
8712 Staefa
Switzerland
Phone + 41 44 306 40 00
Fax + 41 44 306 40 30
www.sensirion.com
For more information about Sensirion's differential pressure
sensors of the SDP3x series, please visit www.sensirion.com/sdp3x or
contact our technical customer support team:
