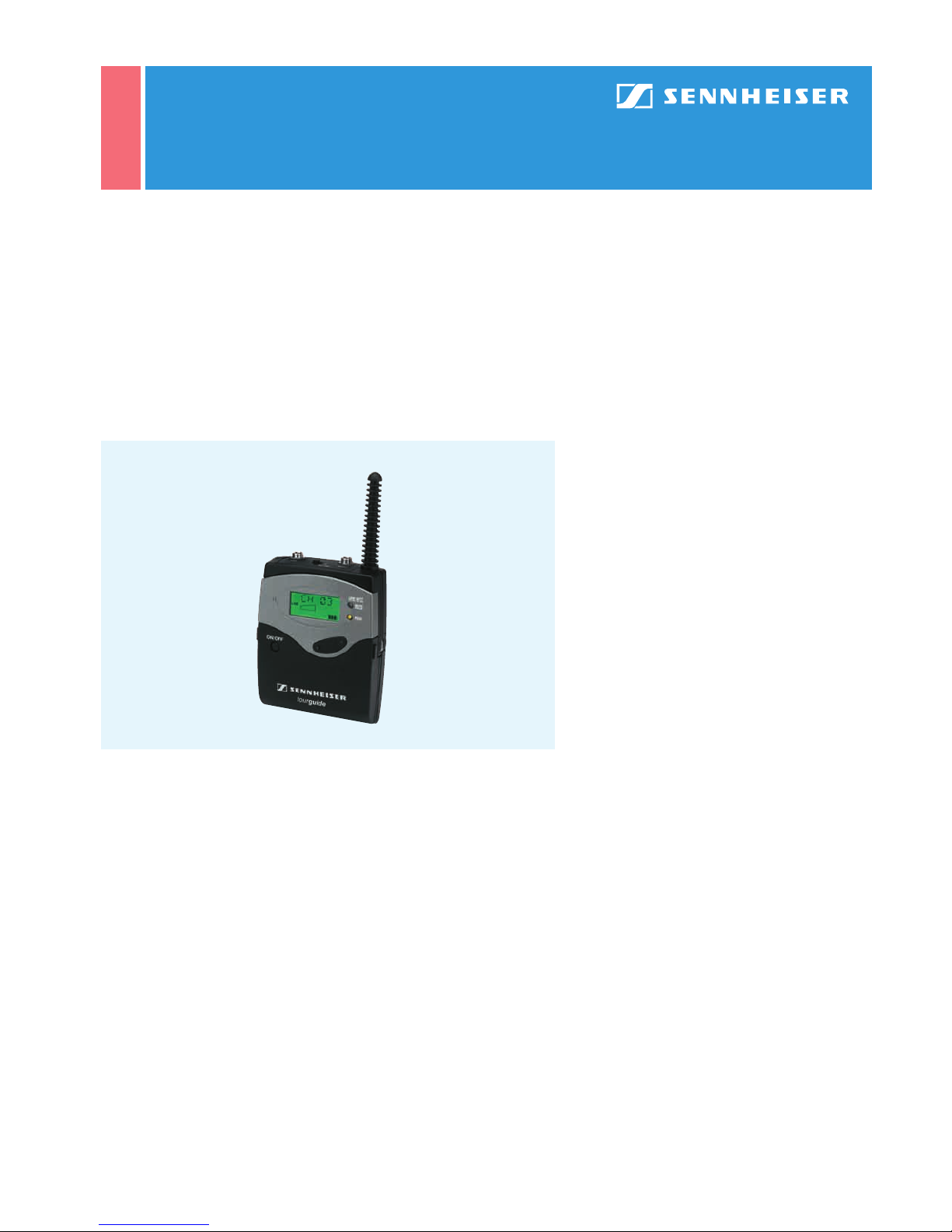

Sennheiser SK 2020-D User manual

SK 2020-D

Information Systems | Tourguide 2020-D

Unique Guided Tour System

Cat. No. 500548

General Description

The TourGuide transmitter SK 2020-D will allow you to deliver a highly professional

guided tour. Combining the bodypack transmitter with an headworn or clip-on micro-

phone, will give you total freedom of movement during your tour. You will have both

hands free to describe an object, make a presentation and express your point. The

transmitter can be easily and comfortably operated, and is highly robust. The back-lit

display conﬁrms channel choice, the radio signal and the status of the battery. Two

jacks for the microphone and line ensure variable utilization. For example, you will be

able to transmit an external audio source such as music from a portable CD player via

your transmitter and continue to talk or mute the microphone.

Features

j6 channels in the license-free frequency range Europe: 863 – 865 MHz

jMicrophone input (3.5 mm screw-type jack socket) with adjustable sensitivity

jLine input (3.5 mm screw-type jack socket) with adjustable sensitivity

jBacklit display shows:

jChannel selection

jBattery status

jAudio level meter for microphone

jAudio level meter for line input

jLock mode

jYellow LED: peak warning

jRed LED: MUTE or LOW BATT warning

jDelivery includes:1 pcs. SK 2020-D, BA 2015 included

Technical Data

Modulation.......................................................................2 FSK

RF frequency range .......................Europe: 863 – 865 MHz

USA: 926 – 928 MHz

Frequency response .....................................100 – 7,000 Hz

Max. mic/line input voltage.........microphone: 650 mVrms,

line: 2 Vrms

Operating time (Accupack) ....................... 10 h (BA 2015)

Power supply...........................BA 2015 / 2,4V; 2x AA 1,5V

Operating temperature .......................................... 0 – 50 °C

Dimensions ..................................approx. 64 x 82 x 24 mm

(2.52" x 3.23" x 0.94")

Weight ...........................................................160 g (5.64 oz)
