Sennheiser MKH 416 P 48 U User manual

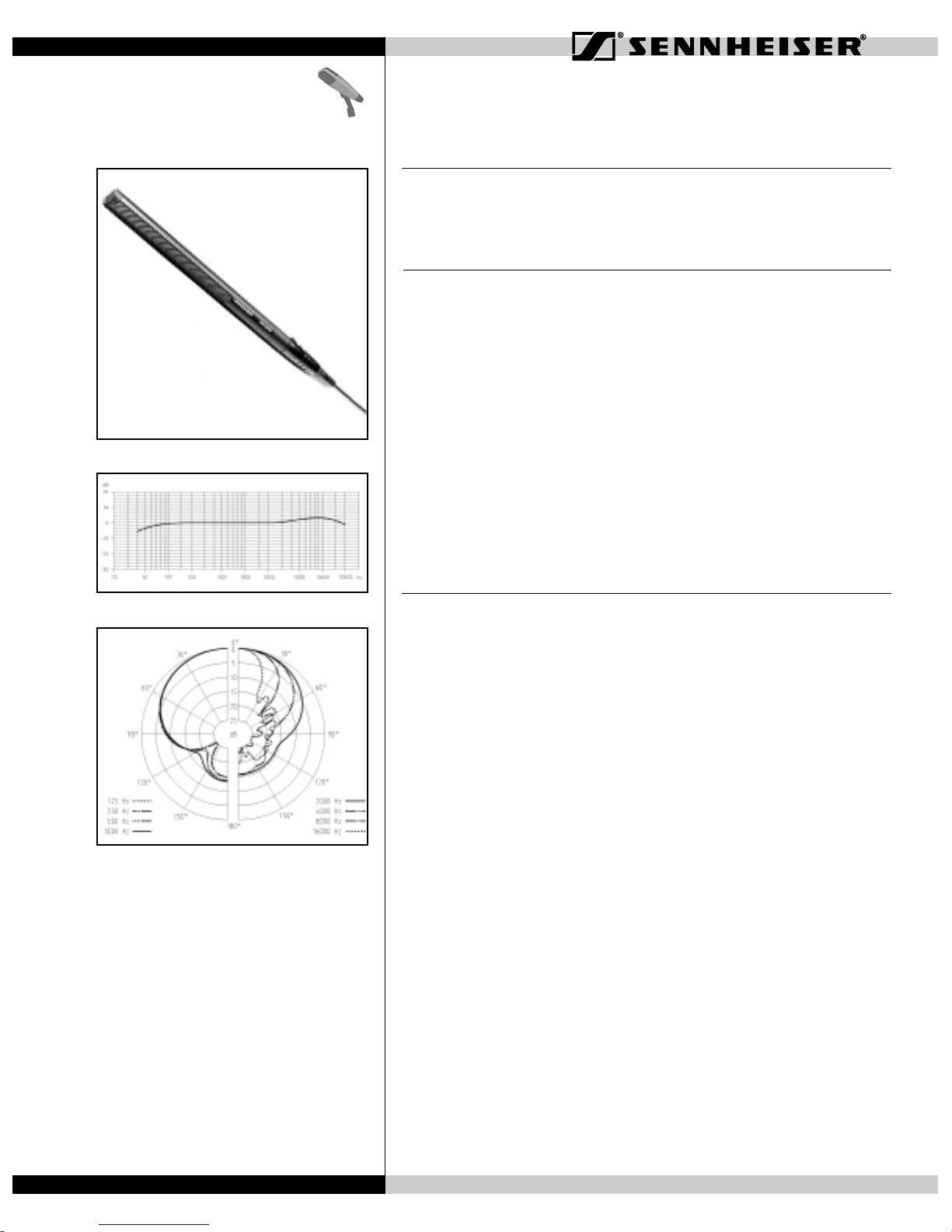

MKH 416 P48 U3 Short Shotgun Microphone

The MKH 416 is a short gun interference tube microphone. Its excellent directivity and compact

design, high consonant articulation and feedback rejection make the MKH 416 a superb all-round

microphone for film, radio and television, especially for outside broadcast applications.

Features—Benefits

• Interference tube principle

• Very low inherent self-noise

• High sensitivity

• Transformerless and fully floating balanced output

• Rugged, suitable for adverse climatic conditions

• Matt black all-metal body

• Increased directivity

• Optimum S/N ratio

• Lower gain on input channels required

• Lowest noise and greatest signal stability

• Highly immune to humidity in all conditions. Extremely stable.

• Visually “low key”

Technical Data

Pick-up pattern super-cardioid/lobar

Frequency response 40–20,000 Hz

Sensitivity (free field, no load) (1 kHz) 25 mV/Pa ± 1 dB

Nominal impedance 25 Ω

Min. terminating impedance 800 Ω

Equivalent noise level

A-weighted (DIN IEC 651) approx. 13 dB

CCIR-weighted (CCIR 468-3) approx. 24 dB

Max. sound pressure level 130 dB at 1 kHz

Power supply phantom 48 ± 12 V

Supply current 2 mA

Dimensions in inches .74 x 9.84

Weight approx. 5.82 oz

MKH 416 P48 U3

Product Compatibility

Film, radio and television, especially for outside broadcast applications.

Architect’s Specifications

The microphone shall be a super-cardioid/lobar short interference tube microphone with the

following: frequency response 40–20,000 Hz, sensitivity (free field, no load) 25 mV/Pa ± 1 dB at 1

kHz, nominal impedance 25 Ω, min. terminating impedance 800 Ω, equivalent noise level A-

weighted approx. 13 dB, CCIR-weighted approx. 24 dB, max. sound pressure level 130 dB at 1 kHz,

phantom powering 48 ± 12 V, supply current 2 mA, dimensions .74 x 9.84 inches, weight approx.

5.82 oz. The microphone shall be a Sennheiser MKH 416.

Optional Accessories

Phantom battery power supply unit MZA 14 P 48 U

Stand adapter MZQ 100

Foam windshield MZW 41

Shock mount MZS 20-1

Basket windshield MZW 20-1

Long hair windcoat MZH 20-1

AC powered phantom supply for 2 mics N 48I-2

Blimp windscreen MZW 60-1

Supplied Accessories

1 MZW 415 windshield

MKH 416 P48 U3

Product Variants

MKH 416-TU3 - 12V A-B Powering Version

Sennheiser Electronic Corporation, 1 Enterprise Drive, Old Lyme, CT 06371

Telephone: 860-434-9190 • Fax: 860-434-1759 • Web: http://www.sennheiserusa.com

Sennheiser Mexico:

Av. Xola 613, PH6, Col. Del Valle 03100, Mexico, DF. Telephone: (525) 639-0956. Fax: (525) 639-9482

Sennheiser Canada: 221 Labrosse Ave, Pte-Claire, PQ H9R 1A3. Telephone: 514-426-3013. Fax: 514-426-3953

Manufacturing Plant: Am Labor 1, 30900 Wedemark, Germany
