MKE platinum-C
MKEplatinum-C.book Seite 1 Montag, 2. April 2007 3:25 15
1
MKE platinum-C
The MKE platinum-C is a high-quality, sub-miniature, sweat-
resistant clip-on condenser microphone designed for all areas of
live work. It features excellent sound quality and rugged design.
The MKE platinum-C is fitted with a very thin (only 1 mm) yet
rugged cable, making this microphone an ideal partner for all live
sound applications.
Characteristics
ySub-miniature microphone ideal for unobtrusive attachment to
clothing or directly to the head or body.
yHigh maximum sound pressure level.
yWide frequency response with treble response adapted to the
requirements of live stage work
yThin (only 1 mm), flexible and rugged cable, low in handling
noise.
yLargely insensitive to penetration of sweat due to the patented
Umbrella Diaphragm™. This design comprises two individual dia-
phragms installed on both sides of the diaphragm ring.

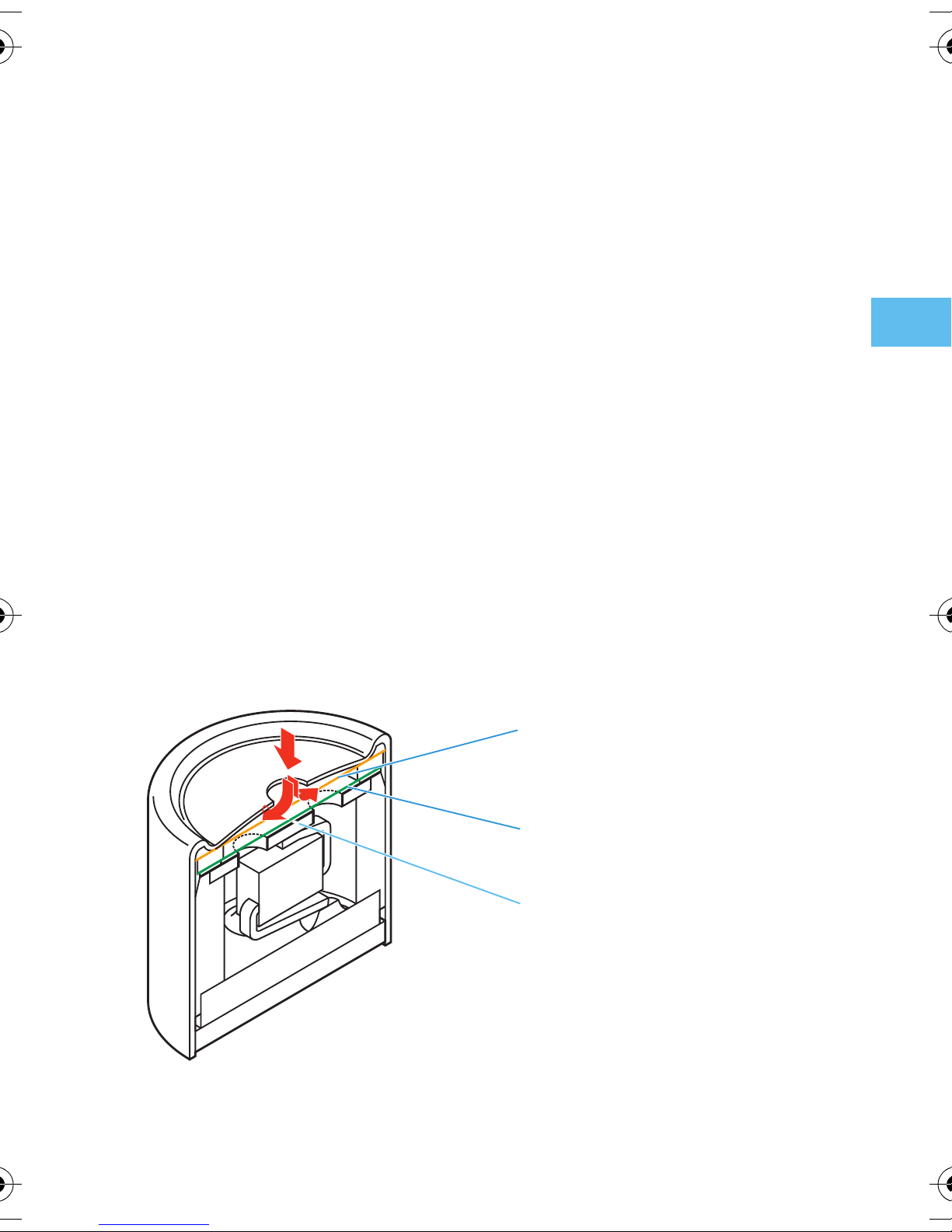

top "umbrella" diaphragm
(seals the capsule against
moisture)
bottom (active) diaphragm
backplate
MKEplatinum-C.book Seite 1 Montag, 2. April 2007 3:25 15
2
The bottom diaphragm is electrically active and forms the capa-
citive electroacoustic transducer together with the back plate.
The top diaphragm is passive and seals the microphone against
sweat and moisture. Robust sealing of the housing is ensured by
a silicone ring. Since the diaphragms are extremely small and
thin (less than 1 μm), the fact that they are made of different
materials does not influence their acoustic properties – over a
wide frequency range, these diaphragms oscillate in tandem.
High-note emphasis
Your microphone is delivered with two slip-on caps of different
lengths. You may use these caps for high-note emphasis.
Slip the cap on the head of the microphone until it locks into place.
Please refer to the frequency diagrams on the page 39.
yShort slip-on cap: MZC platinum-1
yLong slip-on cap: MZC platinum-2
Makeup protection
Please protect your MKE platinum-C by
means of the makeup protection, if you
attach your MKE platinum-C to your body
and want to put on makeup. The makeup
protection is easy to install: just slip it on
the microphone (with or without slip-on
cap). The makeup protection prevents
makeup from penetrating into the
gauze. Remove the makeup protection
shortly before you enter the stage.
The makeup protection is available as
accessory.
MKEplatinum-C.book Seite 2 Montag, 2. April 2007 3:25 15
3
Attachment of the microphone
Depending on the field of application, you may attach the
MKE platinum-C in different ways to either articles of clothing or
your body.
Attachment to articles of clothing
You may use the MZQ 02 clip to attach the microphone to your
lapel, tie, collar, a button hole, etc. For better attachment of the
cable, snap the cable tube into the microphone holder. You may
rotate the microphone holder in the clip in steps of 90°.
For thin clothes (e.g. silk), please use the
outer hole where the clip’s contact pressure
is the highest.
MKEplatinum-C.book Seite 3 Montag, 2. April 2007 3:25 15
4
You may also use the ZH 102 pin to attach the
microphone to articles of clothing made of
fabric that will not be damaged by the pin.
The pin attachment withstands high
mechanical loads and is also a very convenient
solution, if the articles of clothing do not have
collars or edges to which the MZQ 02 clip can
be attached.
The MZM 10 and MZM 2 magnetic clips can be
used for unobtrusive attachment of the
microphone to articles of clothing. The
frictional force between the microphone and
the fabric is often sufficient to ensure that the
microphone is not displaced. For smooth and
soft clothes, the neckstrap (included) ensures
that the microphone is not displaced from its
proper position.
Examples of use
MKEplatinum-C.book Seite 4 Montag, 2. April 2007 3:25 15
5
Wind-shields
Wind noise impairs the quality of outdoor recording and close-up
miking. The MZW 2 and MZW 02 wind-shields considerably reduce
the wind noise.
Please install the MZW 2 wind-shield,
first. This wind-shield reduces the wind
noise by a maximum of 20 dB.
You may further reduce the wind noise
by 10 dB by means of the additional
MZW 02 foam-net wind-shield.
MZW 2 and MZW 02 are available as
accessories.
Freefield frequency-response free
MKEplatinum-C.book Seite 5 Montag, 2. April 2007 3:25 15
6
Microfone placed in the middle of the forehead
capsule only with MZC2-1 with MZC2-2
with MZW2 with MZC2 and MZW02
Microfone placed on the chest, distance to the mouth 25 cm
capsule only with MZC2-1 with MZC2-2
with MZW2 with MZW2 and MZW02
MKEplatinum-C.book Seite 6 Montag, 2. April 2007 3:25 15
7
MKE platinum-C - Technical data
MKE platinum -4 -4-3 -5 -5-3
Directional- omni-directional
characteristic
Transmission range 20-20000 Hz ± 2.5 dB
Freefield- 6.3 mV/Pa ± 2.5 dB
open-Circuit sensitiv (1kHz)
Ratedimpedance 1000
액
Min. terminating- 4.7 K
액
impedance
Equivalent noise level
A-weighted (DIN IEC 651) 26 dB
CCIR-weighted 39 dB
(CCIR 468-1)
Sound pressure 142 dB
level limit
Feed via SK 50, SK 5012 transmitter – –
Plug 3-pin special connetcor open-ended cable
Colour anthracite beige anthracite beige
Cable length 1.6 m 1.6 m 4 m 4 m
Diameter of the 4.8 mm
microphone
Weight (without 1 g
plug+cable)
Delivery includes
MZC platinum-1 1
slip-on cap
MZC platinum-2 1
slip-on cap
Instructions for use 1
MKEplatinum-C.book Seite 7 Montag, 2. April 2007 3:25 15
8
Manufacturer declarations
Warranty
2 years
Approval
Sennheiser electronic GmbH & Co. KG declare that this device is in
compliance with the applicable CE standards and regulations.
WEEE Declaration
Please dispose of this product at the end of its operational lifeti-
me by bringing it to your local collection point or recycling centre
for such equipment.
MKEplatinum-C.book Seite 8 Montag, 2. April 2007 3:25 15
Sennheiser electronic GmbH & Co. KG
30900 Wedemark, Germany
Phone +49 (5130) 600 0
Fax +49 (5130) 600 300
www.sennheiser.com
Printed in Germany Publ. 03/07 086046 / A03
