Sennheiser ME 64 User manual

GEBRAUCHSANLEITUNG

INSTRUCTIONS FOR USE

INSTRUCTIONS POUR L‘USAGE

ISTRUZIONI PER L‘USO

INSTRUCCIONES PARA EL USO

GEBRUIKSAANWIJZING

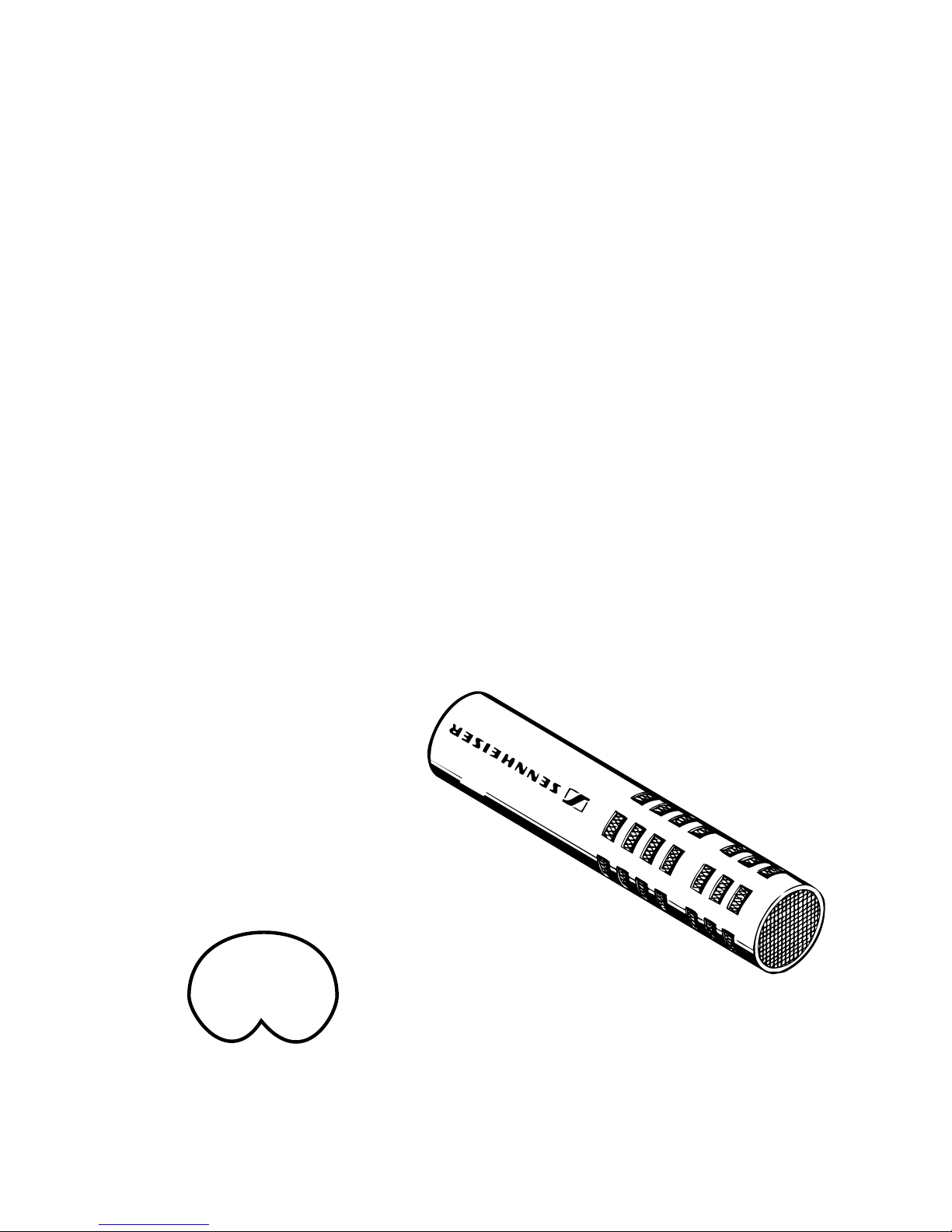

SYSTEM K6

ME 64

Mikrofonmodul passend zum Speiseadapter K6 oder K6P.

TECHNISCHE DATEN

Übertragungsbereich 40 - 20000 Hz ±2,5 dB

Richtcharakterstik Niere

Freifeldleerlaufübertragungsfaktor 32 mV/Pa ±2,5 dB

Ersatzgeräuschpegel 16 dB (nach DIN IEC 651)

25 dB (nach CCIR 468-3)

Grenzschalldruck bei K =1% 130 dB(A) bei 1 kHz

Abmessungen in mm 106 x 22,5

Gewicht 35 g

Microphone module suitable for powering module K6 or K6P.

TECHNICAL DATA

Frequency response 40 - 20000 Hz ±2,5 dB

Pick-up pattern cardioid

Free field no-load sensitivity 32 mV/Pa ±2,5 dB

Equivalent sound pressure level 16 dB (as per DIN IEC 651)

25 dB (as per CCIR 468-3)

Max. sound pressure level for K =1% 130 dB(A) for 1 kHz

Dimensions in mm 106 x 22.5

Weight 35 g

Module microphone pour l’adaptateur d’alimenation K6 ou K6P.

CARACTERISTIQUES TECHNIQUES

Bande passante 40 - 20000 Hz ±2,5 dB

Directivité Cardioïde

Facteur de transmission à vide 32 mV/Pa ±2,5 dB

Volume sonore équivalent 16 dB (selon DIN IEC 651)

25 dB (selon CCIR 468-3)

Limite de pression acoustique à K =1%130 dB(A) à 1 kHz

Dimensions en mm 106 x 22,5

Poids 35 g

Änderungen vorbehalten/Subject to alterations/Sous réserve de modification.

ME 64

Modulo microfono adatto all’adattatore di alimentazione K6 o K6P.

DATI TECNICI

Gamma di frequenza 40 - 20000 Hz ±2,5 dB

Direttività Cardioide

Coefficiente di transmissione a vuoto 32 mV/Pa ±2,5 dB

Livello di rumore equivalente 16 dB (secondo DIN IEC 651)

25 dB (secondo CCIR 468-3)

Pressione acustica limite

a K =1% 130 dB(A) a 1 kHz

Dimensioni in mm 106 x 22,5

Peso 35 g

Modulo micrófono para el adaptador de alimentación K6 o K6P.

CARACTERISTICAS TECNICAS

Gama de frecuencia 40 - 20000 Hz ±2,5 dB

Directividad Cardioide

Factor de transmisión en vacío 32 mV/Pa ±2,5 dB

Volumen sonoro equivalente 16 dB (según DIN IEC 651)

25 dB (según CCIR 468-3)

Límite de presión acústica a K =1% 130 dB(A) a 1 kHz

Dimensiones en mm 106 x 22,5

Peso 35 g

Mikrofoonmoduul behorend bij de netadapter K6 of K6P.

TECHNISCHE GEGEVENS

Weergavebereik 40 - 20000 Hz ±2,5 dB

Richtkarakteristiek Nier

Onbelaste werking frequentiefaktor veld 32 mV/Pa ±2,5 dB

Vervangend geluidsdrukniveau 16 dB (volgens DIN IEC 651)

25 dB (volgens CCIR 468-3)

Max. geluidsdrukniveau bij K =1% 130 dB(A) bij 1 kHz

Afmetingen in mm 106 x 22,5

Gewicht 35 g

Con riserva di modifiche/Modificaciones reservadas/Wijzigingen voorbehouden.

Soll-Frequenzgang (0°und 90°) / Polardiagramm

Nominal frequency response (0°und 90°/ Pick-up pattern

Réponse en fréquence (0°und 90°/ Diagramme de la directivité

Risposta in frequenza (0°und 90°/ Diagramma polare

Respuesta en frecuencia (0°und 90°/ Diagrama de la directividad

Ingestelde frequentiekarakteristiek (0°und 90°/ Pooldiagrammen

Sennheiser electronic KG Telefon 05130/600-0

D-30900 Wedemark Telefax 05130/6312

Printed in Germany Publ. 7/93 50992 / A01
