Sennheiser E838 User manual

838

Bedienungsanleitung

Instructions for use

Notice d‘emploi

Istruzioni per l‘uso

Instrucciones para el uso

Gebruiksaanwijzing

e 838_524419_0807_Sp6.book Seite 1 Montag, 23. Juli 2007 3:24 15

838

The 838 has been engineered for the vocalist that

needs the vocals to cut through the band. Due to its

excellent acoustic properties, the 838 delivers a high

signal output to cut through high on-stage sound levels

with ease. A gentle presence boost to even tonal

response ensures vocal clarity and projection.

The balanced frequency response maintains signal

quality when moving on and off axis during performance.

The minimal proximity effect provides for consistently

clear bass-end performance when singing closer to, or

further from the microphone.

The cardioid pick-up pattern provides excellent feedback

rejection and good isolation from incidental rear noise.

The rugged metal construction and internal damping

isolates handling noise.

Features

yRugged metal body

yShock-mounted capsule

yFrequency-independent directivity

yExceptional feedback rejection

yExcellent vocal projection

yHumbucking coil

Delivery includes

y838 microphone

yMZQ 800 microphone clamp

yPouch

yInstructions for use

yWarranty Certificate

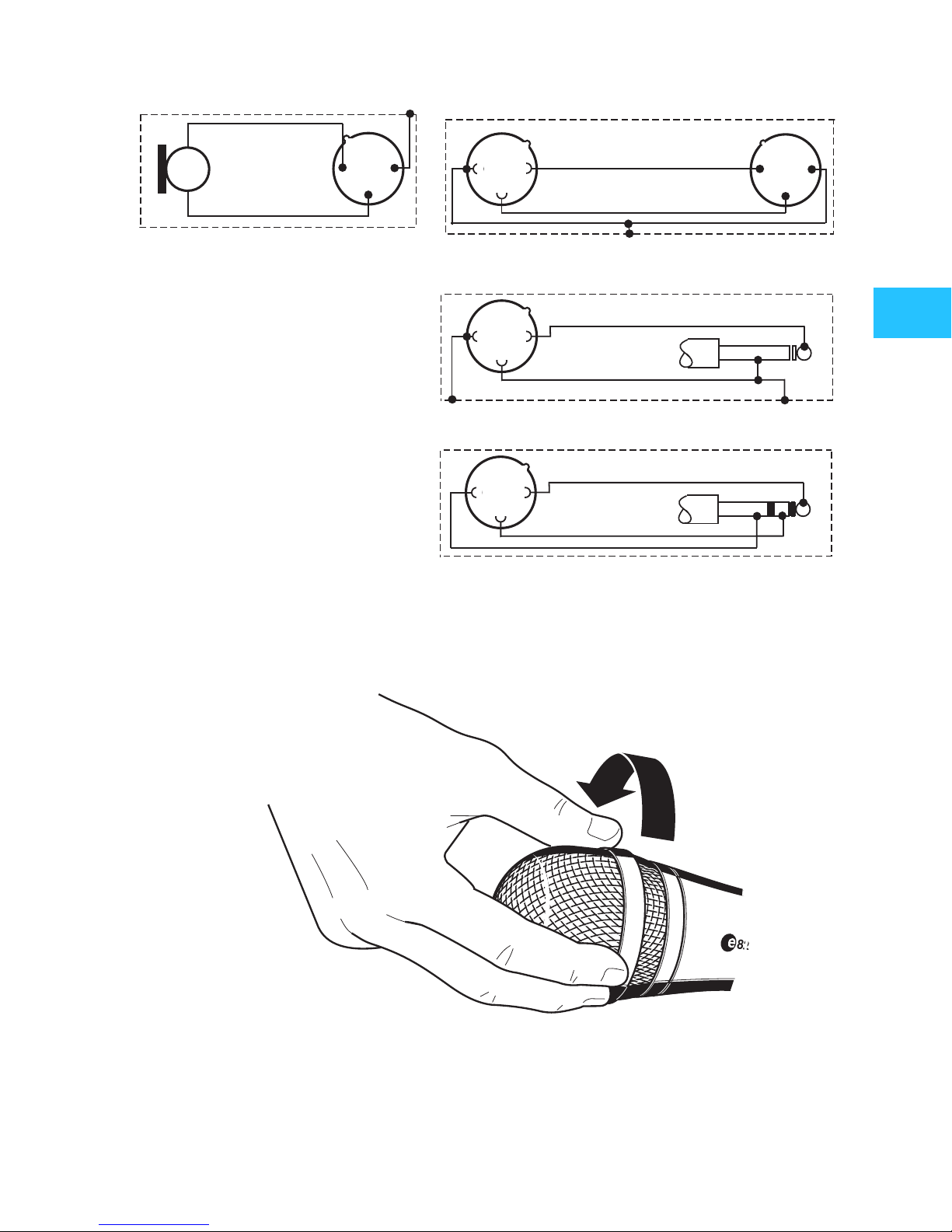

Pin assignment of XLR-3 connector

Removing the sound inlet basket

XLR 6,3 mm

XLR

6,3 mm

symmetrisch

XLR

balanced

Positioning the microphone

If sibilance or “popping” occurs, position the microphone

not directly in front of the mouth but slightly to the side.

In order to prevent feedback, position monitor loud-

speakers so that they are located in the angle area of the

highest cancellation of the microphone.

In order to prevent interference due to crosstalk between

adjacent sound sources, try to position the microphone

so that the interfering sound source is located in the

angle area of the highest cancellation of the microphone

(approx. 150°; see polar diagram).

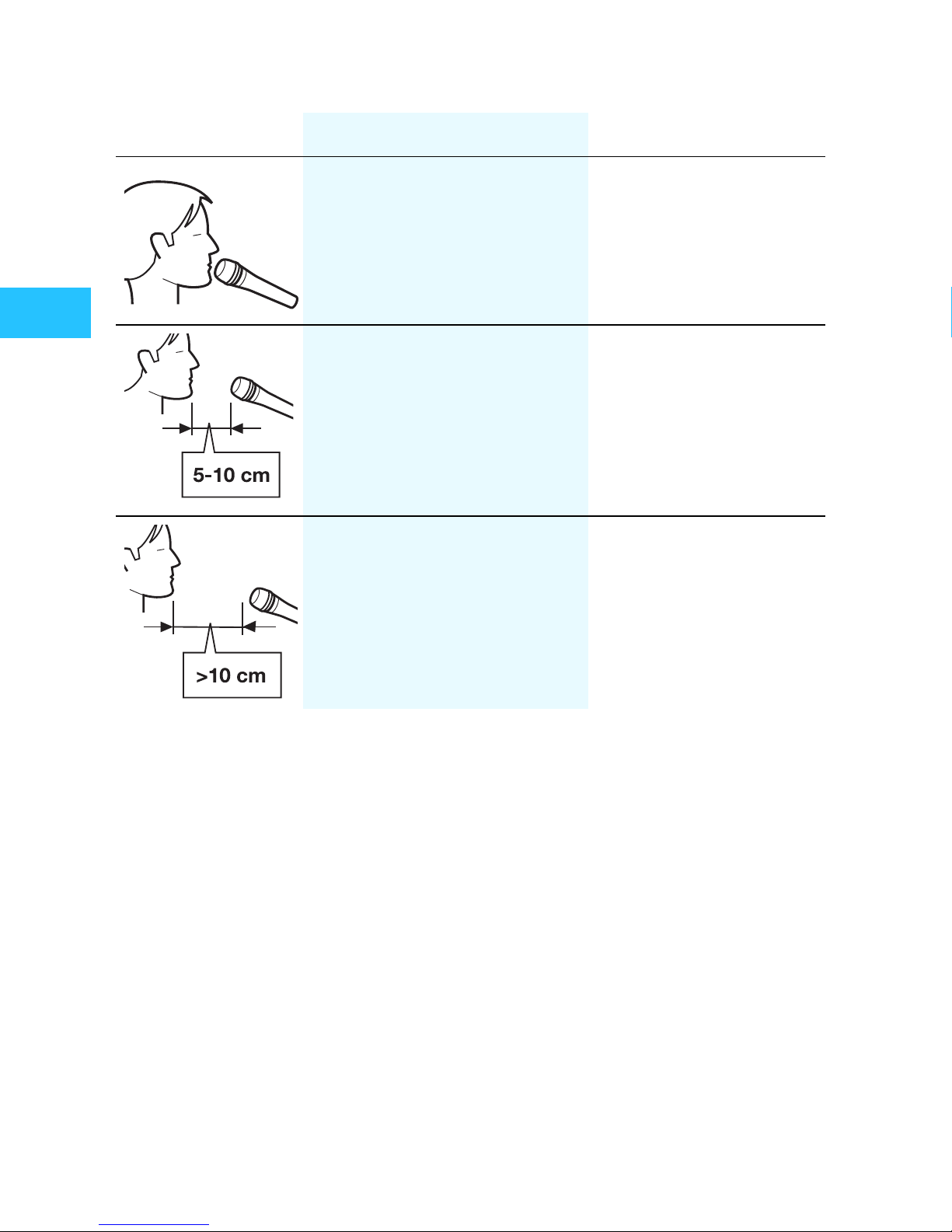

Position Resulting sound Commentary

High proximity effect

(much bass/

fundamental)

Powerful, direct sound

Very little crosstalk

from other sound

sources

Less proximity effect

(less bass/fundamental)

Some room ambience,

natural, balanced sound

More crosstalk from

other sound sources

Very little proximity

effect (little bass/

fundamental)

More room ambience,

indirect sound

Much crosstalk from

other sound sources

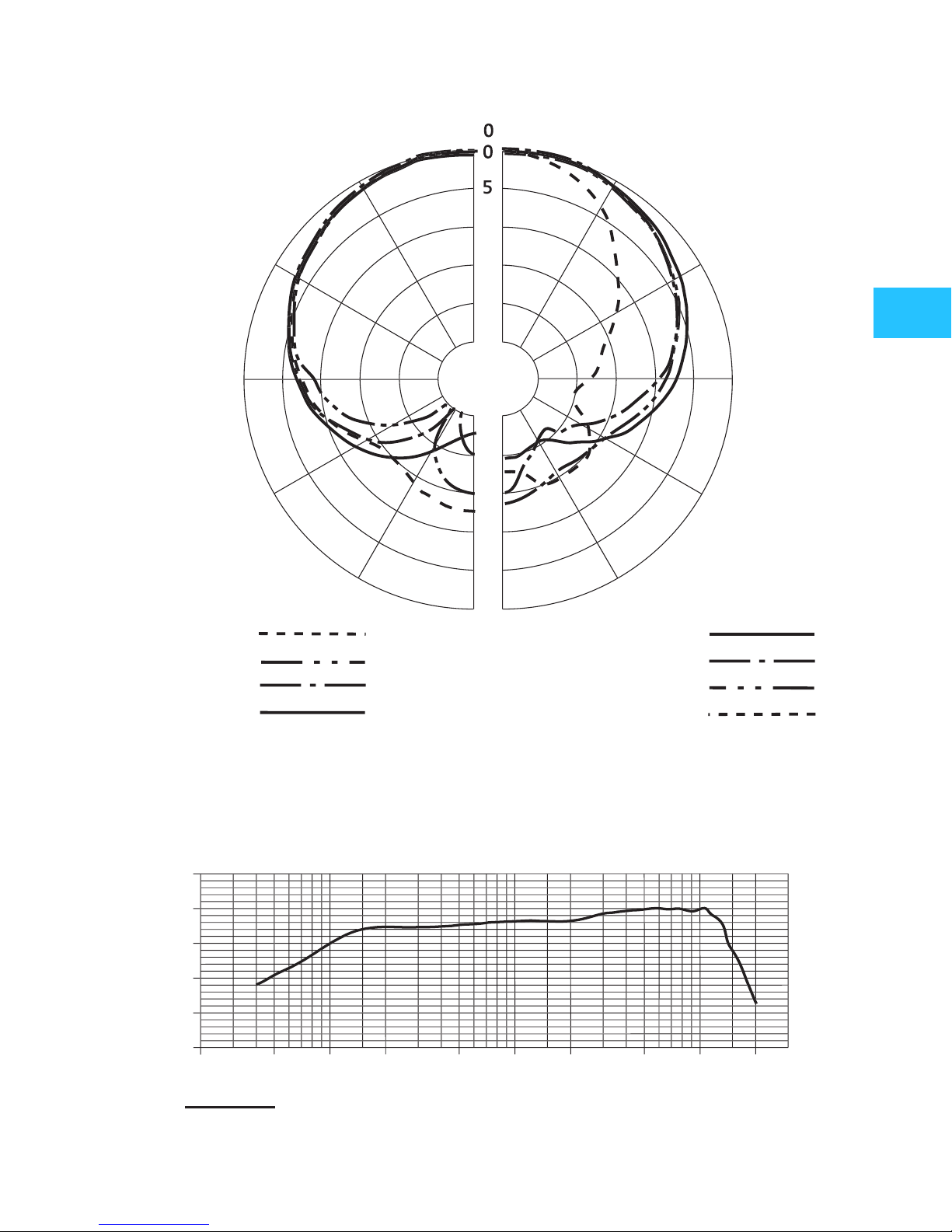

Polar diagram

Frequency response curve

000

8000

6000

500

000

- 7

500

000

5000

0000

- 4

Specifications

Transducer principle dynamic

Frequency response 40.....17,000 Hz

Pick-up pattern cardioid

Sensitivity

(free field, no load at 1 kHz) 2 mV/Pa ± 3 dB

Nominal impedance 350 Ω

Min. terminating impedance 1 kΩ

Connector XLR-3

Weight 330 g

Dimensions Ø 47 x L 181 mm

Overview of microphone applications

Variant

Application

e602-II

e604

e606

e608

e614

e815

e825

e835

e838

e840

e845

e865

Vocals xxxxxxx

Choirs x

Studio,

acoustic instruments

Orchester x

Brass/Saxophon xx x

Acoustic guitar x

Acoustic bass x

Guitar amplifiers x

Bass amplifiers x

Leslie xxx

Piano, grand piano x

Kick drums x

Snare drums xxx

Rack toms xxx

Floor toms xxx

Congas xxx

Cymbals x

Percussion xxxx

Overheads x

Manufacturer declarations

Warranty

2 years

Approval

Sennheiser electronic GmbH & Co. KG declare that this device

is in compliance with the applicable CE standards and regula-

tions.

WEEE Declaration

Please dispose of this product at the end of its operational li-

fetime by bringing it to your local collection point or recycling

centre for such equipment.

Sennheiser electronic GmbH & Co. KG

30900 Wedemark, Germany

Phone +49 (5130) 600 0

Fax +49 (5130) 600 300

www.sennheiser.com

Printed in Germany Publ. 08/07 524419/A01
