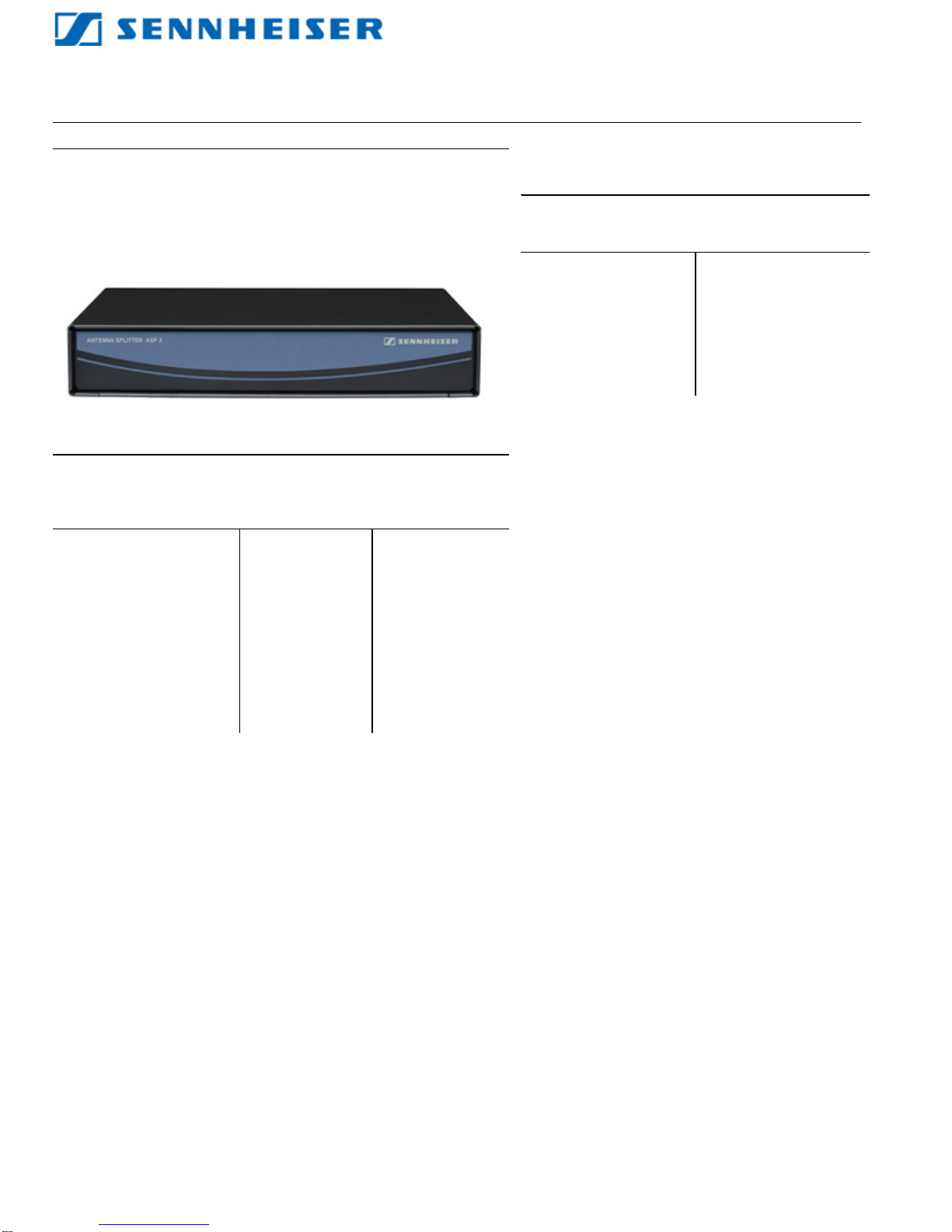

Sennheiser ASP 2 User manual

Wireless Microphones 2

Antennasplitter

ASP 2

Publ.: 16.01.2004

Cat. No. 09824

Description

Passive 2 x 1 : 4 antenna splitter. The ASP 2 allows a single pair of

antennas to feed up to four EM 500 G2, EM 300 G2 or EM 100 G2

receivers. Incorporates DC distribution for distributing the DC supply

voltage of the NT 1 power supply unit to up to four receivers.

By combining two ASP 2, an 8-channel system can be operated with

only two antennas.

Delivery includes

1 ASP 2 antenna splitter

Operating instructions

RecommendedAccessories

Mains unit for ASP 2 (EU

version)

NT 1

Cat. No.04786

Mains unit for ASP 2 (UK

version)

NT 1-UK

Cat. No.04787

Mains unit for ASP 2 (120V

version)

NT 1-120

Cat. No.04788

Passive Antenne

A 2003-UHF

Cat. No.03658

Omni-directional antenna

A 1031-U

Cat. No.04645

Active directional antenna

A 12AD-UHF

Cat. No.04156

Rack Mount Kit

GA 2

Cat. No.09823

Features

Easy installation

Technical data

RF frequency range

500 ..... 870 MHz

Attenuation

10 dB (IN B/OUT B), 14

dB (IN A/OUT A)

Dimensions

212 x 145 x 38 mm

Weight

700 g

Operating voltage (stand

alone)

10-16 V DC
