Seeley WF2000 Manual

WF2000 Gas Wall Furnace

Service TRAINING 2011.

Note: Service Personal Must be Appropriately

Qualified and Trained to work on this appliance.

All National, and State, Gas and Electrical

regulations must be fully adhered to.

Installation by a unqualified person will void

the product warranty.

WF2000 Wall FURNACE

•Listen to the Clients issues.

•Does the client understand, their product?

•Is the unit Installed & Commissioned correctly?

•Old & New series case removal.

•Cosmetic changes only.

•The internal heater remains identical.

•Diagnosing & Testing units.

•Discuss installation requirements.

•WF2000 26MJ/h, 30MJ/h & 40MJ/h application.

**NOTE : 26MJ/h Unit is no longer manufactured

Input Output

30MJ = 8.34kW

40MJ = 11.1kW

Shipping Details

Length -1850

Width -545

Depth -240

Volume -.24 m3

Weight -46kg

WF2000 – WALL FURNACE

Installation Types

Control

Panel

Door

Combustion

Air Intake

Vents

RoomAir

Inlets

RoomAir

Inlets

Main Heat Outlet

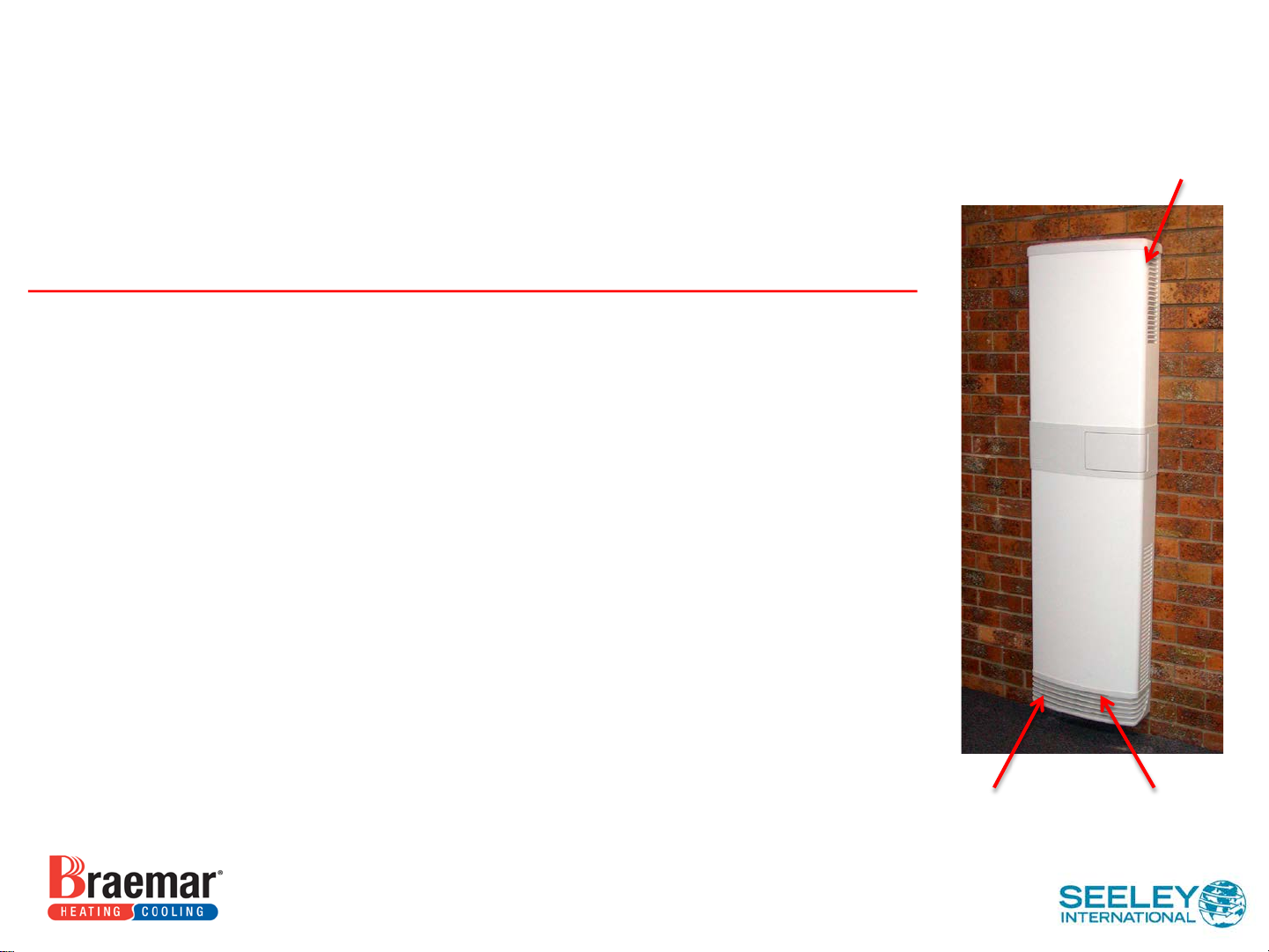

INBUILT

(Semi-Recessed )

Unit fits into a purpose

built wall cavity.

CONSOLE

(Surface Mounted)

Unit fits against an

existing wall.

Optional kit

attached

WF2000 Wall FURNACE

Old Style Cabinet

Draft Diverter

Heat Exchanger

New Style Cabinet

Room Fan

Heat Outlet Grill

Gas Valve

Control Panel

Burner Assembly

WF2000 – WALL FURNACE

New Style Case Unplug Earth Connection

(Inside cover) when dismantling

Remove Two (case securing)

Screws (through the grill)

Make sure the power is off & unit unplugged

DISMANTLING

•Turn the power off & unplug.

•Carefully remove the two securing screws

through the front lower grill.

•Pull the case forward, at the bottom.

•Lift the case up, and place the case on the floor.

•Unplug the earth wire at the top right (inside)

the case.

•Don’t forget to reconnect when reassembling unit.

•Carefully place the case in a safe location.

•You now have full access to the heater.

Clearance Between

Heater & Floor

100mm Minimum

200mm Maximum.

Cover Securing Screws

Vertical Direction Louvers

WF2000 – WALL FURNACE

Dismantling

WF2000 With Cover Removed.

Pilot Head

Thermocouple Flame

Sensor.

Ignition Electrode

“V” Shaped Pilot Flame

Complete Pilot Assembly

FLAME ON
