2Sedona LCD Display

The display can be used as an operating panel to display and manage the algorithm of the

iSMA-B-AAC20 controller or to view and manage system settings.

The built-in display is a monochrome display with backlighting. It can display up to 20

characters per line and up to 7 rows on one screen. Up to 16 lines can be displayed in a single

screen, and scrolling is available with up/down arrows (one line at a time) or with the keys

F1/F2 (scrolling entire screens).

Note: The display supports only the basic ASCII characters.

There are 6 dedicated keys to operate the display:

•Esc: exit key;

•Enter: select, move the cursor to the right;

•Arrow up: add/subtract, menu navigation;

•Arrow down: add/subtract, menu navigation;

•F1: function key;

•F2: function key.

2.1 LCD System Menu

The iSMA-B-AAC20 controller with the display has an option to log in to the system menu

without a necessity to add any additional components to the Sedona environment.

•Press and hold the F1 key (displays "Enter Password");

User Manual iSMA-B-AAC20/LCD Display

Version 1.3 www.globalcontrol5.com Page 4/ 20

•Use the arrow keys (the change of the digital value by 1) and move through the coming

fields (using the Enter key), enter the password to the system (a 4 digit number, 1000

is a default value),

•Approve the input password by pressing and holding the Enter key,

•Cancelling the login process and exiting from the system menu – press and hold the

Esc key.

The system menu consists of the following components:

•Info: Provides information about your device and hardware resources;

•Local IO: Contains information about the current values of inputs/outputs of the

physical devices and their configuration options,

•Network Config: Changes the IP address of the device and the port and address of the

Modbus TCP/IP protocol,

•Change password: Changes the password to log in to the system menu and to the

website (editing the Slot Device Password in the Plat component),

•Reboot: Restarts the device (required when you change the IP address).

3Installing the Sedona LCD Kit

The LCD display of the iSMA-B-AAC20 controller is operated by using the components of the

iSMA LCD kit. To install the iSMA LCD kit import the kit to the iSMA Tool software (possibly as

part of the package of various kits in a zip file). To do this, use an application from the Sedona

-> Import Sedona Files.

After a successful import of the files, upload the files to your device using the Kit Manager

application from the Sedona Tools package.

WARNING! Before programming the LCD Display, please check if you the latest kit version is

used. The latest kits are available on the GC5 support website www.support.gc5.pl

User Manual iSMA-B-AAC20/LCD Display

Version 1.3 www.globalcontrol5.com Page 5/ 20

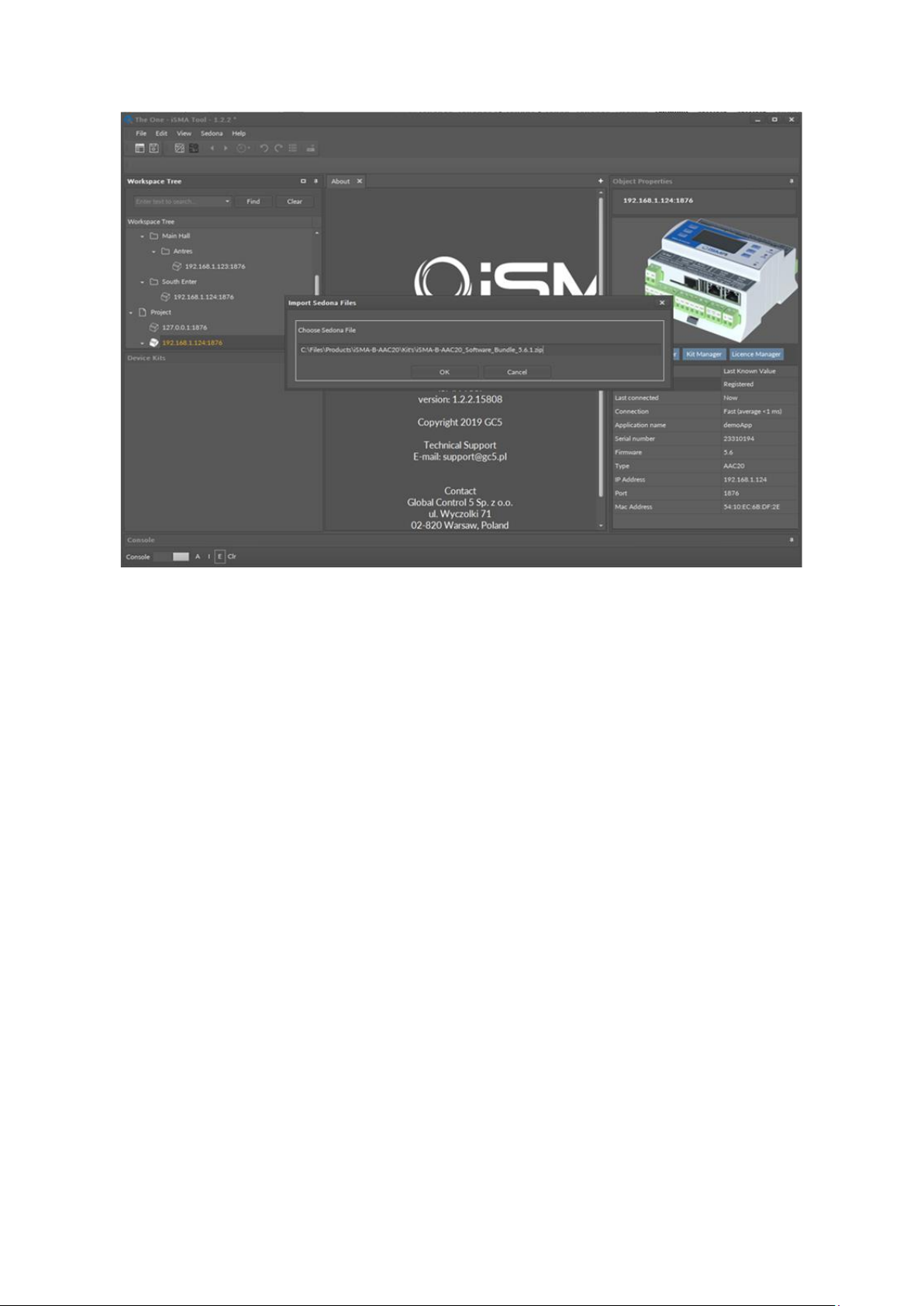

Figure 1 Sedona Installer

4Sedona LCD Components

The iSMALCD kit is a set of elements used to support the display.

It consists of the following components:

•Display: The main component handling the LCD display;

•Folder Line: The component of the folder for grouping display components;

•Text Lines: The component of static text;

•Numeric Line: The component of the Numeric type variable (float);

•Bool Line: The Boolean variable component;

•Int Line: The Integer variable component;

•MultiState Line: The Integer variable with labels component;

•Next Page: The component of the next page;

•BooleanSchedule Line: The component of the Boolean Schedule editor;

•NumericSchedule Line: The component of the Numeric Schedule editor.

User Manual iSMA-B-AAC20/LCD Display

Version 1.3 www.globalcontrol5.com Page 6/ 20

4.1 Display Component

The Display component is the core component for LCD. The component should be placed

under the Drivers folder. All components working with the display must be placed under the

Display component.

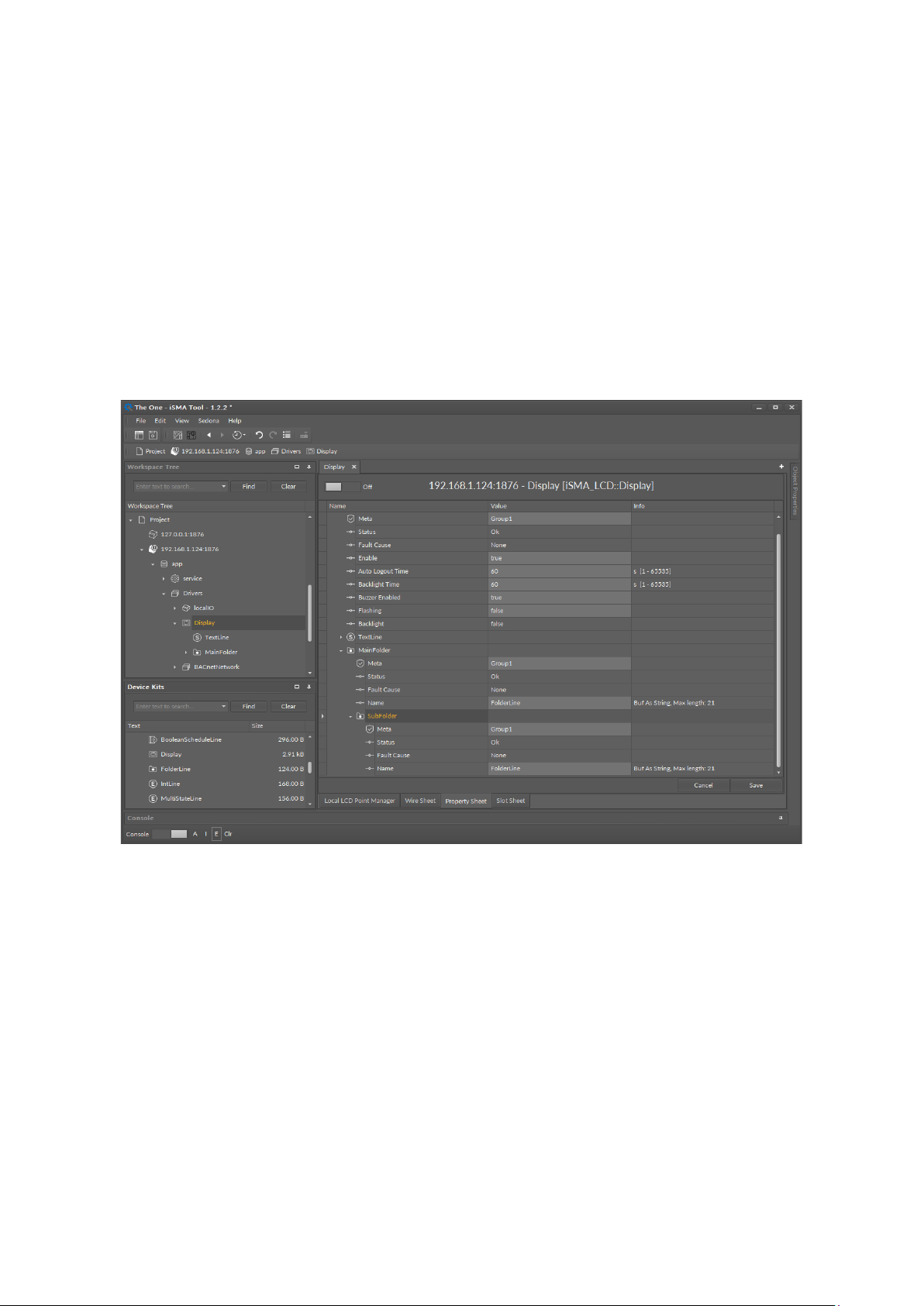

Figure 2 Display component property sheet view

The component has the following slots:

•Status: The current status of the LCD display;

•Auto Logout Time: The time after which the user will be logged out and switched to

LCD's default user status (default value 60 s);

•Backlight Time: The time of the backlight (default value 60 s);

•Buzzer Enabled: Enabled/Disabled built-in buzzer (by default active);

•Flashing: Activates the flashing of the display backlight;

•Backlight: Status of the backlight.

The backlight slot can be used as a feedback that the display is being used manually.

Each time the LCD button is pressed, the backlight is switched on and the slot changes its

value to true. The status of this slot can be saved as an alarm event or in history log using the

NVBooleanWritable component.

User Manual iSMA-B-AAC20/LCD Display

Version 1.3 www.globalcontrol5.com Page 7/ 20

4.2 FolderLine Component

The FolderLine component is used to group the viewed items. Adding it to the Sedona

application, it appears on the display in the form of a text with the symbol >> on the right side

of the screen. To enter the folder use Enter key; to go back to the parent folder, use Esc key.

Using the FolderLine component, desired structures can be organized in a tree menu, where

the Display component is the main element. User’s current location is displayed in the form of

a path at the top of the screen.

Figure 3 FolderLine component property sheet view

4.3 TextLine Component

The TextLine is a component of the static text display on the LCD screen. You can input up to

20 characters (ASCII base table). When the user adds the component to the application, the

Text slot takes automatically the name of the component, which can be changed any time by

entering any other text.

User Manual iSMA-B-AAC20/LCD Display

Version 1.3 www.globalcontrol5.com Page 8/ 20

Figure 4 - Text line component property sheet view

4.4 NumericLine Component

The NumericLine component is used to display and edit the Numeric (float) variables. The

displayed value of the In slot may be preceded by a description on the left side (Prefix), e.g.,

the name, as well as on the right (Suffix), e.g., the units.

In order to edit the variables, it is recommended to use the NVNumericWritable components

from iSMA_platAAC20 kit. To edit the value of the NumericLine component, select ‘true’ in the

Editable slot, and provide the user with a write access to the component. To make sure that

the value on the LCD is synchronised with the changes in NVNumericWritable component the

“link back-forward” strategy needs to be applied. There is a possibility to change the value

from LCD by selecting the ‘set’ action. To do this, use the arrow up/down keys - add/subtract

the value of the step. The step field value can be inputted in the application and changed by

using keys F1, F2 (multiplying or dividing the step value by 10).

User Manual iSMA-B-AAC20/LCD Display

Version 1.3 www.globalcontrol5.com Page 9/ 20

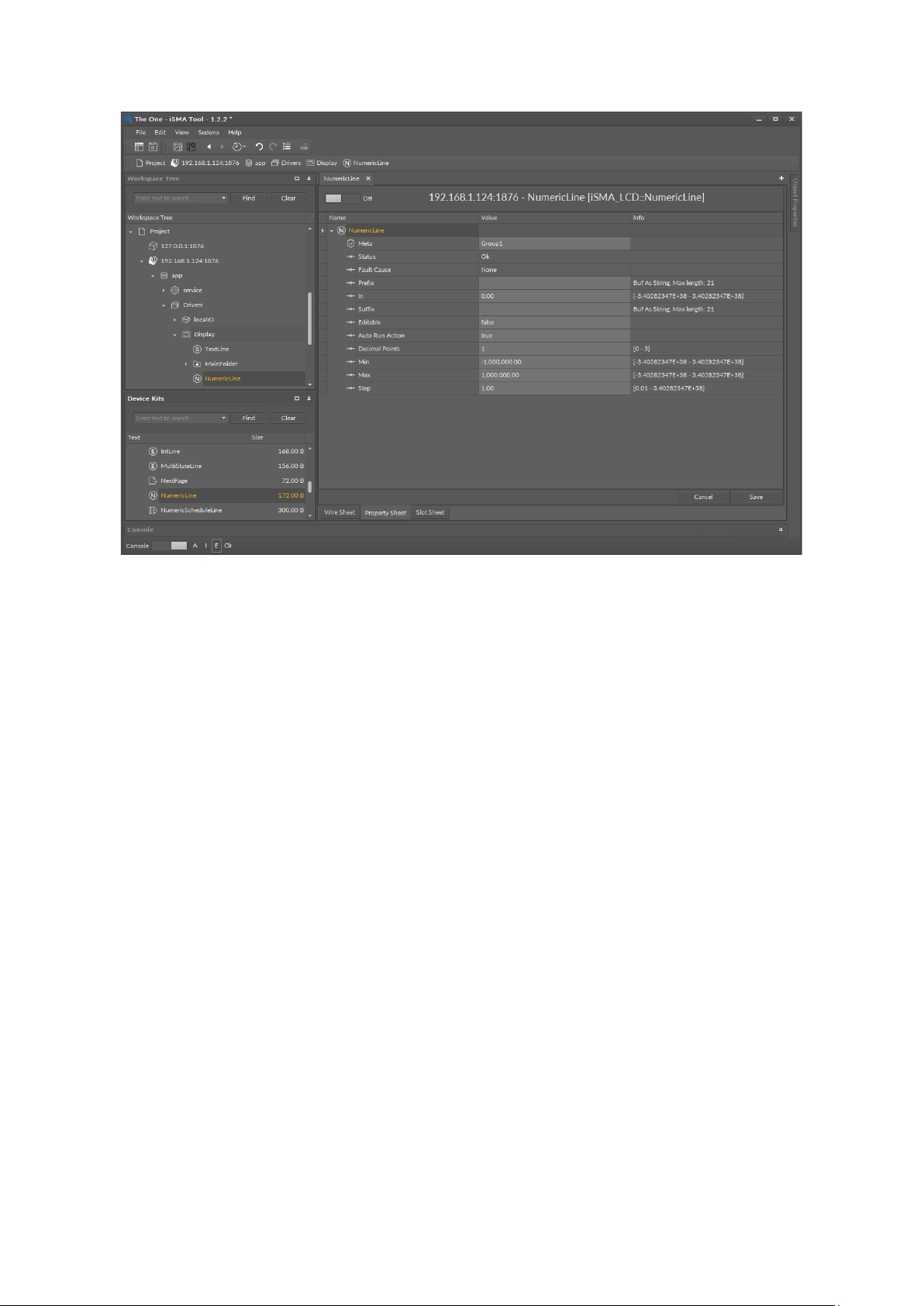

Figure 5 NumericLine component property sheet view

The component has the following configuration slots:

•Prefix: Static text which is displayed before the Numerical value (left aligned);

•In: The Numerical value;

•Suffix: Static text which is displayed after the Numerical value (right aligned);

•Editable: Switch on/off for editing of variables;

•Auto Run Action: Automatically goes to editing set action, without action selection

(only for components which support 1 action);

•Decimal Points: Displays the number of decimal places;

•Min: Minimum value of the variable that can be set;

•Max: Maximum value of the variable that can be set;

•Step: Single change value in editing.

4.5 BoolLine Component

The BoolLine component is used to display and edit the Boolean variables (true/false). The

component offers the option to input different texts that will appear separately for the true

and false values. The displayed text may be preceded by a description on the left side (Prefix),

e.g., the name, as well as on the right (Suffix), e.g., the units.

In order to edit the variables, it is recommended to use the NVBooleanWritable component

from iSMA_platAAC20 kit. To edit the value of the BoolLine component select ‘true’ in the

User Manual iSMA-B-AAC20/LCD Display

Version 1.3 www.globalcontrol5.com Page 10 / 20

Editable slot, and provide the user with a write access to the component. To make sure that

the value on the LCD is synchronised with the changes in NVBooleanWritable component the

“link back-forward” strategy needs to be applied. There is a possibility to change the value from

LCD by selecting the ‘set’ action. To do this, use the up/down arrow keys to switch between

the values of true/false.

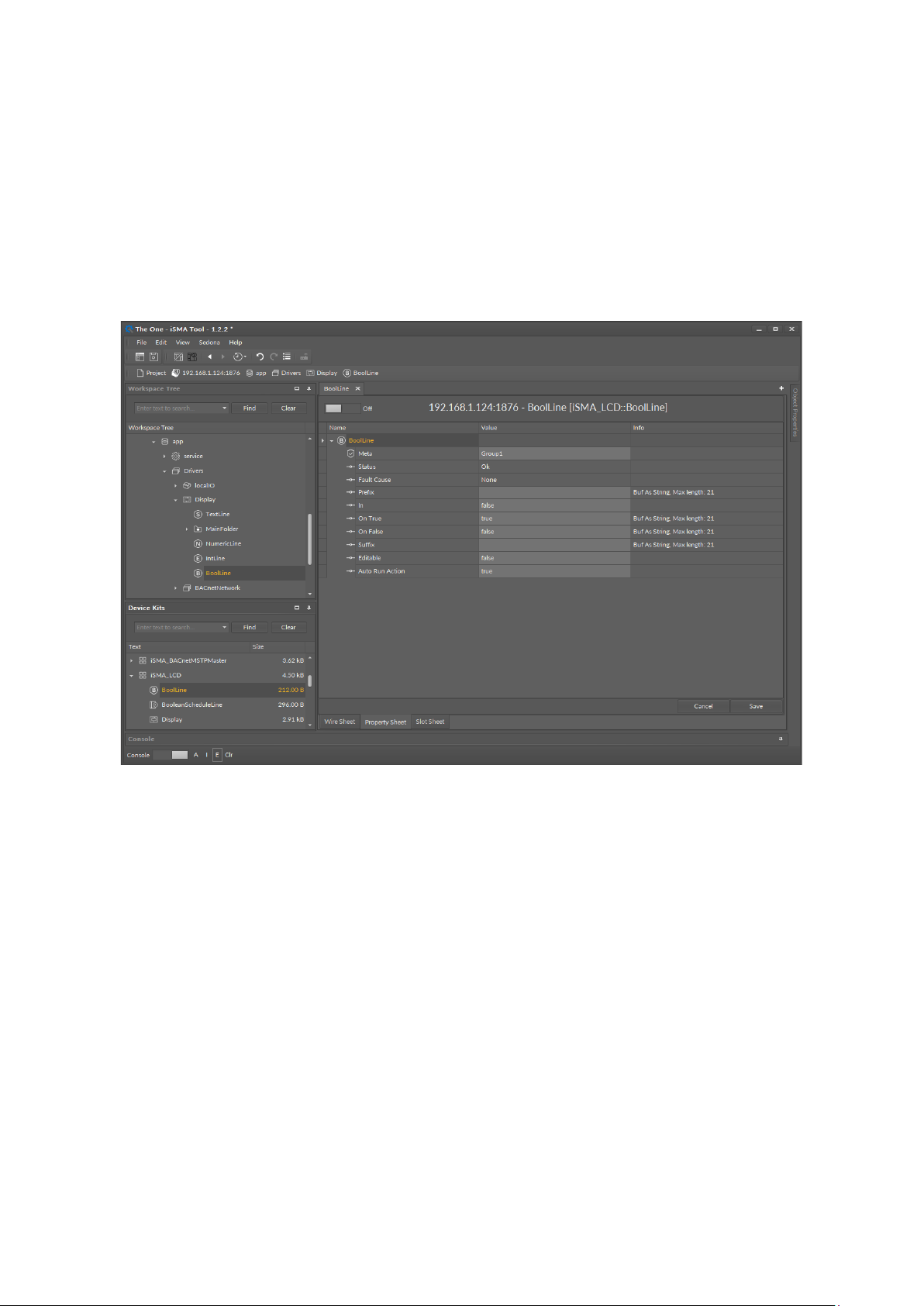

Figure 6 BoolLine component property sheet view

The component has the following configuration slots:

•Prefix: Static text displayed before the text of the In slot (left-aligned);

•In: Input Slot;

•On True: Text which is displayed when the In slot’s value is ‘true’;

•On False: Text which is displayed when the In slot’s value is ‘false’,

•Suffix: Static text displayed after the text of the In slot (right-aligned);

•Editable: Switches on/off for variables editing;

•Auto Run Action: Automatically goes to editing set action, without action selection

(only for components which support 1 action).

Other manuals for iSMA CONTROLLI iSMA-B-AAC20

Table of contents

Popular Monitor manuals by other brands

Linear Acoustic

Linear Acoustic LQ-1000 user guide

AOC

AOC I2579V user manual

Gateway

Gateway FPD1520 user guide

Furuno

Furuno Mu 120c Operator's manual

Asus

Asus VB171D - 17" LCD Monitor Service manual

Dell

Dell S2230MX Setting up

Philips

Philips 107C64 user manual

Dell

Dell S2409WFP user guide

EverFocus

EverFocus EN-7517E instruction manual

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Service manual

Dell

Dell Precision 7680 Connection guide

LG 50PM1M - - 50" Plasma Panel Service manual

Bosch

Bosch DDU 9 manual

Acer

Acer A231HL user manual

Philips

Philips 86BDL4152T user manual

NEC

NEC AccuSync LCD5V user manual

Emay

Emay SleepO2 user manual

IBM

IBM 6360 Product support manual

SEDONA iSMA CONTROLLI iSMA-B-AAC20 User manual

Popular Monitor manuals by other brands
