Sedecal X User manual
SEDECAL
Este producto ostenta una marca CE de acuerdo con las disposiciones de la Directiva 93/42/CEE del 14 de Junio de 1993 sobre Productos Médicos.
This product bears a CE marking in accordance with the provisions of the 93/42/EEC MDD dated June 14, 1993.
Technical Publication
SM-0524R4
Service Manual
SEDECAL X
Universal Radiographic System
Universal Radiographic System
Service Manual
SM-0524R4
REVISION HISTORY
REVISION DATE REASON FOR CHANGE
0AUG 2, 2004 First edition
1 OCT 4, 2005 Schematics
2 JUN 28, 2006 New Balance Adjustment System
3 FEB 08, 2011 Schematics
4MAY 17, 2011 Renewal Parts
This Document is the English original version, edited and supplied by the manufacturer.
The Revision state of this Document is indicated in the code number shown at the bottom of this page.
ADVISORY SYMBOLS
The following advisory symbols will be used throughout this manual. Their
application and meaning are described below.
DANGERS ADVISE OF CONDITIONS OR SITUATIONS THAT
IF NOT HEEDED OR AVOIDED WILL CAUSE SERIOUS
PERSONAL INJURY OR DEATH.
ADVISE OF CONDITIONS OR SITUATIONS THAT IF NOT
HEEDED OR AVOIDED COULD CAUSE SERIOUS PERSONAL
INJURY, OR CATASTROPHIC DAMAGE OF EQUIPMENT OR
DATA.
Advise of conditions or situations that if not heeded or
avoided could cause personal injury or damage to equipment
or data.
Note .Alert readers to pertinent facts and conditions. Notes represent
information that is important to know but which do not necessarily
relate to possible injury or damage to equipment.
Universal Radiographic System
Service Manual
SM-0524R4
SAFETY SYMBOLS

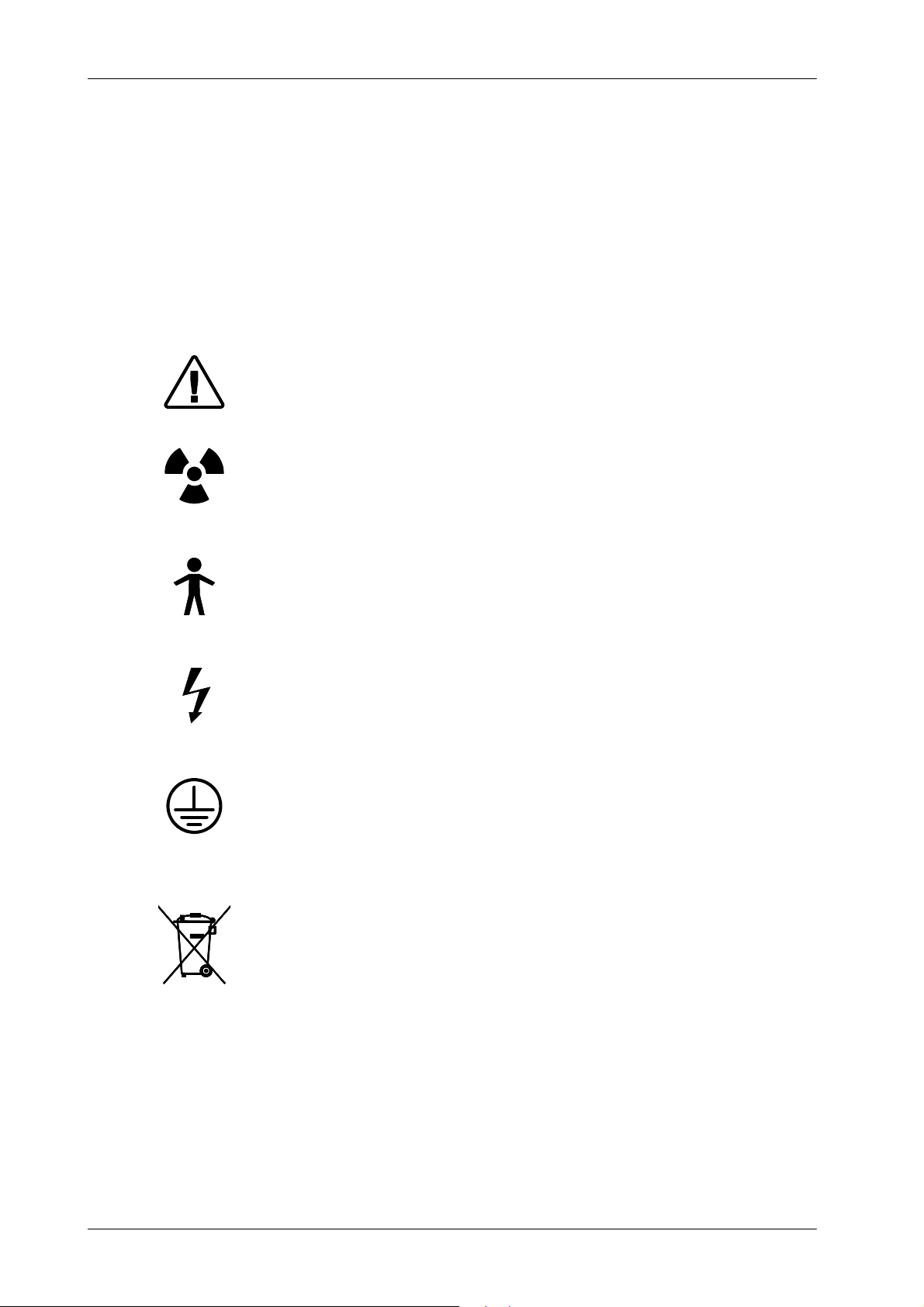

The following safety symbols will be used in the equipment.
Their meaning are described below.
Attention, consult accompanying documents.
Ionizing radiation.
Type B equipment.
Dangerous voltage.
Ground.
This symbol indicates that the waste of electrical and
electronic equipment must not be disposed as unsorted
municipal waste and must be collected separately. Please
contact an authorized representative of the manufacturer or
an authorized waste management company for information
concerning the decommissioning of your equipment.
Universal Radiographic System
Service Manual
SM-0524R4 i
TABLE OF CONTENTS
Section Page
1 INTRODUCTION 1.........................................................
1.1 Tools 1..............................................................
1.2 Pre-Installation Checks 1..............................................
2 UNPACKING 3............................................................
3 INSTALLATION 5..........................................................
4 ADJUSTMENTS 15........................................................
4.1 Adjustment Tools 15...................................................
4.2 Balance Test of the Swivel Arm and Central Carriage 15....................
4.2.1 Swivel Arm Balance in Horizontal Position 16.......................
4.2.2 Central Carriage Balance for Manual Version 17....................
4.2.3 Central Carriage Balance for Motorized Version 19..................
4.3 Adjustament of Motorized Movements of the Swivel Arm 21.................
4.3.1 Adjustment of Vertical of Movement of the Swivel Arm 21............
4.3.2 Adjusment of SID Movement of the Receptor Assembly 22...........
4.4 Alignment of X-ray Beam 23............................................
4.4.1 Alignment of Light Field with X-ray Field 27.........................
4.4.2 Perpendicularity Adjustment of X-ray Beam with Image Receptor 30...
4.4.3 Centering of X-ray Field and Image Receptor 32....................
4.5 SID Indicator Test 33...................................................
4.6 Field Size Indicator Test 36.............................................
4.7 Collimator Lamp Brightness Test 38......................................
4.7.1 Collimator Light Field Intensity 38.................................
4.7.2 Collimator Light Field Contrast Ratio 40............................
5 MAINTENANCE 43.........................................................
5.1 General Cleaning 43...................................................
5.2 Electrical Checks 44...................................................
5.3 Mechanical Checks 44.................................................
Universal Radiographic System
Service Manual
SM-0524R4
ii
Section Page
6 RENEWAL PARTS 45......................................................
6.1 Manual Version 45.....................................................
6.2 Motorized Version 55..................................................
7 INTERCONNECTION MAPS 65..............................................
Universal Radiographic System
Service Manual
SM-0524R4 1
SECTION 1 INTRODUCTION
1.1 TOOLS
The following hand tools are required for the Installation:
•Standard service engineers tool kit.
•Electric drill motor and assorted bits.
1.2 PRE-INSTALLATION CHECKS
Prior to beginning installation it is recommended to inspect the site and verify
that the X-ray room complies with requirements such as:
•Space Requirements to allow installation and system movements must
consider the maximum dimensions and travels of the equipment.
Maximum Height 2720 mm
Maximum Width 2260 mm
Maximum Length 1400 mm
•Conduits and walls are ready to install the system.
•Electricity installation:
Main Supply: Single phase, 50 / 60 Hz
115 / 208 / 230 / 240 V~
Minimum power input required: 400 VA
ACCORDING TO THE MDD/93/42/EEC, THIS UNIT IS
EQUIPPED WITH EMC FILTERS. THE LACK OF THE
PROPER GROUNDING MAY PRODUCE ELECTRICAL
SHOCK TO THE USER.
Universal Radiographic System
Service Manual
SM-0524R4
2
Illustration 1-1
Dimensions
SID: 1000--2000
1690
700
2240
1000
2000
1181
220
650
228 2720
2260
1400
1095 1165
Reception Area
Reference Axis
Universal Radiographic System
Service Manual
SM-0524R4 3
SECTION 2 UNPACKING
The whole system is shipped in several boxes to facilitate transport and
installation. Upon receipt of the X-ray unit and associated equipment, inspect
all shipping containers for signs of damage. If damage is found, notify the
carrier or his agent immediately.
1. Place the shipping pallet near its final site in the room and remove all its
laterals. Do not discard any packing material such as envelopes, boxes,
bags until all parts are accounted for as listed on the packing list.

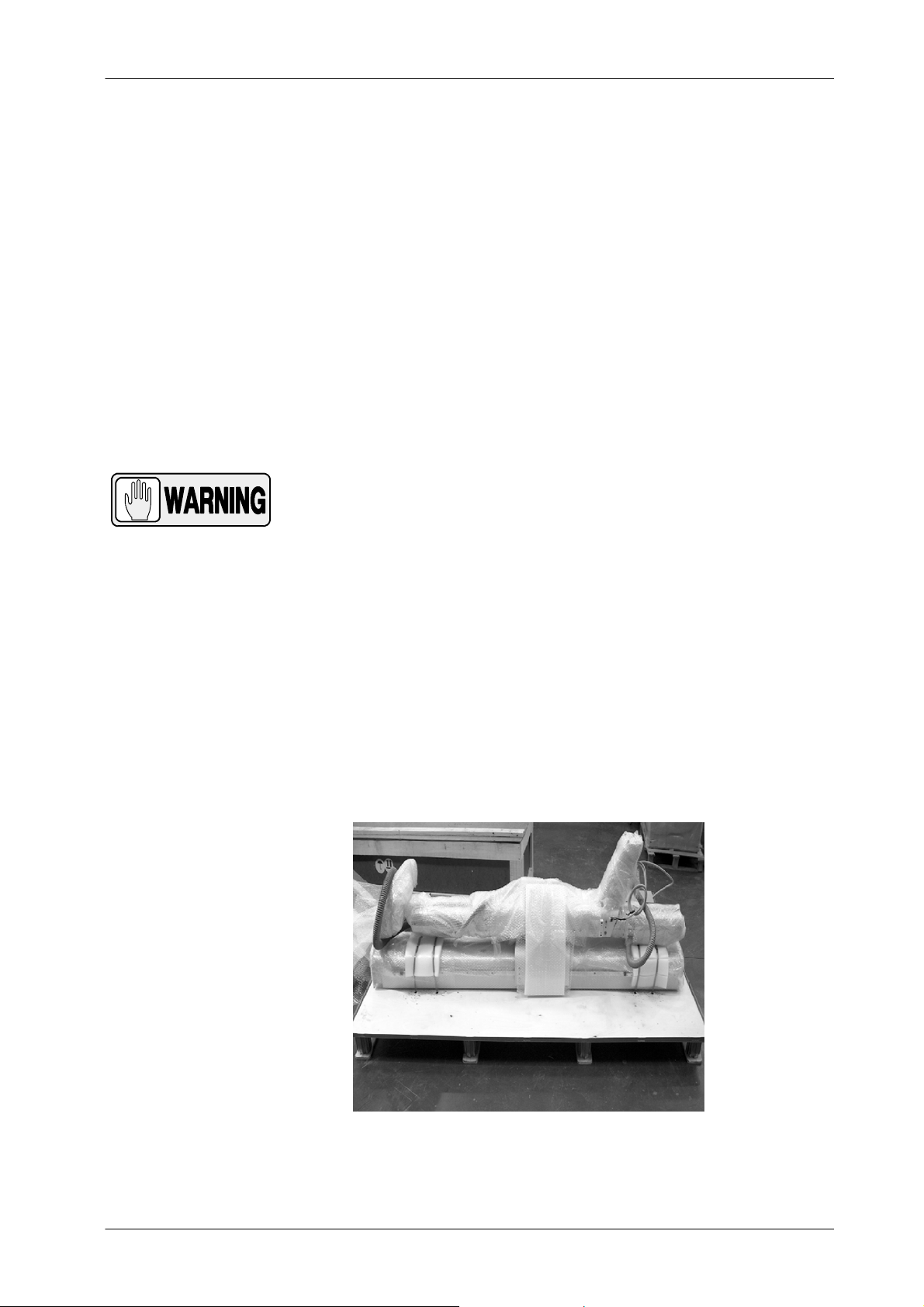

AT LEAST TWO PEOPLE ARE REQUIRED TO REMOVE ALL
HEAVY COMPONENTS FROM THE SHIPPING PALLET.
2. When the equipment is unpacked, check part numbers and serial
numbers of each component with its identification labels. Inspect all
pieces for visible damages. If any damaged part is found, repair it or
order its replacement to prevent unnecessary delay in installation.
3. Verify that all items on the customer order are present.
4. Leave a working area around equipment until its final installation is
complete.
Illustration 2-1
Unpacking
Universal Radiographic System
Service Manual
SM-0524R4
4
This page intentionally left blank.
