Securi-Prod LK190 User manual
Installation Manual
LK190 Standalone Access Control Reader
VAC
Vdc
Step 1:
Step 2:
Step 3:
Step 4:
Step 1:
Step 2:
Step 3:
No.
1
2
3Step 1:
4Step 2:
5
Step 3:
Step 4:
Antenna
Remove power from the LK190
Apply power to the LK190
Press and hold the key
A confirmation tone will be heard and the Administrator Code will reset
to the default 1234
Press the key to exit this function
Specifications
Application Mode
RFID card reader 125KHz
Standby
Activated
Description
Effective distance:
5cm
IP rating:
65
Administrator Programming
IR remote control
90 x 44 x 19 (mm)
Dimensions
Relative Humidity
≤95%
Operating Temperature
-20ᵒC to +50ᵒC
Card Capacity
1,000 pcs
Enter the to exit this function
Current
Input Voltage
12 to 24 VAC
12 to 24 Vdc
90mA
120mA
The mode indicator (Yellow) will flash and a confirmation tone will be
heard
Enter a value between 00 and 99
The mode indicator will be flashing (Yellow)

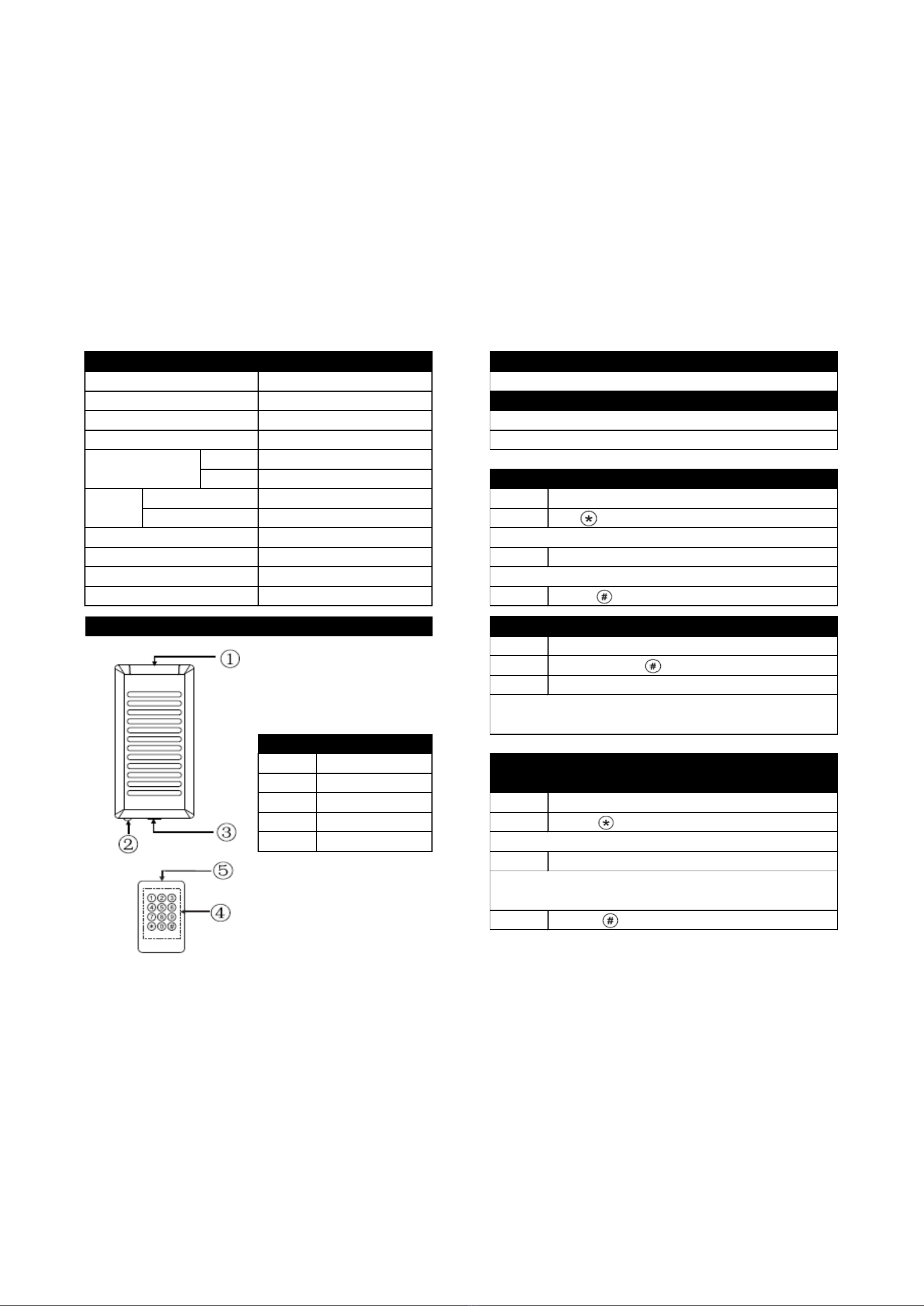

Layout - Programming
Programming (Require a LK190-1 IR remote)
Default Administrator Code: 1234
Enter the Administrator Code twice: 1234 +1234
Mode indicator (yellow) will turn on
Enter the programming mode
Changing the Administrator Code
Enter the programming mode
The mode indicator will be flashing (Yellow)
A confirmation tone will be heard
Resetting the default Administrator Code
Enter and then ③
Enter the NEW administrator Code TWICE
Valid values In seconds: 00 to 99
Enter the programming mode
Press the and then ①key
Setting the Relay time (door lock open time)
Keypad
Mode Indicator
Infrared Area
Cover screw
Step 1:
Step 2:
Step 3:
Step 4:
Step 5:
Step 1:
Step 2:
Step 3:
Step 4:
Step 1:
Step 2:
Step 3:
Step 4:
Press the key to exit this function
Press the ⑨ key twice
A continuous tone will be heard and the mode indicator will stop flashing
indicating that all cards have been deleted successfully
Installation Diagram
Wiring Diagram
Enter the programming mode
Press the key and then the ⑧key
The mode indicator will be flashing (Yellow)
A green LED indicates that a card can be added to this location
Resetting the LK190 to Factory Default
A continuous tone will be heard and the mode indicator will stop flashing
indicating that all cards have been deleted successfully
Press the key to exit this function
The mode indicator will be flashing (Yellow)
Enter the programming mode
Press the key and then the ⑧key
Press the ⑧ key twice
Enter a valid location between 000 and 999
Deleting Cards
A confirmation tone will be heard to indicate that the card has been
added successfully
Press the key to exit this function
Repeat Step 2 and 3 for each card to be added
Swipe a new card
A red LED indicates that a card is already stored in this location
Pressing the twice will clear the stored information in the selected
location
Important Notes:
Adding Cards
Valid values for cards: 000 to 999
Enter the programming mode
