SeaLevel eI/O 110E User manual
1
© Sealevel Systems, Inc. eI/O Manual | SL9221 01/2023
eI/O Modules
User Manual | eI/O
2
© Sealevel Systems, Inc. eI/O Manual | SL9221 01/2023
Contents
CONTENTS...........................................................................................................................................................2
BEFORE YOU GET STARTED ...............................................................................................................................3
INTRODUCTION ................................................................................................................................................... 4
EI/O HARDWARE DESCRIPTION ......................................................................................................................... 9
POWER OPTIONS...............................................................................................................................................21
SEAMAX APPLICATION SUITE .........................................................................................................................22
HARDWARE CONFIGURATION..........................................................................................................................31
MOUNTING OPTIONS........................................................................................................................................39
APPENDIX A – HANDLING INSTRUCTIONS ....................................................................................................40
APPENDIX B– HOW TO GET ASSISTANCE......................................................................................................41
APPENDIX C – COMPLIANCE NOTICES ..........................................................................................................42
WARRANTY ........................................................................................................................................................43
3
© Sealevel Systems, Inc. eI/O Manual | SL9221 01/2023
Before You Get Started
Advisory Conventions
Warning
The highest level of importance used to stress a condition where damage could result to the
product, or the user could suffer serious injury.
Important
The middle level of importance used to highlight information that might not seem obvious or a
situation that could cause the product to fail.
Note
The lowest level of importance used to provide background information, additional tips, or other
non-critical facts that will not affect the use of the product.
4
© Sealevel Systems, Inc. eI/O Manual | SL9221 01/2023
Introduction
Sealevel eI/O™ modules offer powerful data acquisition solutions that are perfect for a wide range of
applications and environments with easy interfacing to computers, controllers, and PLCs. eI/O modules are
available in various digital and analog I/O configurations. Each eI/O model is designed for maximum
flexibility and easy field wiring.
For easy software integration, application programs or 3rd party software can use the Sealevel SeaMAXTM
library or industry standard Modbus TCP (Ethernet) protocol.
Industry Segments
eI/O modules are perfect for a wide variety of applications and environments including:
•Process Control
•Data Acquisition
•Broadcast Automation
•Security
•Facility Management
Features
•Supports Industry Standard Modbus TCP Protocol
•Models Offering Choice of:
oOptically Isolated Inputs
oForm A Reed Relay Outputs
oHigh Current Form C Relay Outputs
oSolid State Relay Outputs
oSingle Ended and Differential Analog Inputs
oStatus Indicator LEDs for Communication and power
•Field Removable Terminal Block Connectors
•Power Input via Terminal Block or Power over Ethernet
•Compact Size – 4.5” (L) x 3.5” (W) x 1.3” (H)
•Din Rail or Table Mount
5
© Sealevel Systems, Inc. eI/O Manual | SL9221 01/2023
eI/O Products In this Manual
Ethernet 10/100 BaseT
eI/O 110E – 4 Optically Isolated Inputs/4 Form A Reed Relay Outputs
eI/O 120E – 4 Optically Isolated Inputs/4 Form C Relay Outputs
eI/O 130E – 4 Optically Isolated Inputs
eI/O 140E – 4 Form A Reed Relay Outputs
eI/O 150E – 4 Form C Relay Outputs
eI/O 160E – 32 Channel TTL Interface
eI/O 170E – 8 Analog Inputs/2 Optically Isolated Inputs/2 Solid State Relay Outputs
Power Over Ethernet
eI/O 110PoE – 4 Optically Isolated Inputs/4 Form A Reed Relay Outputs
eI/O 120PoE – 4 Optically Isolated Inputs/4 Form C Outputs
eI/O 130PoE – 4 Optically Isolated Inputs
eI/O 140PoE – 4 Form A Reed Relay Outputs
eI/O 150PoE – 4 Form C Relay Outputs
eI/O 160PoE – 32 Channel TTL Interface
eI/O 170PoE – 8 Analog Inputs/2 Optically Isolated Inputs/2 Solid State Relay Outputs
6
© Sealevel Systems, Inc. eI/O Manual | SL9221 01/2023

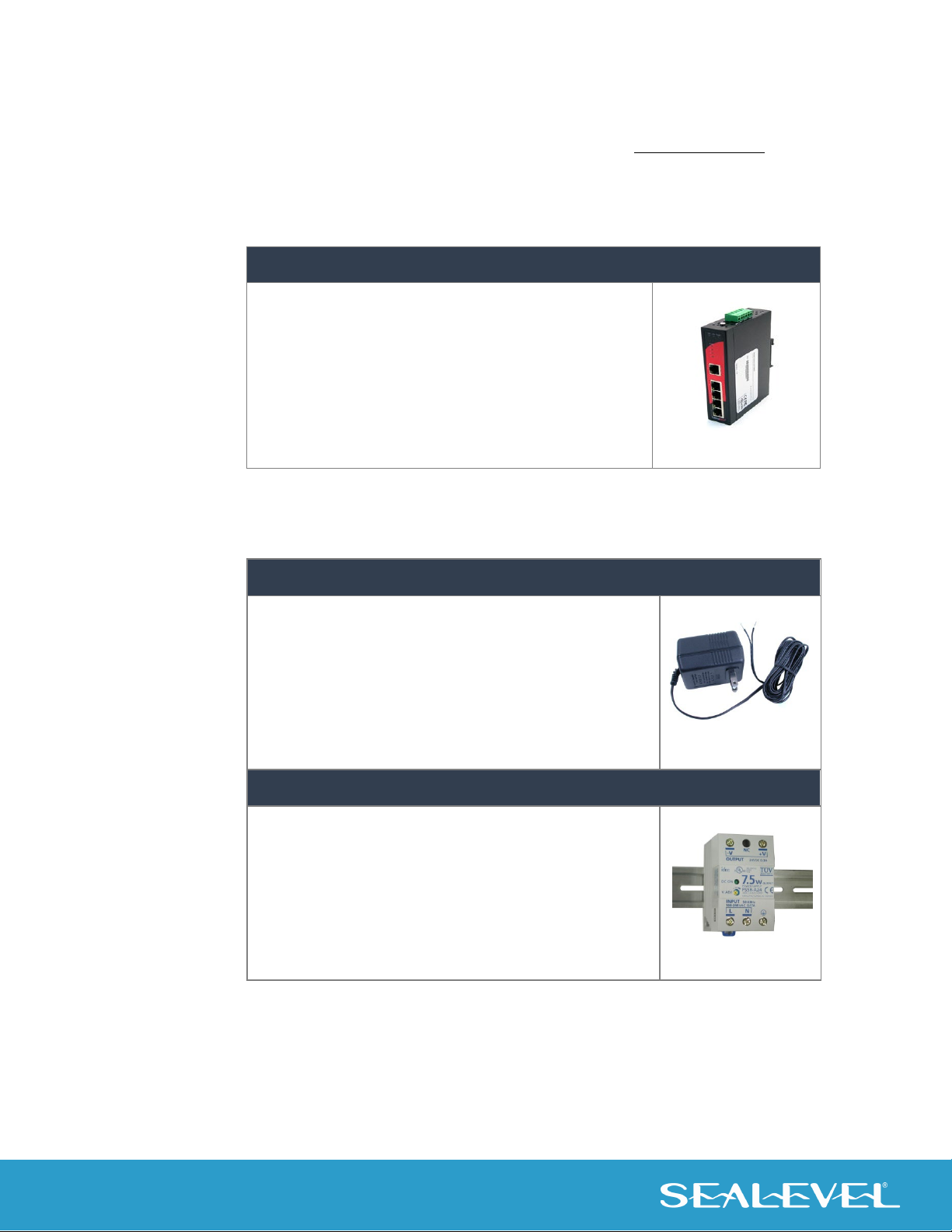

Optional Items
Depending on the interface type, your eI/O module may include additional accessories. Included
accessories are listed below. All items can be purchased from our website (www.sealevel.com) by calling
our sales team at (864) 843-4343.
POWER OVER ETHERNET SERIES
Power Over Ethernet Switch
Connect up to four eI/O modules without power cables with
the Sealevel unmanaged five port Ethernet switch.
POWER SUPPLIES
US OPTIONS
eI/O 120VAC to 12VDC @ 500mA Wall Mount Power Supply (Part# TR104)
The TR104 is a wall wart style power supply capable of
powering a single eI/O module at 120VAC input and 12VDC
output at 500mA. Other power supply options are available for
driving multiple eI/O modules on a DIN rail.
100-240VAC to 24VDC @ 300mA DIN Rail Power Supply (Part# PS101)
The PS101 is an AC/DC DIN rail mount power supply that
accepts 100-240VAC input and outputs 24VDC at up to 300mA
(7.5W).
7
© Sealevel Systems, Inc. eI/O Manual | SL9221 01/2023

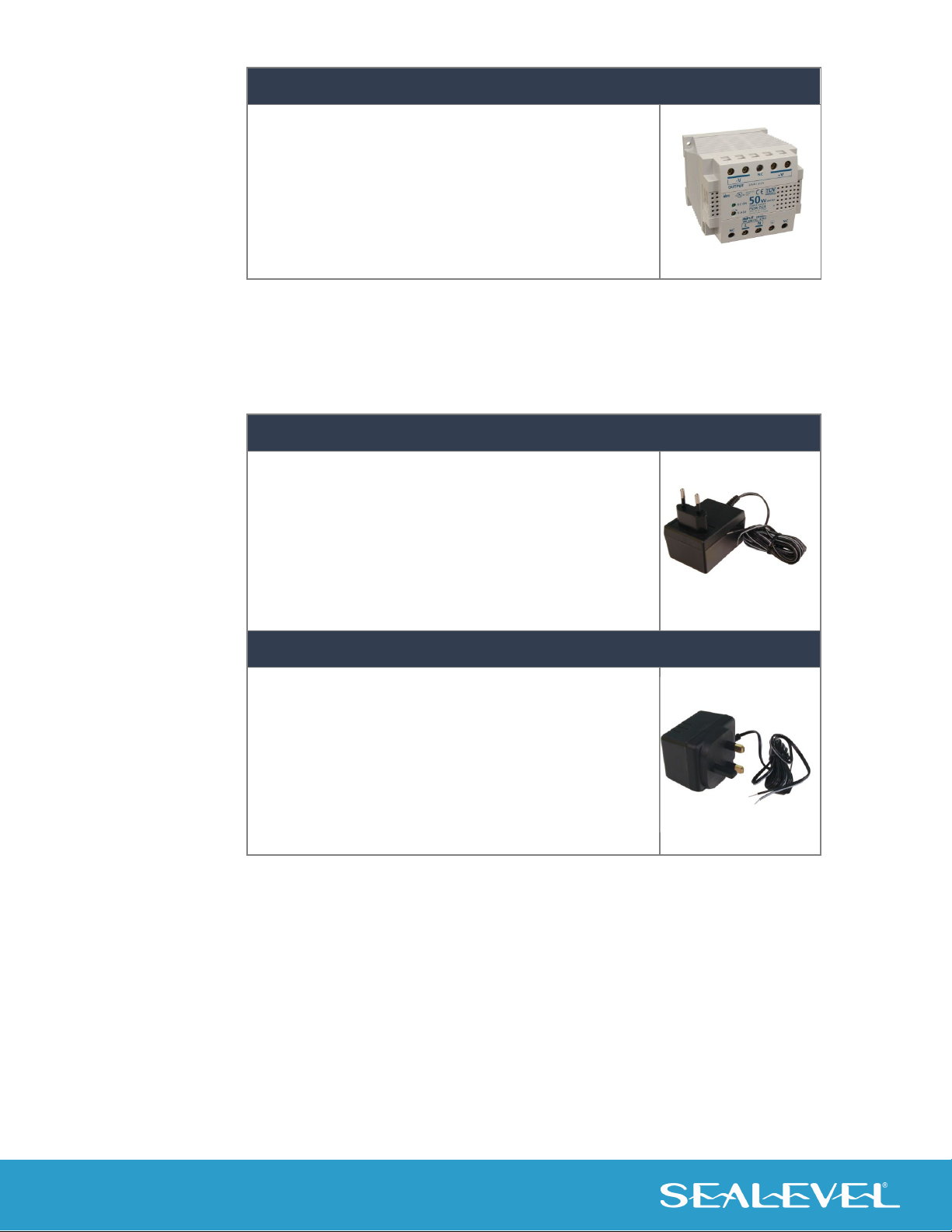

100-240VAC to 24VDC @ 2.1A DIN Rail Power Supply (Part# PS103)
The PS103 is an AC/DC DIN rail mount power supply that
accepts 100-240VAC input and outputs 24VDC at up to 2.1A
(50W).
INTERNATIONAL OPTIONS
eI/O 230VAC to 12VDC @ 500mA Wall Mount Power Supply (Part# TR105)
The TR105 is a wall wart style power supply for European
countries and is rated for 230VAC input and 12VDC output at
500mA.
eI/O 240VAC to 12VDC @ 500mA Wall Mount Power Supply (Part# TR106)
The TR106 is a wall wart style power supply for the United
Kingdom, Hong Kong, Singapore, and Malaysia. The TR106 is
rated for 240VAC input and 12VDC output at 500mA.
8
© Sealevel Systems, Inc. eI/O Manual | SL9221 01/2023

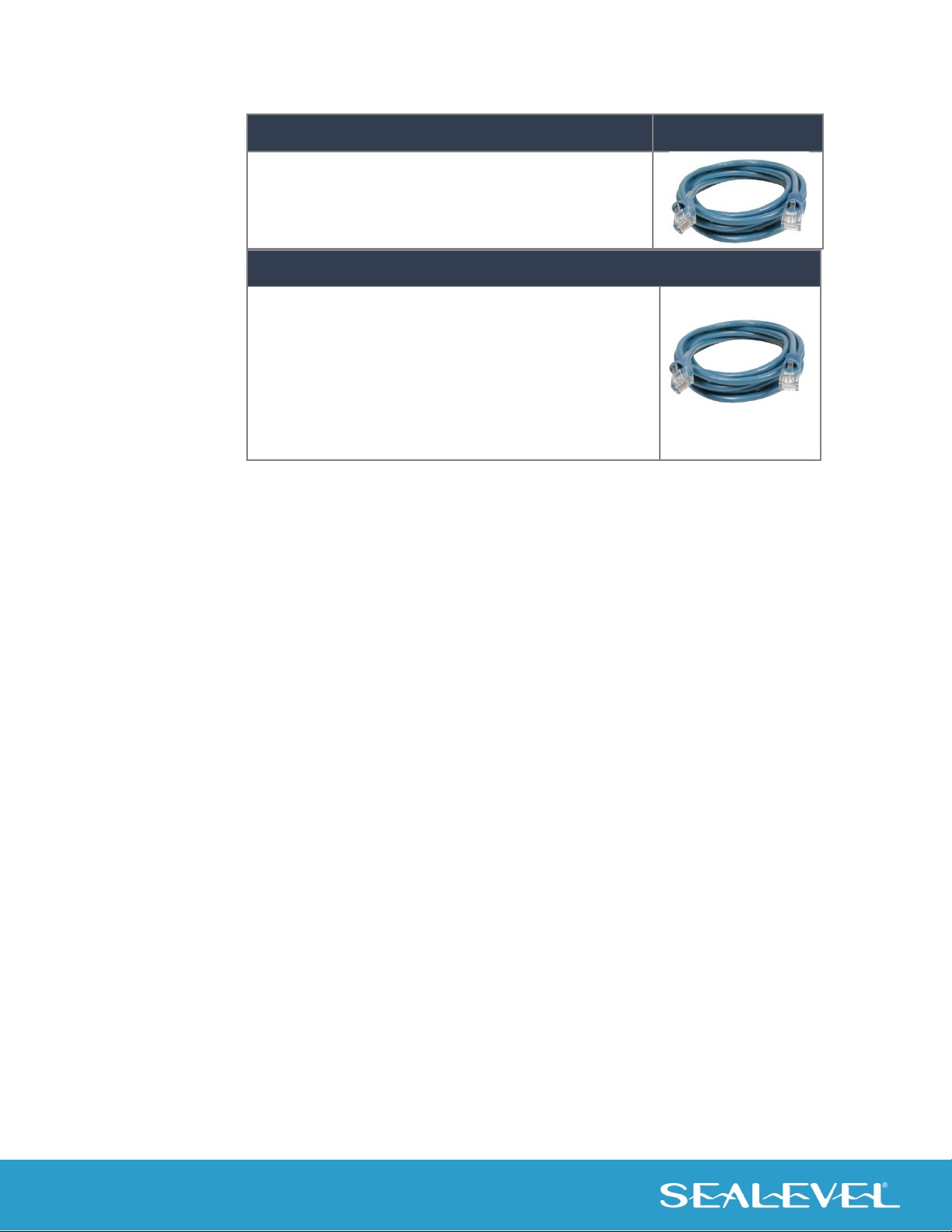

CABLES
CAT5 Patch Cable (Part# CA246)
Standard 7' CAT5 UTP Patch Cable (RJ45).
CAT5 Patch Cable, 10' in Length (Part# CA247)
10’ Blue Ethernet Patch Cable. Can be used to connect
eI/O Ethernet modules to a hub or switch.
9
© Sealevel Systems, Inc. eI/O Manual | SL9221 01/2023
eI/O Hardware Description

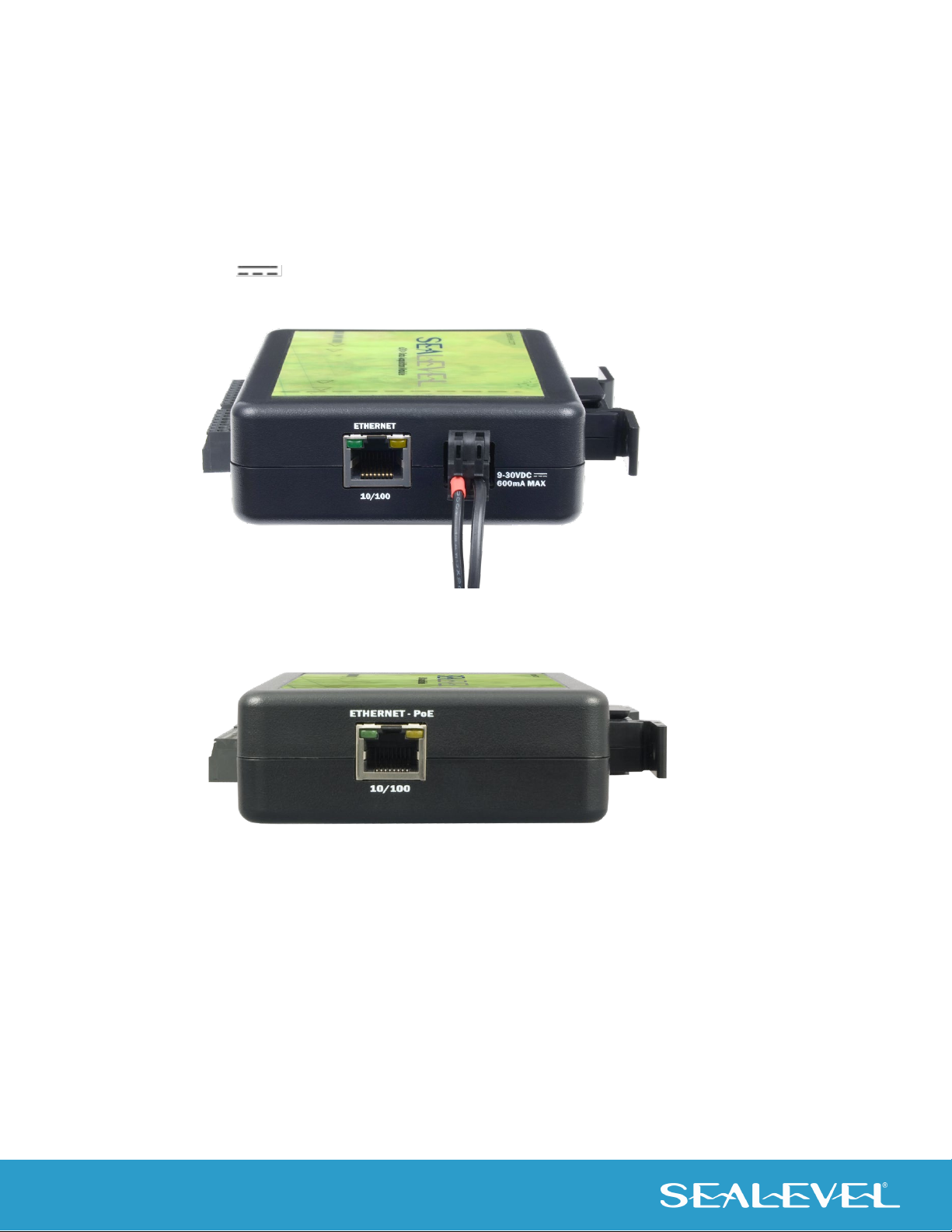

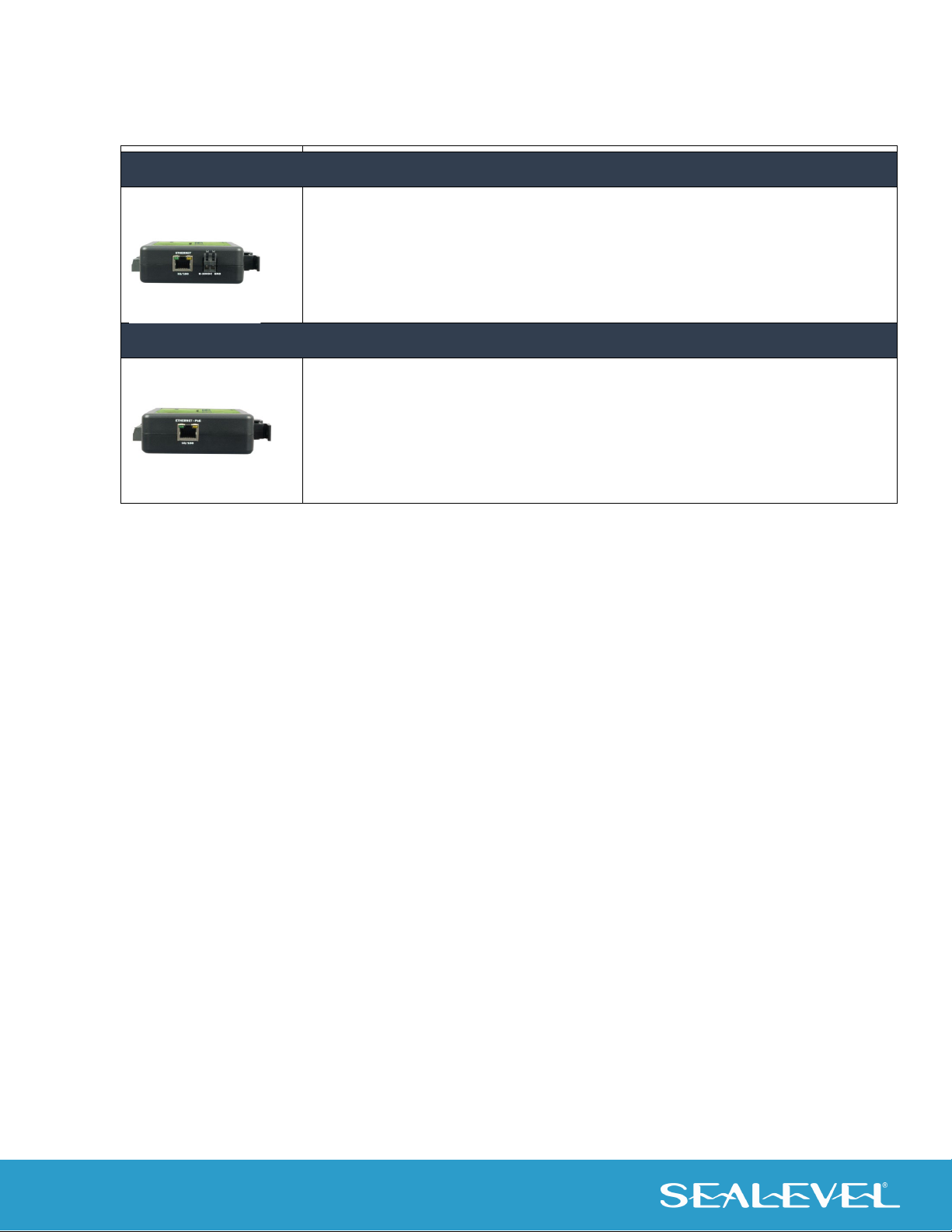

eI/O Standard and Power over Ethernet Modules
eI/O modules are powered in one of two ways
•9-30 VDC 5W MAX power input
(600mA MAX @ 9V; 420mA MAX @12V; 210mA MAX @ 24V)
•802.3af-2003 Power over Ethernet
10
© Sealevel Systems, Inc. eI/O Manual | SL9221 01/2023
eI/O Module Common Features
All eI/O modules include the same power connector on the side of the unit. All models use the same style
of 3.5mm pitch screw terminals on front for connection to field devices.

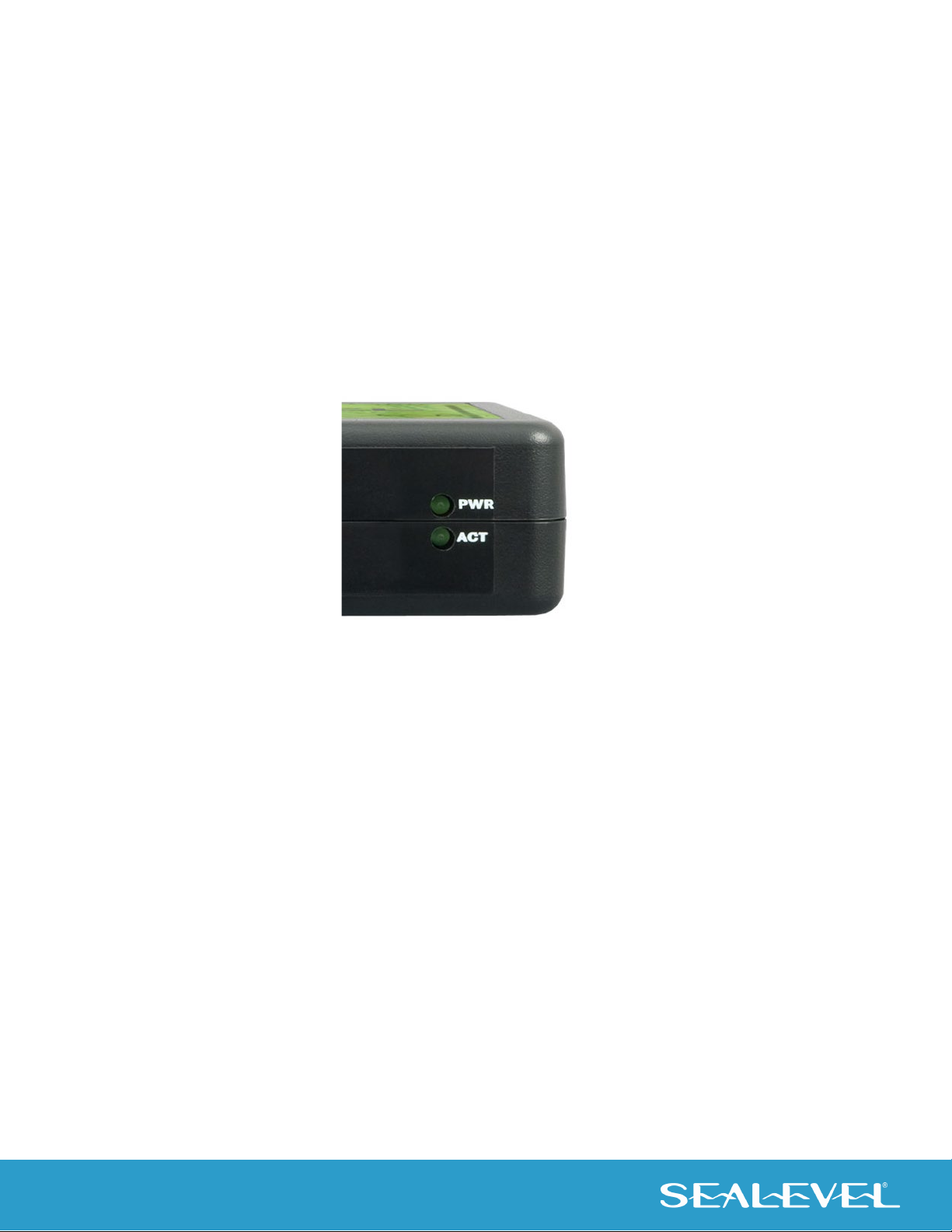

Status LEDs are also included on the front of all eI/O modules to indicate the following information:
•Power (Green) – Lights when power is applied to the module.
•Act (Green) – Light blinks when Modbus/TCP activity is present or when new firmware is
being downloaded.
