Sea Ray 175 Sport User manual

Specic

Information

Manual

175 Sport

Manual Part Number: MRP 1902268

175 Sport i

Manual Part Number: MRP 1902268

175 Sp o r t Sp e c i f i c in f o r m a t i o n ma n u a l

Ta b l e o f Co n T e n T s

1. Load Capacity..........................................................1

2. Passenger Locations ............................................... 1

3. Safety Label Locations ............................................2

4. Basic Boat Dimensions and Clearances ................. 3

5. Helm, Gauge & Switch Layout................................. 4

6. Deck Layout .............................................................5

7. Cleats....................................................................... 6

8. Navigation and Anchor Lights.................................. 6

9. Bilge Layout ............................................................. 6

10. Fuel System...........................................................7

11. Entertainment System ........................................... 7

12. Canvas...................................................................7

13. Swim Platform w/ Ladder (Optional) ...................... 7

14. Electrical Schematic ..............................................7

Information in this publication is based upon the latest product speciﬁcations available at printing. Sea Ray®

Boats, Inc. reserves the right to make changes at any time, without notice, in the colors, equipment, speciﬁcations,

materials and prices of all models, or to discontinue models. Should changes in production models be made, Sea

Ray® is not obligated to make similar changes or modiﬁcations to models sold prior to the date of such changes.

Owner’s Manual

175 Sport

Printed in the U.S.A. June 2008

Sea Ray Boats, Inc. 2600 Sea Ray Blvd., Knoxville, TN 37914

For information call 1-800-SRBOATS or fax 1-314-213-7878

(International 1-314-216-3333)

Internet Address: http://www.searay.com

Note: Not all accessories shown in pictures or described herein are

standard equipment or even available as options.

Options and features are subject to change without notice.

The following are registered trademarks of the Brunswick Corporation: Sea Ray®& The SR Wave Logo

175 Sportii Manual Part Number: MRP 1902268

THIS PAGE INTENTIONALLY LEFT BLANK

175 Sp o r t ow n e r S ma n u a l

175 Sport Manual Part Number: MRP 1902268

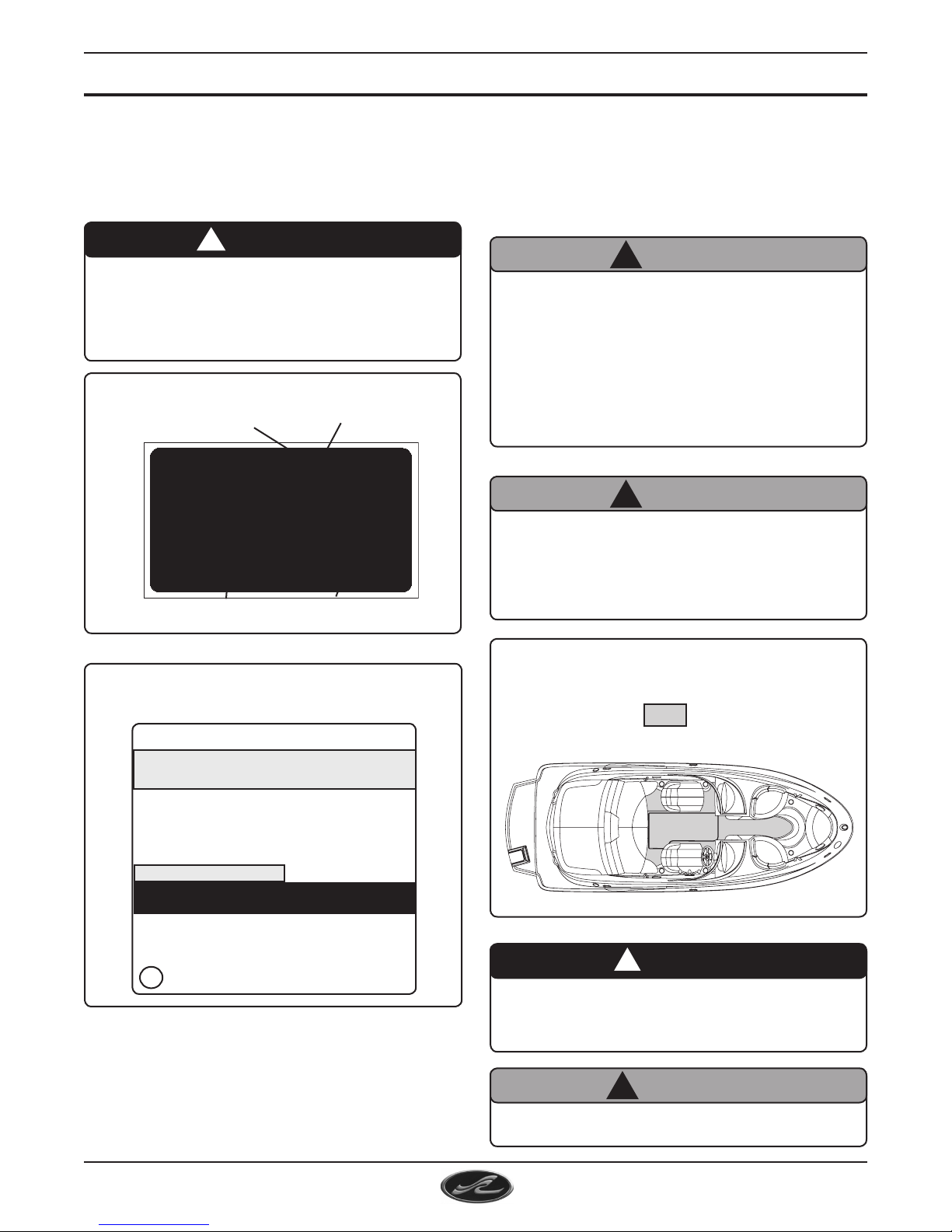

1. lo a d Ca p a C i T y

Refer to the General Information Manual for a

detailed explanation of Load Capacity.

Bu i l d e r ’Spl a t e (i n t e r n a t i o n a l )

(fi g . 1.1)

BOAT MANUFACTURER MFR’S MODEL

DESIGNATION

MAXIMUM NUMBER

OF PASSENGERS

MAXIMUM LOAD

CAPACITY

Never carry more weight or passengers than indicated

on the certiﬁcation plate, regardless of weather or

water conditions.

The boat can capsize, swamp or sink.

! DANGER

Rotating propellers can injure or kill you.

Shut off engine when persons are in water near

boat, or on swim platform or ladder.

!DANGER

Rear facing transom seats MUST NOT be used while

engine is running or boat is moving.

! WARNING

2. pa s s e n g e r lo C a T i o n s

Refer to the General Information Manual for a

detailed explanation of Passenger Locations.

Boat motion can be erratic.

You can fall overboard or be injured by hitting

something in or on the boat.

All persons must be in cockpit area or cabin and be

prepared for sudden boat movement.

Use front or bow deck area only during anchoring,

mooring or emergencies.

! WARNING

Wet decks are slippery.

You can be seriously injured if you slip and fall.

Wear slip resistant footwear secured to your feet and

hold on to rails or boat structure.

! WARNING

Bu i l d e r ’Spl a t e (d o m e S t i c )

MAXIMUM CAPACITIES

7PERSONS OR 900 LBS.

980 POUNDS, PERSONS, GEAR

LOAD AND CAPACITY • COMPARTMENT VENTILATION

STEERING, FUEL AND ELECTRICAL SYSTEMS

INTERNATIONAL LIGHTS • BASIC FLOATATION

MANEUVERABILITY

THIS BOAT COMPLIES WITH U.S. COAST

GUARD SAFETY STANDARDS IN EFFECT ON

THE DATE OF CERTIFICATION

MODEL: 175 Sport

DESIGN COMPLIANCE WITH NMMA REQUIREMENTS BELOW IS

VERIFIED. MFR. RESPONSIBLE FOR PRODUCTION CONTROL

NATIONAL MARINE MANUFACTURERS ASSN.

MANUFACTURER: BAJA MARINE

BUCYRUS, OH 44820

Certied

NMMA

(fi g . 1.2)

pa S S e n g e r lo c a t i o n S

(fi g . 1.3)

ACCOMMODATION DECK

(DECK AREA INTENDED FOR

OCCUPATION DURING NORMAL

OPERATION)

0609

SEA RAY BOAT S

175 SP

MAXIMUM

IMCI

6+=

495 kg

175 Sp o r t ow n e r S ma n u a l

175 Sport

Manual Part Number: MRP 1902268

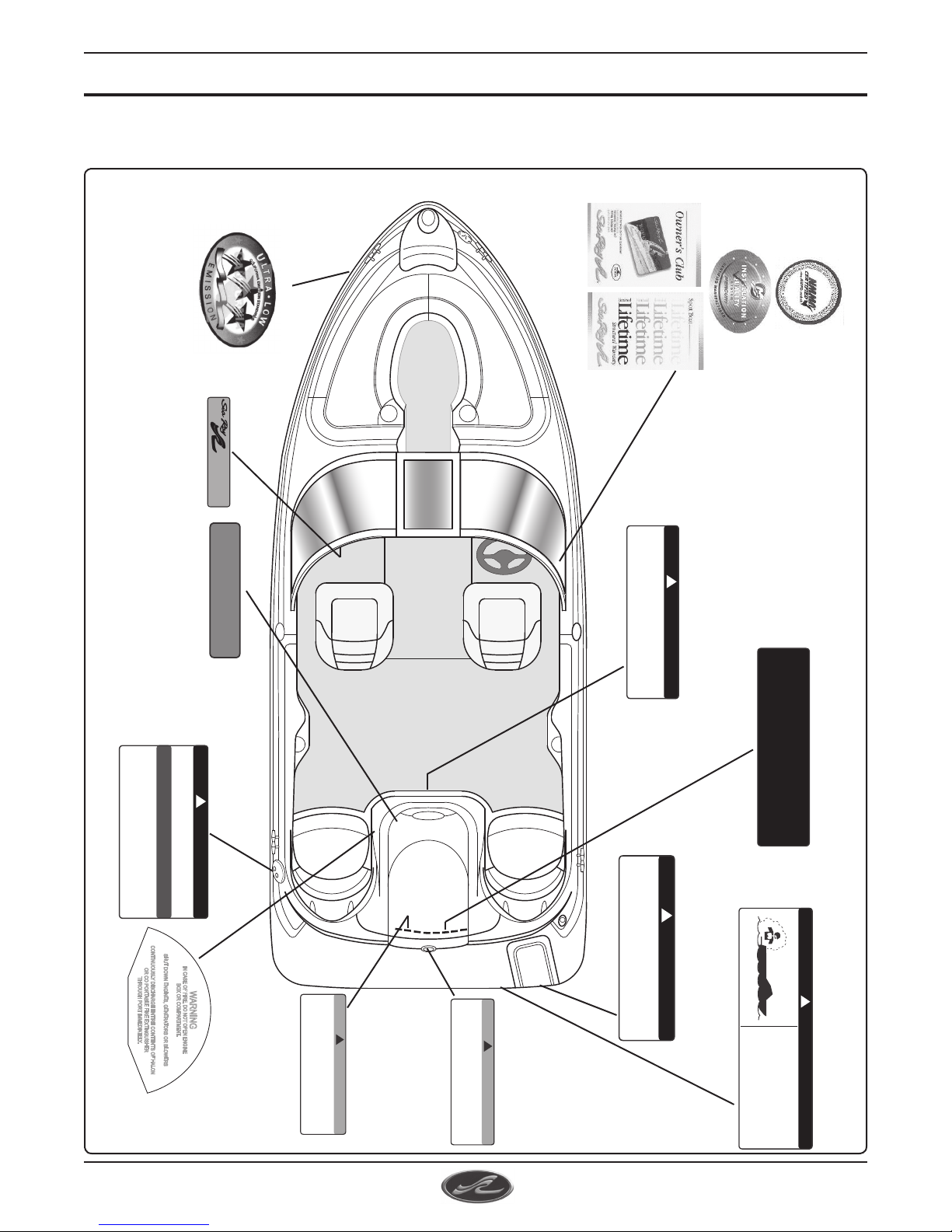

3. sa f e T y la b e l lo C a T i o n s

Sa f e t y la B e l lo c a t i o n S

(fi g . 2.1)

WARNING

USE CAUTION WITH SKIER IN TOW

AS TOW ROPE MAY BACKLASH INTO

COCKPIT WHEN RELEASED.

DANGER

Carbon Monoxide (CO) can cause brain damage

or death.

Engine and generator exhaust contains odorless

and colorless carbon monoxide gas.

Carbon monoxide will be around the back of the

boat when engines or generators are running.

Move to fresh air, if you feel nausea, headache,

dizziness or drowsiness.

!DANGER

TO AVOID THE RISK OF SERIOUS INJURY OR DEAT H

SHUT OFF ENGINE WHEN NEAR SWIMMERS

OR PRIOR TO USING SWIM PLATFORM AND

BOARDING LADDER.

PREVENT THE DISCHARGE OF POLLUTA NTS

DISCHARGE OF OIL OR OILY WASTEINTO NAVIGABLE WATERS IS

PROHIBITED IF SUCH A DISCHARGE CAUSES A FILM, SHEEN OR

A DISCOLORAT ION OF THE SURFACE, OR CAUSES A SLUDGE OR

EMULSION BENEAT H THE SURFACE OF THE WATER.

VIOLAT ORS WILL BE SUBJECT TO PENALT IES.

!DANGER

STAY CLEAR OF MOVING PARTS

WHILE ENGINE IS RUNNING

May be covered by U.S. Patent

NOs 6,032,606 or 6,161,496

Under engine hatch/box on liner

WARNING

LEAKING FUEL IS A FIRE AND EXPLOSION

HAZARD. INSPECT SYSTEM REGULARLY.

EXAMINE FUEL TANKS FOR LEAKS OR

CORROSION AT LEAST ANNUALL Y

Backside of Hatch lid

For information on replacement

products, brochures, dealers,

locations, etc...Call

1 - 800 - SRBOAT S

(772-6287)

www. SEARAYBOATS.com

Inside of glovebox on door

Installed on windshield

On hull

!DANGER

NOTICE

NO SMOKING

GASOLINE VAPORS ARE EXPLOSIVE

GASOLINE RECOMMENDED

Minimum octane rating of 87 AKI.

Refer to the engine owner’s maual for

additional information.

Beside Fuel Fill

WARNING

Only with Fire Port

Opt. - CE

Behind hatch catch latch Left side of ladder

Above Ski tow

Under Ladder

175 Sp o r t ow n e r S ma n u a l

175 Sport Manual Part Number: MRP 1902268

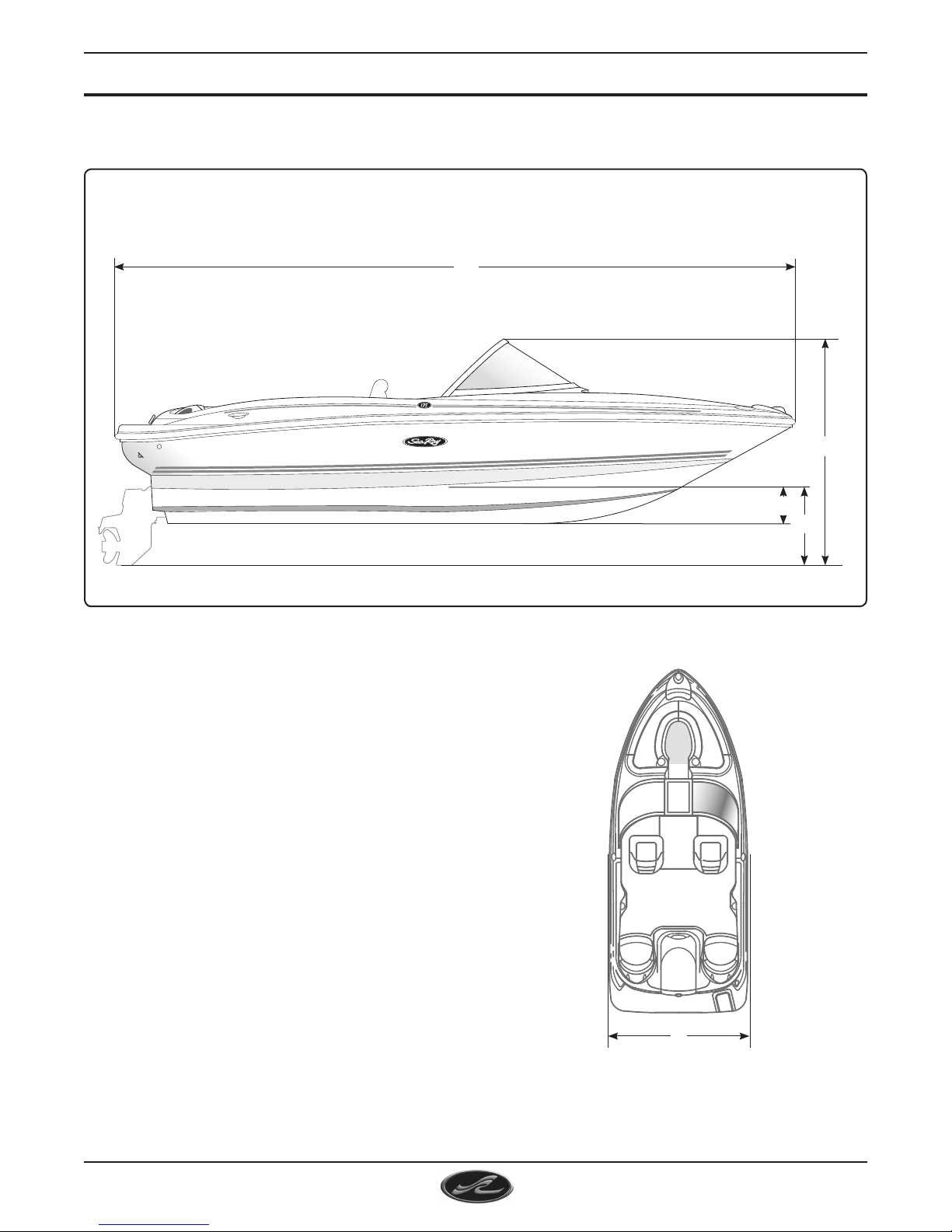

4. ba s i C bo a T di m e n s i o n s a n d Cl e a r a n C e s

Bo a t di m e n S i o n S a n d cl e a r a n c e S

(fi g . 3.1)

(fig. 3.2)

(A) Overall Length..............................................17'6"– 5.33m

(B) Draft

with stern drive up in trailering position.....18"–46cm

with stern drive down................................................35"–89cm

(D) Clearance from Keel

to Top of Windscreen.................................................56½"–1.44m

(E) Beam (width).......................................................7'–2.13m

Dry Weight...........................................2,100lbs.–9534kg

Fuel Capacity.........................................21gal–79.5 liters

Speciﬁcation measurements are approximate

and subject to variance.

175 Sp o r t Sp e c i f i c at i o n S

NOTE: DIMENSIONS CAN

VARY DEPENDING ON LOAD

AND RUNNING CONDITIONS

175 Sp o r t ow n e r S ma n u a l

175 Sport

Manual Part Number: MRP 1902268

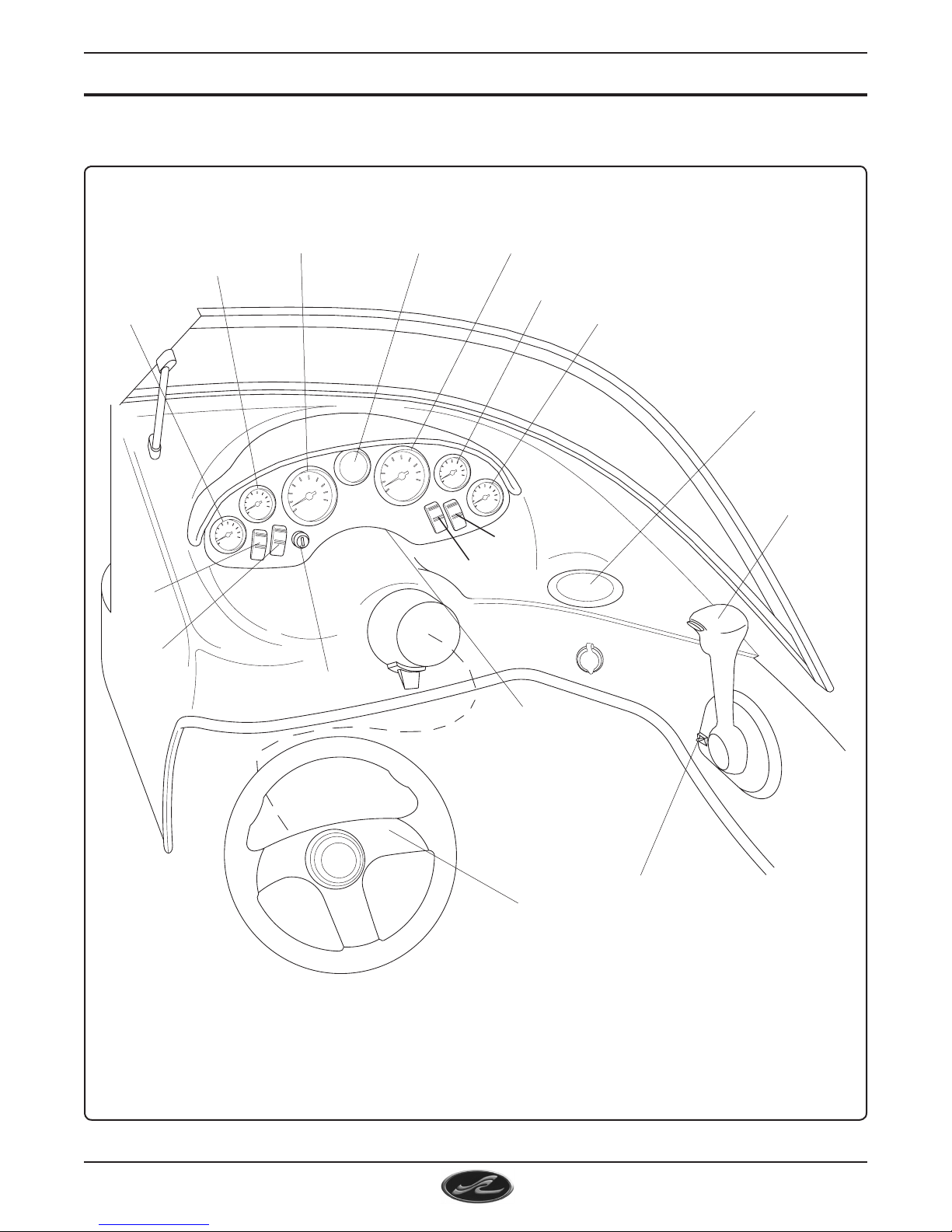

5. He l m , ga u g e & sw i T C H la y o u T

He l m

(fi g . 4.1)

SHIFT/THROTTLE

CONTROL

SWITCH/GAUGE PANEL

IGNITION SWITCH

TACHOMETER SPEEDOMETER

STEERING WHEEL

IGNITION SHUTDOWN SWITCH

DRINK HOLDER

BLOWER

SWITCH

FUEL GAUGE

BLANK

TRIM GAUGE

OIL PRESSURE

GAUGE

WATER TEMPERATURE

GAUGE

BILGE

PUMP

NAVIGATION

LIGHTS

HORN

175 Sp o r t ow n e r S ma n u a l

175 Sport Manual Part Number: MRP 1902268

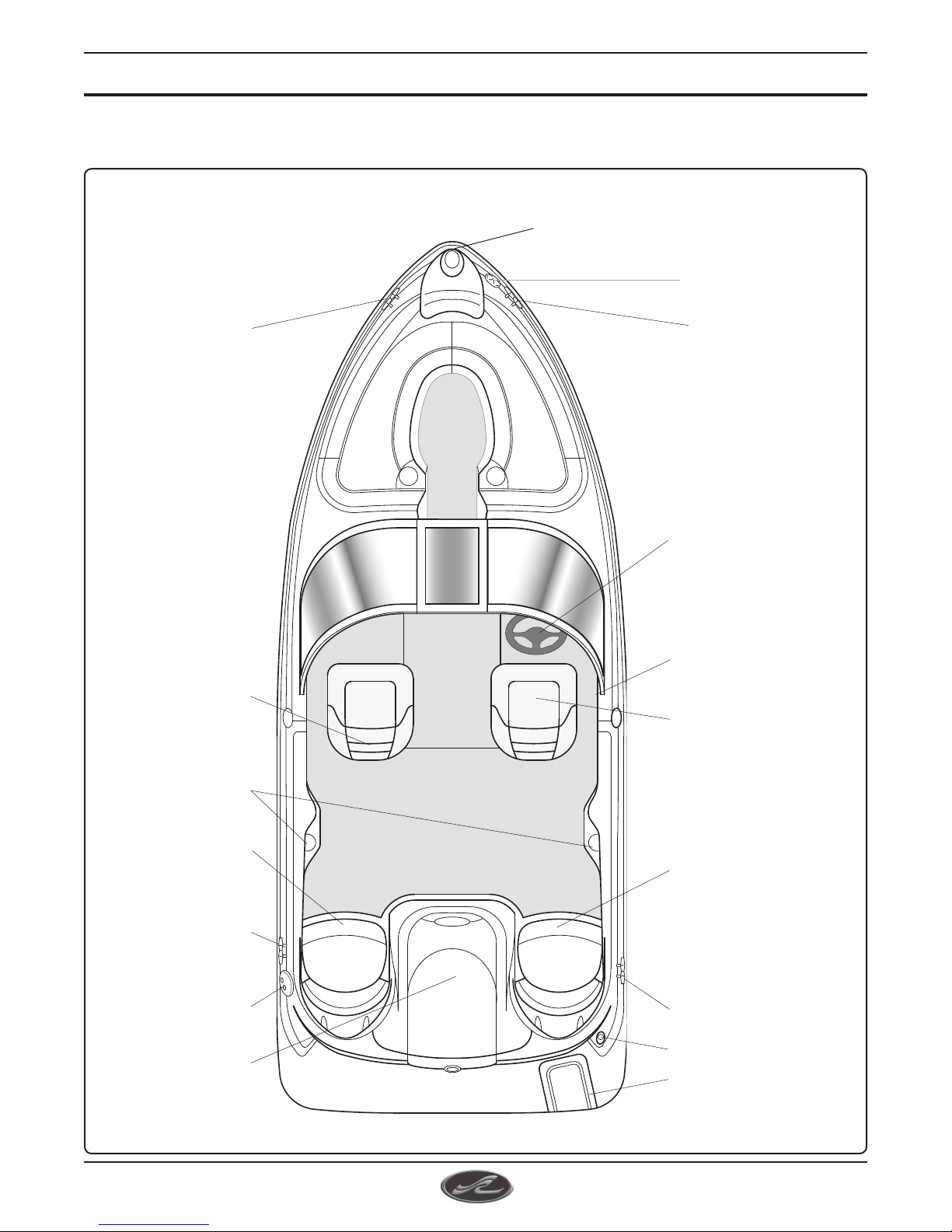

6. de C k la y o u T

ge n e r a l la y o u t

(fi g . 5.1)

ENGINE HATCH

CLEAT

HORN

NAV/ANCHOR LIGHT

CLEAT

COCKPIT

DRINK HOLDERS

HELM SEAT

AFT STARBOARD

SEAT

STEERING WHEEL

INSPECTION PLATE

FUEL

FILL

PASSENGER SEAT

AFT PORT SEAT

SWIM LADDER

NAVIGATION LIGHT

175 Sp o r t ow n e r S ma n u a l

175 Sport

Manual Part Number: MRP 1902268

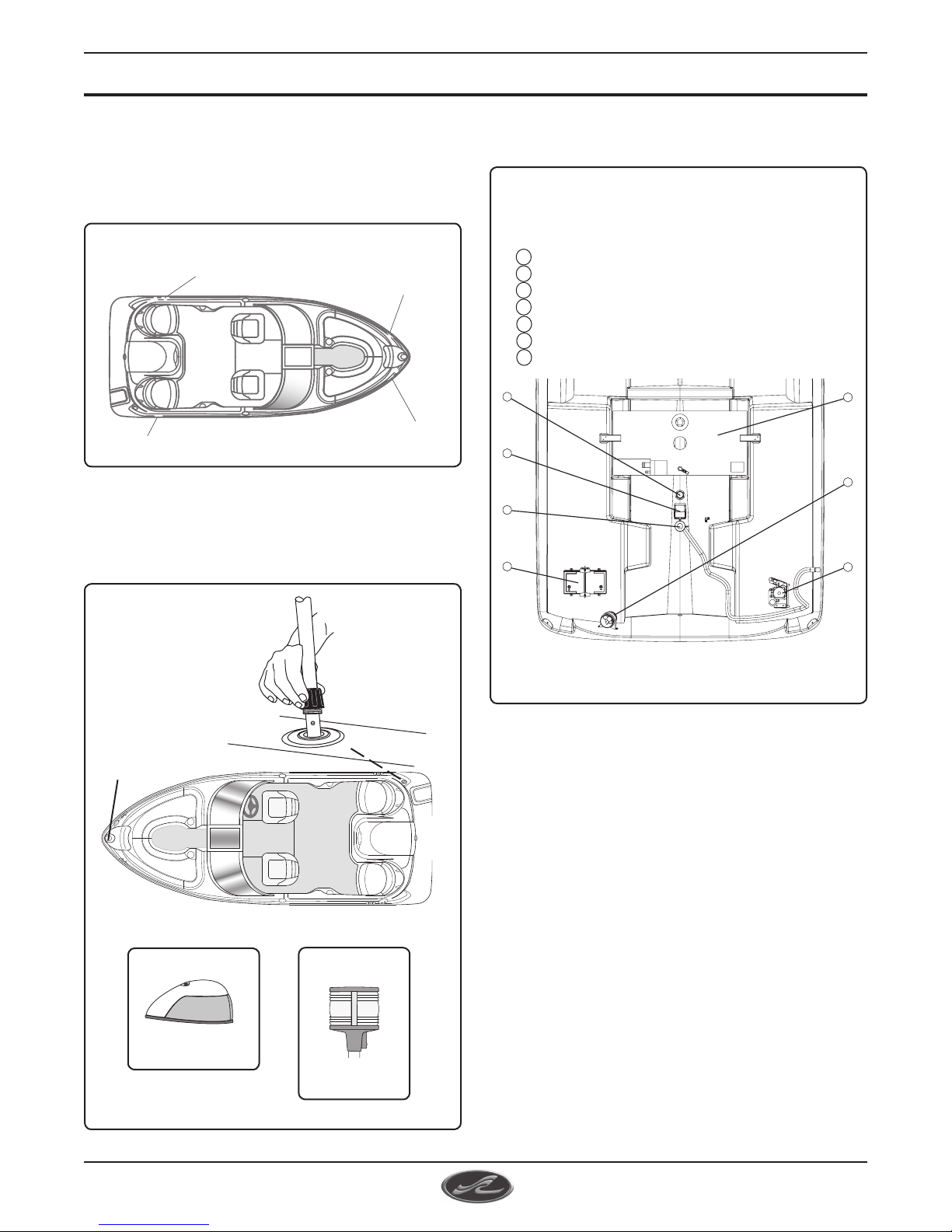

7. Cl e a T s

Cleats must not be used for lifting the boat; they

are intended for docking or mooring use only.

cl e a t lo c a t i o n S

(fi g . 6.1)

8. na v i g a T i o n a n d an C H o r li g H T s

See General Information Manual for a detailed

explanation of the anchor lights.

9. bi l g e la y o u T

Bi l g e la y o u t

(fi g . 6.3)

CLEAT

na v i g a t i o n a n d

an c H o r li g H t S

STERN NAVIGATION/

ANCHOR LIGHT

(REMOVABLE)

PORT/STBD

COMBO

NAVIGATION

LIGHT

(fi g .6.2)

STERN NAV. /

ANCHOR LIGHT

BULB REPLACEMENT

FUSE TYPE BULB

#12V10WPERKO

BULB REPLACEMENT

BULB# GE2641L

12V R 10W

PORT/STBD COMBO

NAV. LIGHT

TRANSDUCER (OPT)

FLOAT SWITCH

BILGE PUMP

BATTERY

FUEL TANK

BLOWER

POWER TRIM PUMP
