Scuba Force BLACK DEVIL Series User manual
BLACK DEVIL SERIES
REGULATOR MANUAL
Version: 2019-I-2 Page 2 of 33
REGULATOR MANUAL
Copyright
All Rights and technical changes reserved. Copying,Translating and photocopying
requires an angreement with SCUBA FORCE beforehand.
Feel free to use the Regulator after you read the User-manual carefully.
Warnings, Care-signs and annotations
Pay close attention to all given Information marked with Warnings, Care-signs and
annotations:
A WARNING highlights a procedure or situation, where the user, if not
taken care of the right way, can suffer serious injuries or worse.
CARE-SIGNS point out a situation or usage notice, where, if not
prevented, the product can take damage and therefore hurt the User in
the process.
ANNOTATIONS Refer to important key-points, reminders and notes.
WARNING: This User-manual contains important
instructions of the right installation, Inspection, usage
and maintenance of your new regulator. It is extremely
important that you take your time when reading the
manual so you can understand and enjoy every single
bit of your regulator.incorrect usage of your regulator
can cause damage or lethal injuries.
Version: 2019-I-2 Page 3 of 33
REGULATOR MANUAL
CONTENTS OF THE MANUAL
1. General cautions and warnings
2. Introduction
3. Usage of Nitrox (EAN) in european countries
4. Overview of features and functions
5. Setting possibilities outside on your second stage
Venturi-Setting
Knob for the inhalation resistance
6. Protection of the first stage against environmental influences
7. Additional emergency breathing systems
8. Preperation and installation of your regulator
Hose-installation
9. Second stage hose installation
10. Installation of the first stage to the compressed air bottle
11. Diving with your regulator
Checklist before your diving session
While you are diving
Diving in cold water
12. After your diving session
Removal of the regulator from the compressed air bottle
Maintenance and storage
Service and repairs
13. Disclaimer of liability and warranty
Guarantee information
Guarantee regulation
Guarantee condition
14. Markings and Abbrevations.
15. Combinations
16. Annotations
17. Regulator Service verification
Version: 2019-I-2 Page 4 of 33
REGULATOR MANUAL
General cautions and warnings
Before the usage of your regulator it is highly required that you have been
educated in diving and proven your skills through confirmation of international
diving schools or organisations.
The incorrect usage of your regulator through untrained or unqalified personel
is dangerous and can end in injuries or death.
This regulator must not be used for air supply above water levels.
Open the valve of the high pressure bottle slowly so the regulator can adjust
to the pressure.
NEVER use lubricants with your regulator and the bottle valve. Due to safety
reasons only trained SCUBA FORCE technicians have the permission to use
lubricants.
NEVER use solvents when cleaning your regulator. You must not use silicon
sprays or else to lubricate your regulator because its contents can damage
the rubber or Plastic E.g. the second stage casing.
The service recommended by the producer of your regulator should be carried
out at least once a year. The execution of said service has to be fulfilled by a
trained service-technician that is part of an employment relationship with an
authorized SCUBA FORCE dealer. Repairs, maintenance, dismanteling or
optimization work on the regulators can only be made by SCUBA FORCE-
trained and autorized personel
NEVER leave the pressured bottles connected with regulators alone. It can
fall onto the first stage and leave permanent damage at both the bottle valve
or the regulator itself.
Your regulator is by no means a “transportation or lifting device” for your
bottles. Use the designed handle at your bottle when carrying them.
Before diving in cold water (Water temperature below 10º C or below 50º F)
you require a special training as well as a certificate licensed by a competent
diving organisation. Furthermore you will need special equipment for cold
water. Equipment marked with the „bigger as 10° Celsius“ symbol (> 10°C) is
only usable for water temperatures above 10°C or 50°F
If you want to configurate your regulator with an additional emergency-
breathing system (Alternative air supply, Octopus)is the right choice of your
equipment required. Every device marked with EN250A is elligible for an
Octopus system.
SCUBA FORCE first stages have to be combined with a EN250:2014 certified
Pressure display.
Version: 2019-I-2 Page 5 of 33
REGULATOR MANUAL
INTRODUCTION
Congratulations and thank you for chosing a SCUBA FORCE regulator. Your new
regulator was crafted with greatest care. Constant inspections and checks ensure
our constant and high quality.
If your new regulator was delivered by an authorized SCUBA FORCE specialist
dealer you as first owner of the product gain 2 years waranty. For your own
comprehension please read the specified parts of the waranty service. Keep your bill
for waranty purposes.
Your regulator is probably the one piece of your equimpent which, aside from the
yearly inspection, depends on your own caretaking and cleaning.
Before you start diving with your regulator, you should have read the whole manual
so you can get used to its particularities. You get additional information towards a
correct method on preparing your diving session as well as information about
maintenance and service of you regulator after the diving session.
You will learn how to maximize your regulators potential and with regulated
maintenance you will have many years of enjoyable experiences.
WARNING: improper use of diving gear can lead to injuries and
death. Read and understand the whole manual before you go onto
a diving session with your SCUBA FORCE regulator.
ANNOTATION: All SCUBA FORCE regulators are according to
EN250:2014 and „Regulation (EU) 2016 / 425“(PSA) tested and
verified for a depth up to 50 meters.
ANNOTATION: this product gained its EU type examination through
DNV GL SE, Brooktorkai 18, D-20457 Hamburg, certifier 0098
Version: 2019-I-2 Page 6 of 33
REGULATOR MANUAL
Usage of Nitrox (EAN) in european Countries
The regulator you use was made for usage of clean, compressed atmospheric air.
(21% Oxygen and 79% nitrogen). The air has to meet the requirements of the
european standard EN 132, attachment A. Do not use your equipment with other
gasses or oxygenated gas mixtures with a higher proportion of Oxygen than 21%.
Ignoring this can lead to fatal accidents and death through fire or explosions.
The air supply has to meet the requirements of breathing air EN12021.
Version: 2019-I-2 Page 7 of 33
REGULATOR MANUAL
Overview of features and functions
The SCUBA FORCE regulator family consists of three different first stages and one
second stage which will be delivered in 2 different variants. Our regulator line clearly
focusses on the advanced and technical divers who make no compromises. your
specialized dealer has explained the differences between our variants and you
decided which one to buy. Read the following pages carefully to get the most out of
your regulator!
TECH
SM
PRO
2ND STAGE OCTOPUS AND MAIN REGULATOR
Version: 2019-I-2 Page 8 of 33
REGULATOR MANUAL

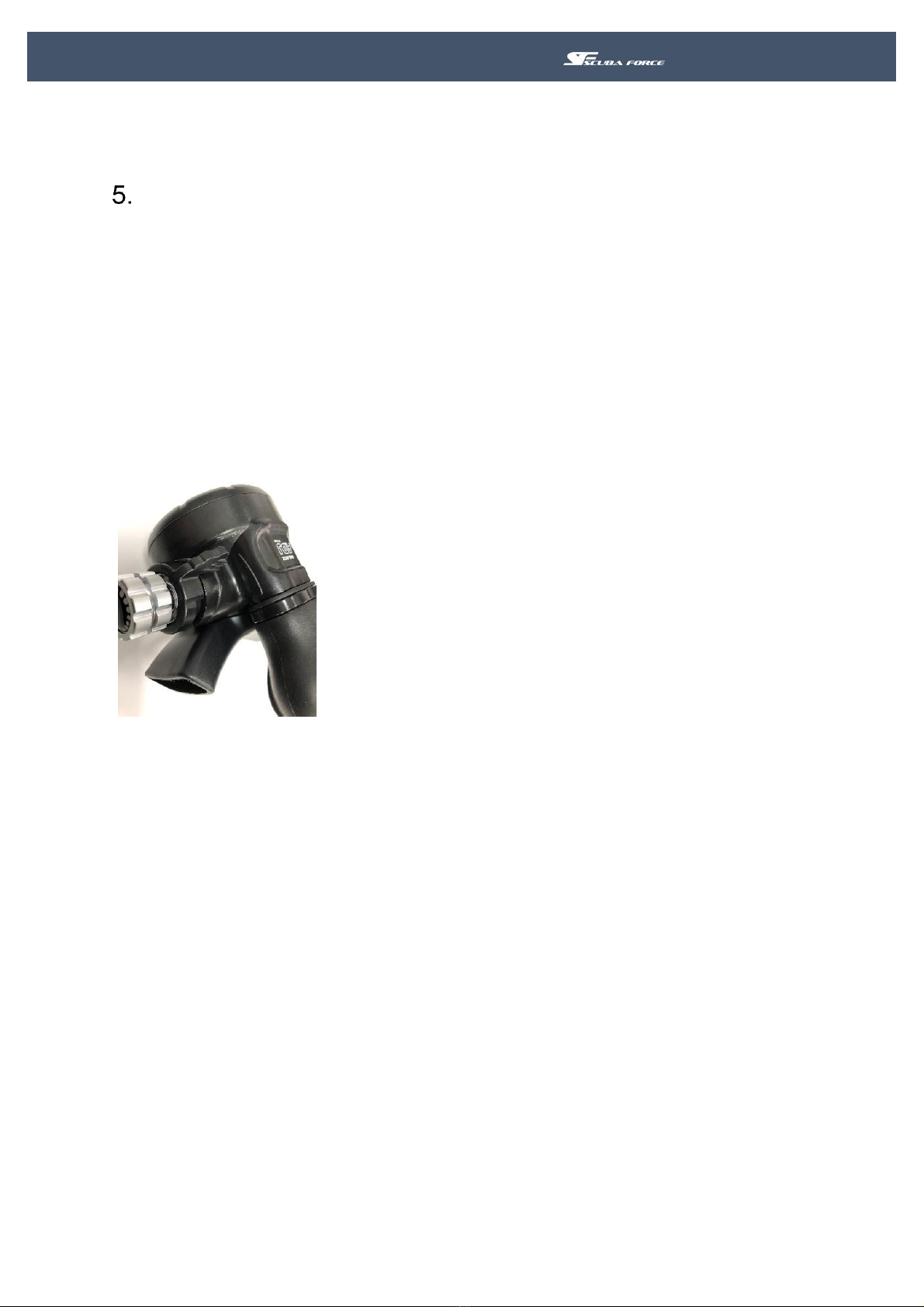

Setting possibilities outside on your Second stage
Setting possibilities outside on your second stage
Modifications on the outside of your second stage gives you more advantages
because you can change the sensitivity of the regulator depending on your own
personal preferences whilst changing diving conditions apply.
Venturi-Setting
The SCUBA FORCE second stages are equipped with a Venturi- Support. The
Venturi lever is located on the left side, opposite the hose connection and helps with
a bigger airflow after you started breathing in.
You open the Venturi support by turning the lever towards the mouthpiece. There is
a marking on top of the lever which shows what position the lever is currently in.
Version: 2019-I-2 Page 9 of 33
REGULATOR MANUAL
Knob for the inhalation resistance
The second stage of our Black Devil is also equipped with a inhalation-resistance
knob.
The knob is right next to the Venturi lever and it regulates the breathing effort which
you have to make to start the airflow. If you turn the knob clock-wise the resistance
increases.this means, that the second stage will be less sensible towards sudden
changes of environmental pressure. Turning the knob counter clock-wise will lower
the resistance again and you will be able to breath easier. These setting possibilites
are especially helpful in greater diving depth or under changing circumstances which
affect the second stage. Such as diving in heavy currents or using a underwater
scooter. You may use the knob to adjust the performance of your regulator as your
diving session continues, or you can leave it on a middle setting, which treats it the
same way like a non-adjustable one.
Through this knob on the second stage you can change the breathing resistance.
The bigger the dots the higher the breathing comfort.
Version: 2019-I-2 Page 10 of 33
REGULATOR MANUAL
The Black Devil 2nd Stage disposes a heat exchanger for a better performance in
cold water. Its position is right behind the hose connection.
A big bubble softer and an ergonomic mouthpiece enhance the comfort while diving.
