Scott SMV122 User manual

SMV122

OWNER'SMANUAL

CD DIGITALTUNER

withREMOTECONTROL

Visitourweb siteatwww.emersonscott.com

SMV122_ib_060402.p65 4/6/2002, 17:4331

TOPREVENTFIREORSHOCKHAZARD,DONOTUSE THISPLUGWITHAN

EXTENSIONCORD,RECEPTACLEOROTHEROUTLETUNLESS THEBLADES

CANBE FULLYINSERTEDTOPRESENTBLADEEXPOSURE.TOPREVENTFIRE

ORSHOCKHAZARD,DONOTEXPOSETHISAPPLIANCETORAINORMOISTURE.

IMPORTANTSAFETYINSTRUCTIONS

1.)Read theseinstructions.

2.)Keep theseinstructions.

3.)Heed all warnings.

4.)Followall instructions.

5.)Donotusethisapparatusnearwater.

6.)Clean onlywithdrycloth.

7.)Donotblock anyventilation openings.Install inaccordancewiththe manufacturer’s

instructions.

8.)Donotinstall nearanyheatsourcessuchasradiators,heatregisters,stoves,orother

apparatus(including amplifiers)thatproduceheat.

9.)Donotdefeatthesafetypurposeofthepolarizedorgrounding-typeplug.Apolarizedplughas

twobladeswithone widerthan the other.Agrounding type plug hastwobladesand athird

groundingprong.Thewidebladeorthethirdprongareprovidedforyoursafety.Iftheprovided

plug doesnotfitintoyouroutlet, consultanelectrician forreplacementofthe obsoleteoutlet.

10.)Protectthe powercordfrombeing walked on orpinched particularlyatplugs,convenience

receptacles,and the pointwheretheyexitfromthe apparatus.

11.)Onlyuseattachments/accessoriesspecified bythe manufacturer.

12.)Unplug thisapparatusduring lightning stormsorwhen unused forlong periodsoftime.

13.)Referall servicing toqualified servicepersonnel.Servicing isrequired when the apparatus

hasbeen damaged inanyway,suchaspower-supplycordorplug isdamaged,liquidhas

beenspilledorobjectshavefallenintotheapparatus,theapparatushasbeenexposedtorain

ormoisture,doesnotoperatenormally,orhasbeen dropped.

14.)Thisapplianceshall notbe exposed todripping orsplashing waterand thatno objectfilled

withliquidssuchasvasesshall be placed on the apparatus.

15.)Donotoverload wall outlet. Useonlypowersourceasindicated.

16.)Usereplacementpartsasspecified bythe manufacturer.

17.)The productmaybe mounted toawall onlyifrecommended bythe manufacturer.

18.)Upon completion ofanyserviceorrepairstothisproduct, ask the servicetechnician to

performsafetychecks.

WARNING

RISK OFELECTRICSHOCK

DONOTOPEN

The lightning flashwitharrow-

head symbol,withinan equi-

lateraltriangleisintented to

alertthe usertothe presence

ofuninsulated‘dangerousvoltage’

withinthe product’s enclosure

thatmaybe ofsufficient

magnitude toconstitutearisk

ofelectricshock topersons.

The exclamation pointwithin

an equilateraltriangleisin-

tended toalertthe userto

the presenceofimportant

operating and maintenance

(servicing)instructionsin

the literatureaccompany-

ing the appliance.

CAUTION:TOREDUCETHE

RISK OFELECTRICSHOCK

DONOTREMOVE COVER

(ORBACK),NOUSER

SERVICEABLEPARTSINSIDE

REFERSERVICINGTO

QUALIFIEDSERVICE

PERSONNEL.

SMV122_ib_060402.p65 4/6/2002, 17:421

Thankyou………………

forpurchasing thisH.H.SCOTT audioproduct. The H.H.SCOTT brand is

yourassuranceofquality,performanceand value.

Ourengineershaveincluded manyusefuland convenientfeaturesinthis

product. Pleasebe suretoread thisOwner’s Manualcompletelytomake

sureyou aregetting the maximumbenefitfromeachfeature.

Thisproductwasmanufactured using the highestqualitycomponentsand

standardsofworkmanship.It wastested byH.H.SCOTT inspectorsand

found tobe inperfectworking orderbeforeitleft ourfactory.However,

thereisalways the chancethatsomeproblemmayoccurbecauseofrough

handling during shipmenttothe retail storeortothe finalconsumer.

If,afterreading thisManual,youexperienceanyproblemswiththeoperation

ofthisproduct, pleaserefertothe instructionsforobtaining serviceatthe

end ofthisManual.H.H.SCOTT and H.H.SCOTT retailersarecommitted

toyoursatisfaction.

Onceagain,thanks forpurchasing thisH.H.SCOTT audioproduct.

Forfuturereference,recordthe serialnumberinthe spaceprovided.

ModelNo:SMV122

SerialNumber:

SMV122_ib_060402.p65 4/6/2002, 17:422

•Operatecontrolsand switchesas

described inthe manual.

•Beforeturning on the power,make

certainthatthe powercordisproperly

installed.

•When moving the set, be suretofirst

disconnectthepowercordandremove

cordsconnected tootherequipment.

•Avoidinstalling thisunitinplaces

exposed todirectsunlightorcloseto

heatradiating appliancessuchas

electricheaters,on top ofotherstereo

equipmentthatradiatestoo much

heat,placeslackingventilationordusty

areas,placessubjecttoconstant

vibration and/orhumidormoistareas.

FCC INFORMATION

Thisequipmenthasbeen tested and found tocomplywiththe limitsforaclass B

digitalDevice,pursuanttopart15 ofthe FCC Rules.Theselimitsaredesigned to

provide reasonableprotection againstharmfulinterferenceinaresidential

installation.Thisequipmentgenerates,uses,andcan radiateradiofrequencyenergy

and,ifnotinstalledand usedinaccordancewiththeinstructions,maycauseharmful

interferencetoradiocommunications.However,thereisno guarantee that

interferencewill notoccurinaparticularinstallation.If thisequipmentdoescause

harmfulinterferencetoradioortelevision reception,whichcan be determined by

turning the equipmentoff and on,the userisencouraged totrytocorrectthe

interferencebyone ormoreofthe following measures:

•Reorientorrelocatethe receiving antenna.

•Increasethe separation between the equipmentand receiver.

•Connectthe equipmentintoan outleton acircuitdifferentfromthattowhichthe

receiverisconnected.

•Consultthe dealeroran experienced radio/TVtechnician forhelp.

Thisdevicecomplieswithpart15 ofthe FCC Rules.Operation issubjecttothe

following twoconditions:

(1)Thisdevicemaynotcauseharmfulinterference,and

(2)Thisdevicemustacceptanyinterferencereceived,including interference

thatmaycauseundesired operation.

IMPORTANTNOTES

CLASS 1LASERPRODUCT

ThisproductcontainsalowpowerLaserDevice.

CAUTION

INVISIBLELASERRADIATION

WHENOPENANDINTERLOCKS

DEFEATED.

AVOIDEXPOSURETOBEAM

CLASS 1LASERPRODUCT

APPAREILÁLASERDECLASSE 1

PRODUCTOLASERDECLASE 1

SMV122_ib_060402.p65 4/6/2002, 17:423

Unpacking And SetUp

•Removethe unitfromthe carton,and removeall packing materialsfromthe

unit.

•Savethecartonandpackingmaterialsincasetheuniteverneedstobereturned

forservice.Using the originalcarton and packing materialsisthe onlywayto

safelyrepack the unitforshipment.

•Removeanydescriptivelabelsorstickersfromthe top orfrontofthe unit. Do

notremoveanylabelsfromthe back orbottomofthe cabinet.

•Removeanysmall stripsoftape thatmayhavebeen used topreventthe CD

doorfromopening intransit.

•Open the CD doorand removethe CD pickup protectcardfromthe CD

compartment. Discarditand closethe CD door.

•Unwind the FMwireantenna and extend ittoitsfull length.

•Placethe uniton astable,levelsurfacesuchasatable,desk,shelf, etcwithin

easy reachofan ACoutlet, outofdirectsunlight, and awayfromsourcesof

excessiveheat, dust, moistureorhumidity.

PowerSupply

Thisunitisdesigned tooperateonlyon normal120V60HzAChousecurrent.

Operating thisunitfromanyotherpowersourcemaycausedamage tothe unit

and suchdamage isnotcovered byyourwarranty.

Thisunithasapolarized ACplug withone wide blade and one narrowblade.This

plug will onlyfitintoamatching polarized ACoutlet. Thisisasafetyfeatureto

reducethe possibilityofelectricshock.If thisplug will notfitinyourACoutlet, you

probablyhavean outdated non-

polarized outlet. You shouldhave

youroutdated outletchanged bya

qualified,licensed electrician.Donot

filethe widebladeon theplug,oruse

an adaptertomakethe plug fitinto

youroutlet. Thisdefeatsthe safety

featureand couldexposeyou to

electricshock.

AC Plug

AC Outlet

PREPARATIONFORUSE

SMV122_ib_060402.p65 4/6/2002, 17:424

STEP 1

STEP 2

STEP 3

STEP 4

SETUPPROCEDURES

SMV122_ib_060402.p65 4/6/2002, 17:425

LOCATIONOFCONTROLSAND INDICATORS

BACK VIEW

FRONTVIEW

SMV122_ib_060402.p65 4/6/2002, 17:426

1.)POWER/STANDBY Button.

2.)TUN/SKIPUPButton.

3.)TUN/SKIPDN Button.

4.)CD PLAY /PAUSE Button.

5.)RANDOMButton.

6.)CD Button.

7.)TUNERButton.

8.)BAND Button.

9.)STANDBY LEDIndicator.

10.) MUTELEDIndicator.

11.)Speakers.

12.)CD Door.

13.) Multi-Function LCD Display.

14.)REMOTESENSOR.

15.)VOLDN Bntton.

16.)VOLUPButton.

17.)PRESETEQButton.

18.) MEMORY-UP/REPEATButton.

19.)CD STOPButton.

20.) MEMORY/C-ADJButton.

21.)CD DoorOPEN/CLOSE Button.

22.)ACSocket.

24.)LINEOUTRCAJacks.

23.)SUBWOOFERRCAJack.

25.)PHONES Jack.

26.)FMWireAntenna.

SMV122_ib_060402.p65 4/6/2002, 17:427

1.)TIMERButton.

2.)SLEEP Button.

3.)TUNERButton.

4.)BAND Button.

5.)TUNINGUp/

CD SkipSearchForwardButton.

6.)TUNINGDown/

CD SkipSearchReverseButton.

7.)INTROButton.

8.)MEMORY/C-ADJButton.

9.)MUTEButton.

10.)InfraRed SignalTransmitLED.

11.)POWEROn/Off Button.

12.)NumberKeyPads.

13.)REMAIN/MODEButton.

14.)RANDOMButton.

15.)REPEAT/MEM-UPButton.

16.)CD PLAY /PAUSE Button.

17.)CDSTOPButton.

18.)CD Button.

19.)VOLUMEDOWN/UPButtons.

20.)PRESETEQButton.

REMOTECONTROL

SMV122_ib_060402.p65 4/6/2002, 17:428

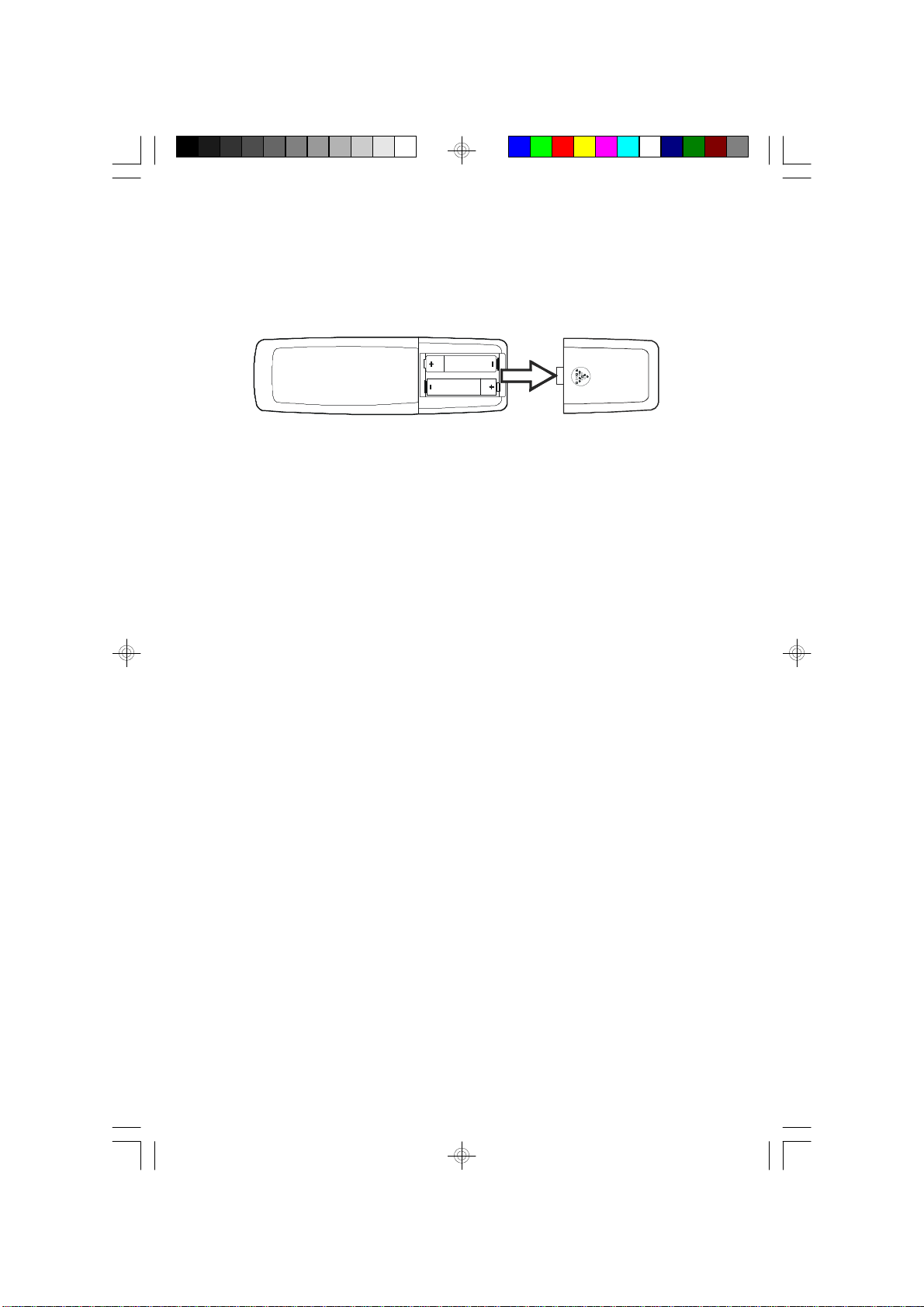

BATTERYINSTALLATION

Insert2‘AAA’sizealkaline batteries,notincluded,intothe batterycompartment

ofthe remotehandset, observing the batterypolarityand replacethe cover.

BATTERYREPLACEMENT

Whenthebatteriesbecometooweak,theoperatingdistanceoftheremotehandset

isgreatlyreduced and you will need toreplacethe batteries.

NOTES:

•Tomaintainthe accuracy and long lifeofthe transmitter,do notpress twoor

morebuttonssimultaneously.

•If the remotecontrolisnottobe used foralong time,removethe batteriesto

preventpossibledamage through leaking batteries.

•Donotmixdifferenttypesofbatteries,oroldbatterieswithnewones.

USINGTHEREMOTECONTROLLERCORRECTLY

•Pointthe remotehandsetatthe RemoteSensoron the frontpanel.

•The functionsofthe buttonson the remotehandsetarethe sameasthe

corresponding controlson the mainunit.

•When thereisastrong ambientlightsource,the performanceofthe infrared

RemoteSensormaybe degraded,causing unreliableoperation.

•The maximumeffectivedistanceforremotecontroloperation isabout16 feet

(Approx.5m)

SMV122_ib_060402.p65 4/6/2002, 17:429
