Schonbek Geometrix DVT1012A User manual
6 Lights
Diameter: 10"
Height: 11-1/2"
Trim Diagram
Da Vinci Lamp DVT1012A
Schonbek Worldwide Lighting Inc., 61 Industrial Blvd., Plattsburgh NY 12901-1908
Tel: 800.836.1892 or 518.563.7500 www.schonbek.com or www.geometrix-lighting.com
For cleaning instructions, visit www.schonbek.com or www.geometrix-lighting.com
© 2006 SCHONBEK WORLDWIDE LIGHTING INC., A. SCHONBEK & CO. LTD. WORLDWIDE COPYRIGHT RESERVED
US UTILITY PATENT #5,906,430, D560,019 & D558,390
Geometrixis designed by Schonbek
with Swarovski Spectra®crystal.
This design is the proprietary trade
dress/trademark of Schonbek Worldwide Lighting Inc.
Please save your trim diagram for future reference.
IMPORTANT: Label on back contains important
information on your crystal. Please save in case you
ever need to order matching crystal.
CANADIAN DESIGN #116775
D
DVT1012A page 7
DVT1012A page 2
Frequency of cleaning crystal
We know people who clean their crystal every few months, because
they love handling the crystals and admiring them close up. Others do
a cleaning every six or nine months.
To stretch the time between cleanings, dust lightly every two or three
months with a feather duster, lambswool duster or make-up brush.
Frequency of cleaning depends on location of your Da Vinci and other
environmental factors.
Crystal needs cleaning when it appears dusty or dull. Just look at your
Da Vinci frequently (always enjoyable), and you'll know when it's time
for a cleaning.
How to clean your Da Vinci:
Your Da Vinci is dishwasher safe!
1Wash Da Vinci in its own cycle. Do NOT wash with silverware or dishes.
2Carefully place crystal sections in dishwasher. Make sure that the
crystal sections are not touching each other as this could cause chipping.
3Use good quality detergent and anti-spotting rinse following the
instructions of the dishwasher manufacturer. Cleaners with bleach or
ammonia should NOT be used.
4Allow crystal panels to cool before handling and reassembling your
Da Vinci. If sections are brought directly from the hot dishwasher to a cold
area, the drastic temperature change could cause crystal to crack.
5Put on gloves to handle your now clean crystal sections. See page 4 for
assembly instructions.
NOTES:
REPLACING CRYSTAL:
If a crystal breaks, you'll see a bare spot in the framework. You will
need a set of needlenose pliers to replace the crystal. Make sure
when placing pliers onto the metal tab that the ends of the pliers
do not go beyond and scratch the crystal.
ATurn both tabs 90° counterclockwise on either side of pocket
where the octagon should be.
BSlide crystal octagon into pocket. Turn both tabs clockwise
back to original position to hold the octagon in place.
DVT1012A page 3
DVT1012A page 6
8002/10
8002/12
8002/14
8002/10
8002/12
8002/12
8002/16
8002/20
8002/24
8002/26
8002/28
8002/30
8002/28
8002/26
8002/24
8002/20
8002/16
8002/12
BOTTOMTOP
8002/10 LARGE TOP
OCTAGON
8002/24
CRYSTAL IDENTIFICATION SHEET
8002/16 8002/10
8002/16
CRYSTAL SECTIONS
LARGE BOTTOM
OCTAGON
8002/24
DVT1012A page 5
DVT1012A page 4

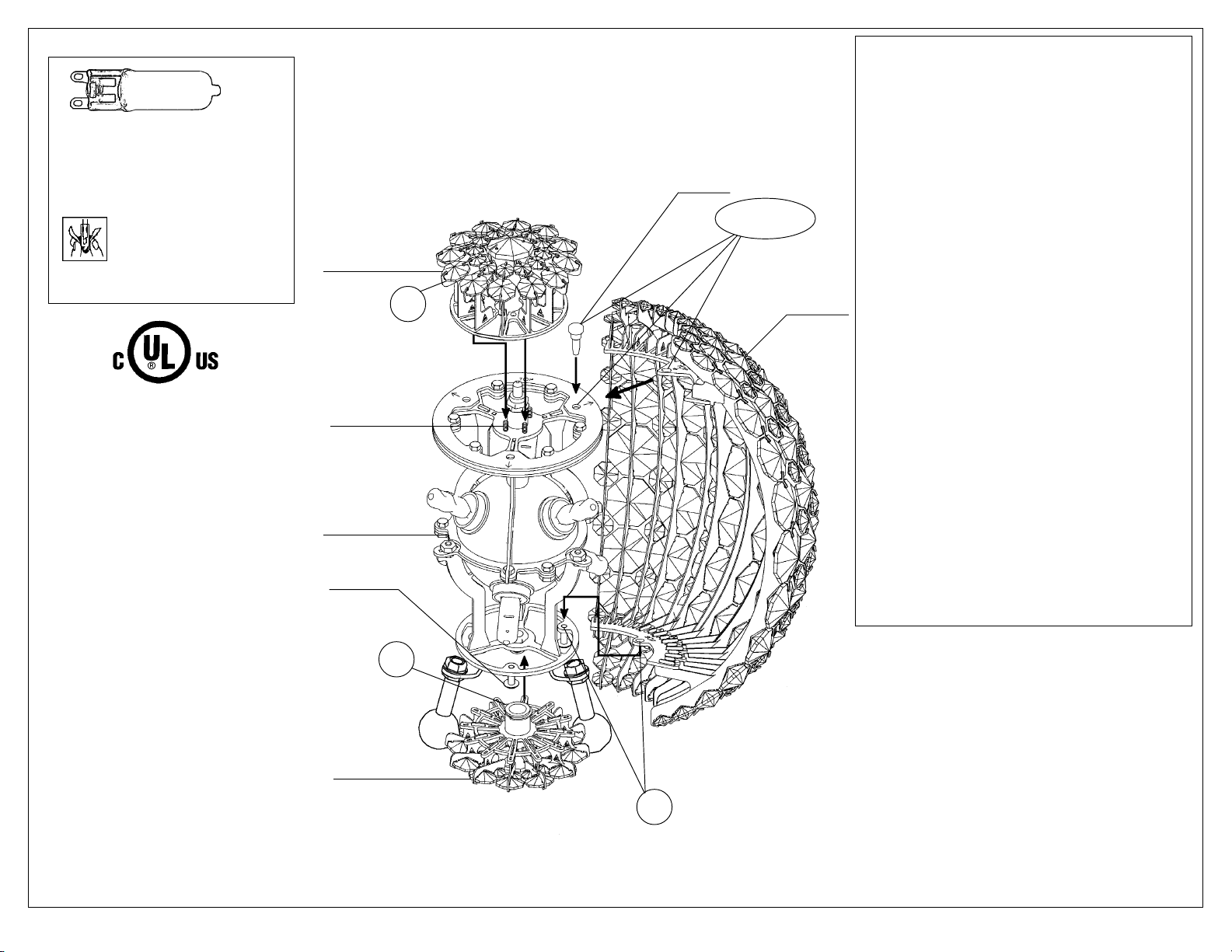

How to Assemble Your
Da Vinci Lamp:
Put on white cotton gloves to handle
crystal.
3Align arrows at top of one crystal
section of the sphere (labeled "TOP").
4Slide guide tab into slot to line up holes
for locking pin.
5To secure the crystal section, slide pin
into hole. Push pin in until it seats.
HOLD ON SECURELY TO CRYSTAL
SECTION UNTIL YOU ARE SURE PIN IS
ENGAGED.
6Align holes on the bottom of crystal
section with the screw on the bottom of
the frame (labeled "BOT"). Tighten screw.
Repeat steps 3 - 6 with other two crystal
sections.
7Assemble top by dropping in the crystal
circle by aligning the (4) holes in crystal
circle bottom plate with the (4) locating
studs on top of frame.
8Assemble bottom by screwing in bottom
circle of crystal.
6 - G9 JCD
(Supplied - Schonbek #JCD-G9-40)
40 Watts Max
Install bulbs and be sure to test
fixture BEFORE assembly.
To avoid damaging, do
NOT touch bulb with bare
hands. Install bulb with
clean cloth or tissue.
How to take apart your Da
Vinci for changing bulbs or
washing:
1Remove top crystal circle.
2Remove bottom by unscrewing large bottom
crystal octagon.
3 Once the bottom crystal is completely
unscrewed, remove the entire bottom circle of
crystal. Da Vinci comes apart like an orange, in
three sections.
4Locate and remove screws on the bottom of
the ball. Do NOT discard screws, they are
required for reassembly.
5Locate the locking pin inside the top of the
ball.
6While holding one section of the ball,
remove the pin by pulling it up. The crystal
section can then be removed.
7Remove the other two crystal sections in the
same manner, so that all that remains is the
frame with bulbs.
8Replace necessary bulbs.
If you are cleaning your Da Vinci, all crystal
parts can now be placed in the dishwasher.
See page 7 for cleaning instructions
7
FRAME
8
6
BOTTOM
TOP
CRYSTAL
CIRCLE
BOTTOM
CIRCLE OF
CRYSTAL
SCREWS
3, 4 & 5
#11068
CRYSTAL
SECTION
LOCATING
STUD
